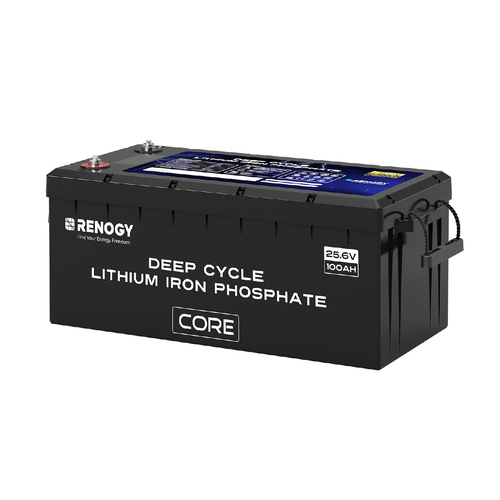

24V 100Ah Core Series Deep Cycle LiFe PO4 Battery

Dive into Off Grid Travel

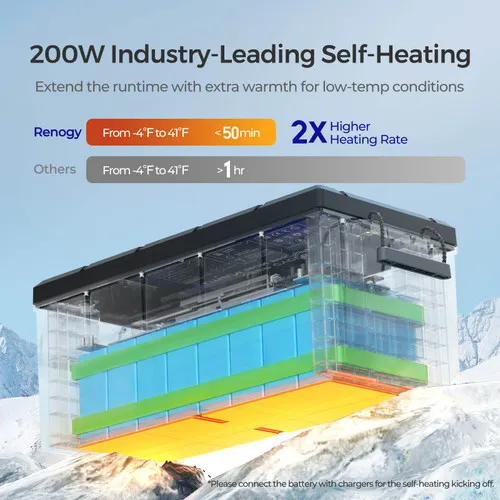

Renogy 24V 100Ah LiFePO4 battery boasts industry-leading self-heating capabilities, thanks to integrated 200W heating elements. When the temperature drops, this battery warms up 2X faster than standard heated batteries, ensuring uninterrupted performance, and making it a dependable choice for cold climates.



But that's not all – this LiFePO4 battery is incredibly lightweight yet packs a punch with high energy density and an impressive lifespan of over 5000 cycles at 80% depth of discharge. Compared to traditional lead-acid solutions, it's a featherweight, offering a remarkable 61% reduction in weight, making it perfect for boating & fishing enthusiasts and anyone looking to reduce their load on the move.

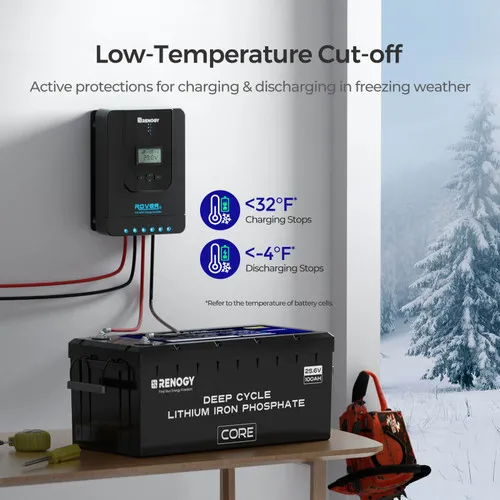

Worried about cold weather? Don't be. This battery comes with built-in low-temperature protections, adding an extra layer of security, and allowing it to function flawlessly in chilly conditions.





What's Included:

• 1x 24V 100Ah Deep Cycle Lithium Iron Phosphate Battery
• 2x Long Terminal Bolts
• 2x Insulating Sleeve
• 1x User Manual







Electrical Specifications:

• Rated Capacity (0.5C, 25℃): 100Ah
• Nominal Voltage: 25.6V
• Energy: 2560Wh
• Cycle Life (0.5C/1C, 25℃): 5000 Cycles (80% DOD, 80% EOL)







Temperature Parameters:

• Operation Temperature Range: Charge: -20°C to 55°C / -4°F to 131°F
• Operation Temperature Range: Discharge: -20°C to 60°C / -4°F to 140°F
• Storage Temperature Range: -25°C to 65°C / -13°F to 149°F
• Operation Relative Humidity: 10% to 95%









Mechanical Specifications:

• Dimension (L x W x H): 522 x 240 x 219 mm / 20.55 x 9.45 x 8.62 in
• Weight: 21.0 kg / 46.3 lbs
• Terminal Bolt Size: M8 x 1.25 x 15 mm
• Protection Rating: IP65
• Self-heating: Yes







Charging Parameters:

• Charge Voltage: 29V
• Maximum Continuous Charge Current: 100A
• Discharging Parameters
• Maximum Continuous Discharge Current: 100A
• Peak Discharge Current: 300A@5s







Warranty:

• 5-year material warranty







Certifications:

• MSDS, UN38.3, FCC, PSE, CE, UKCA
