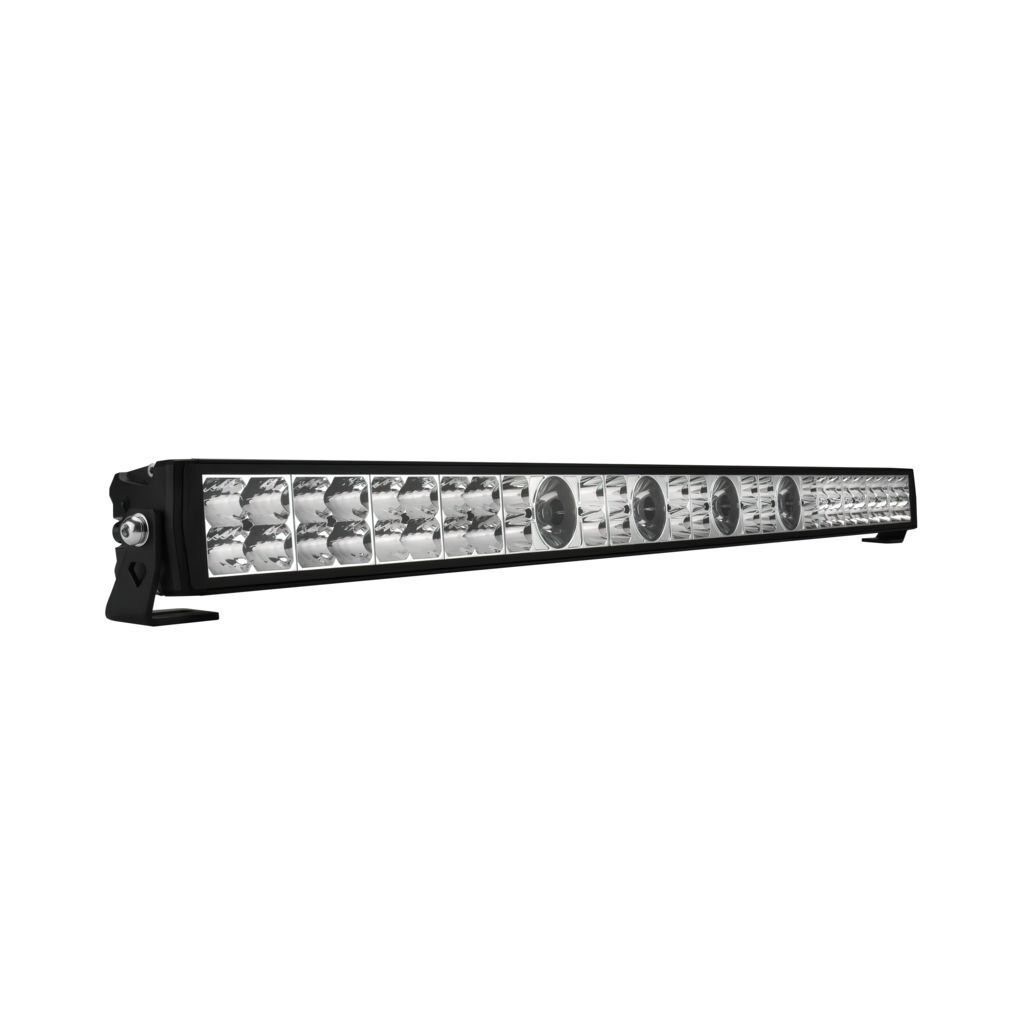

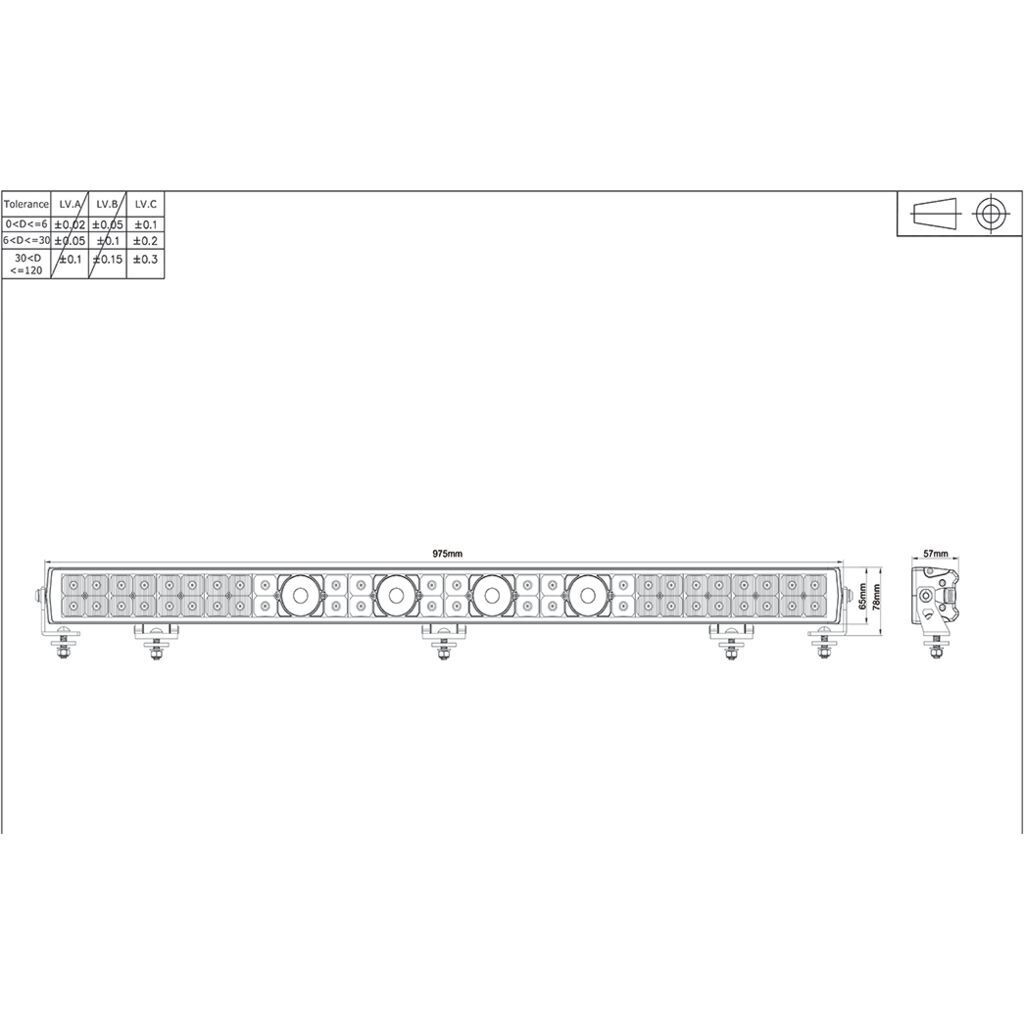

38" LASER LED LIGHTBAR COMBO BEAM 975mm
Ignite 40" Dual Row Laser LED Driving Lamp Lightbar 9 - 36 Volt 272 Watt
Polycarbonate Side Reflector Focusing Optic Drive Technology and Laser LED Drive Technology
with Lexan Polycarbonate Lens
Light Transmittance >95%
Integrated Electronic Thermal Management (ETM)
Black Anodized Polyester Powder coated Extruded 6063 Aluminium Housing with integrated Heat-Sink
and Pressure Equalising Vent
Dual Mounting Systems; 6063 Aluminium Bottom Mount Brackets and SUS201 Stainless Steel Side Mount Brackets
Combined Laser and LED Illumination Technology
Cross slider bracket assembly allows the Bottom Brackets to be positioned anywhere along bars length
500mm Lead with 2 Pin Deutsch Plug
Over and Under Voltage Protection
Reverse Polarity Protection
UV, Water and Shock resistant to 15G
Anti Rust, corrosion and freezing resistance
50,000 Hours LED Lifespan
ECE R10 and CE Approved
IP68 and IP69K Rating
Environment Temperature: -40°C ~ +60°C

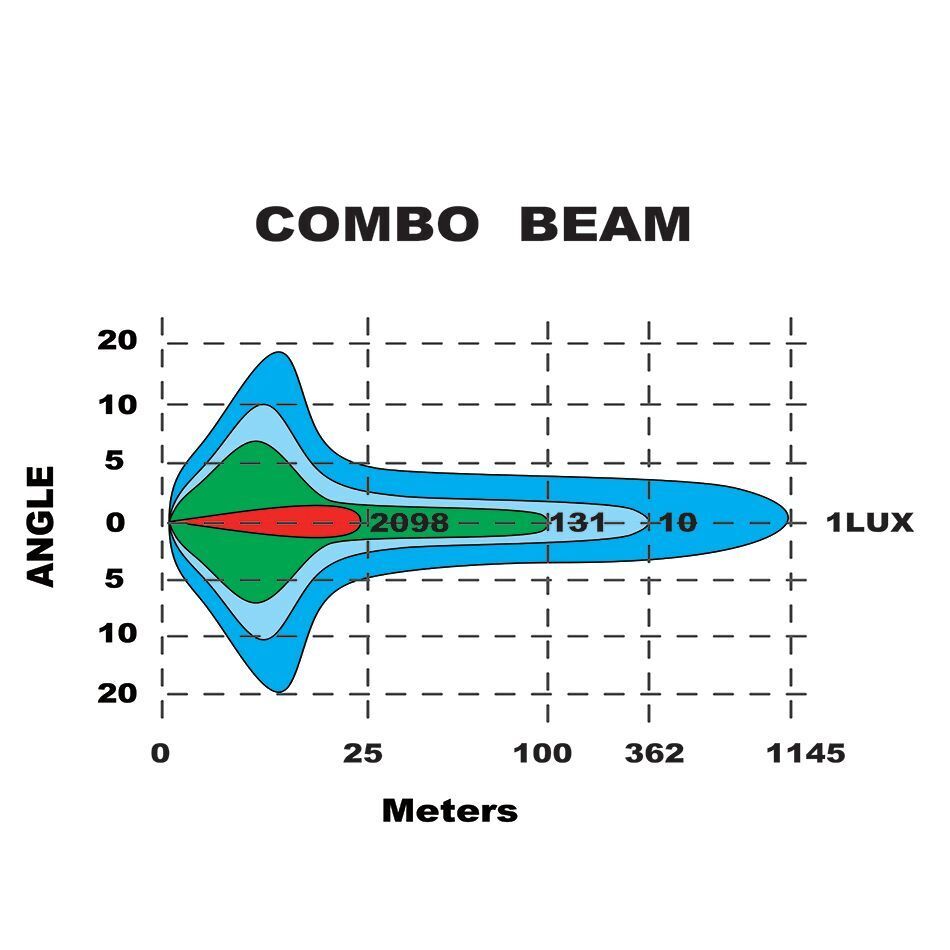

8° Laser Pencil Beam and 20° LED Flood Beam providing a combined Combo Beam pattern
5 Year Warranty
Weight: _ _ _g
48 x 4 Watt High Intensity LP LED's and 4 x 20 Watt High Intensity Osram Laser LED's
20,000 Raw and 17,000 Effective Lumens and 6,000K
1 Lux @ 1,145m and 1,312,000cd Peak Beam Intensity
Current Draw: 15.2amp @ 12 Volt and 7.5amp @ 24 Volt
(ILLB4804)
SKU | ILLB4804 |
Barcode # | 9323327947058 |
Brand | Ignite |
