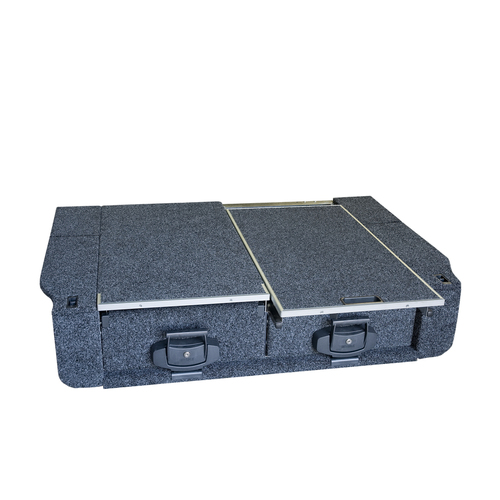

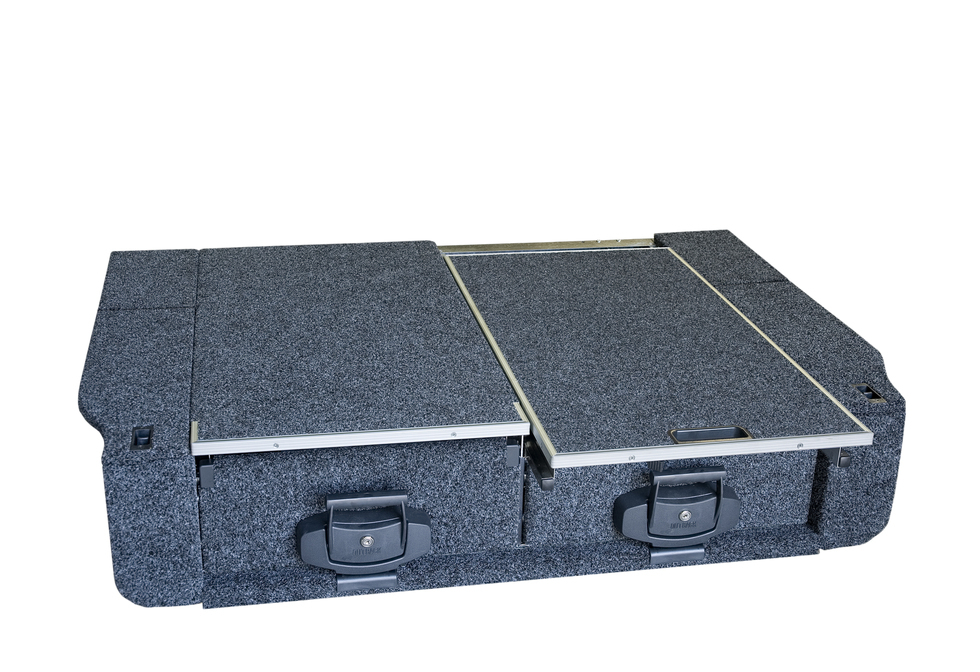

4WD Interiors Outback Twin Drawer System – Isuzu D-Max RG MY21 09/2020-on
4WD Interiors Outback Roller Drawers are an essential accessory for your 4WD.
Be it tools, camping gear, spares, recovery gear or anything else, these drawers will take whatever you can throw at them.
These ADR compliant drawers are engineered for both on and off-road touring with an anti-rattle design and are fitted out with UV Stable marine carpet on water-resistant bonded marine ply with steel reinforced guards for superior strength.
A Cross-folded floor ensures maximum support for items placed within each unit. Up to a Maximum of 150Kg per drawer, 300kg combined.
Key-lockable drawers are supplied as standard to ensure safe storage of your valuables and can be even used for firearm transport.
To account for all requirements, these drawers are available in 3 styles, Fixed top, Single side roller top (great for a fridge slide), or Dual roller top. The single side option is supplied as the right-hand drawer, but the mechanism can be converted to the left-hand drawer module at the time of installation
Reckon you may have seen these before? 4WD Interiors are the OE manufacturer for a number of 3-letter 4WD accessory stores.
Specs:
- Drawer Internal: 1260L X 440W X 260H
- Frame External: 1360L X 1005W X 320H
- Weight: approx 100-105kgs
Suits:
- Isuzu D-Max RG MY21 09/2020-on Dual Cab
 |
Roller Drawer "Anti Roll Back" The purpose-designed, anti-rollback mechanism holds the Drawer in the open position when loading and unloading; pull back to release - roll shut |
 |

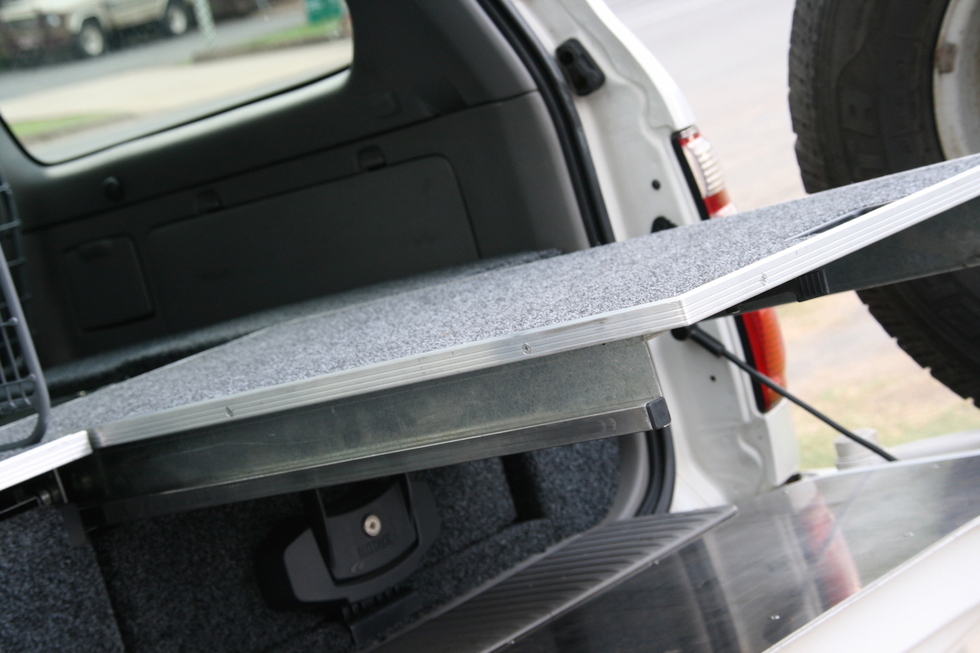

Roller Floor "Anti Roll Back" The purpose-designed, anti-rollback mechanism holds the optional Roller Floor in open position; pull back to release - roll shut. |
 |
Safety Hand Gap The Safety Hand Gap avoids unnecessary injury if you, children or anybody else should accidentally place fingers, a hand or hands on top of the drawer when closing. |
 |
Stainless Steel Drawer & Roller Floor Runners Non Corrosive stainless steel Drawer and Roller Floor runners provide smooth effortless rolling when opening and closing Drawers or Roller Floor. |
 |

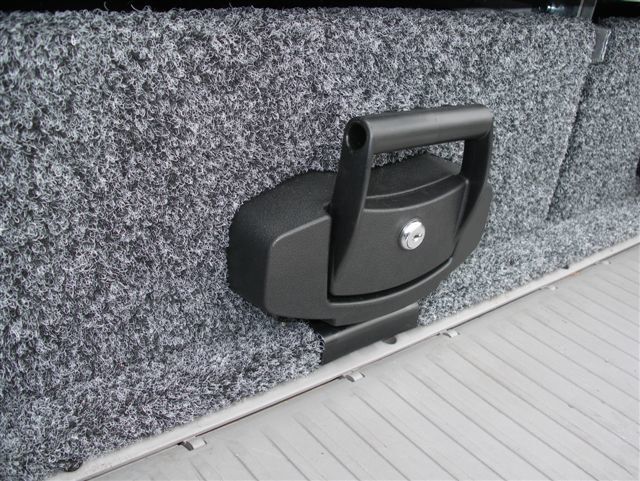

Grab-Handle Slam Latches These Slam Latches are a joy to use and are purpose-designed and engineered by us to last a lifetime. Key lockable - Pull to open - Push to close. |
 |
Side Bearings Side bearings prevent any side to side movement when opening and closing drawers and ensuring "true track" rolling. |
 |
Roller Floor "Lever Action" Slam Latch The Roller Floor Slam Latch is purpose-designed and engineered by us for ease of use. Push to the side. Roll out. Slam shut. |
 |
Roller Drawer "Anti-Rattle" Side Guides Provide smooth "true track" rolling when opening and closing Roller Floor. When closed, prevents any side to side or up and down movement. |
 |
Full Side Access The rear half of the Side Contour Floor is removable giving full access to wheel arch storage area. |
 |
Drawer Dividers Two (2) Drawer Dividers are supplied with each unit- one for each drawer. Others are available on request. |
 |
Fold-Down Anchor Points Set of four (4) anchor points are supplied with Roller Floor option for fastening fridge or tool boxes to Roller Floor. Others are available on request. |
 |
Child Restraint Anchor Points Pre-installed in front panel behind rear seat for Wagon type Drawer Systems (not available for dual cab vehicles) |
 |
6mm Thick Hard Wearing Industrial Carpet Guaranteed 100% UV stabilized, resistant to rot, mildew, will not tear, fray or fibres break down due to ultra violet rays. |
(156823)
| SKU | 156823 |
| Brand | 4WD Interiors |
