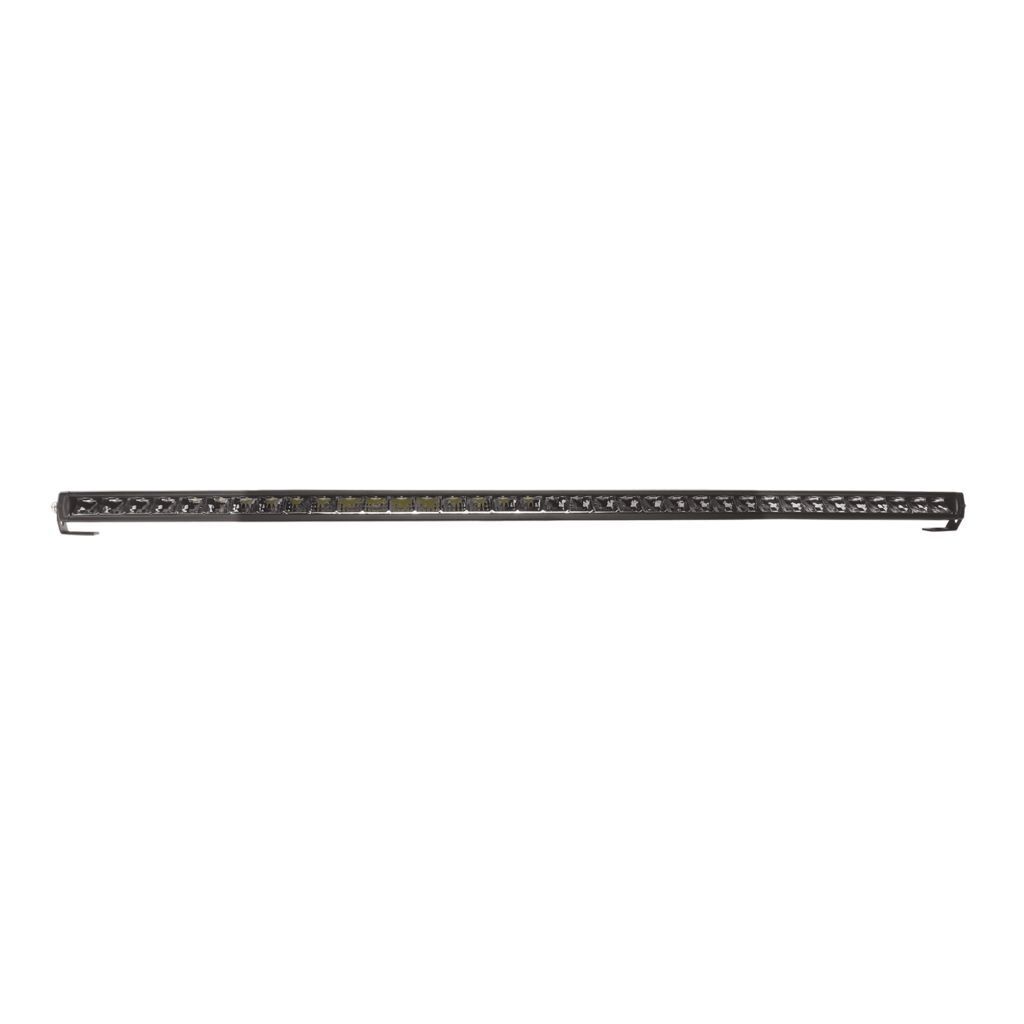

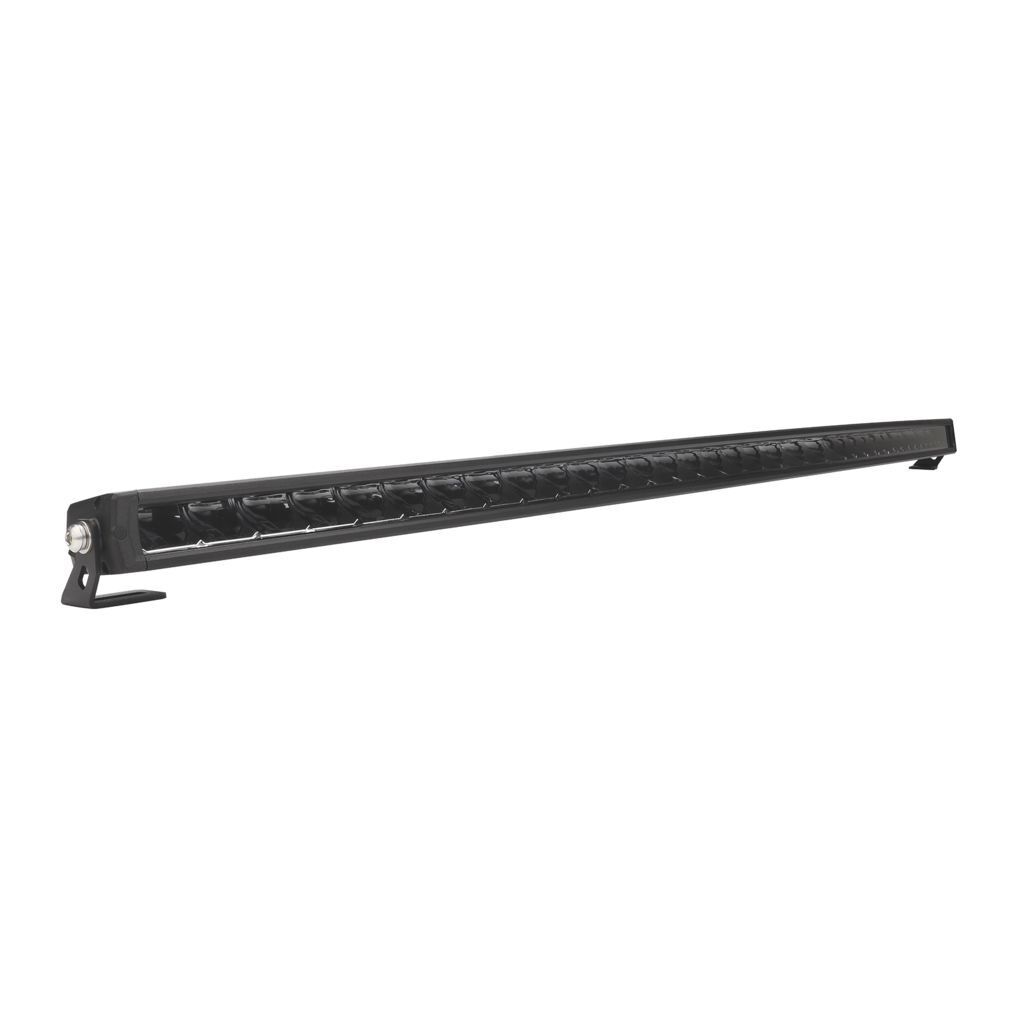

50" LED CURVED LIGHTBAR 1,274mm

Ignite Ultra Slimline Single Row Curved LED Driving Lamp Lightbar 9 - 36 Volt 252 Watt
Light Transmittance >95%
Integrated Electronic Thermal Management (ETM)
Black Anodized Polyester Powder coated Extruded 6063 Aluminium Housing with integrated Heat-Sink
and Pressure Equalising Vent
Dual Mounting Systems; 6063 Aluminium Bottom Mount Brackets and SUS201 Stainless Steel Side Mount Brackets
Cross slider bracket assembly allows the Bottom Brackets to be positioned anywhere along bars length
500mm Lead with 2 Pin Deutsch Plug
Driving Beam Pattern
Over and Under Voltage Protection
Reverse Polarity Protection
UV, Water and Shock resistant
50,000 Hours LED Lifespan
ECE R112 (Ref 50), R10 and CE Approved
IP68 and IP69K Rating
Environment Temperature: -40°C ~ +60°C
5 Year Warranty
Weight: _._ _kg
36 x 7 Watt High Intensity LP LED's
22,200 Raw and 18,800 Effective Lumens and 6,000K
1 Lux @ 460m and 211,600cd Peak Beam Intensity
Current Draw: 16amp @ 12 Volt and 7.7amp @ 24 Volt
Polycarbonate Reflector Focusing Optic Drive Technology with Lexan Polycarbonate Lens
