7" LED HEADLIGHT 9-36V HIGH/LOW BEAM CHROME FASCIA

WAS $329.00
RRP $329.00
NOW $296.10
SAVE 10%!
Sale Ends in
23:59 pm, 25 November 2024
In Stock



Calculate Shipping



Road Shipping - $9.95
We will email you your tracking number once dispatched.

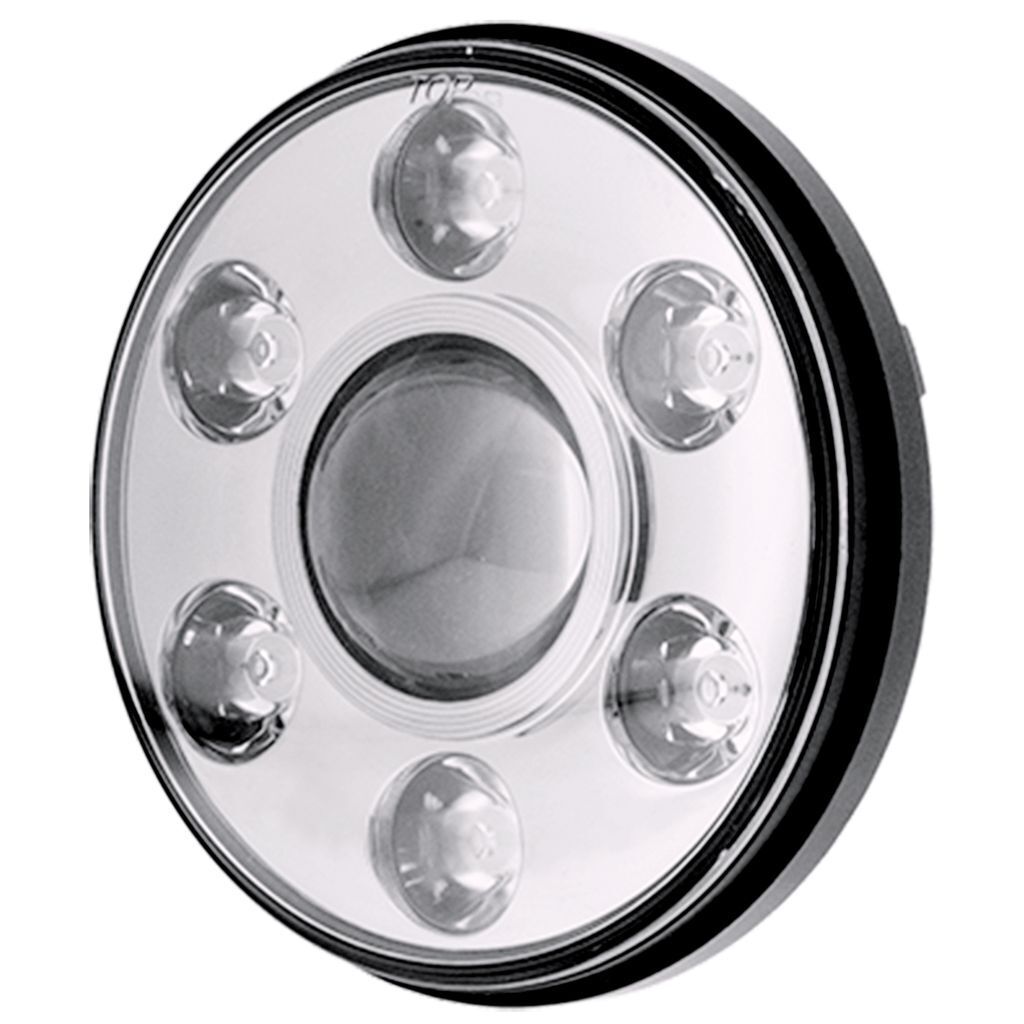

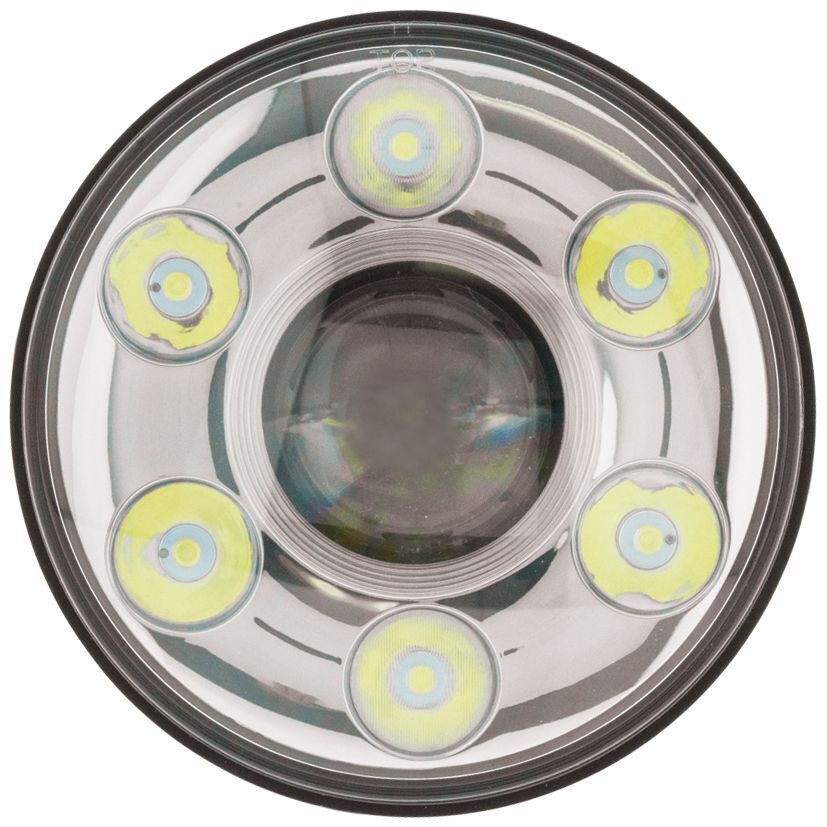

Ignite 7" Round LED Headlamp 9 - 36 Volt 65 Watt

High/Low Beam and Park Light - Chrome Fascia

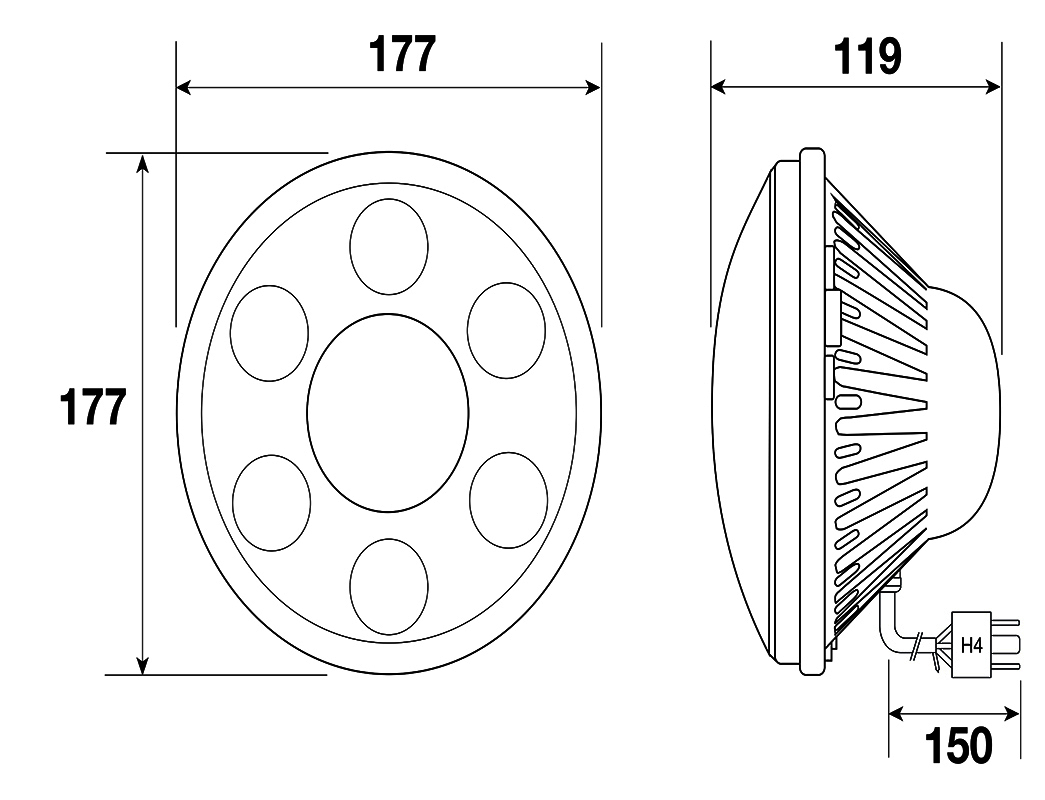

7" or 178mm Round

6 x 10 Watt High-Intensity CREE LEDs for Park Light and High Beam

1 x 5 Watt High-Intensity LUMI LED for Low Beam

Current Draw: 4.1amp at 12 Volt, 1.8amp at 24 Volt High Beam

1.7amp at 12 Volt, 0.8amp at 24 Volt for Low Beam

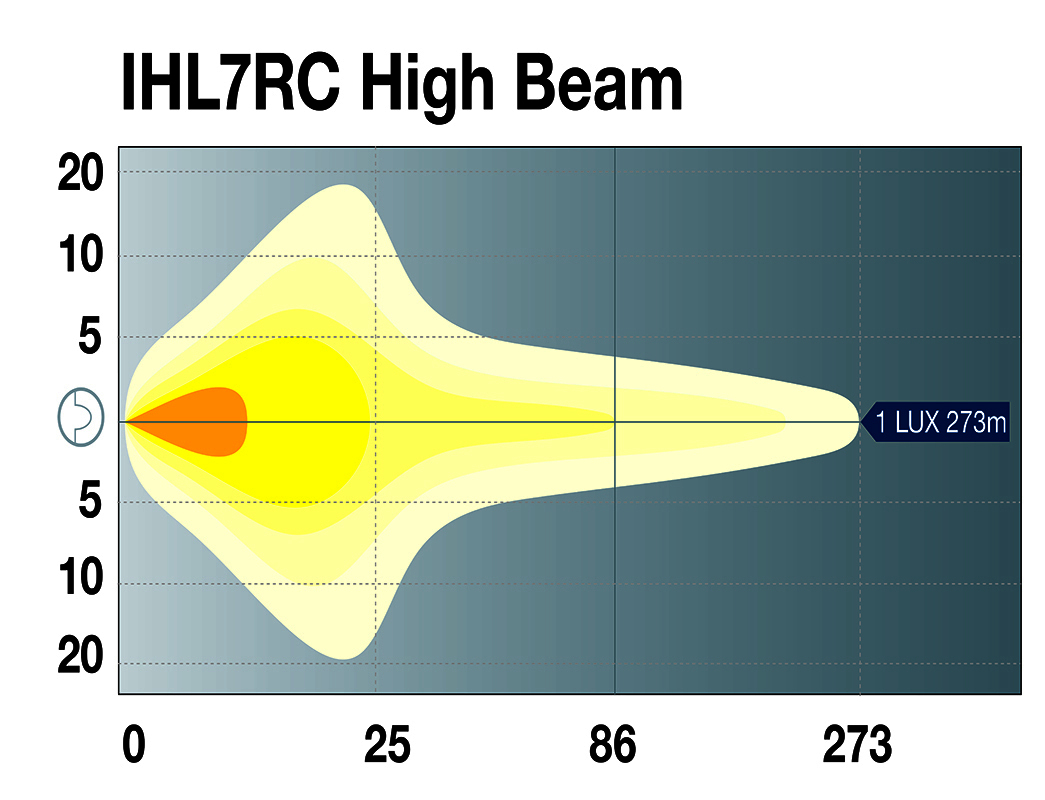

High Beam 3,900 Raw or 3,315 Effective Lumens and 6,500K

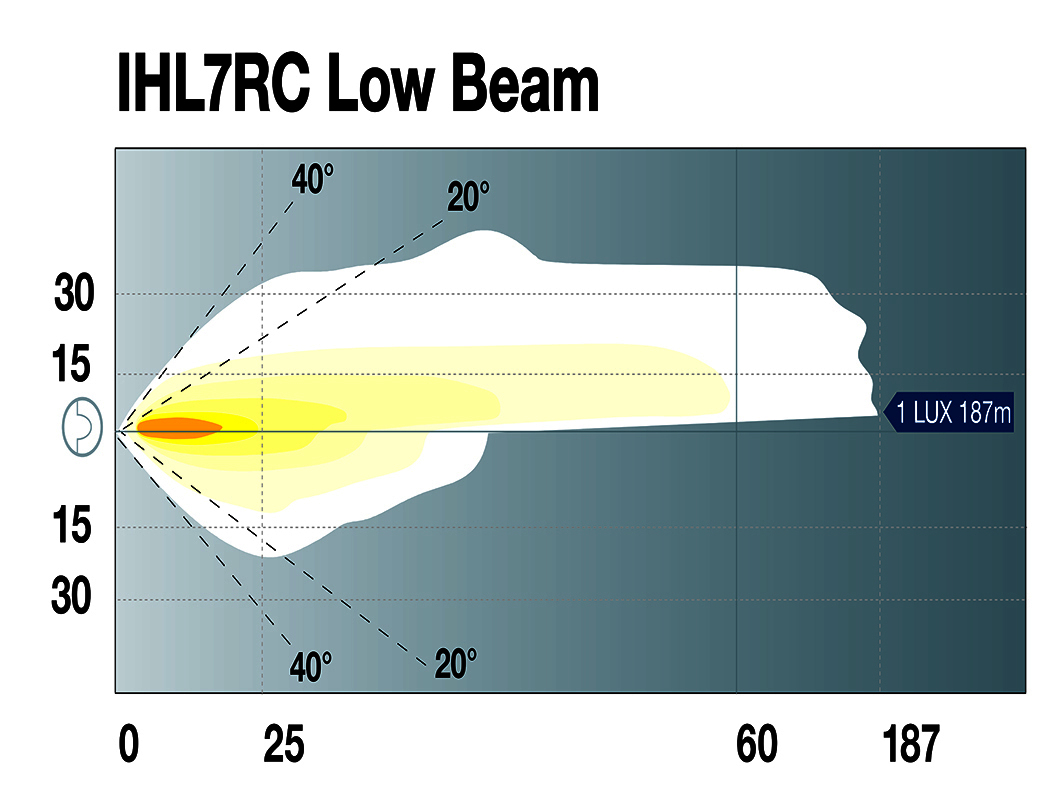

Low Beam 1,800 Raw or 1,530 Effective Lumens and 6,500K

Lexan Polycarbonate Lens and Reflectors

Patented TIR Lens Optics System for High Beam and Park Lights

Black anodised Polyester Powder Coated Die-Cast Aluminium (ADC12) Housing

6063 Extruded Aluminium Heat Sink

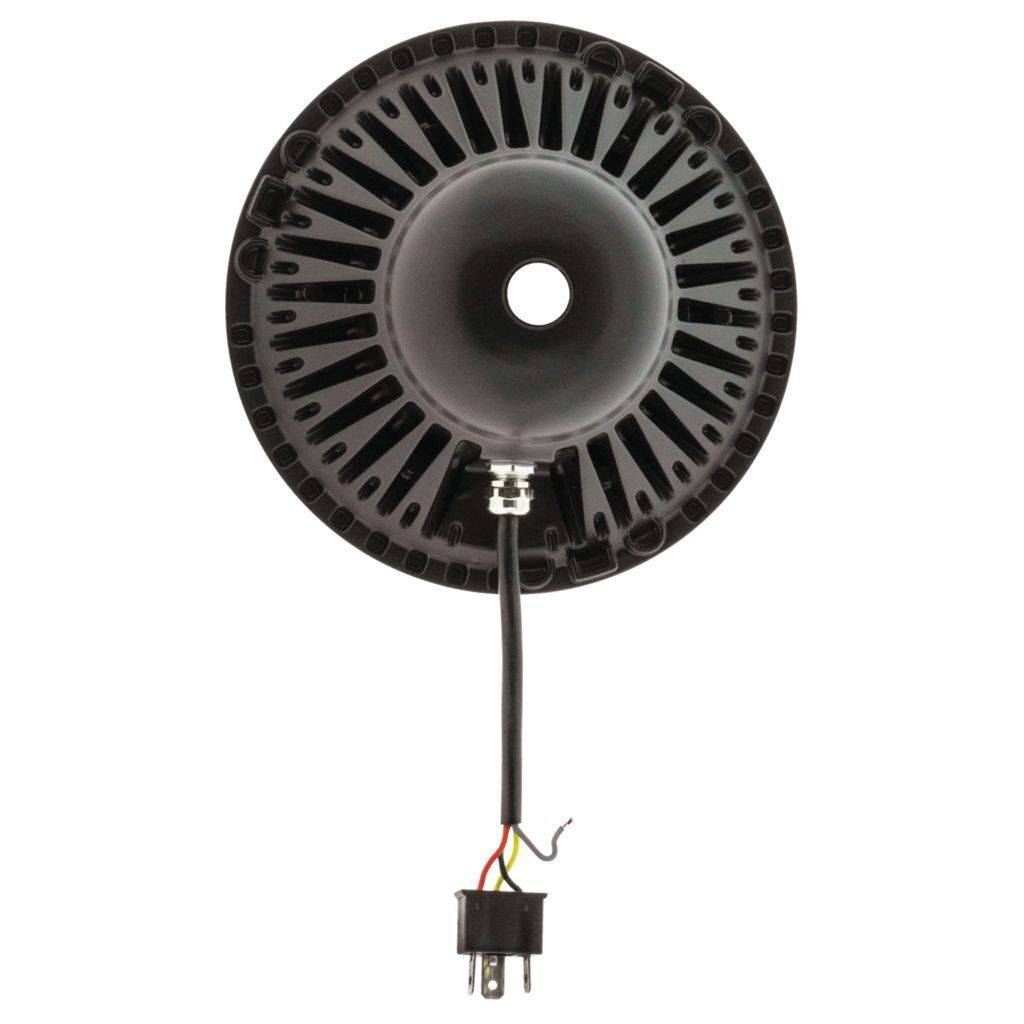

150mm Lead with H4 Connector and High Beam Adaptor Plug

50,000 Hours LED Lifespan

Integrated Electronic Thermal Management (ETM)

Reverse Polarity and Power Surge Protection

UV Stabilized

EMC Compliant

Shock Resistant, Vibration Tested to 6G's

Environment temperature -40~+60 °C

ECE R112 / R7, DOT, CE Certified

IP68 and IP69K Rating

1.4kg

5 Year Warranty

Notes:

Replaces PAR56 Headlights, either Sealed or Semi-Sealed Beams

For Negatively Switched vehicles must use Adaptor Harness Part No. IWH030

Adaptor lead supplied for Headlight to work purely as a High Beam unit only

(IHL7RC)

SKU IHL7RC
Barcode # 9323327942817
Brand Ignite
