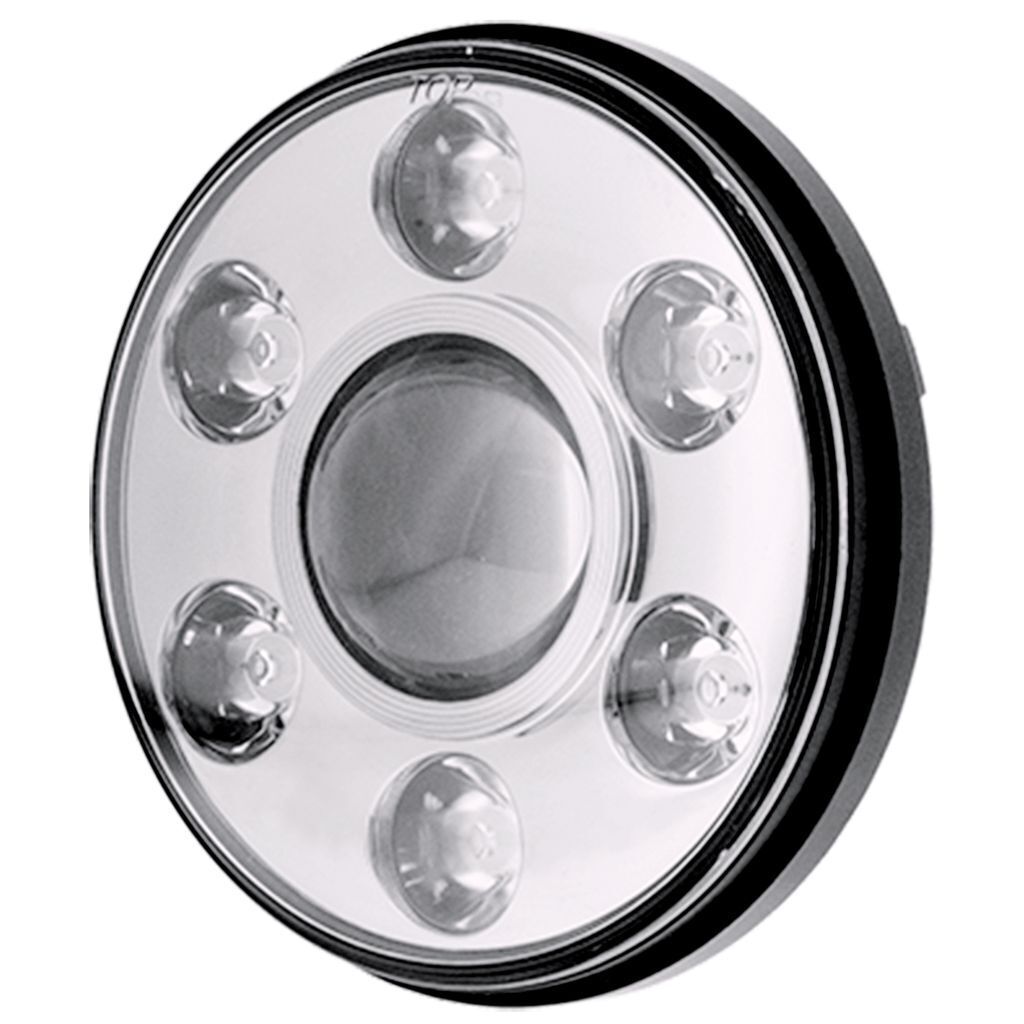

7" LED HEADLIGHT 9-36V HIGH/LOW/DRL BEAM CHROME FASCIA

WAS $329.00
RRP $329.00
NOW $296.10
SAVE 10%!
Sale Ends in
23:59 pm, 25 November 2024
In Stock



Calculate Shipping



Road Shipping - $9.95
We will email you your tracking number once dispatched.

Ignite 7" Round LED Headlamp 9 - 36 Volt 65 Watt
High Beam 3,900 Raw or 3,100 Effective Lumens and 6,500K
Low Beam 1,800 Raw or 1,450 Effective Lumens and 6,500K
Lexan Polycarbonate Lens and Reflectors
Patented TIR Lens Optics System for High Beam and Daytime Running Lights (DRL)
Black anodised Polyester Powder Coated Die-Cast Aluminium Housing
6063 Extruded Aluminium Heat Sink
150mm Lead with H4 Connector and High Beam Adaptor Plug
High/Low Beam and Daytime Running Lamp (DRL) - Chrome Fascia
Integrated Electronic Thermal Management (ETM)
Reverse Polarity and Power Surge Protection
UV Stabilized
EMC Compliant
Shock Resistant, Vibration Tested to 6G's
50,000 Hours LED Lifespan
ECE R112 / R7, DOT, CE Certified
Environment temperature -40~+60 °C
IP68 Rating
5 Year Warranty
7" or 178mm Round
1.4kg
.
Replaces PAR56 Headlights, either Sealed or Semi-Sealed Beams
For Negatively Switched vehicles must use Adaptor Harness Part No. IWH030
6 x 10 Watt High Intensity CREE LEDs for Park Light and High Beam
1 x 5 Watt High Intensity Phillips LED for Low Beam
Current Draw: 4.10amp at 12 Volt, 1.80amp at 24 Volt High Beam
1.70amp at 12 Volt, 0.80amp at 24 Volt for Low Beam

(IHL7RC-DRL)

SKU IHL7RC-DRL
Barcode # 9323327947072
Brand Ignite
