Name: Front Diff Tool and 24mm Drain Plug to suit Toyota Hilux KUN26 Prado 120/150 FJ Cruiser LC200
Brand: Kaon
SKU: KS0128
Price: 68.00 AUD
Availability: InStock

Front Diff Tool and 24mm Drain Plug to suit Toyota Hilux KUN26 Prado 120/150 FJ Cruiser LC200

Calculate Shipping

Road Shipping - Processed in Jan 2025 - $9.95
We will email you your tracking number once dispatched.

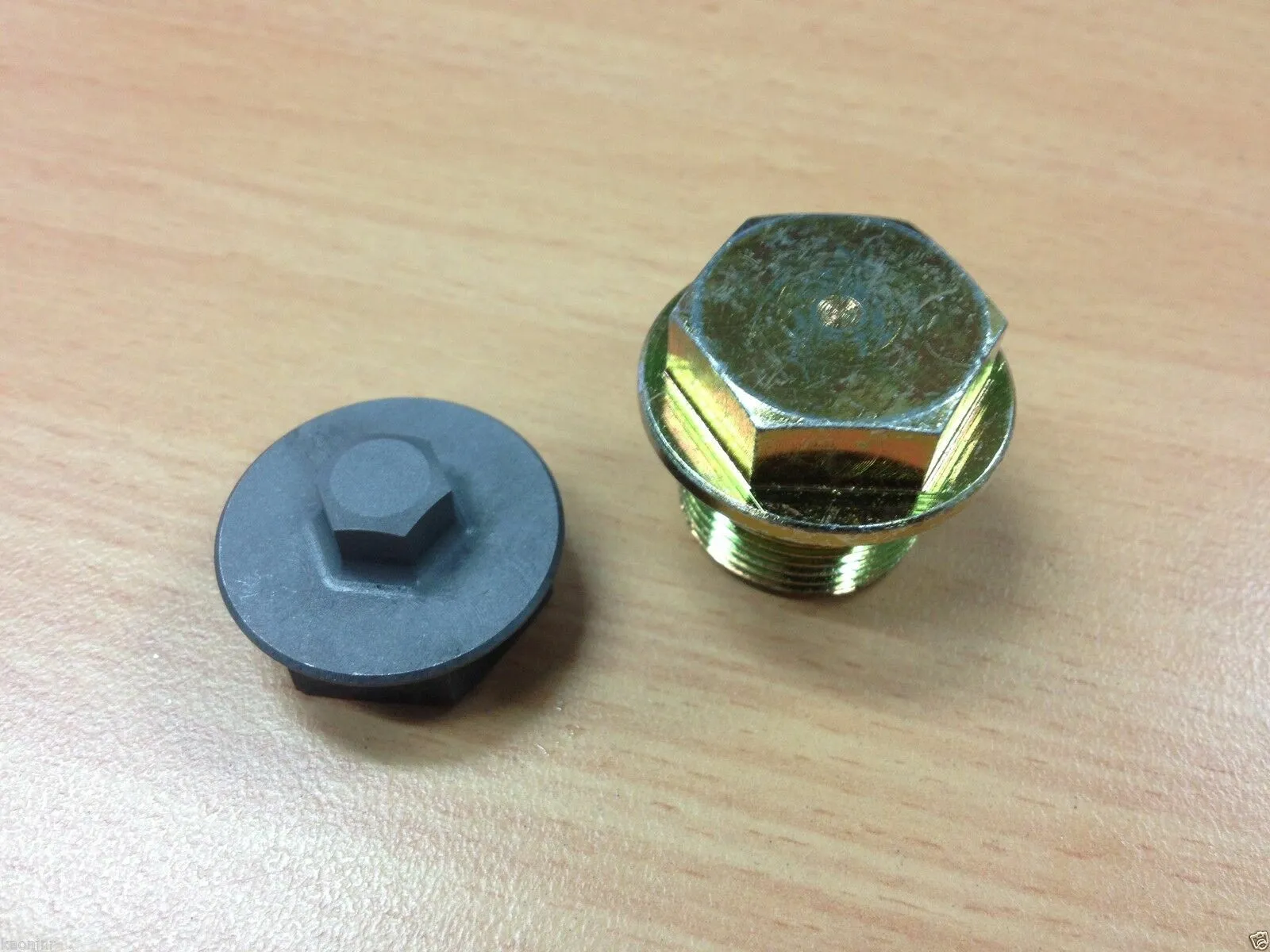

COMBO - Diff Plug removal tool and Replacement Diff drain plug with 24mm Hex Head with Magnet

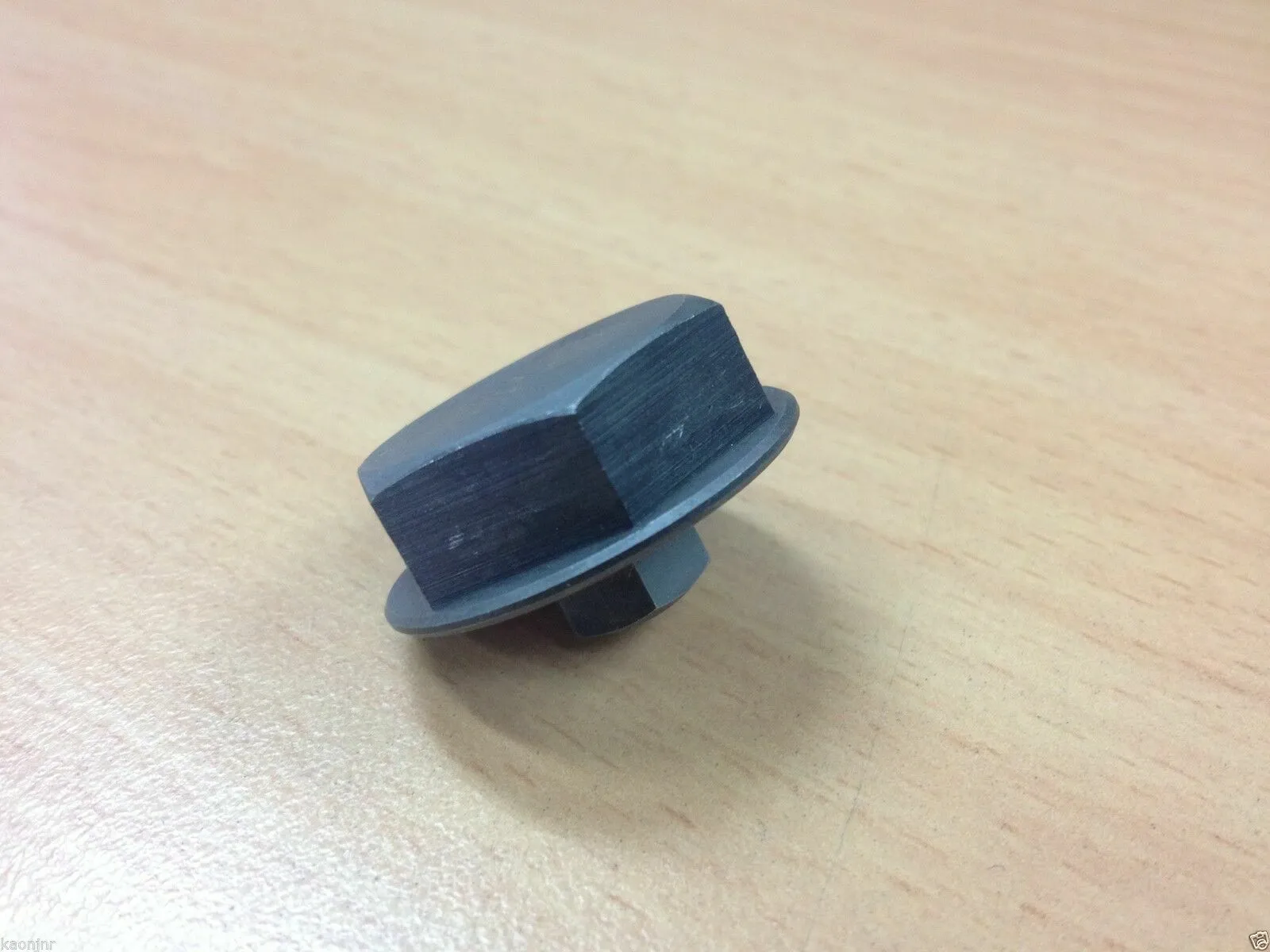

24mm Hex to 10mm Allen Hex Diff Plug Removal Tool

Servicing the front diff on a Hilux or Prado can be quite a task when the diff fill and drain plugs become hard to remove. If you are not careful, it is quite common to strip the weak 10mm Allen Hex socket in the Toyota diff plugs. Often, plugs need to be chiselled out when the 10mm hex strips due to tool twisting off axis due to the amount of force required to loosen the plugs.

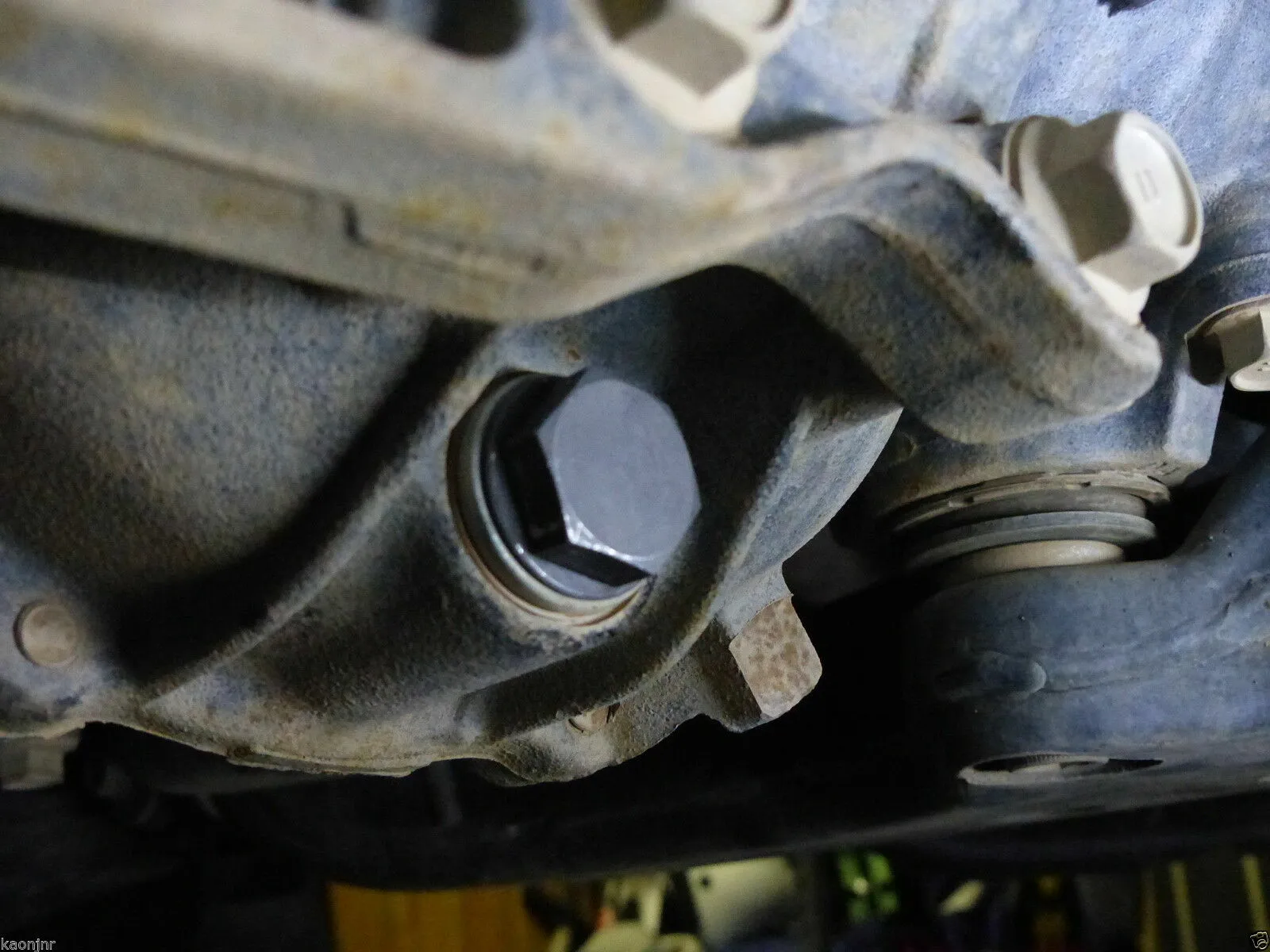

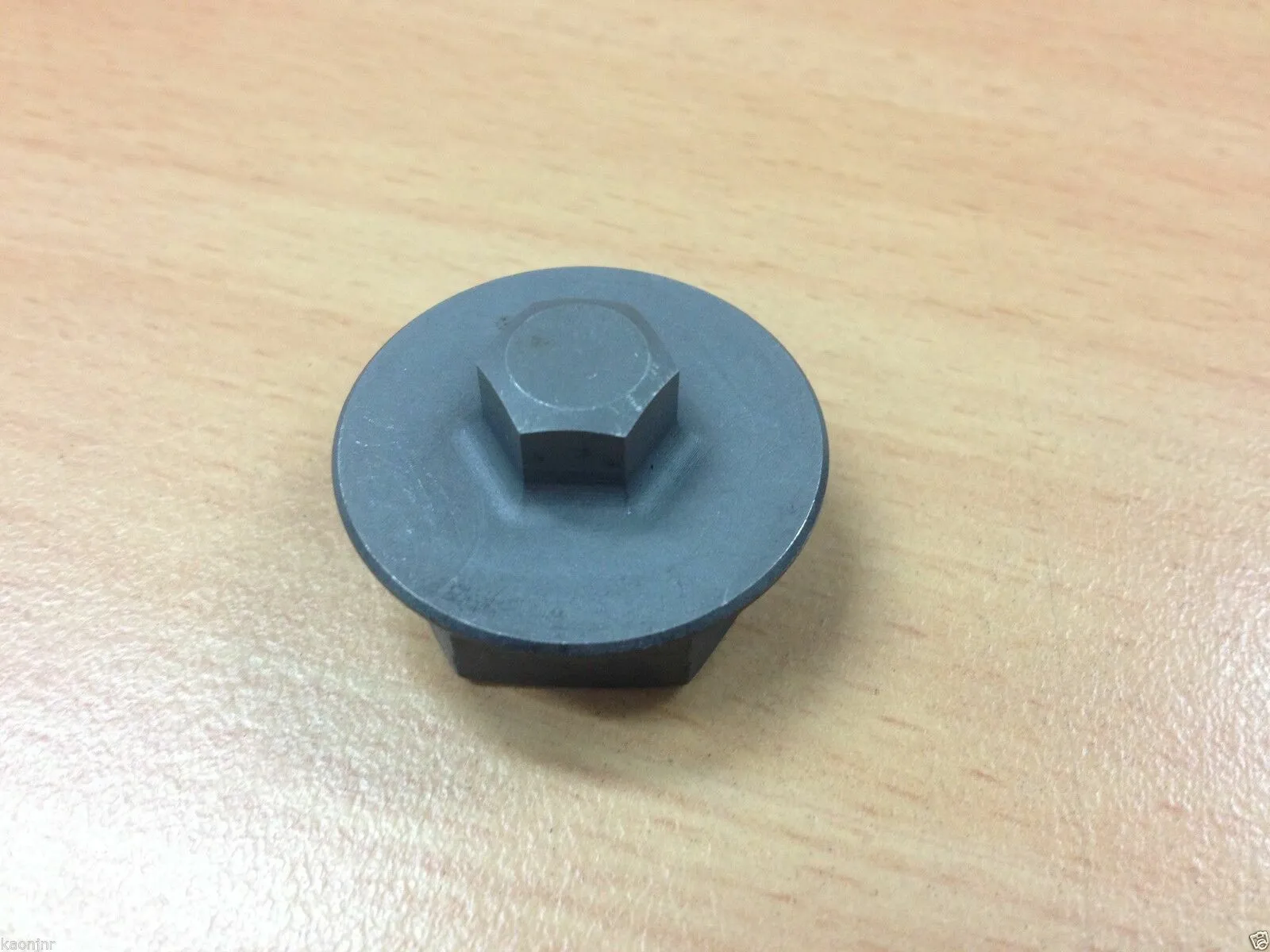

This tool is designed help remove stubborn diff plugs and reduce the chance of stripping the 10mm hex. The tool is an adapter which allows you to use a 24mm socket or ring spanner to remove the plug. One side of the tool has a 24mm hex and the other side has a slightly oversize 10mm hex which is designed to fit snuggly into the Toyota hex plug. A large flat flange helps keep the tool square and on axis when applying the torque to remove the plug.

The tool is made from hardened and tempered tool steel and has been tested to withstand the large torque required to remove the most stubborn plugs.

Save yourself the headache and wasted time of a stripped plug.

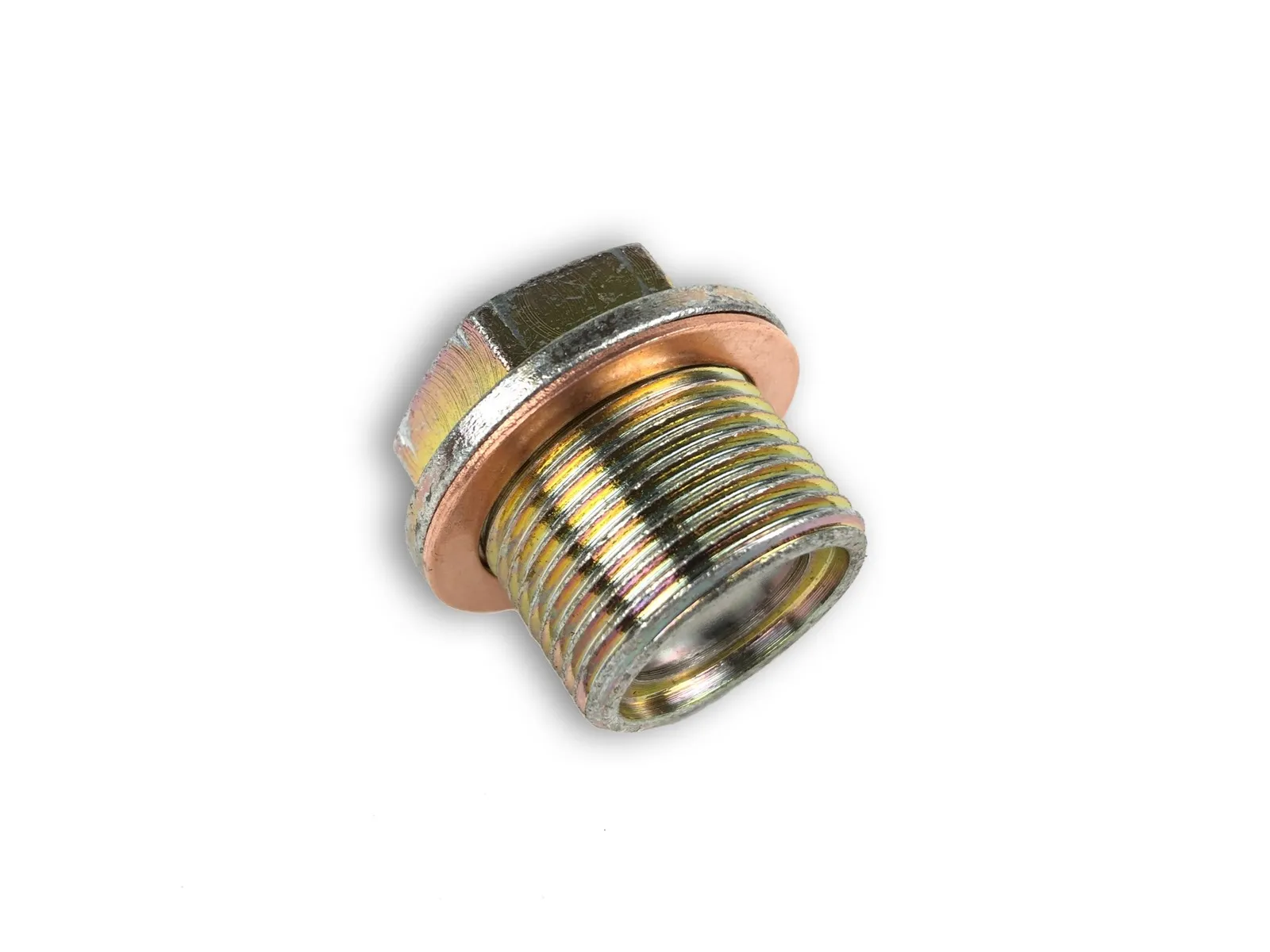

Replacement Diff drain plug with 24mm Hex Head with Magnet

If you have ever tried to change the Front diff oil in a Hilux or Prado, you will know how hard it is to remove the lower drain plug. The 10mm allen head hex hole in the Toyota plug is very easy to strip meaning an expensive trip to your mechanic or Toyota dealer. They will probably remove your plug using a chisel and hopefully won't damage the sealing seat in the process.

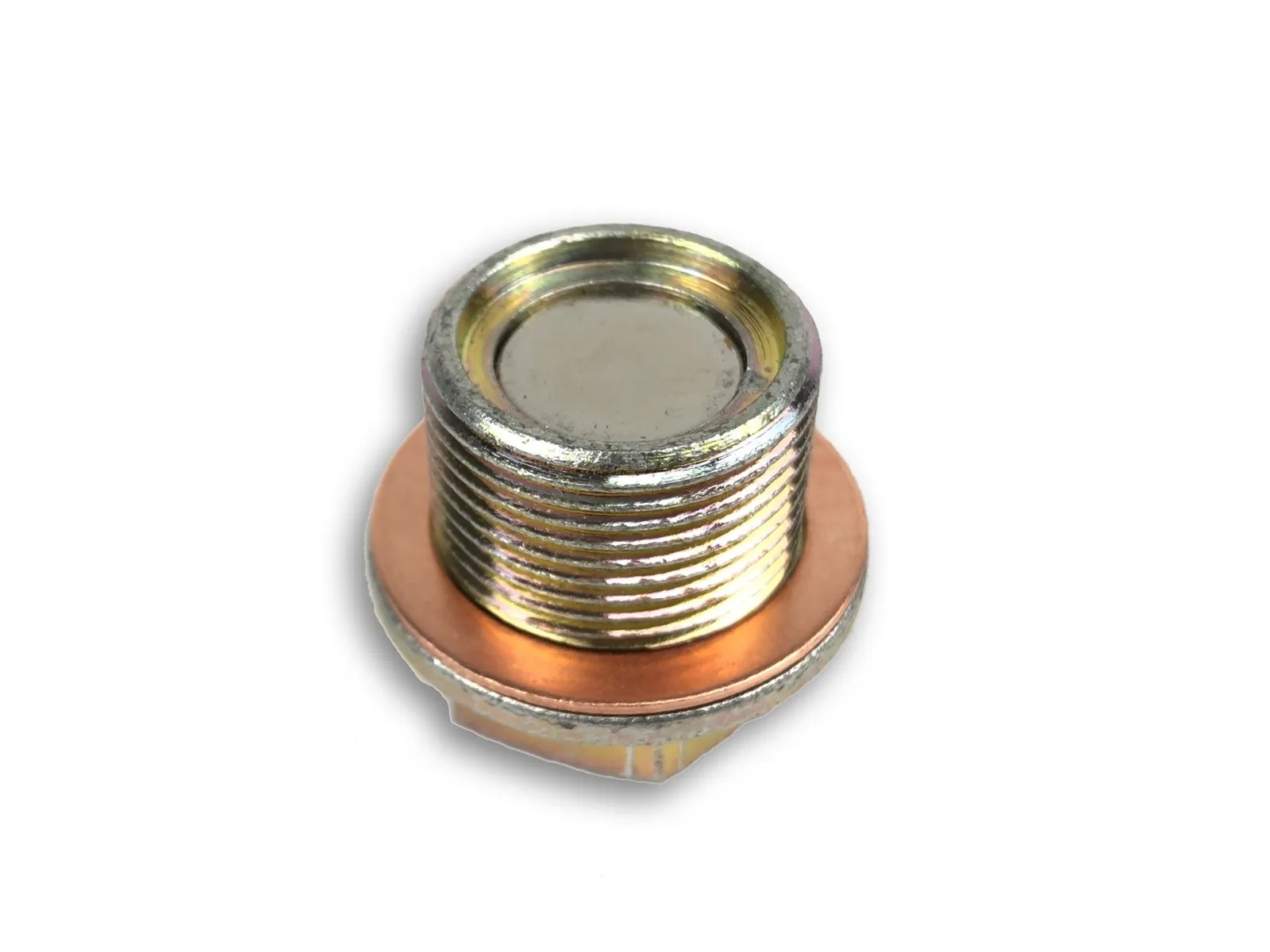

This listing is for a replacement diff plug with a 24mm Hex that won't strip and round. The plug has an extra strong rare earth magnet on the end to pickup and hold any metal shavings in the oil. Plug is CNC machined in Australia and is protected with an electroplated zinc coating.

This plug will fit

HiLux N70 / N80
LandCruiser LC200
Prado 90 / 120 / 150
FJ Cruiser
Tacoma

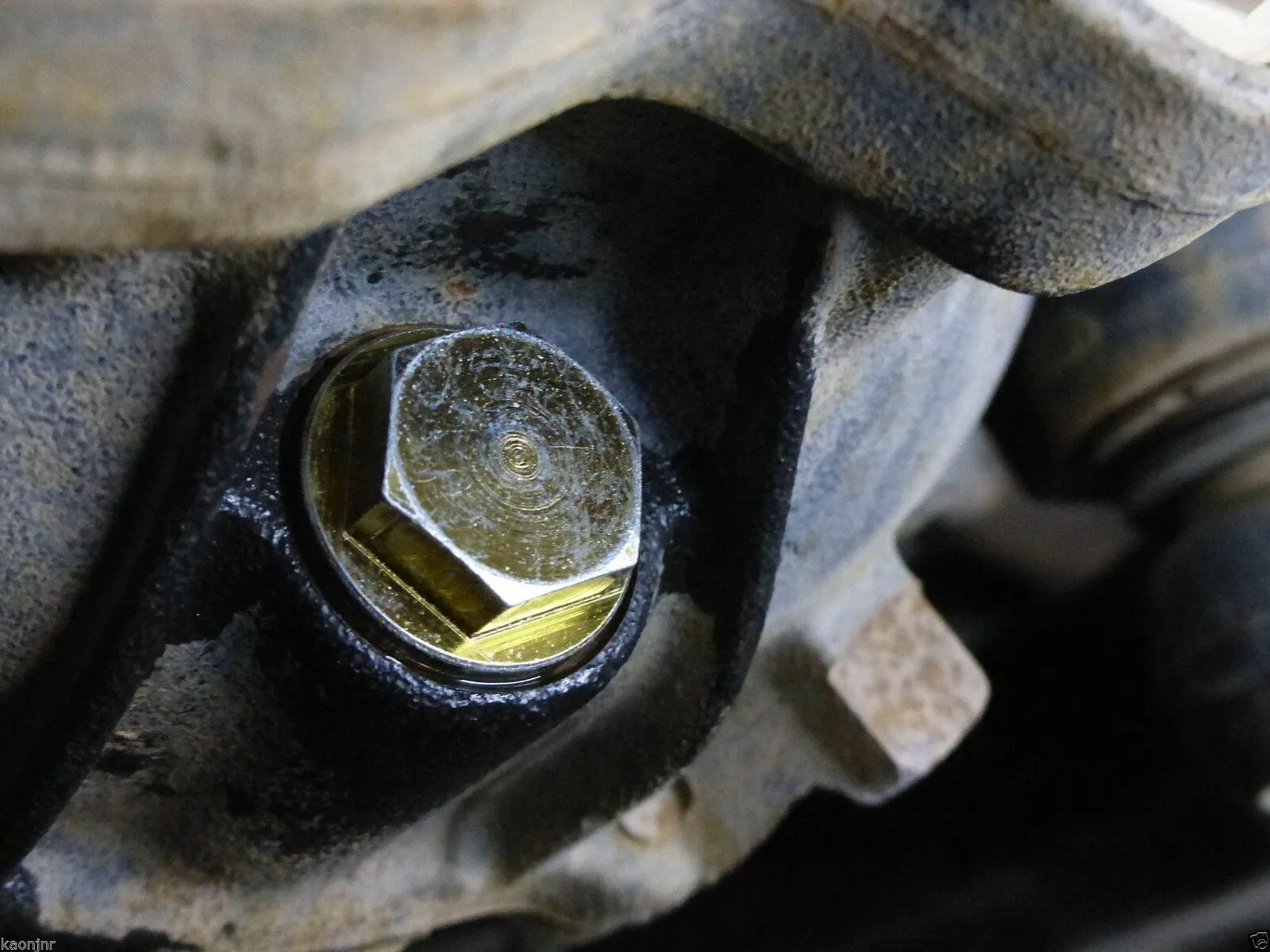

Once you have removed the Toyota plug, do yourself a favour and install one of these plugs and make removing the plug a 1 minute job instead of potentially a 1 hour or more job if you happen to strip the 10mm hex.

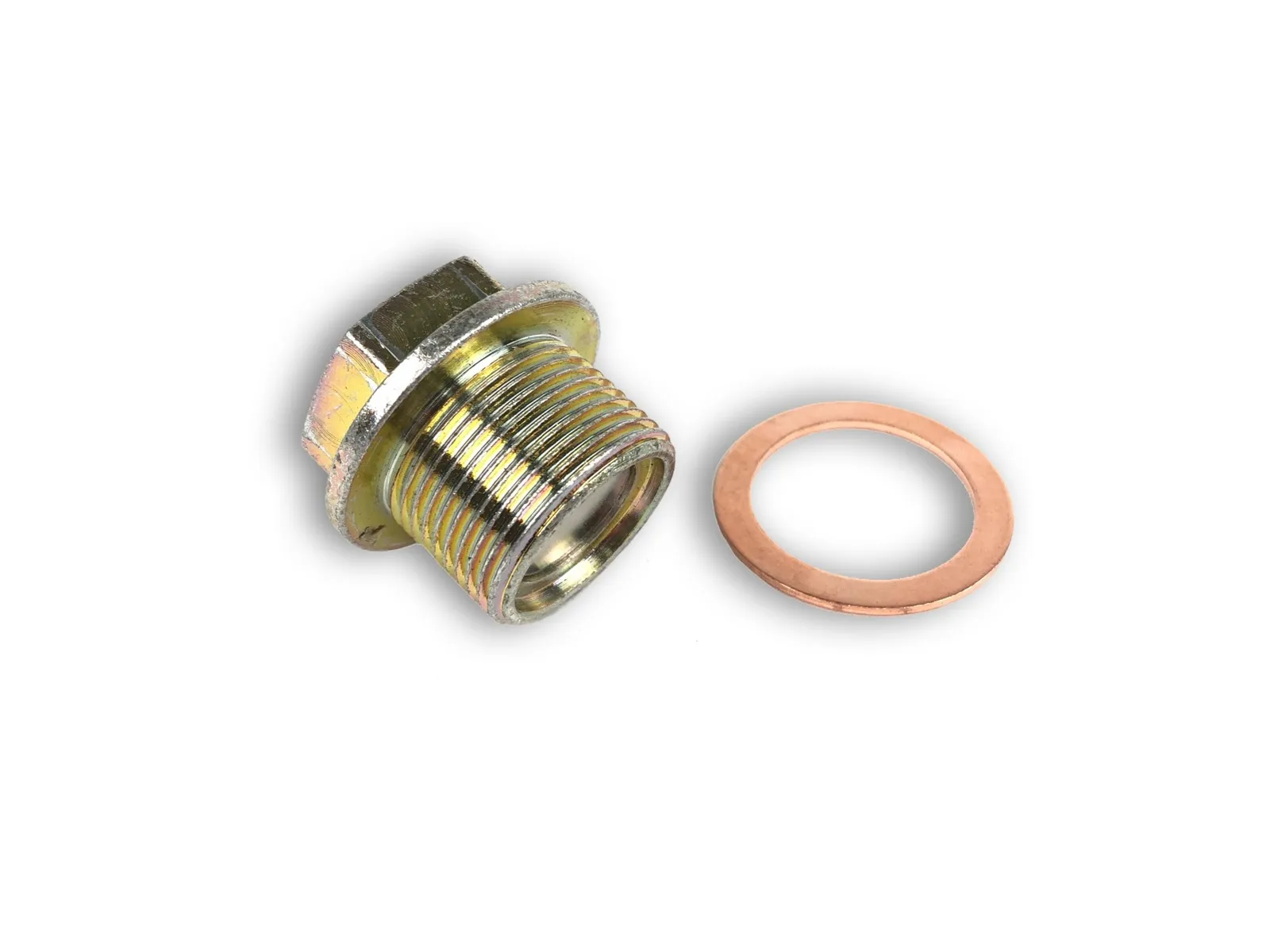

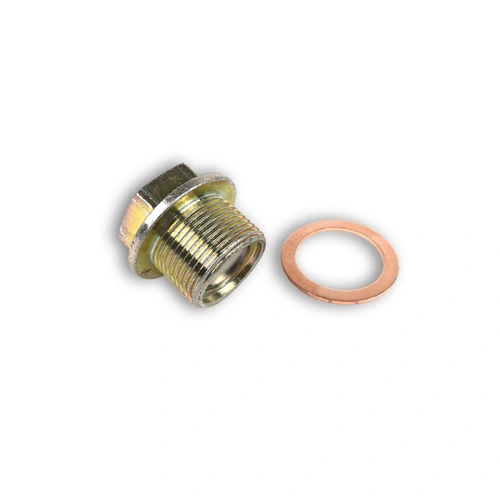

Genuine Toyota copper washer included. It is recommended that the copper washer be replaced when installing a new plug.

You will get:

1 x 24mm to 10mm hex diff plug removal tool

1 x 24mm hex replacement diff drain plug with magnet

1 x Copper Washer

CNC machined in Australia.

(KS0128)
