Name: Bilstein APC Long Travel 50-75mm Front Lift Kit - Isuzu MU-X UCS40 (08/2021-On)
Brand: Bilstein
SKU: 239988
Price: 1098.00 AUD
Availability: InStock

Bilstein APC Long Travel 50-75mm Front Lift Kit - Isuzu MU-X UCS40 (08/2021-On)

Available Options
Front Springs

Add The Following To Your Order:

Blackhawk Upper Control Arms - Gen3 Mazda BT-50 09/2020-On Isuzu RG D-Max 08/2020-On Isuzu MU-X Gen2 08/2021-On

$679.15

Add to my order

HiFlex Front Swaybar Kit - Gen 2 Isuzu MU-X 08/2021-On

$445.50

Add to my order

Roadsafe 4WD Diff Drop Kit - Isuzu D-Max RG 08/2020-On

$279.23

Add to my order

Qty:

Calculate Shipping

For over 50 years Bilstein have been the leaders in Monotube Shock Absorber technology. Each Bilstein B6 Offroad shock absorber is assembled by hand in Germany, and the B6 Offroad shocks are designed and tested in Australia, to suit the harsh conditons that Australia throws at them. No matter if it is your daily driver, or a nation-wide tourer, Bilstein shocks will be able to handle it.

Designed specifically to suit off-road vehicles, the Bilstein B6 Offroad gas-pressure shock absorber is the perfect suspension solution. This version of the Bilstein B6 shock absorber has been adapted to fulfil Australian 4 Wheel Drive requirements. The Bilstein B6 Offroad shock absorber has been developed to reduce the kind of undesirable handling dynamics such as uncontrolled movements that are so inherent in 4WDs thanks to their high structure.

This is a complete Bilstein front end lift kit for a Isuzu MU-X UCS40 (08/2021-On)

This is the Only True Long Travel Bilstein kit like this on the market! We have worked in Conjunction with Bilstein Australia to make this Long Travel Kit.

These Struts are the normal Bilstein Raised Struts good for 0-2" like everyone else is using, but we have Modifications done by Bilstein Australia to our Specifications.

We have them modified internally to increase Travel in the Strut for Maximum Droop and Articulation.
We have extra Circlip Grooves machined into them to offer greater flexibility for front end height adjustment.

Other Struts available do not maximise the Droop available in the New MU-X

Most Struts fall well short of the Upper Control Arm touching the Factory Droop Limiting Stop, so we have modified these to use all of the Droop and Wheel travel available.

These Struts are suitable for 0-3" Lift.

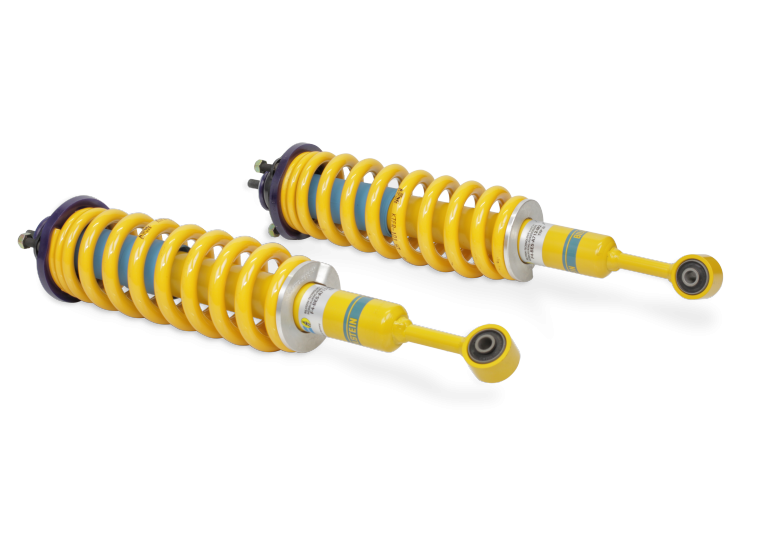

The kit contains:

2x Long Travel Bilstein B6 Offroad Performance Front Shock Absorbers
2x King Springs Front Springs
2x Heavy Duty Strut Top Mounts
Preassembly of struts.

Please Note:

A Diff Drop Kit is Strongly Recommended with these Struts
Upper Control Arms are Required for 3" Lift.

Important Notes for setting up your Vehicle Correctly:

When lifting the Front in these they are very sensitive to changes on Height with the Steering Geometry.
They will sit Extremely High with Bad Toe in and Positive Camber until wheel aligned.
** It is Critical not to fit Heavy Duty Springs to suit Accessories that are not fitted yet fitted, or you are going to have problems with alignment and electronics **
We recommend fitting Accessories 1^st and then set the Suspension up to cope with them.
Front Ride Height can vary by as much as 20-25mm before and after alignment on this model.
Height Measurements cannot be done until the vehicle is wheel aligned.
We recommend vehicles are not driven until they are Wheel aligned.
When selecting Springs to suit your lift, please Select Springs only to suit Current "CONSTANT" Loads Front and Rear.
Towing Loads are not included in your Constant Load Calculations, as they are not "Constant" Loads.
Please do not put Occasional Loads into your "Constant" Load determinations.
Selecting a load rating that is too heavy for your setup will result in Poor Flex Off-Road, Compromised Suspension Travel & Rough Ride, and will cause damage to your new shock absorbers and other components by pushing them outside of their intended range.

Please Note:

All lift heights stated are estimated lift heights, due to the large number of variables in each different vehicles setup and accessory weights.
Estimated Lift Height 40-75mm

(239988)
