Bilstein Long Travel 75-50mm Lift Kit - 4WD Isuzu MU-X UCS40 (08/2021-On)

For over 50 years Bilstein have been the leaders in Monotube Shock Absorber technology. Each Bilstein B6 Offroad shock absorber is assembled by hand in Germany, and the B6 Offroad shocks are designed and tested in Australia, to suit the harsh conditons that Australia throws at them. No matter if it is your daily driver, or a nation-wide tourer, Bilstein shocks will be able to handle it.

This is a complete Bilstein B6 Offroad lift kit for an Isuzu MU-X UCS40 4WD (08/2021-On)

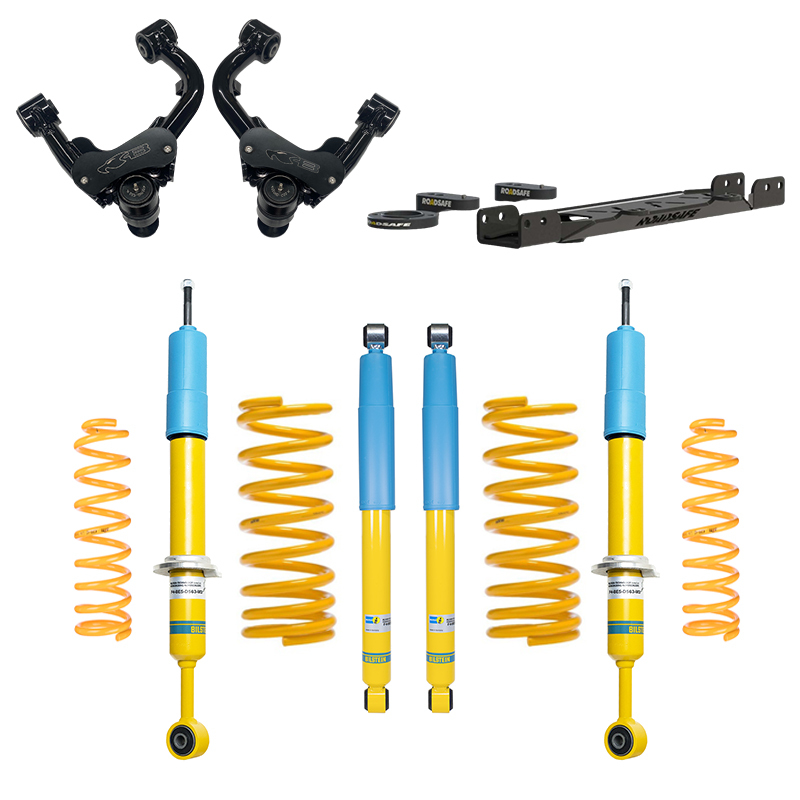

The kit contains:

• 2x Long Travel Bilstein B6 Offroad Front Struts
• 2x King Front Coil Springs
• 2x Bilstein B6 Offroad Rear Shock absorbers
• 2x King Rear Coil Springs
• 2x Blackhawk UCA
• 1x Roadsafe Diff Drop Kit with Upgraded Strength Crossmember

Important Notes for setting up your Vehicle Correctly:

• When lifting the Front in these they are very sensitive to changes on Height with the Steering Geometry.
• They will sit Extremely High with Bad Toe in and Positive Camber until wheel aligned.
• ** It is Critical not to fit Heavy Duty Springs to suit Accessories that are not fitted yet fitted, or you are going to have problems with alignment and electronics **
• We recommend fitting Accessories 1^st and then set the Suspension up to cope with them.
• Front Ride Height can vary by as much as 20-25mm before and after alignment on this model.
• Height Measurements cannot be done until the vehicle is wheel aligned.
• We recommend vehicles are not driven until they are Wheel aligned.
• When selecting Springs to suit your lift, please Select Springs only to suit Current "CONSTANT" Loads Front and Rear.
• Towing Loads are not included in your Constant Load Calculations, as they are not "Constant" Loads.
• Please do not put Occasional Loads into your "Constant" Load determinations.
• Selecting a load rating that is too heavy for your setup will result in Poor Flex Off-Road, Compromised Suspension Travel & Rough Ride, and will cause damage to your new shock absorbers and other components by pushing them outside of their intended range.

Please Note:

• You will NEED UCA's and a Diff Drop Kit to run these Long Travel Front Struts.
• All lift heights stated are estimated lift heights, due to the large number of variables in each different vehicles setup and accessory weights.
• Estimated Lift Height Rear 45mm
• Long Travel Front 75mm
