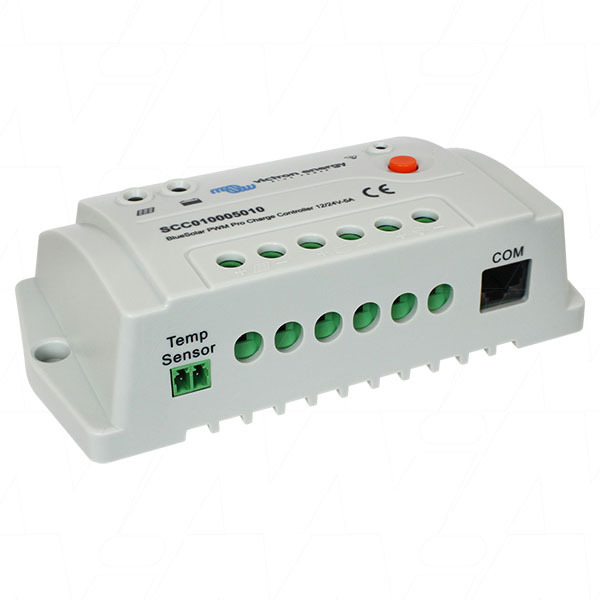

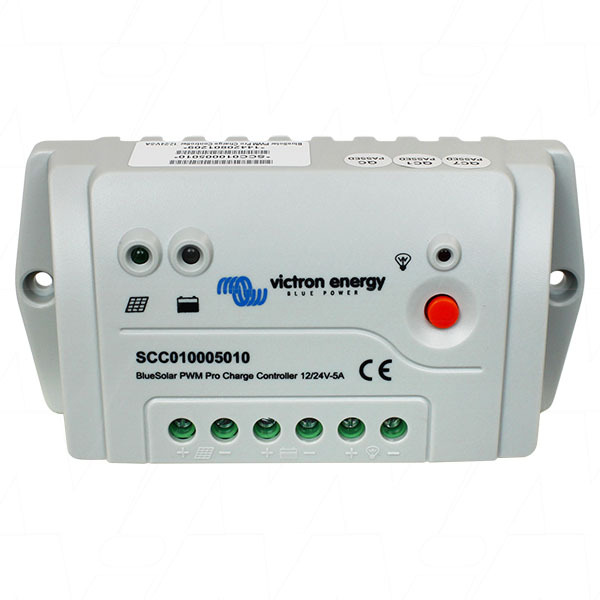

Victron BlueSolar PWM-Pro Charge Controller 12/24V-5A

BlueSolar 12V/24V 5A PWM PRO Charge Controller

Programmable
The BlueSolar PWM-Pro series is ready for use with its default settings.
It also is fully programmable:

• With help of a computer and software (available free of charge from the VE website)
• With the dedicated BlueSolar Pro Remote Panel (see features below).


Features

• Lighting control function, fully programmable.
• Three stage battery charging (bulk, absorption, float), fully programmable.
• Integrated battery monitor function (Remote Panel needed to display state of charge).
• Load output with low voltage disconnect and manual control (default setting).
• Optional external temperature sensor.
• Load output protected against over load and short circuit.
• Protected against reverse polarity connection of the solar array and/or battery.
• Day/night timing options

Victron Energy Support Links
	Not sure what type of Solar Charge controller you need? Click the icon to read a helpful guide from Victron Energy called: Which solar charge controller: PWM or MPPT?			Click here to access MPPT Sizing Calculator
