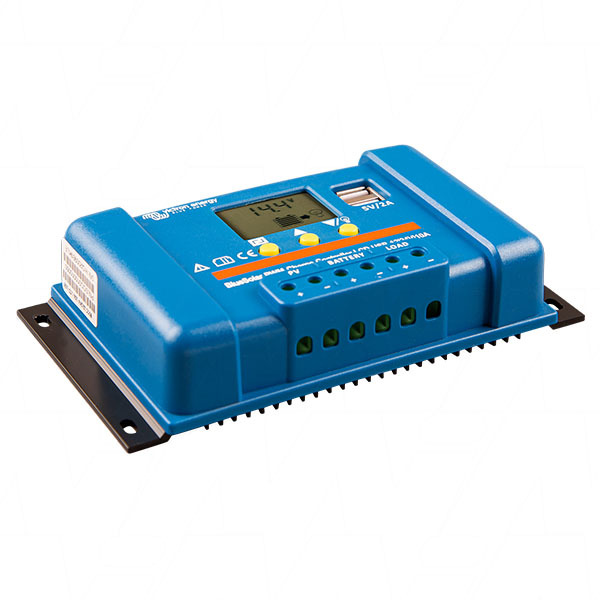

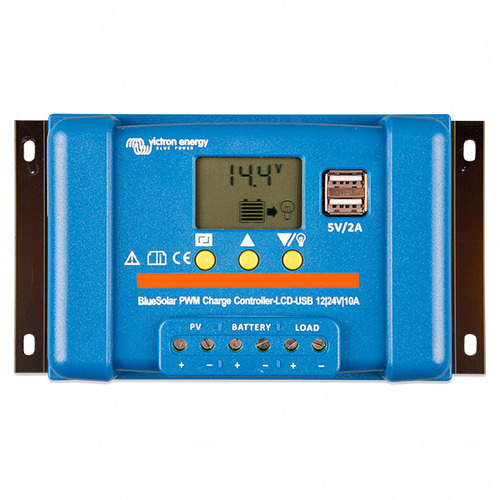

Victron BlueSolar PWM-LCD&USB 12/24V-10A
BlueSolar PWM-LCDUSB-10A
BlueSolar PWM-Type Solar Controller with LCD Screen and USB
12/24V 10A
Liquid crystal display
For status monitoring and set-up
Load output
Over-discharge of the battery can be prevented by connecting all loads to the load output. The load output will disconnect the load when the battery has been discharged to a pre-set voltage.
Some loads (especially inverters) can best be connected directly to the battery, and the inverter remote control connected to the load output. A special interface cable may be needed, please see the manual.The connect and disconnect voltages are adjustable.
Day/night timing of the load output
This option allows for a pre-set ON-time after dusk.
Programmable battery charge algorithm
Preprogrammed algorithms for AGM, GEL, Flooded or LiFePO4 batteries (with internal BMS only)
Two 5 Volt USB outputs
Maximum current (both outputs combined): 2A
| Victron Energy Support Links | ||||
 |
Not sure what type of Solar Charge controller you need? Click the icon to read a helpful guide from Victron Energy called: | |   | Click here to access MPPT Sizing Calculator |
(SCC010010050)
| SKU | SCC010010050 |
| Barcode # | 8719076025276 |
| Brand | Victron Energy |
| Shipping Weight | 0.1500kg |
| Shipping Width | 0.169m |
| Shipping Height | 0.096m |
| Shipping Length | 0.036m |
