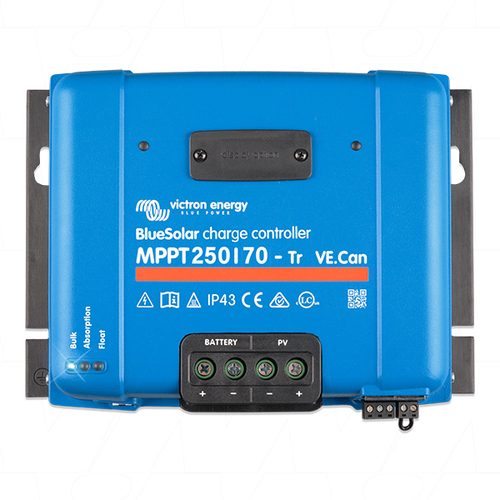

BlueSolar 12V/24V/36V/48V 70A Solar Charge Controller MPPT Tr Type SCC125070441

BlueSolar MPPT 250/70-Tr VE.Can

$780.45
RRP $1,039.95
SAVE $259.50 (25%)
In Stock



Calculate Shipping



Road Shipping - Processed in Jan 2025 - $9.95
We will email you your tracking number once dispatched.

BlueSolar Charge Controllers MPPT 250/70-Tr VE.Can 12V/24/V/36V/48V auto select battery voltage *software tool required for 36V 70A rated charge current 1000W @12V, 2000W @24V, 4000W @48V nominal PV power Automatic load disconnect 99% peak efficiency Reverse polarity (fuse) protection, output short circuit protection and over temperature protection Ultra-fast Maximum Power Point Tracking (MPPT)Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.Advanced Maximum Power Point Detection in case of partial shading conditionsIf partial shading occurs, two or more maximum power points (MPP) may be present on the power-voltage curve.Conventional MPPTs tend to lock to a local MPP, which may not be the optimum MPP.The innovative SmartSolar algorithm will always maximize energy harvest by locking to the optimum MPP.Outstanding conversion efficiencyNo cooling fan. Maximum efficiency exceeds 99%.Flexible charge algorithmFully programmable charge algorithm (see the software page on our website), and eight pre-programmed algorithms, selectable with a rotary switch (see manual for details).Extensive electronic protectionOver-temperature protection and power derating when temperature is high.PV short circuit and PV reverse polarity protection.PV reverse current protection.Internal temperature sensorCompensates absorption and float charge voltage for temperature.Optional external battery voltage and temperature sensing via BluetoothA Smart Battery Sense or a BMV-712 Smart Battery Monitor can be used to communicate battery voltage and temperature to one or more SmartSolar Charge Controllers.Fully discharged battery recovery functionWill initiate charging even if the battery has been discharged to zero volts.Will reconnect to a fully discharged Li-ion battery with integrated disconnect function.VE.DirectFor a wired data connection to a Color Control GX, other GX products, PC or other devices Remote on-offTo connect for example to a VE.BUS BMS.Programmable relayCan be programmed (a.o. with a smartphone) to trip on an alarm, or other events.  Optional: LCD display  Click Here to view the SmartSolar Pluggable Display A pluggable LCD display for the SmartSolar Charge Controllers
INSTALLATION TO AUSTRALIAN STANDARDS REQUIREDPlease Note: Under the Australian Standards, a Licenced Electrician must install any electrical equipment that normally operates at a voltage greater than extra low voltage (ELV), that is, 50V AC or 120V ripple free DC in an electrical installation or is classified as DVC-B or DVC-C.
Multi Chemistry Profiles Installed:All Victron MPPT's come standard with charge profiles for multiple chemistries, including Lithium, Lead and GEL, as well as the ability to program user defined profiles. The default setting for Victron Energy MPPT's is for Lead batteries, but charge profiles can be easily changed using the VictronConnect App. This BlueSolar MPPT will require a VE.Direct Bluetooth Smart Dongle, or a VE.Direct to USB Interface to access the VictronConnect App
Solar Controller Resources Not sure what type of Solar Charge controller you need?Click the icon to read a helpful guide from Victron Energy called: Which solar charge controller: PWM or MPPT?            Click here to access Victron Energy's MPPT Sizing Calculator
VictronConnect Compatible:VictronConnect lets you get live status information and configure any Victron products which either have Bluetooth built in, or are connected to a VE.Direct Bluetooth Smart Dongle, or a VE.Direct to USB InterfaceFind out more about VictronConnect here, or download the App via these links. Click here to download the VictronConnect Manual

(SCC125070441)

SKU SCC125070441
Barcode # 8719076051213
Brand Victron Energy
Shipping Weight 3.0000kg
Shipping Width 0.250m
Shipping Height 0.185m
Shipping Length 0.095m
