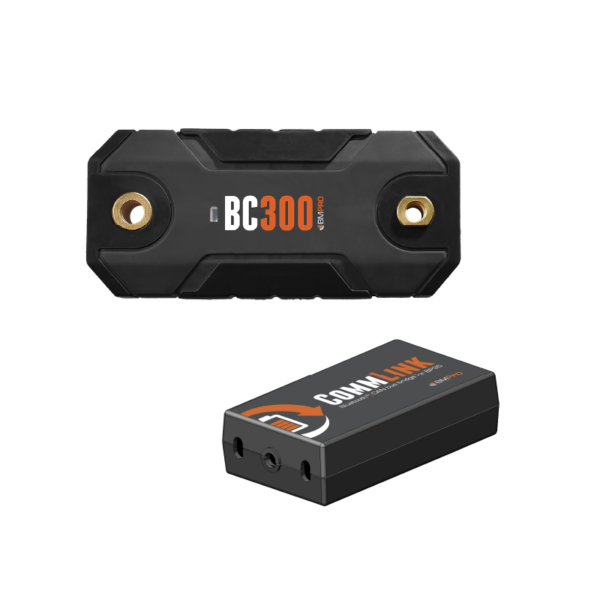

BMPRO BC300+CommLink

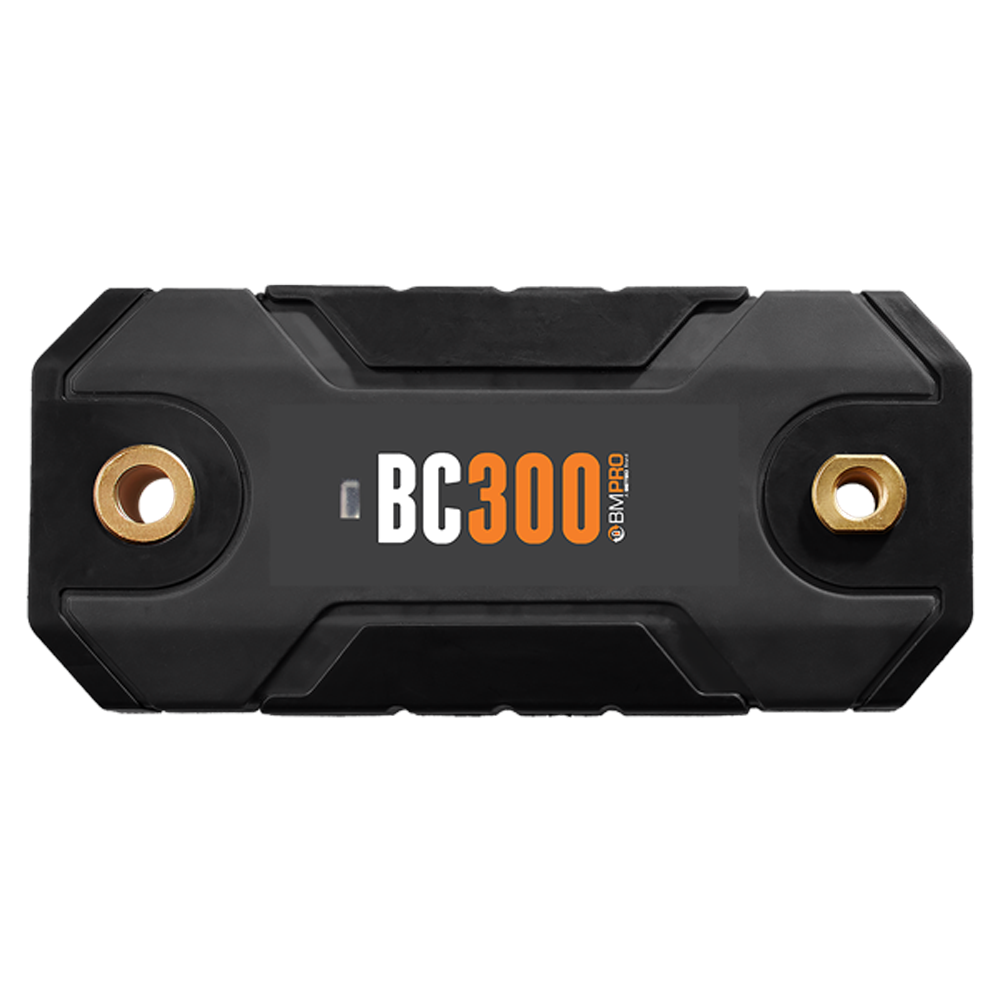

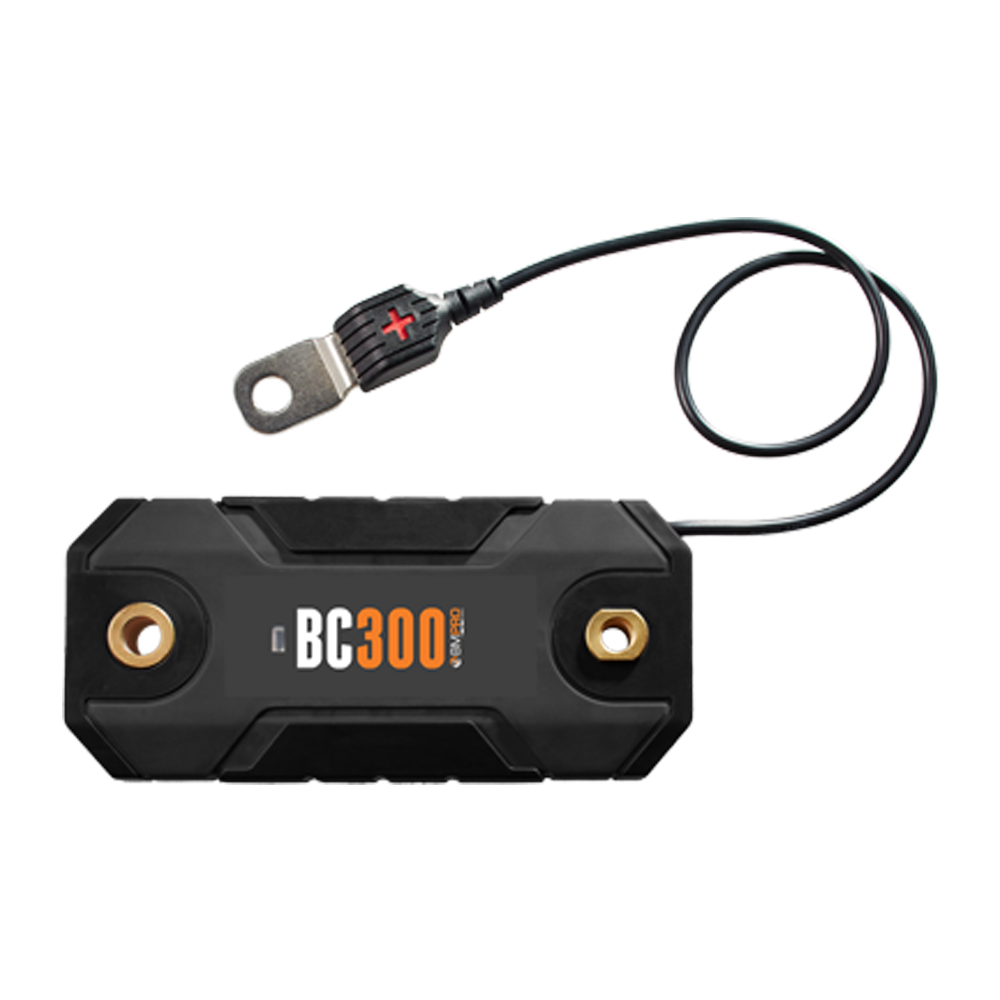

BMPRO BC300+CommLink 300A External Shunt



Key Features:

• High current/external charge  monitoring
• Wireless Bluetooth communication to Commlink – easy to install/retrofit
• DIY installation and simple pairing procedure
• Compatible with Lead Acid and LiFePO4 deep cycle batteries





Battery properties monitored:

• Voltage
• Current (charging/discharging)
• Energy usage (Ah)
• Temperature (not displayed)





Monitor all connections direct to battery:

The BMPRO BC300 External Shunt and CommLink provides additional battery monitoring for your BatteryPlus35 and J35 Power Management Systems, connecting directly to battery via the BC300 External Shunt.

This enhances system behaviour with temperature monitoring of the battery for greater protection.

The addition of the BC300 to the BatteryPlus35 and J35 Power Management Systems allows high current loads and external charge sources.

The BC300  also provides your BatteryPlus35 and J35 with additional information on battery usage so your displays such as the Trek, JControl and JHub are always up-to-date on battery Time Remaining and State of Charge.

The BC300 External Shunt and CommLink communicates via Bluetooth and CAN bus.

The BC300 External Shunt is designed for 12V batteries up to 800AH in capacity.

The shunt is rated for ±240A constant and 300A peak.

2 Year Warranty
