Boostec Transmission Lock Up Module - Gen 3 Isuzu D-Max 08/2020-On & Gen 3 Mazda BT-50 09/2020-On

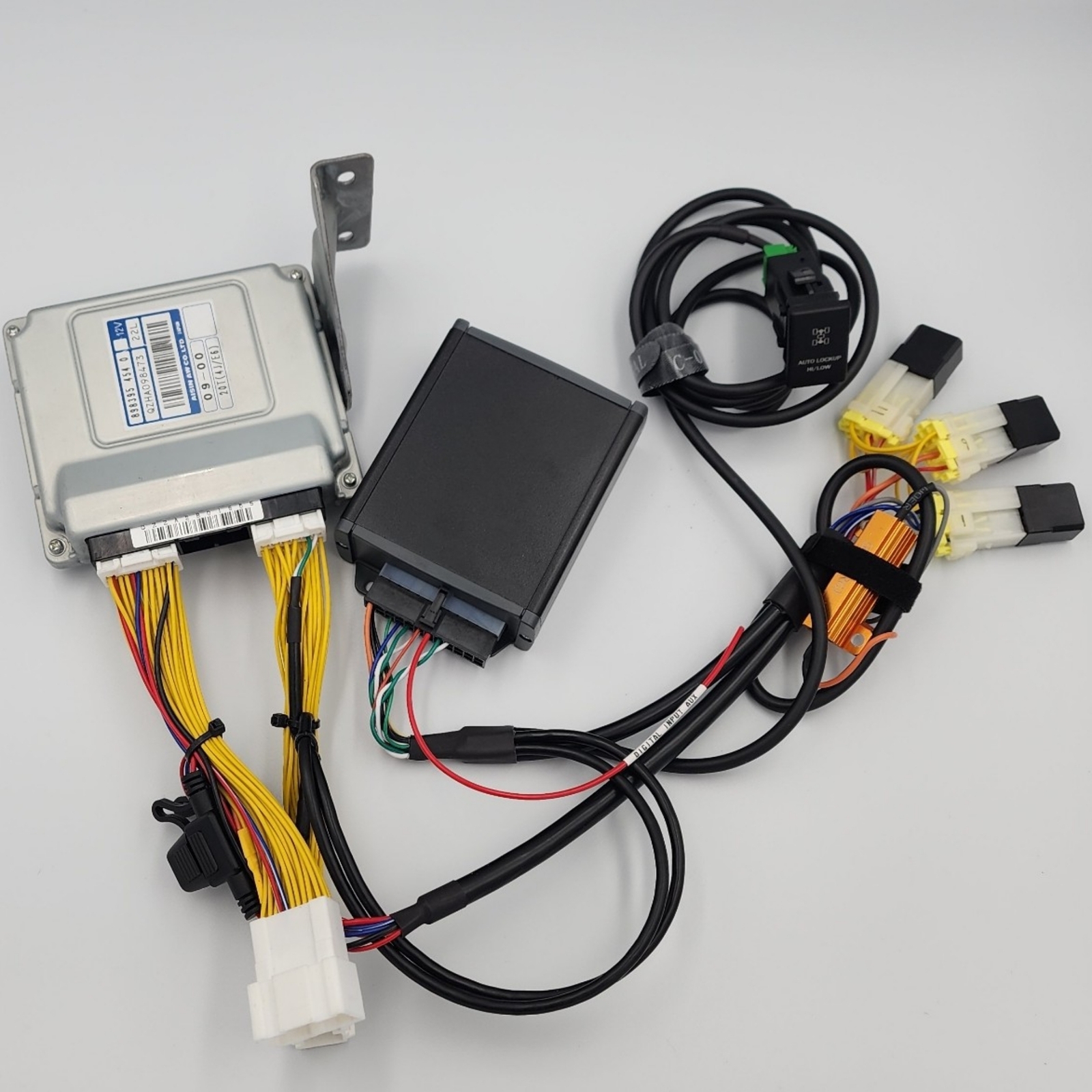

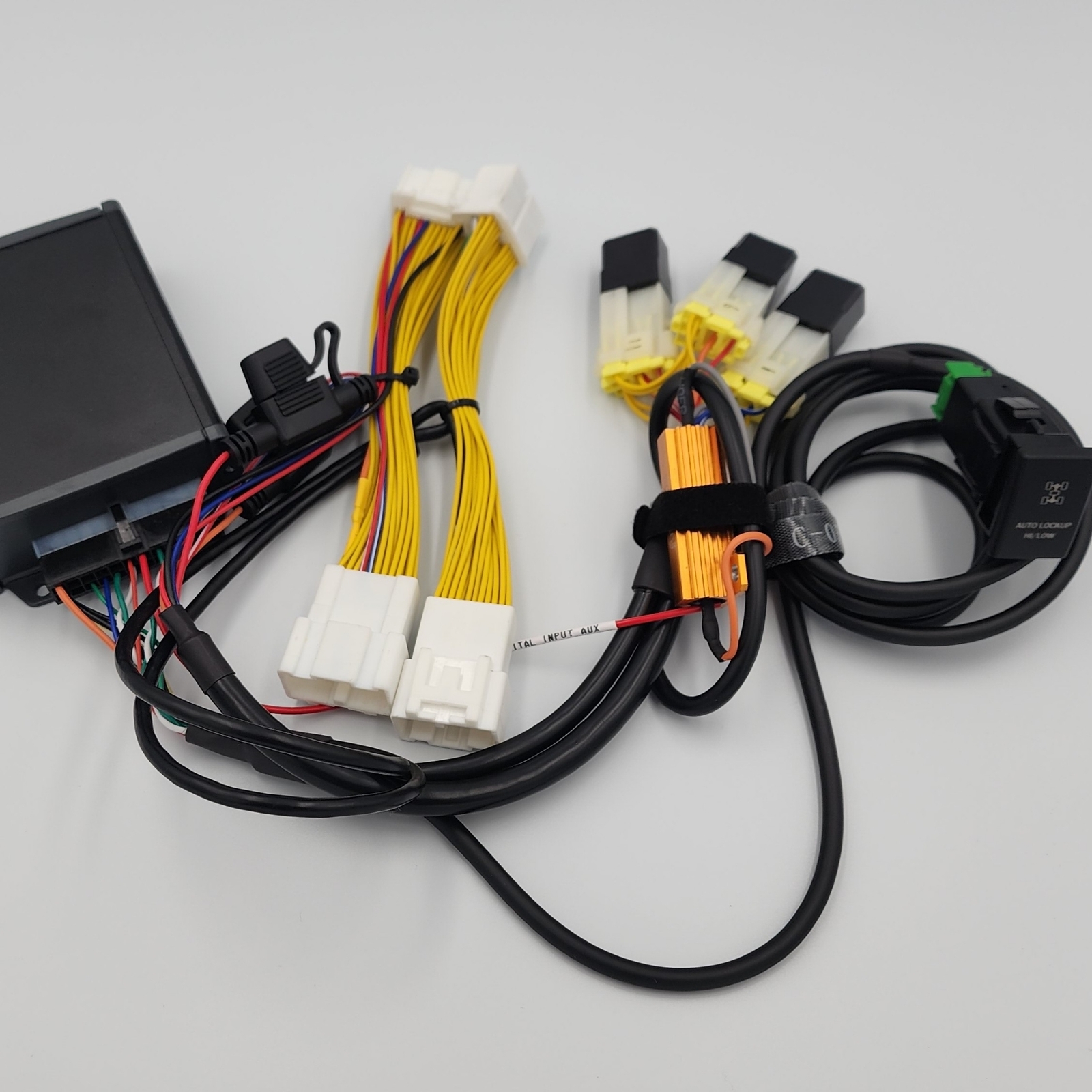

Boostec Transmission Lock Up Module

A Simple 15-20 Minute Install and enjoy the following features:

The push button arms the kit for automatic operation.

Usually you’ll never need to take it out of the on position.

It will lock the Transmission Torque Converter Solenoid under moderate to medium heavy loads at 77km/h and unlock at 74km/h on deceleration.

You don’t have to do anything in this setting, it’s done for you automatically.

Expert mode:
To use the artificial lock up without limits at lower speeds, hold down the cruise-cancel button for 1 sec while driving.
To deactivate, tap the cancel button again.
There is some safety built into the system, but please be aware that if you shift into lower gears while this active, you will get a nasty clunk.
It’s purpose is to use during off road single gear use to prevent over heating of the gearbox or to use engine braking while towing under 75 kmh.
It was a heavily requested feature that’s not for everyone & certainly not recommended for everyday use.

Manual gear cruise control:
Setup your cruise as per normal driving.
Then select manual with gear stick, cruise disables!
Now tap the RES button on the steering to activate manual cruise, tap RES again to return to standard.
The vehicle will function normally while in manual cruise, but you will notice the gear indication display has changed.
The only reason you will want to go to standard is to have normal gear indication.

Clear limp mode/codes:
An added feature was a clear code function like what a scan tool has.
It’s an added feature with no specific purpose unless a strange event occurs with a tuning module or a damaged sensor etc (unrelated to the kit)
To clear codes: repeatedly hit the cruise distance button 5 times within 5 seconds.

Low range tall gear select:
When off road and in low range, you’ll notice only 1st, 2nd, 3rd are normally selectable.
If you hit the cruise RES button, you’ll be allowed to select the taller gears as well.

Warranty:  12 Months
