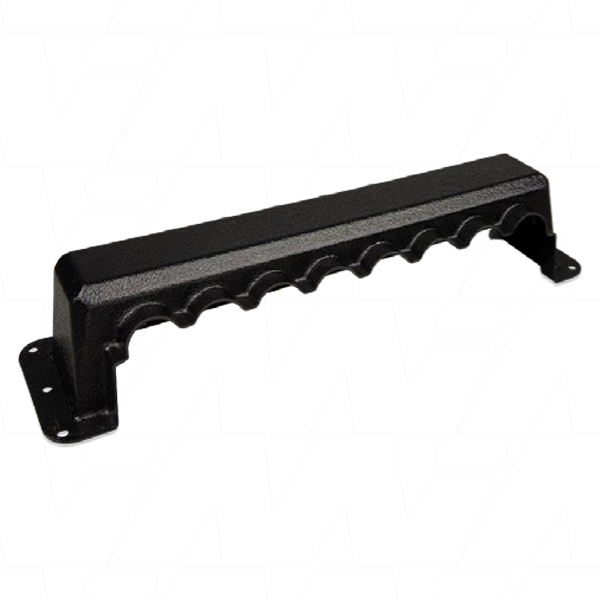

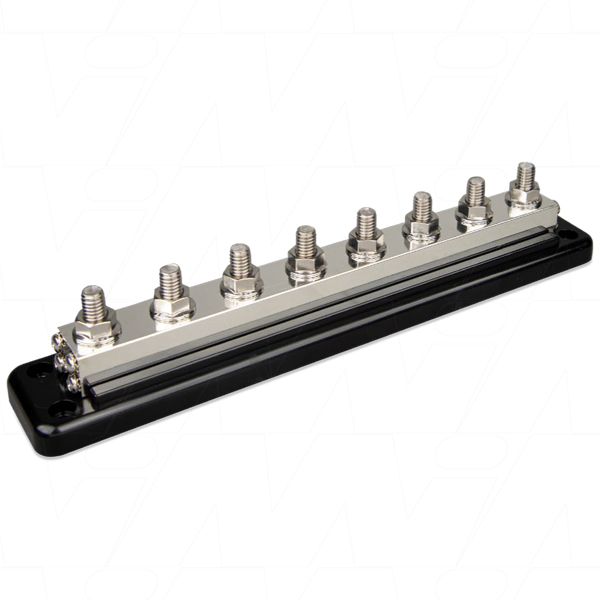

Busbar 600 A with cover | |
Max. current | 600A |
Max. Voltage | 70 VDC |
Terminal diameter | 9.53mm |
Terminal height | 19mm |
Terminal material | Stainless steel |
Flange Nut material | Stainless steel |
Recommended torque | 20 N·m / 180 lbf·inch |
Screw Terminals diameter | 4.2mm |
Screw Terminals | Stainless steel |
Recommended torque | 2 N·m / 17 lbf·inch |
Busbar strip material | Tin-plated copper (19 x 24mm) |
Base material | ABS, black, UL 94 V-0 |
Cover Material | ABS, black, UL 94 V-2 |
Weight | 1300 g |
Dimensions (hxwxd) | 65 x 327 x 86 mm |
(VBB160080010)
SKU | VBB160080010 |
Brand | Victron Energy |
Shipping Weight | 1.3000kg |
Shipping Width | 0.327m |
Shipping Height | 0.065m |
Shipping Length | 0.086m |
