BushSkinz Elite Lightweight Front & Sump Guards - Isuzu D-Max RG (08/2020-On)



When we purchased our New D-Max, we almost had a Heart Attack at how close the Actuator on the Electric Steering Rack is to the paper thin factory plate under it.

The position of the Steering Rack Actuator is only approx 8mm above the factory undertray & with one decent hit off road, it could possibly leave you stranded & will most certainly lead to a massive repair bill..... See Pics Below ....









BushSkinz 4X4 was born out of a desire to provide a better 4x4 underbody protection option for 4WD’ers like all of us.

They wanted to give 4WD owners like us more protection and peace of mind for exploring all the rugged, off-the-beaten-path spots that Australia has to offer & developed their leading underbody protection systems.

BushSkinz Elite range has been developed specifically for the four wheel driver who wants the best in protection and coverage but without the weight that comes with bolting big pieces of steel under their vehicle. Made from 6mm 5052 H32 Aluminium, we are able to achieve steel like strength but without the weight, allowing you to maximise the use of your available payload and help keep your vehicle under gross vehicle mass (GVM) when headed out on your next adventure.





Features:

• Made from 6mm 5052 H32 Grade Aluminium, Steel like strength without the weight.
• Strategic folds to dramatically increase strength and rigidity compared to cheaper inferior designs.
• Minimal cut outs to maximise strength.
• Full coverage and protection of the front diff unlike the factory and many other guards.
• Bolt up installation - no modification to vehicle required.
• New high tensile bolts supplied.
• Only 8kg Weight in total.
• Compatible with factory Bar and most Aftermarket Bars, including the Offroad Animal Bar on ours.
• If you're looking for the best quality underbody protection at a great price then BushSkinz 4x4 has you covered!





Kit Contains:

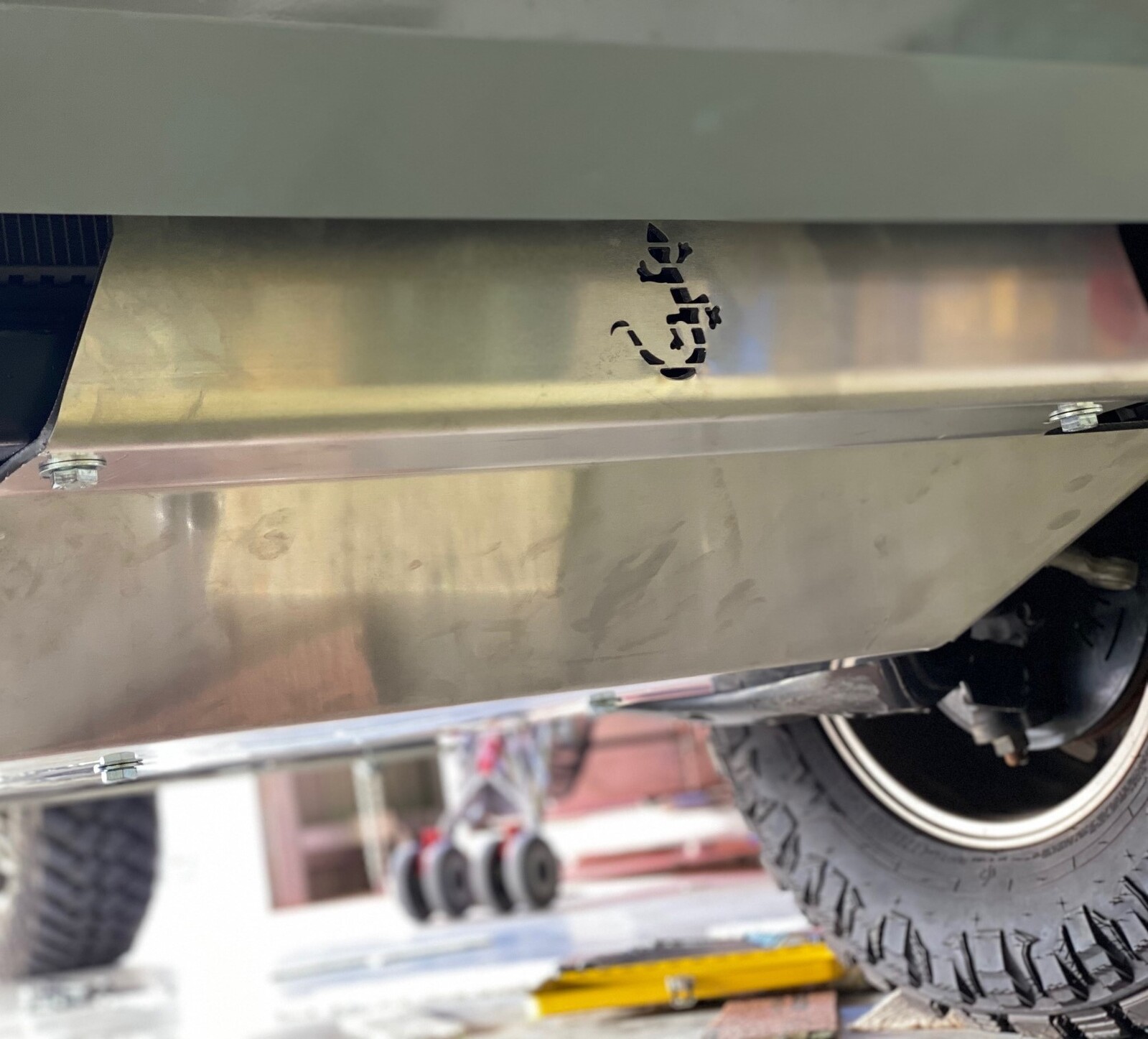

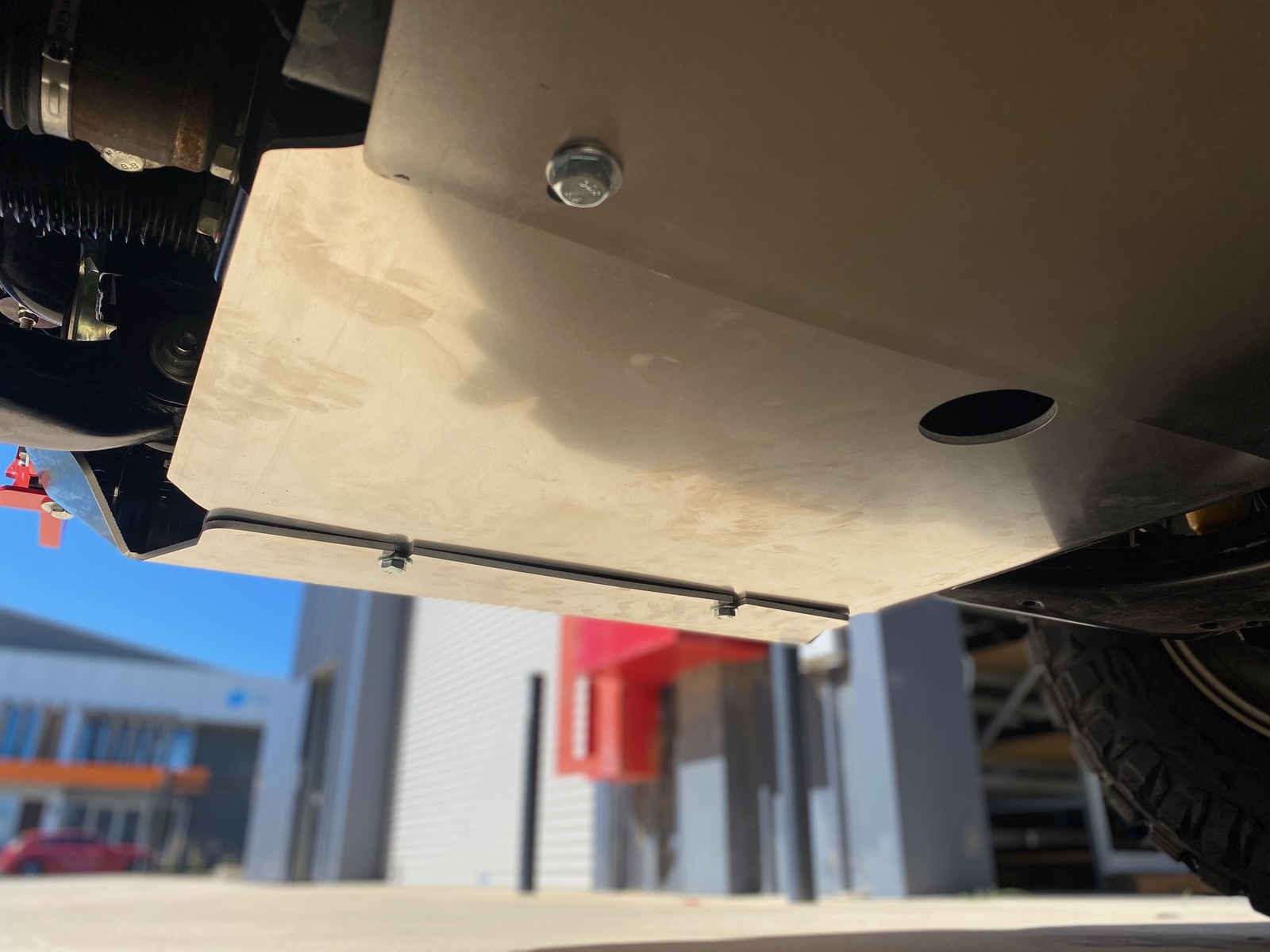

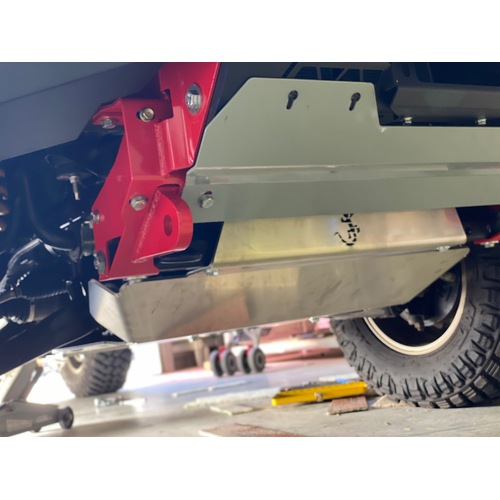

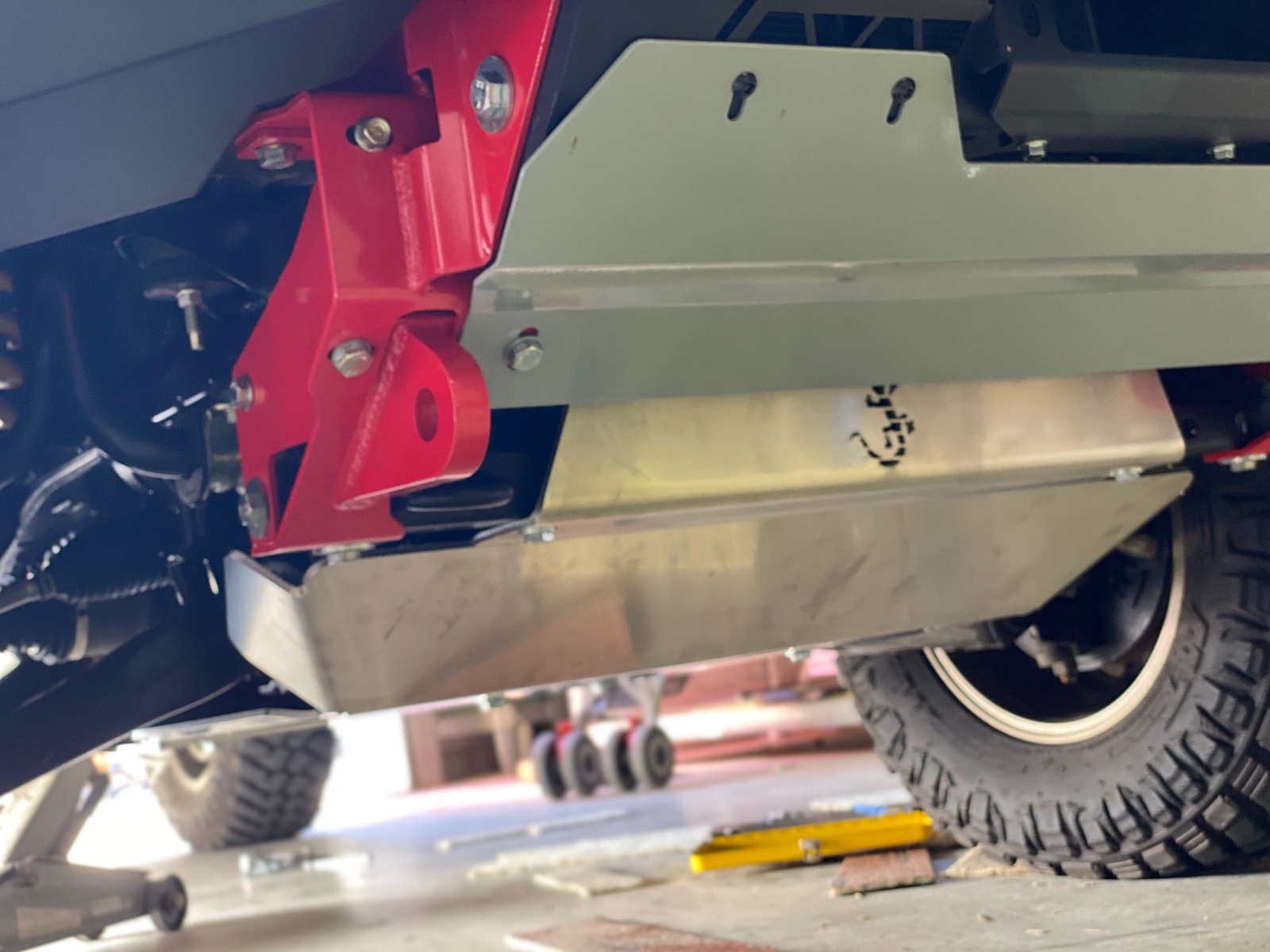

• 2x Plates: Front Guard & Sump Guard.
• Also included are replacement High Tensile Bolts & Washers as required- Standard Bolts have a very soft head and are prone to damage.





Suits:

• Isuzu D-Max RG (08/2020-On)





Additional Info:

• Brand BushSkinz 4x4
• Shipping Weight 8.0000kg
