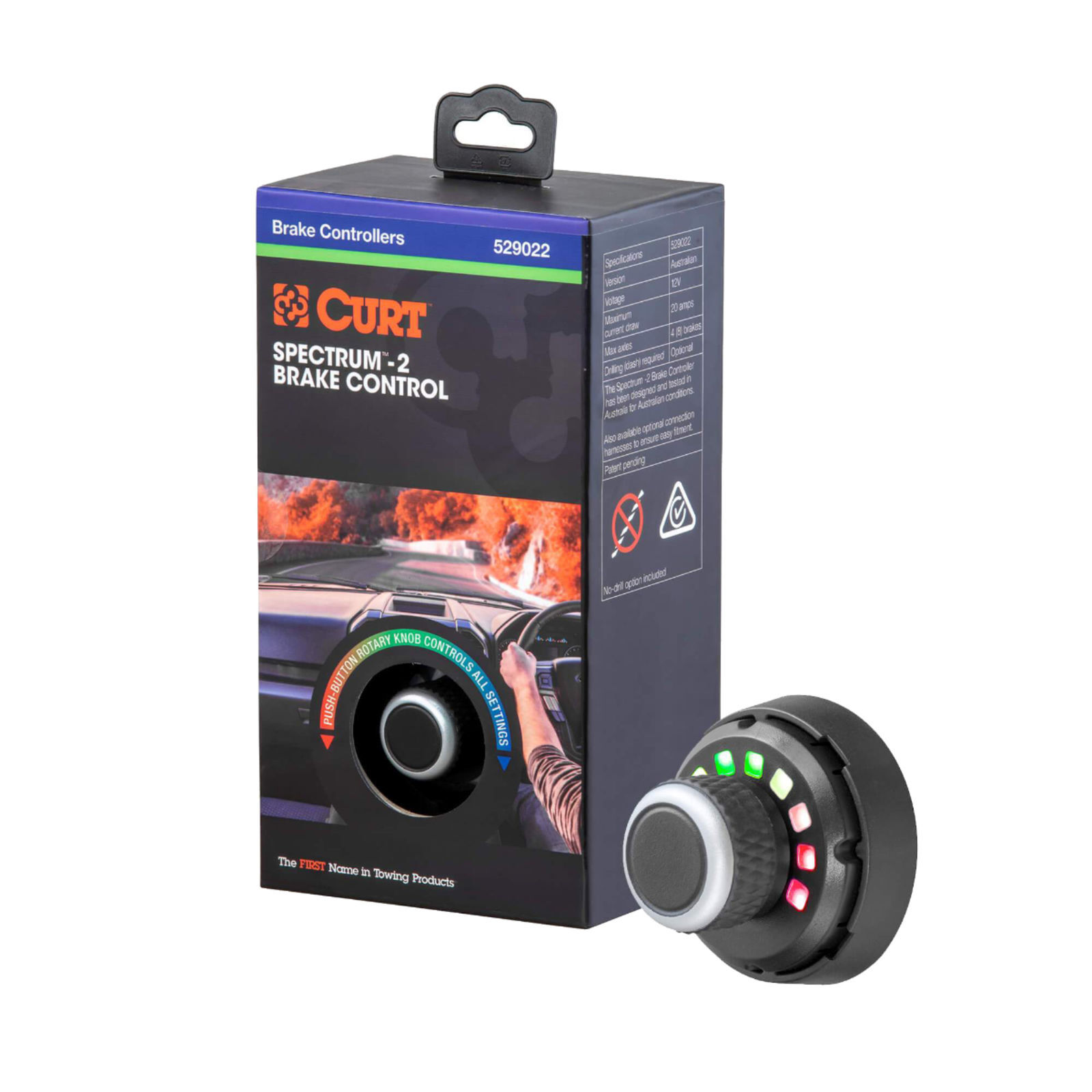

CURT Spectrum-2 Brake Controller

The CURT Spectrum-2 Brake Controller is a fully compatible unit, able to operate up to eight trailer brakes at a time (1-4 axles). It can be used on vehicles with ABS brakes and cruise control and electric over hydraulic, and it works with low-voltage and PWM systems.

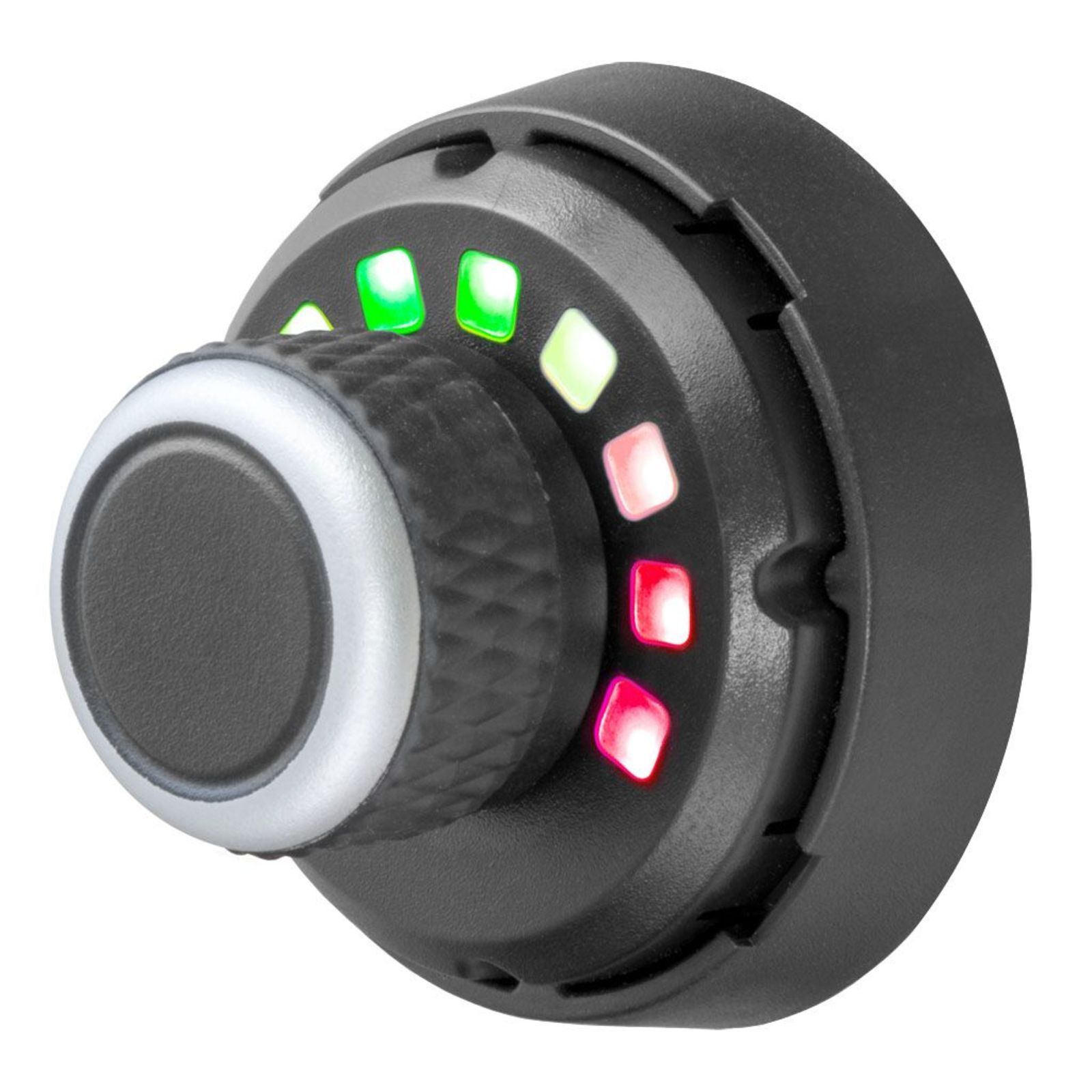

The interface of the Spectrum-2 Brake Controller is simple but powerful. It is a single rotary knob with a push-button in the centre that allows the driver to adjust brake power output. It is equipped with ten tri-colour LEDs (red, blue and green) to show the automated power output of the control. There is no need for a separate display or additional controls, keeping the dash of your vehicle clean, professional, and uncluttered.

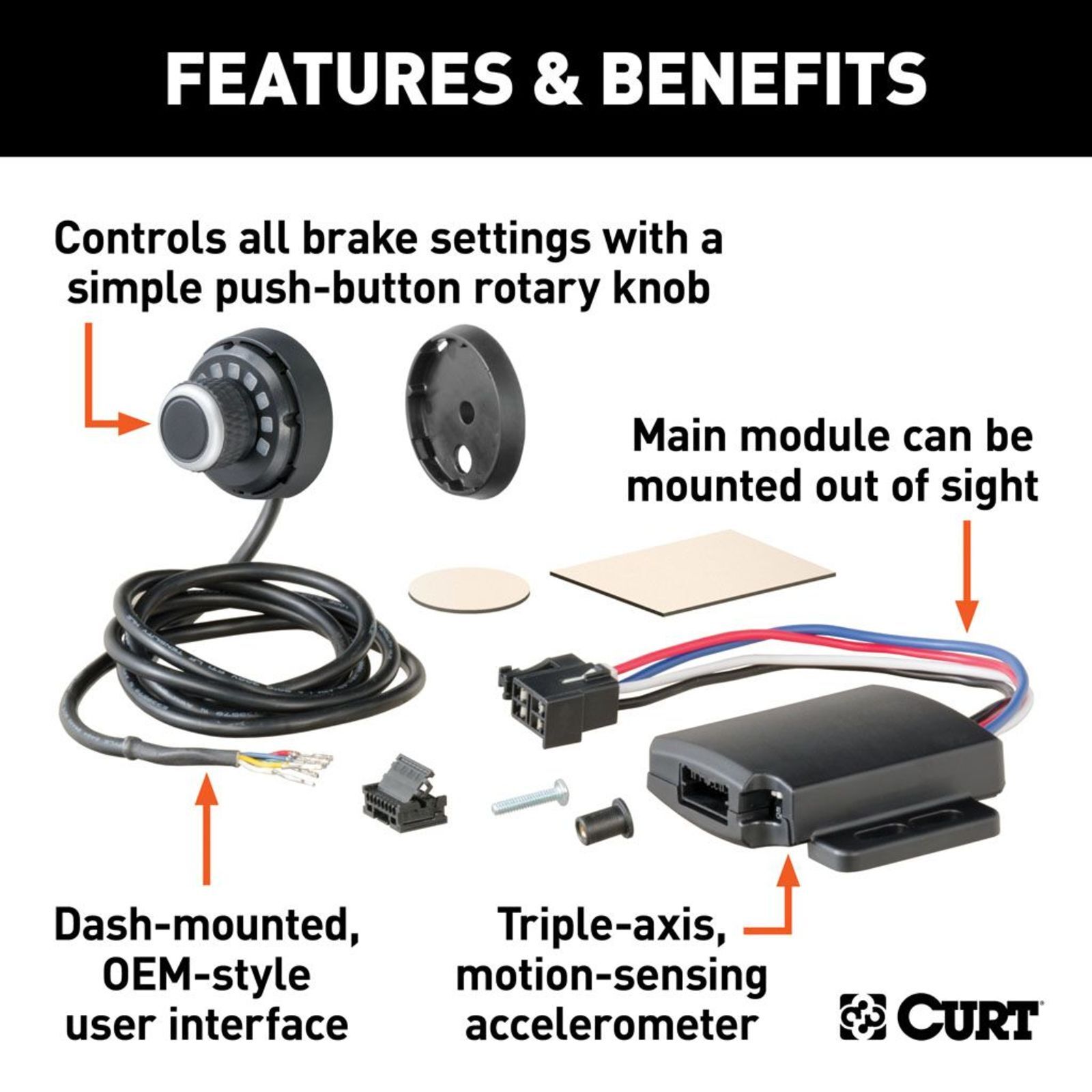

• Motion-sensing accelerometer for highly responsive, smooth stops

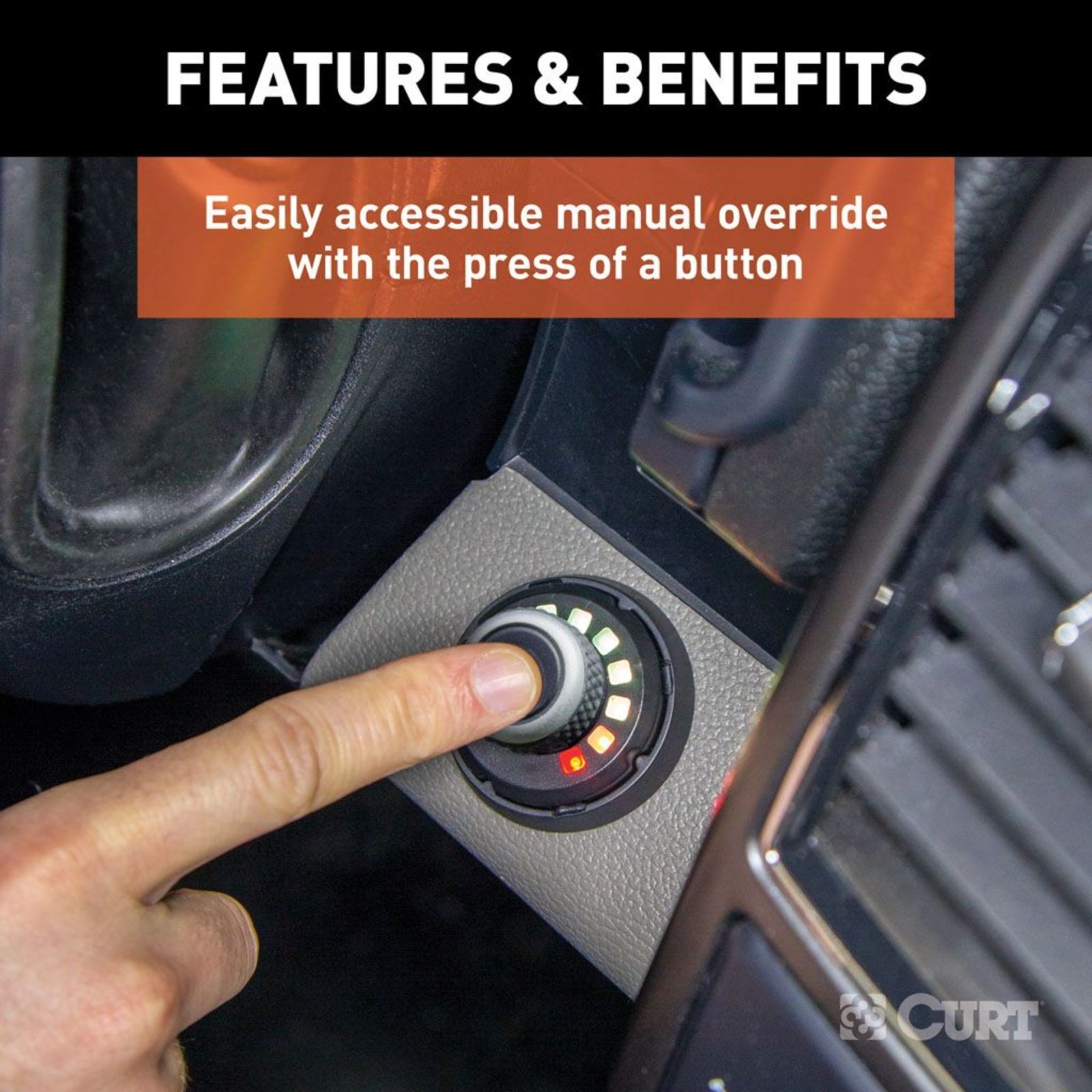

• Easily accessible manual override with the press of a button

• Automatic levelling and calibration eliminate setup requirements

• Equipped with a quick plug for easy, plug-and-play installation

• Built-in reverse-polarity and short-circuit protection

• Includes mounting hardware

• Knob outside diameter is 48mm
