Dobinsons MRA Adjustable 30-35mm Raised Front Pre-Assembled Struts - Mitsubishi Pajero Sport QE-QF 2015-2023
Multi Stage Compression & Rebound Adjustable

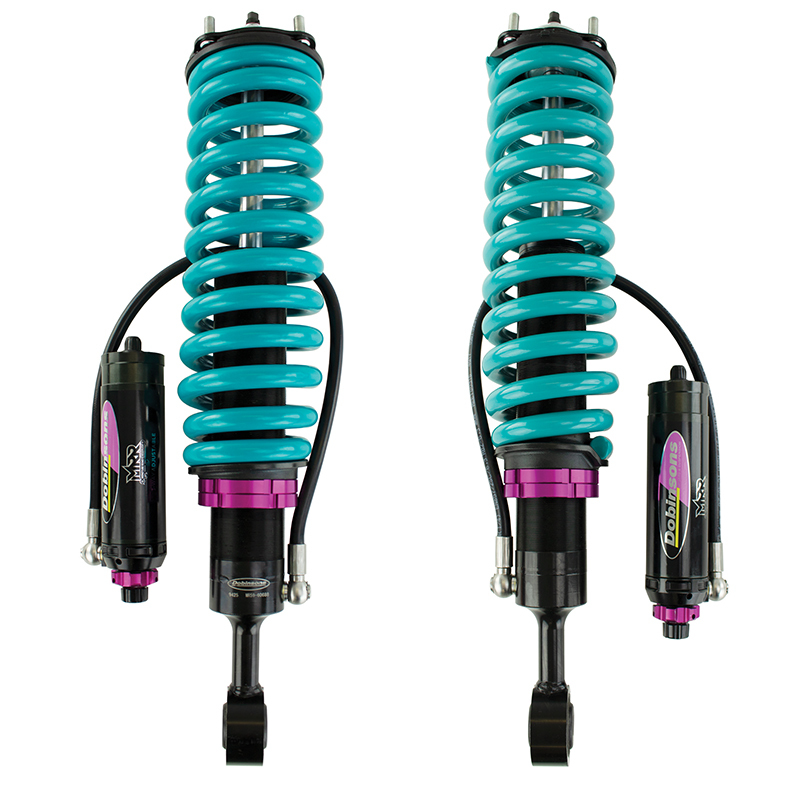

This is one pair of Dobinsons MRA Front Pre-Assembled Front Struts to suit: Mitsubishi Pajero Sport QE-QF 2015-2023
MRA Shocks offer the ultimate in shock tunability in varying terrain and vehicle loads, to keep you controlled and comfortable. Enjoy the ride.......
The MRA Shocks Feature:

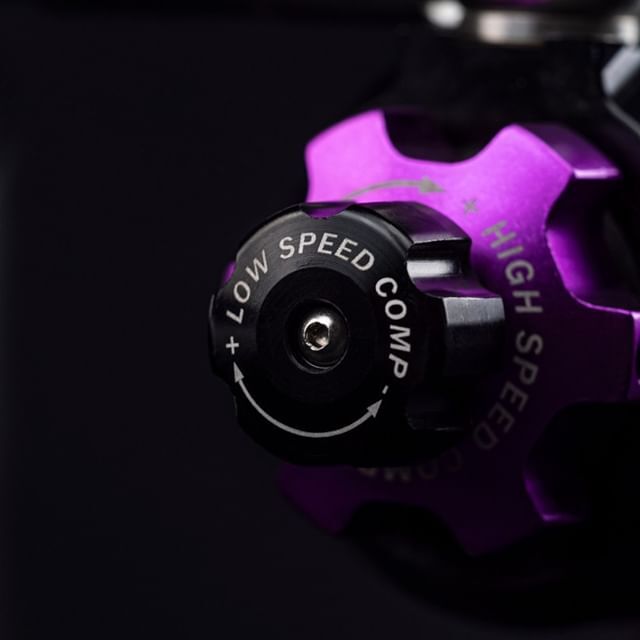

- 20 Stage Low Speed Compression (Bump) Damping
- 10 Stage High Speed Compression (Bump) Damping
- 15 Stage Rebound Damping
- Height Adjustment for fine tuning Front Ride Height
- Fully Rebuildable For Life
Built on the back of the race winning Monotube Remote Reservoir (MRR) shock absorbers, Dobinsons new range of MRA Adjustable shock absorbers combine the best in high performance race-bred Monotube technology, with an all new 3-way damping adjustment system to turn your 4x4 into the ultimate off-road machine. Each component of the MRA shock absorber has been refined and improved to offer a higher level of ride quality, vehicle control and shock absorber performance.

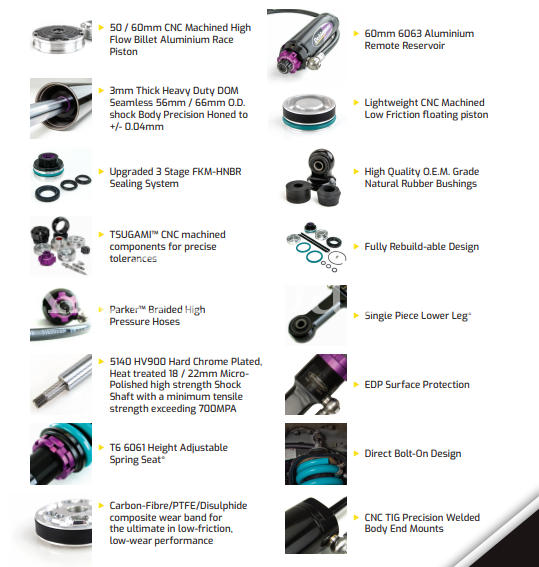

The new 6063 honed aluminium reservoir, revised light-weight floating piston, Carbon Fibre/PTFE/ Disulphide composite wear band, improved 3-stage sealing system and the ability to run lower gas pressure with the addition of the reservoir compression adjuster, have combined to provide massive reductions in shock absorber friction, resulting in an improved vehicle ride and damping performance. The revised sealing design now provides a 3 stage FKM-HNBR shaft seal system that, when combined with the reduced operating frictions, provides a vastly increased service life with reduced wear.
The Micro-polished, hard chromed and heat treated shock shaft, revised CNC aluminium high flow race piston, and DOM Seamless tubing body provides the ultimate in performance and off-road durability. The 3-way adjustment design reduces the main piston working load, distributing heat more evenly between the main piston and the reservoir piston for reduced operating temperatures, and allows quick and easy damping changes.
The kit contains:
- 2x Dobinsons MRA Adjustable Struts Pre-Assembled with Dobinsons Springs & New Strut Top Mounts
- 2x Dobinsons Coilover Adjusting C Spanners
Important Notes for setting up your Vehicle Correctly:
When selecting Springs to suit your lift, please Select Springs only to suit Current "CONSTANT" Loads Front and Rear.
Towing Loads are not included in your Constant Load Calculations, as they are not "Constant" Loads.
Please do not put Occasional Loads into your "Constant" Load determinations.
Selecting a load rating that is too heavy for your setup will result in Poor Flex Off-Road, Compromised Suspension Travel & Rough Ride, and will cause damage to your new shock absorbers and other components by pushing them outside of their intended range.
Please Note:
- All lift heights stated are estimated lift heights, due to the large number of variables in each different vehicles setup and accessories.
- Estimated Lift Height 30mm.......
- This is a genuine estimation of lift heights achievable for this Model & anyone that advertises a kit for a Pajero Sport as a 2" Lift kit is full of cr*p, as the front end geometry will just not allow a full 50mm 2" lift to work and still have any downtravel left on these!
- Pajero Sport models have Limited Downtravel in Suspension (Droop)
- When Raising the vehicle & a Shortened Upper Bumpstop Kit to Maximise Travel is Strongly Recommended.
(283150)
| SKU | 283150 |
| Brand | Dobinsons |
