Name: EFS Elite 45mm Lift Kit - Holden Jackaroo LWB with Leaf Spring Rear Suspension (1983 to 04/1992)
Brand: EFS
SKU: 19067
Price: 1436.50 AUD
Availability: InStock

EFS Elite 45mm Lift Kit - Holden Jackaroo LWB with Leaf Spring Rear Suspension (1983 to 04/1992)

Available Options
My Torsion Bars are (Must check Prior to Ordering)
Add Greasable Pins & Shackles

Calculate Shipping

The EFS Elite Shock Absorber Range is developed for the 4wd owner who only pursues the best for their 4wd.

EFS is built with high quality Internal & external components combined to give you excellent performance and longevity.

EFS shock absorbers are vehicle & height specific with valving developed to suit each vehicle. "Not a one shock suits all approach"

51mm - 60mm External Tube - Greater oil capacity to keep the Shock Absorber at a lower operating temperature
Low Pressure Nitrogen Gas charged to prevent the oil from cavitating (foaming)
Long Travel Design - Maximises wheel articulation
35mm Piston, Twin Tube Construction gives increased control of the spring during rebound and compression cycles
16mm Quality Hardened Chromed Piston Rod gives long service life, and great lateral strength
1.5mm Outer & Inner Wall Thickness gives great durability and strength
Dynamic Motion Control Valve - Adjusts to different on road & offroad conditions
HI quality elastomer and rubber mounting bushes to suit specific applications
3 year / 100,000 km warranty

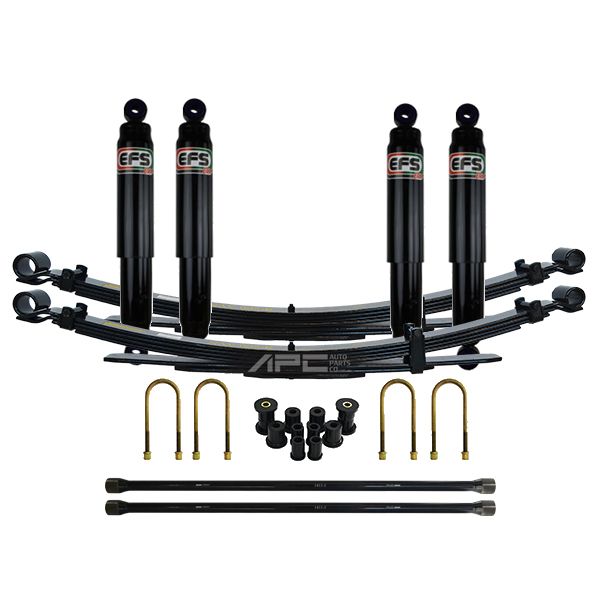

The base kit Includes:

2x EFS Elite Nitro Gas Shocks (Front)
2x EFS Elite Nitro Gas Shocks (Rear)
2x EFS Leaf Springs 45mm (Rear)
4x EFS HD Extended U Bolts
1x Polyurethane Leaf Spring Bush Kit
HD Torsion Bar Kit - Length and Diameter Must be checked Prior To Ordering

Suits: Holden Jackaroo LWB with Leaf Spring Rear Suspension (1983 to 04/1992)

Important Notes for setting up your Vehicle Correctly:

When selecting Springs to suit your lift, please Select Springs only to suit Current "CONSTANT" Loads Front and Rear.
Do Not include “Future Planned Mods” into your weight calculations if they are not fitted to the vehicle.
Towing Loads are not included in your Constant Load Calculations, as they are not "Constant" Loads.
Do not put “Occasional” Loads into your "Constant" Load determinations.
Selecting a load rating that is too heavy for your setup will result in Poor Flex Offroad, Very Rough Ride, Compromised suspension Travel, and will cause damage to your new Shock Absorbers and other components by pushing them outside of their intended range & Void the Warranty on them.
If you are in any Doubt, Please click on the link below on how to setup your suspension correctly

https://www.autopartsco.com.au/blog/blog/how-to-set-up-your-suspension-correctly/

Please Note:

All lift heights stated are estimated lift heights, due to the large number of variables in each different vehicles setup and accessories.
Estimated Lift Height 45mm

(19067)
