EFS Elite 50mm Lift Kit - Volkswagen Amarok NF 04/2023-On

Enhanced 4WD Suspension is a quality driven product that has been proven in 4WD competitions throughout Australia & pushed to the limits by 4WD enthusiasts around the world.


The EFS Elite Shock Absorber Range is developed for the 4wd owner who only pursues quality for their 4wd.

EFS is built with high quality Internal & external components combined together to give you excellent performance and longevity.

EFS shock absorbers are vehicle & height specific with valving developed to suit each vehicle.
"Not a one shock suits all approach"

• 51mm - 60mm External Tube - Greater oil capacity to keep the valve at a lower operating temperature
• Low Pressure Nitrogen Gas - Prevent the oil from cavitating (foaming)
• Long Travel Design - Maximises wheel articulation
• 35mm Piston, Twin Tube Construction - Increased control of the spring during rebound and compression cycles
• 16mm Quality Hardened Chromed Piston Rod Longer service life, and greater lateral strength
• 1.5mm Outer & Inner Wall Thickness Greater durability and strength
• Dynamic Motion Control Valve - Adjusts to different road & off road conditions
• Polyurethane and rubber bushes – HI quality elastomer and rubber mounting bushes to suit specific applications
• 3 year / 100,000 km warranty

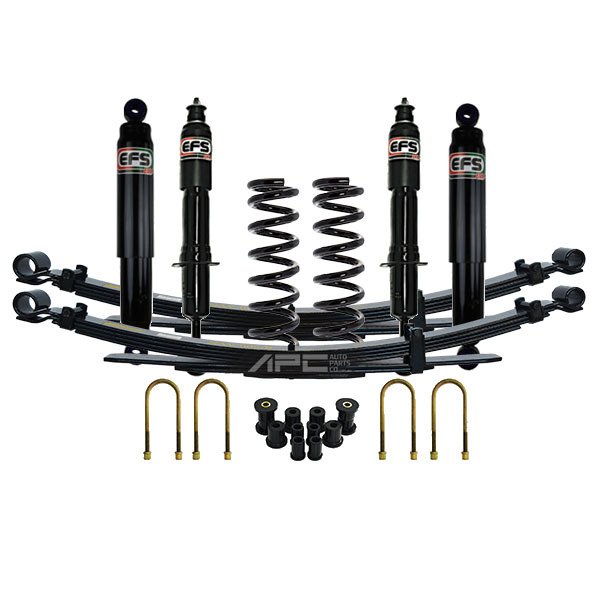

The kit Includes:

• 2x EFS Elite Nitro Gas Struts
• 2x EFS Springs Raised Coil Springs
• 2x EFS Elite Nitro Gas Shocks
• 2x EFS Raised Leaf Springs
• 1x Tailshaft Centre Bearing Spacer Kit
• 4x HD U Bolts
• 1x Polyurethane Bush kit

Important Notes for setting up your Vehicle Correctly:

• When selecting Springs to suit your lift, please Select Springs only to suit Current "CONSTANT" Loads Front and Rear.
• Do not allow for weights of “Future Planned Mods” that aren’t fitted to the vehicle yet.
• Towing Loads are not included in your Constant Load Calculations, as they are not "Constant" Loads.
• Please do not put Occasional Loads into your "Constant" Load determinations.
• Selecting a Spring load rating that is too heavy for your Current setup will result in Poor Flex Off-Road, a Very Rough Ride & Compromised Suspension Travel.
• This will cause damage & ultimately lead to failure of your new shock absorbers and other components by pushing them outside of their intended range & Void Warranty on them.

Please Note:

All lift heights stated are estimated lift heights, due to the large number of variables in each different vehicles setup and accessories.

Estimated Lift Height is 50mm
