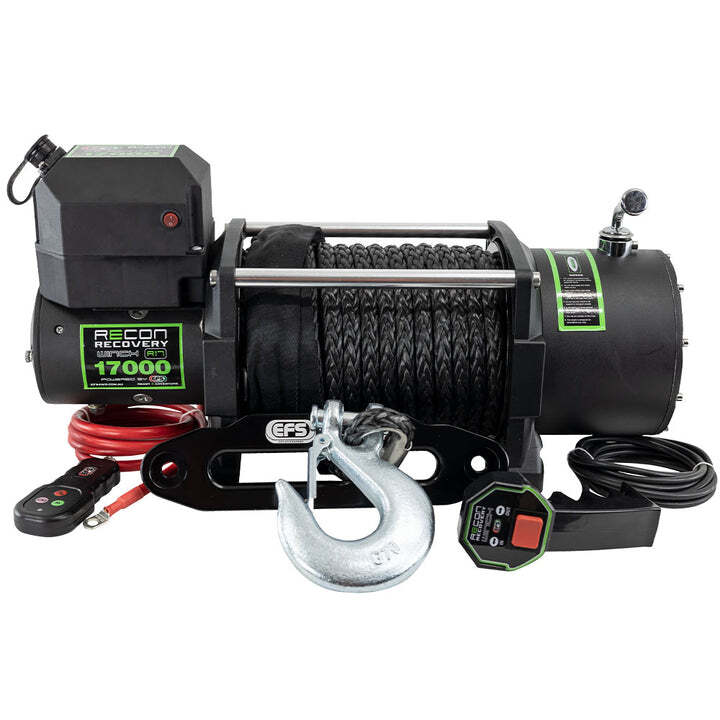

EFS Recon 17000lb Winch

EFS RECON 17000 LBS (7720KG) electric winch, 12-volt, remote safety switch comes with wireless and wired remotes, automatic motor brake which reduces drum heat

SPECIFICATIONS:

• Part Number RECON-17
• Single line rated pull 17,000lb (7,720kg)
• Motor 12V 6.0hp/4.5kw Series Wound
• Control Remote Switch,3.6m lead & wireless remote.
• Gear Ratio 360:1
• Clutch Sliding ring gear
• Braking Action Automatic in the motor bracket. No heat on drum when winch works.
• Drum Size 90mmx224mm
• Rope 12mmx24m
• Fairlead Aluminum Hawse
• Weight 54kg
• Overall Dimensions (LxWxH) 587x215x246mm
• Packing Dimensions (LxWxH) 650x410x254mm
• Mounting bolt pattern 254×114.3mm
• 12V DC performance specs (first layer of drum)

We recommend a battery isolation switch to be used & to check measurements to see if winch will fit into bar.
