Enhanced 4WD Suspension is a quality driven product that has been proven in 4WD competitions throughout Australia & pushed to the limits by 4WD enthusiasts around the world.


This is a complete EFS XTR suspension lift kit to suit a Isuzu D-Max (08/2020-On)



The EFS XTR Shock Absorber Range is developed for the 4wd owner who only pursues the best for their 4wd.

EFS is built with high quality Internal & external components combined together to give you excellent performance and longevity.

EFS shock absorbers are vehicle & height specific with valving developed to suit each vehicle. "Not a one shock suits all approach"



XTR Shock Specs:

  • Low Pressure Nitrogen Gas - Helps prevent the oil from cavitating (foaming)
  • Long Travel Design - Maximises wheel articulation
  • 40mm Piston, Twin Tube Construction - Increased control of the spring during the rebound and compression cycles
  • 20mm Quality Hardened Chromed Piston Rod - Longer service life, and greater lateral strength
  • 2 mm Outer & Inner Wall Thickness - Greater durability and strength
  • Dynamic Motion Control Valve - Adjusts to different road & off road conditions Vehicle & Height Specific Valving
  • Mounting bushes: EFS use long life polyurethane & rubber bushes dependant on application

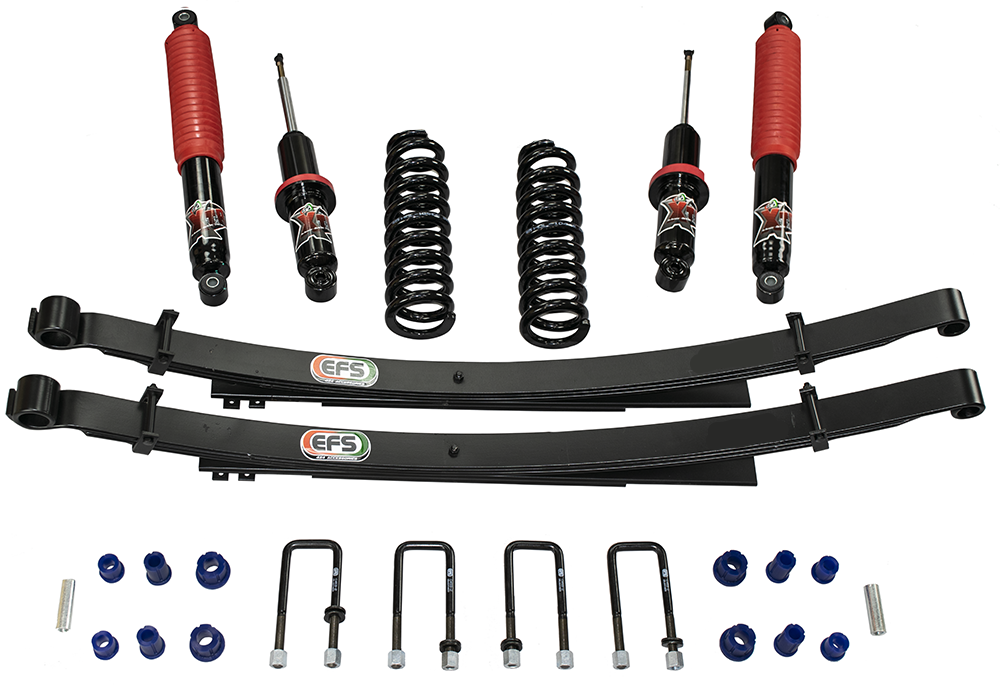

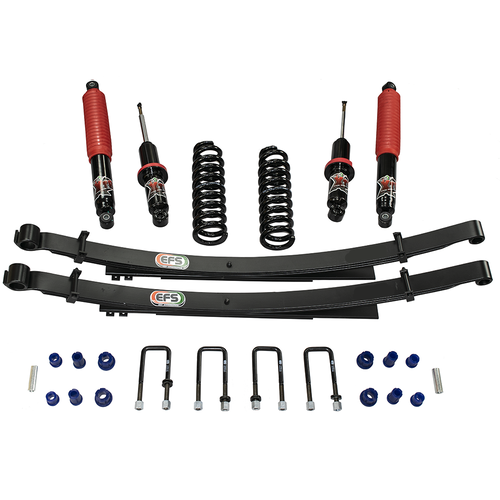

The Kit Includes:

  • 2x EFS XTR Nitro Gas Struts (Front)
  • 2x EFS Raised Coil Springs
  • 2x EFS XTR Nitro Gas Shocks (Rear)
  • 2x EFS 0-150kg Leaf Springs
  • 4x EFS Forged HD U Bolts
  • 1x Polyurethane Bush kit





Warranty:

  • 3 year / 100,000 km warranty





Important Notes for setting up your Vehicle Correctly:  We can't Stress this enough....

  • When selecting Springs to suit your lift, please Select Springs only to suit Current "CONSTANT" Loads Front and Rear.
  • Towing Loads are Not included in your Constant Load Calculations, as they are Not "Constant" Loads.
  • Please do not put Occasional Loads into your "Constant" Load determinations.
  • Example: 300kg Constant Leaves are designed to give 45mm of lift with 300kg of CONSTANT weight on them
  • 500kg Constant Leaves are designed to give 45mm of lift with 500kg of CONSTANT weight on them
  • Selecting a load rating that is too heavy for your setup will result in Poor Flex Off-Road, Compromised Suspension Travel & Rough Ride, and will cause damage to your new shock absorbers and other components by pushing them outside of their intended working range....... This will also Void your Warranty!
  • Oh, and it'll flex about as good as an Ironing Board .... Just set it up right and you'll love it!!!
  • If you have Heavy Occasional Loads, Airbags are the only option that will properly work in a Leafsprung Vehicle.



Please Note:

  • All lift heights stated are estimated lift heights, due to the large number of variables in each different vehicles setup and accessories.
  • Estimated Lift Height is 45mm
