EFS XTR 50mm Lift Kit - Ford Ranger Next Gen 05/2022-On

Excluding Raptor

$2,244.60
RRP $2,634.57
SAVE $389.97 (15%)
In Stock

Available Options



Calculate Shipping

Enhanced 4WD Suspension is a quality driven product that has been proven in 4WD competitions throughout Australia & pushed to the limits by 4WD enthusiasts around the world.


The EFS XTR Shock Absorber Range is developed specifically for the Out-back off-road Tourer, with a heavily laden 4wd. It is Improved with increased oil capacities to reduce operating temperatures and incorporates a highly robust construction to take on the worst Australian Out-back roads. EFS XTR shock absorber are designed & developed to suit each vehicle and are not a one shock suits all approach. They are constructed from high quality internal and external components to meet the demands of the modern 4wd.



  • 64mm External Tube - Greater oil capacity to keep the valve at a lower operating temperature
  • Low Pressure Nitrogen Gas - Helps prevent the oil from cavitating (foaming)
  • Long Travel Design - Maximises wheel articulation
  • 40mm Piston, Twin Tube Construction - Increased control of the spring during the rebound and compression cycles
  • 20mm Quality Hardened Chromed Piston Rod - Longer service life, and greater lateral strength
  • 2 mm Outer & Inner Wall Thickness - Greater durability and strength
  • Dynamic Motion Control Valve - Adjusts to different road & off road conditions Vehicle & Height Specific Valving
  • Mounting bushes ƒ?? EFS use long life polyurethane & rubber bushes dependant on application



3 year / 100,000 km warranty

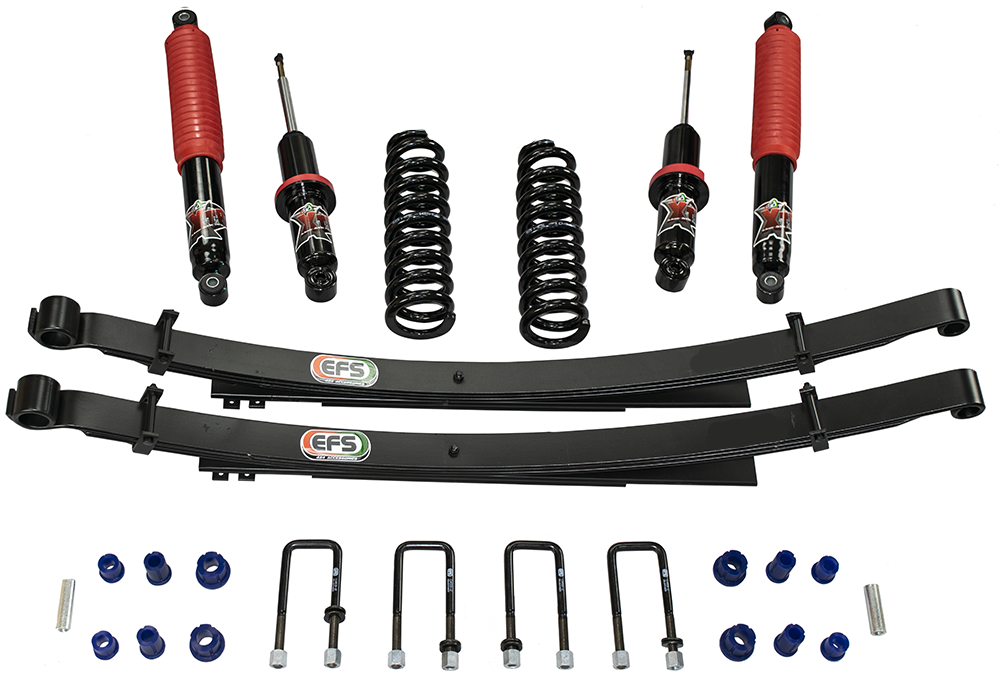

The kit Includes:

  • 2x EFS XTR Nitro Gas Struts (Front)
  • 2x EFS Springs Raised Coil Springs
  • 2x EFS XTR Nitro Gas Shocks (Rear)
  • 2x EFS 0-100kg Leaf Springs
  • 1x Tailshaft Centre Bearing Spacer Kit
  • 4x HD U Bolts
  • 1x EFS Polyurethane Bush kit





Important Notes for setting up your Vehicle Correctly:

  • When selecting Springs to suit your lift, please Select Springs only to suit Current "CONSTANT" Loads Front and Rear.
  • Towing Loads are not included in your Constant Load Calculations, as they are not "Constant" Loads.
  • Please do not put Occasional Loads into your "Constant" Load determinations.
  • Selecting a load rating that is too heavy for your setup will result in Poor Flex Off-Road, Compromised Suspension Travel & Rough Ride, and will cause damage to your new shock absorbers and other components by pushing them outside of their intended range.



Please Note:

  • All lift heights stated are estimated lift heights, due to the large number of variables in each different vehicles setup and accessories.
  • Estimated Lift Height 50mm



(352736)

SKU 352736
Brand EFS
