Ford Ranger Raptor Next Gen Twin Intake Alloy Airbox Standard Inlet Location

Twin Pod Filter Airbox to suit Next Gen Raptor (all models) standard inlet location. (NON Snorkel Option)

Please choose your items carefully as we do not offer refunds for change of mind.

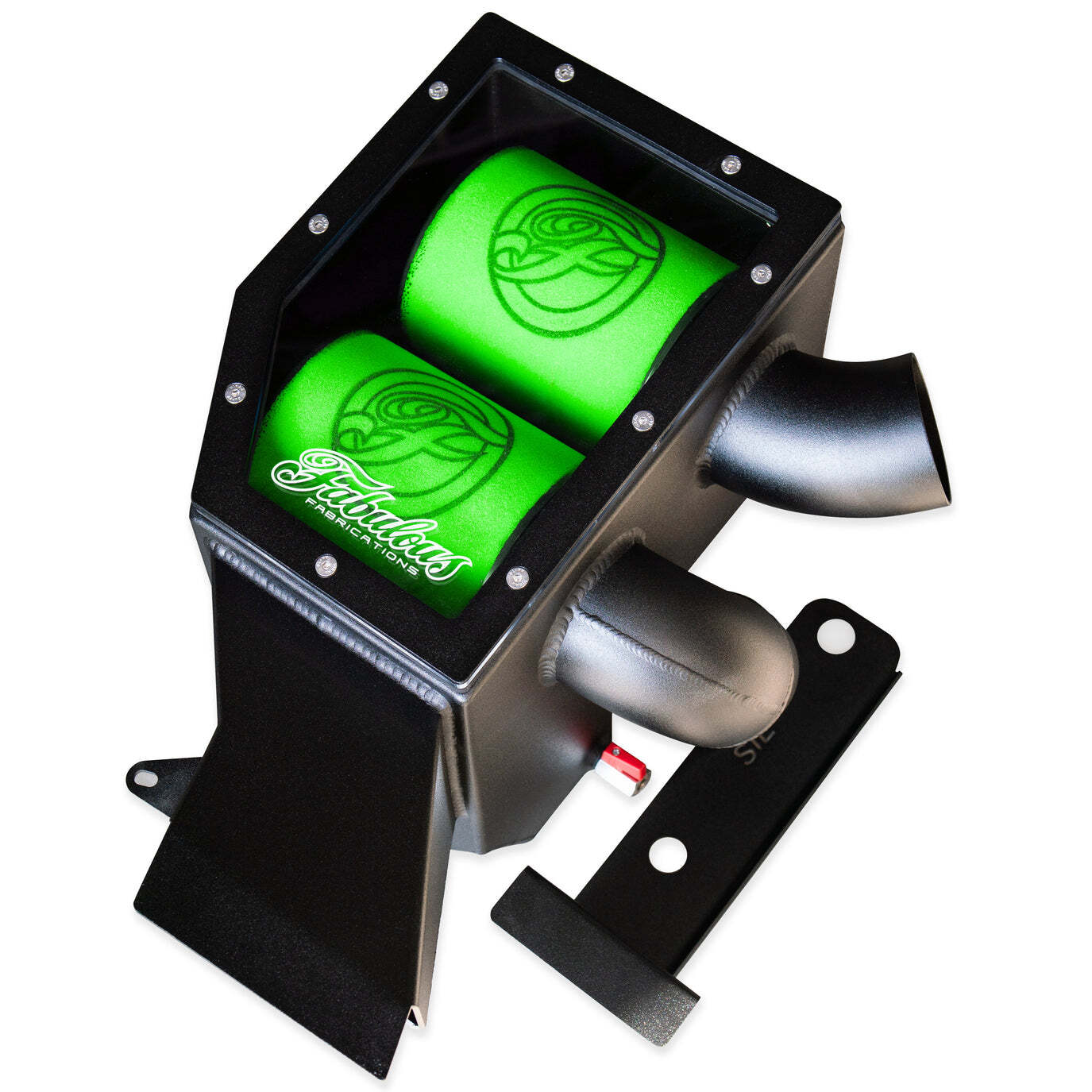

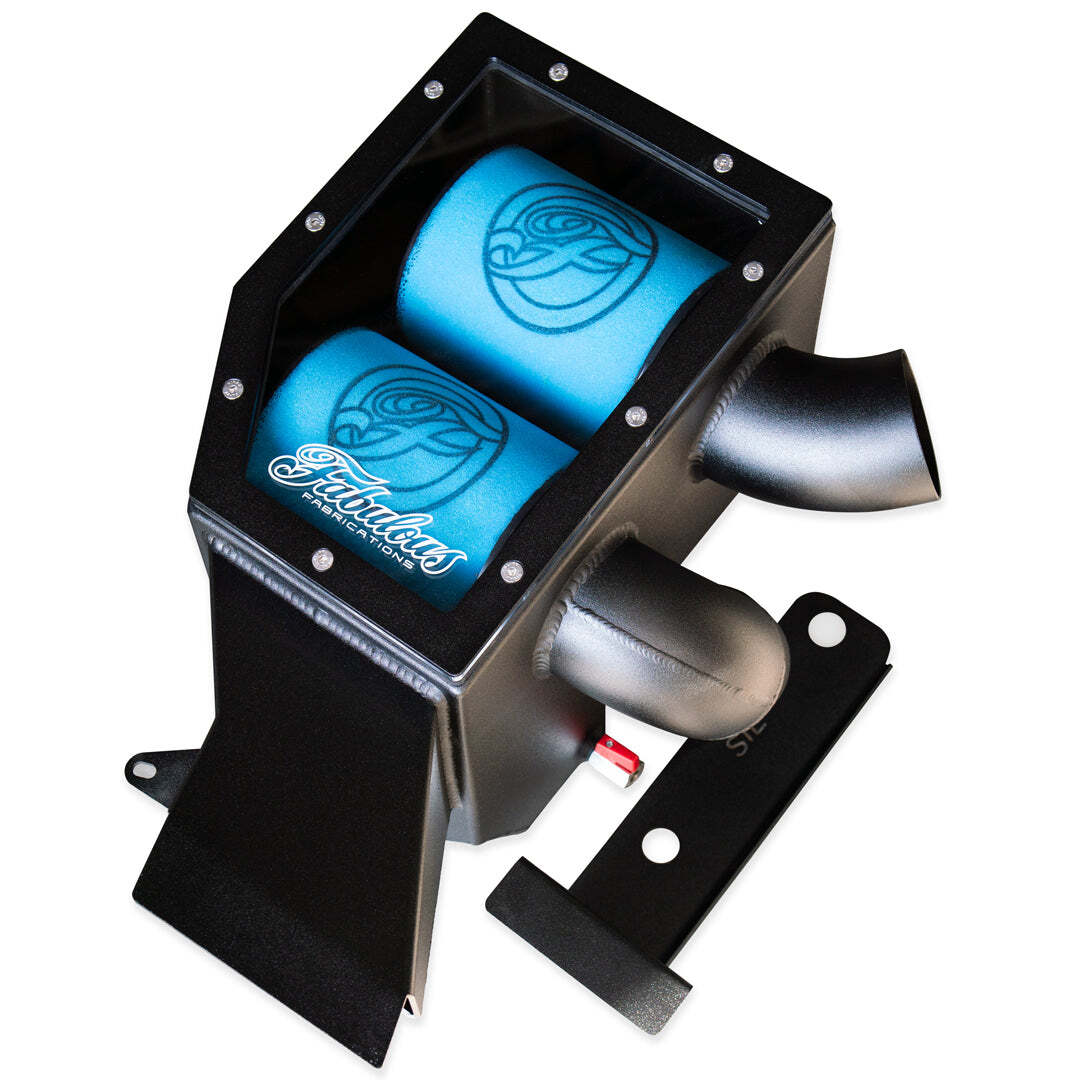

Designed and fabricated by the team at Fabulous Fabrications. Each airbox is made from the finest 3mm aluminium, laser cut and folded for precision accuracy and fully tig welded to guarantee longevity and a superior quality finish.

We have used 3d modelling software to help design and fabricate a housing for the inlet air temp sensor, as well as the factory mounting hardware.

The factory Ford airbox dictates that the engines turbos compete for the same airflow with its T-piece design. Our unique design is a true, twin intake system, which allows each turbo dedicated, uninterrupted airflow.

We use Australia made Unifilter foam filter elements, which sees the filtered surface area increase by 51%, maximising the protection for your turbos. The filters are also fully serviceable, minimising the impact on your pocket.

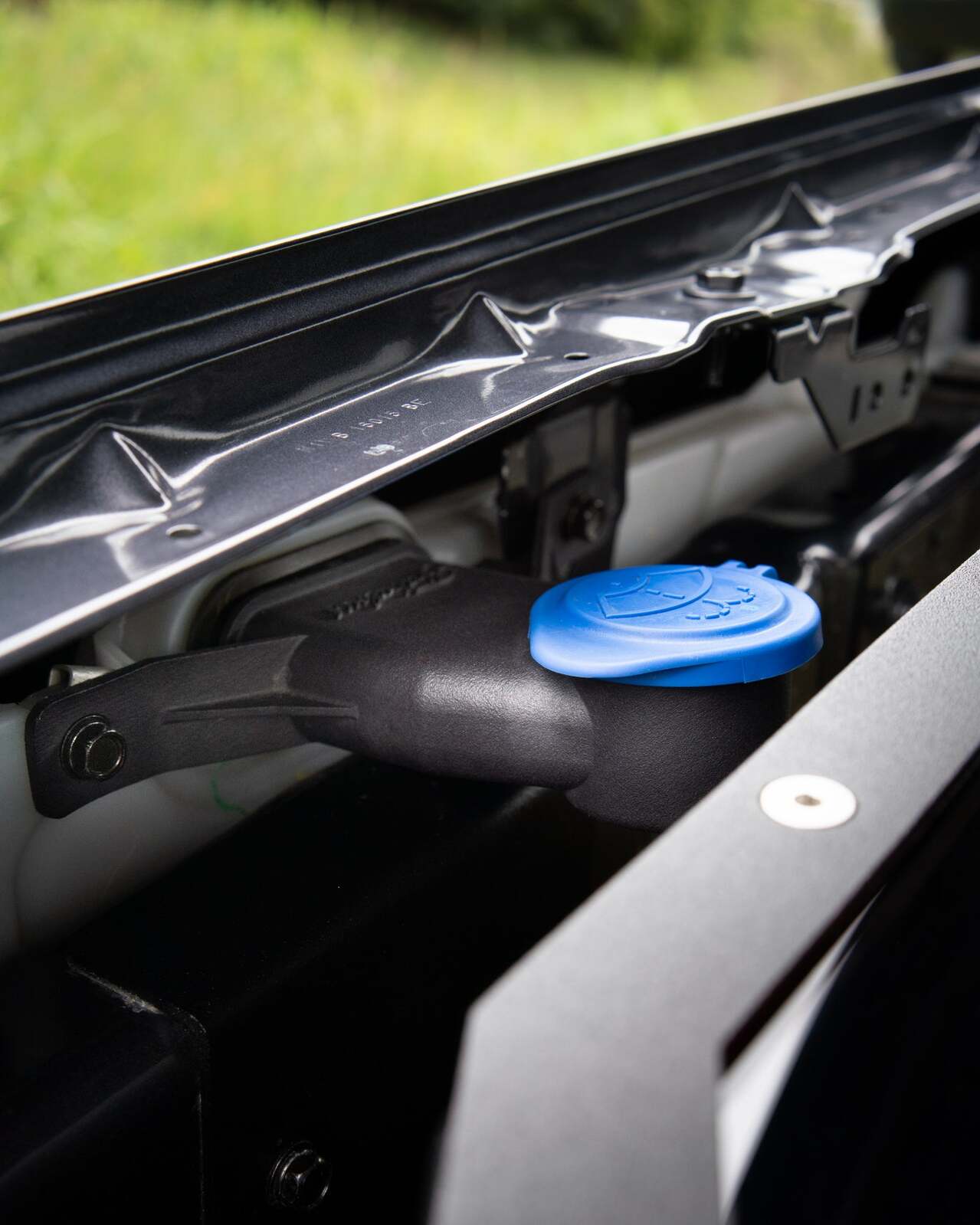

Each airbox comes powdercoated Dulux Mannex Black, with a 4.5mm nitrile gasket, alloy pressure plate and 6mm perspex lid with laser engraved Fabulous Fabrications logo, to ensure a long lasting seal and custom printed Washer Bottle Filler Neck.

All required fixtures and fittings, and a comprehensive fitting guide are supplied to ensure trouble free installation of the airbox.

Not Compatible with PPD Bonnet Struts

RECOMMENDED FITTING TIME: 2 HOURS
