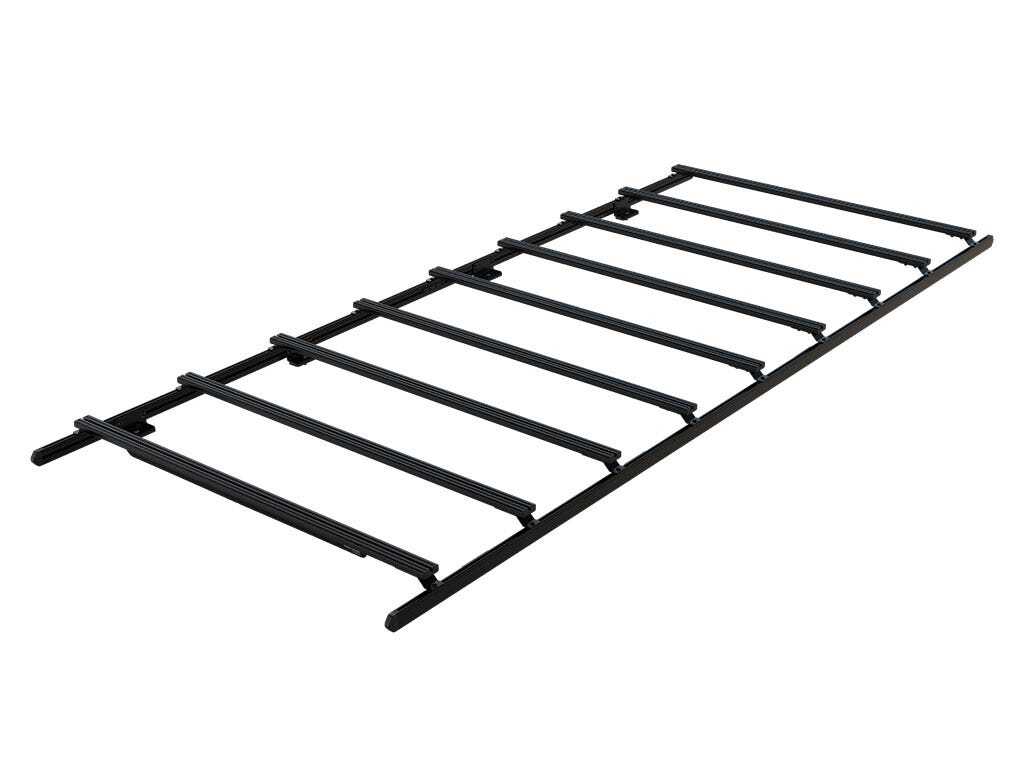

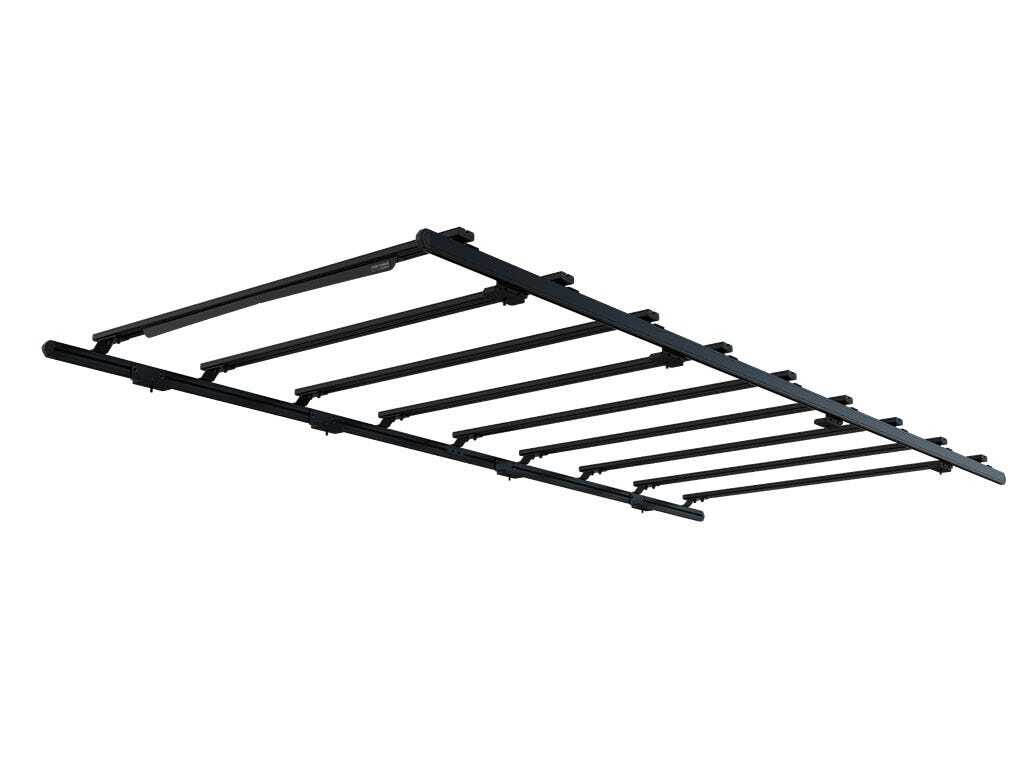

Name: Front Runner Ford Transit (L4H3/148in WB/High Roof) (2013-Current) Slimpro Van Rack Kit
Brand: Front Runner
SKU: KVFT005T
Price: 2687.55 AUD
Availability: InStock

Front Runner Ford Transit (L4H3/148in WB/High Roof) (2013-Current) Slimpro Van Rack Kit

Calculate Shipping

Unlock your van?s storage potential with this highly versatile, rugged roof rack kit for Ford Transit vans. Long distance van-life mission, weekend trip or hauling equipment such as ladders and pipes, the low profile rack is designed to support large load

Compatible with 2013-Current Ford Transit (L4H3/148'' WB) High roof vans with a vehicle length of 6704mm / 263.9''.

Load-carrying area: 3580mm (141'') x 1470mm (57.9'').

Eight (8) Mounting Feet secure into van's existing factory mounting points.

Included Slat Bracket standard configuration at 123mm (4.8'').

Compatible with most Front Runner accessories.

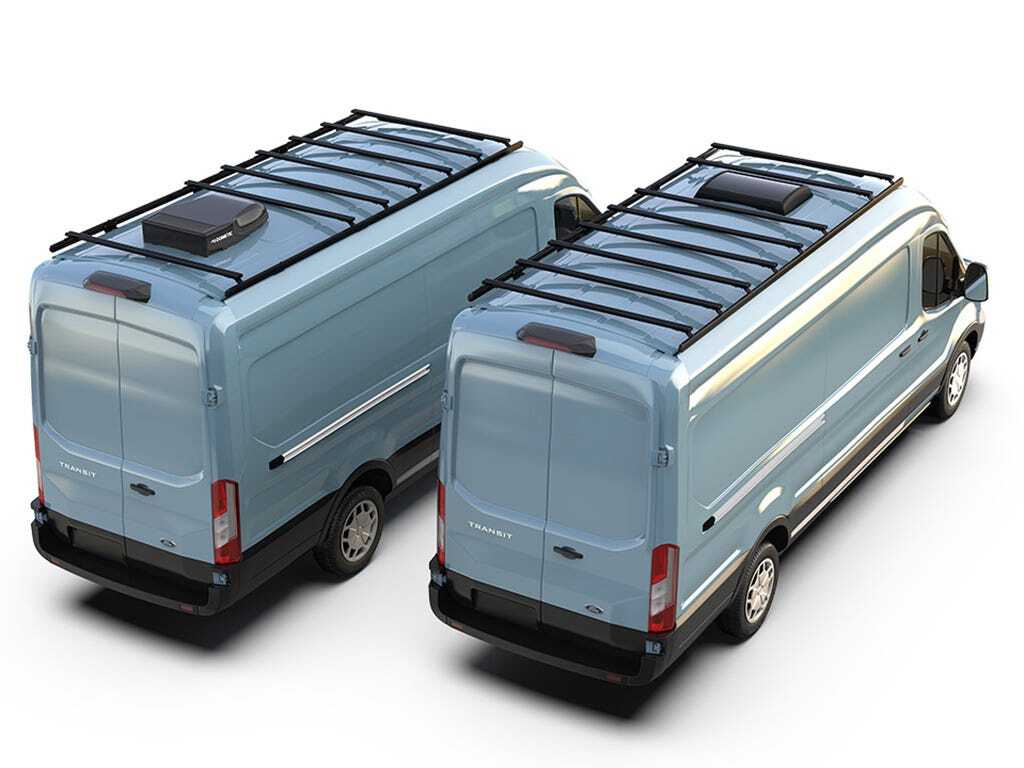

Slats can be configured to any spacing to accommodate roof AC, vents, or any other accessories.

Fitment guide and all mounting hardware are included.

No drilling or modification required.

All Front Runner racks are backed by a limited lifetime warranty.*

(KVFT005T)

KVFT005T - Ford Transit (L4H3/148'' WB/High Roof) (2013-Current) Slimpro Van Rack Kit - by Front Runner Consisting of:4x FAVF003 - Ford Transit Van Rack Foot Set1x RRAC207 - Van Rack Joiner Kit2x RRAC208 - Van Rack Side Profile End Caps5x RRNS1425 - Narrow Slat / 1425mm (Pair)2x SPVT004 - Van Rack Side Profile / 1762mm1x WDST013 - Wind Deflector Van Rack 30mm Lip Material Used:Black epoxy powder - coated T6 aluminiumHigh strength steel Assembled Rack Kit Dimensions:3580mm (141'') L x 1470mm (57.9'') W x 123mm (4.8'') H Approximate Installed Weight: 43.45kg (95.79lbs) Ford Transit Van Rack Kit heights are 125mm from the bottom of the roof ditch to the top of the slat. (Z brackets can not be inverted) all measurements are taken from bottom of roof ditch to top of the rack slat. The slat T slots and side profiles take standard M8 hex bolts top and bottom. Shipping Dimensions:Width: 300mm (12'')Length: 1805mm (71'')Height: 195mm (8'')Shipping Weight:Weight: 44.35kg (98lbs)

SKU	KVFT005T
Barcode #	6009542221236
Brand	Front Runner
Shipping Weight	46.0000kg
Shipping Width	1.770m
Shipping Height	0.185m
Shipping Length	0.440m
