Fox 2.0 Performance Series 2" 50mm Lift Kit - Toyota Hilux N70 (2005-2015)

$3,687.00
In Stock


Available Options



Calculate Shipping

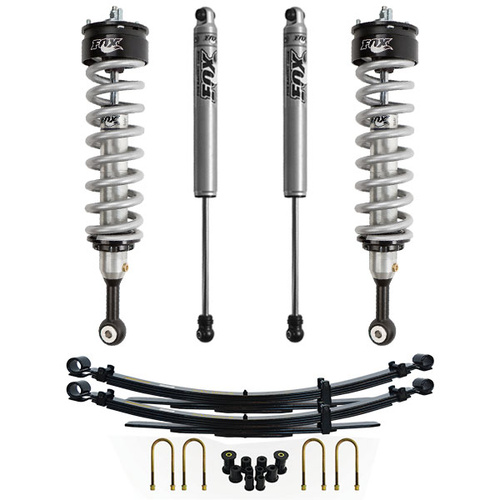

Kit Includes:
  • 2x Front Fox 2" Adjustable 2.0 Performance Series Adjustable Coilover Shocks (pre-assembled with new Springs and new strut mounts)
  • 2x Rear Fox 2.0 Performance Series Smooth Body Monotube Shock Absorbers.
  • 2x Raised Leaf Springs
  • 4x High Tensile U Bolts
  • 1x Polyurethane Bush Kit
  • 2x Greasable Pins
  • 2x Greasable Shackles



Available upgrades (see product pictures):

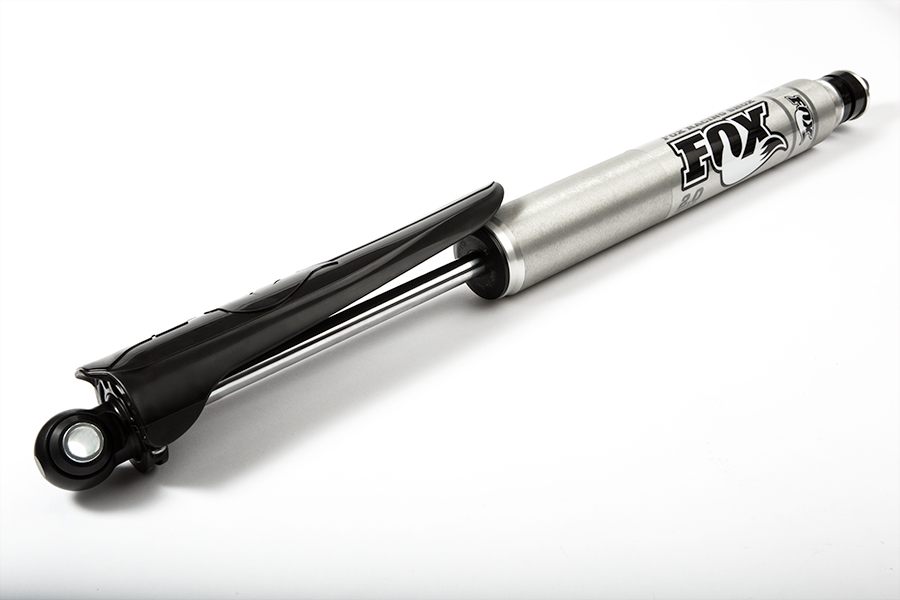

-Optional Roost Shield (Rear Shocks)

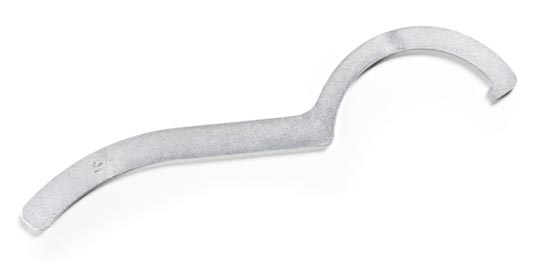

-Adjusting Spanner (Long handle)
-HD Rear Leaf Springs



Fox's bolt-on, Performance Series Coil-over IFP shock is loaded with advanced technology and a long list of features that set it apart. The precision, metal impact extruded aluminum body increases cooling capacity and is rust resistant. The vehicle-specific upper mount includes a composite bushing that isolates noise and vibration. Locking, spring preload rings that allow easy ride height and preload adjustment retain a top quality racing coil, selected to deliver the optimal spring rate. Performance Series Coil-Over IFP shocks bolt on with no modifications and are designed to level your truck front-to-rear..

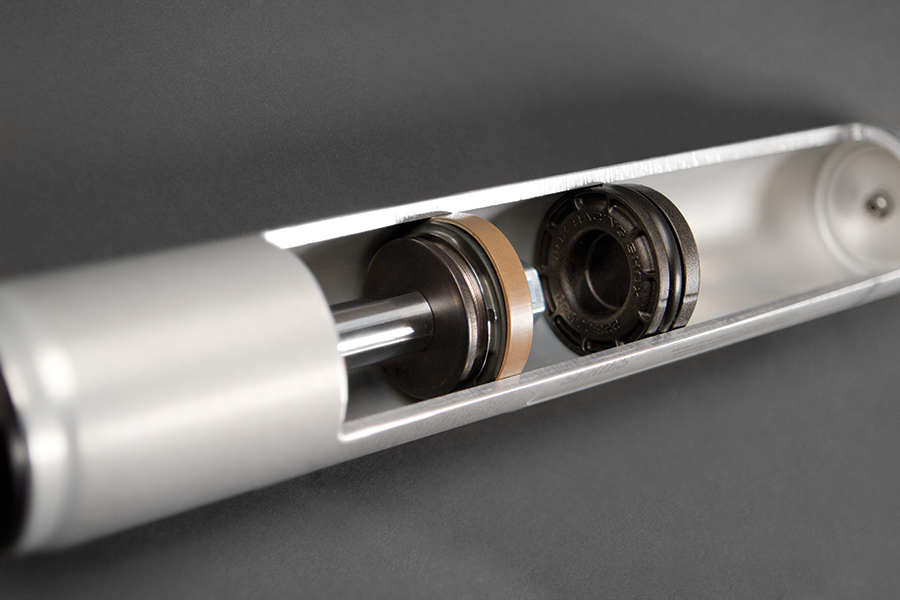

Inside is an internal reservoir with Internal Floating Piston (IFP) mono-tube design separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving. The easy-to- install, 2.0 Performance Series Coil-over IFP provides a comfortable on-road ride and predictable offroad handling in even the toughest conditions.



Front Specifications
Body : 2.0" Metal impacted 6061-T6 aluminum will resist rust over time
Body Plating : Clear-anodized for a durable finish
Internal Reservoir : Internal IFP mono-tube reservoir design separates shock oil from the high-pressure nitrogen
Components : Black-anodized, CNC-machined 6061-T6 billet aluminum
Shaft : 5/8" hard chrome plated heat-treated alloy steel
Piston : Race-developed high-flow piston design
Valving : Application specific valving to maximize performance
Seals : Redundant sealing pack system main seal, wiper seal, scraper seal
Oil : JM92 Advanced Suspension Fluid for improved performance at variable temperatures
Bearing : Large diameter, heavy-duty spherical
Mounting : Direct replacement for stock and aftermarket lifts kits



Rear Specifications
Body : 2.0" Metal impacted 6061-T6 aluminum will resist rust over time
Body Plating : Clear-anodized for a durable finish
Internal Reservoir : Internal IFP mono-tube reservoir design separates shock oil from the high-pressure nitrogen
Components : Black-anodized, CNC-machined 6061-T6 billet aluminum
Shaft : 5/8" hard chrome plated heat-treated alloy steel
Piston : Race-developed high-flow piston design
Valving : Application specific valving to maximize performance
Seals : Redundant sealing pack system main seal, wiper seal, scraper seal
Oil : JM92 Advanced Suspension Fluid for improved performance at variable temperatures
Bushings : Quiet nitrile rubber allows for increased suspension articulation
Mounting : Direct replacement for stock and aftermarket lifts kits



--

Important Notes for setting up your Vehicle Correctly:

  • When selecting Springs to suit your lift, please Select Springs only to suit Current "CONSTANT" Loads Front and Rear.
  • Towing Loads are not included in your Constant Load Calculations, as they are not "Constant" Loads.
  • Please do not put Occasional Loads into your "Constant" Load determinations.
  • Selecting a load rating that is too heavy for your setup will result in Poor Flex Off-Road, Compromised Suspension Travel & Rough Ride, and will cause damage to your new shock absorbers and other components by pushing them outside of their intended range.



Please Note:

  • All lift heights stated are estimated lift heights, due to the large number of variables in each different vehicles setup and accessories.
