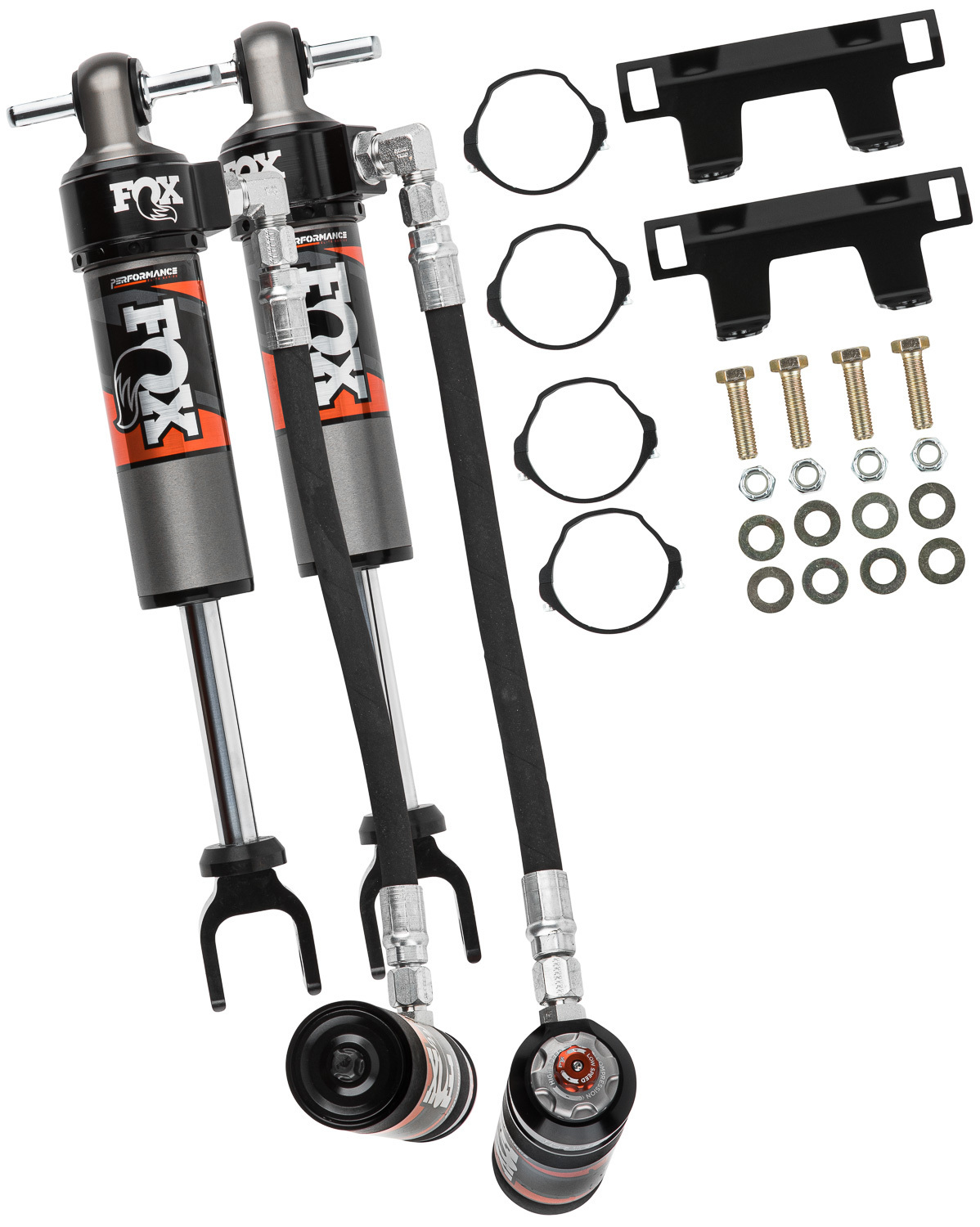

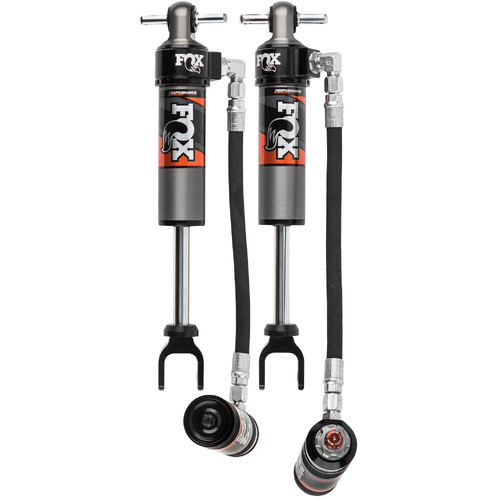

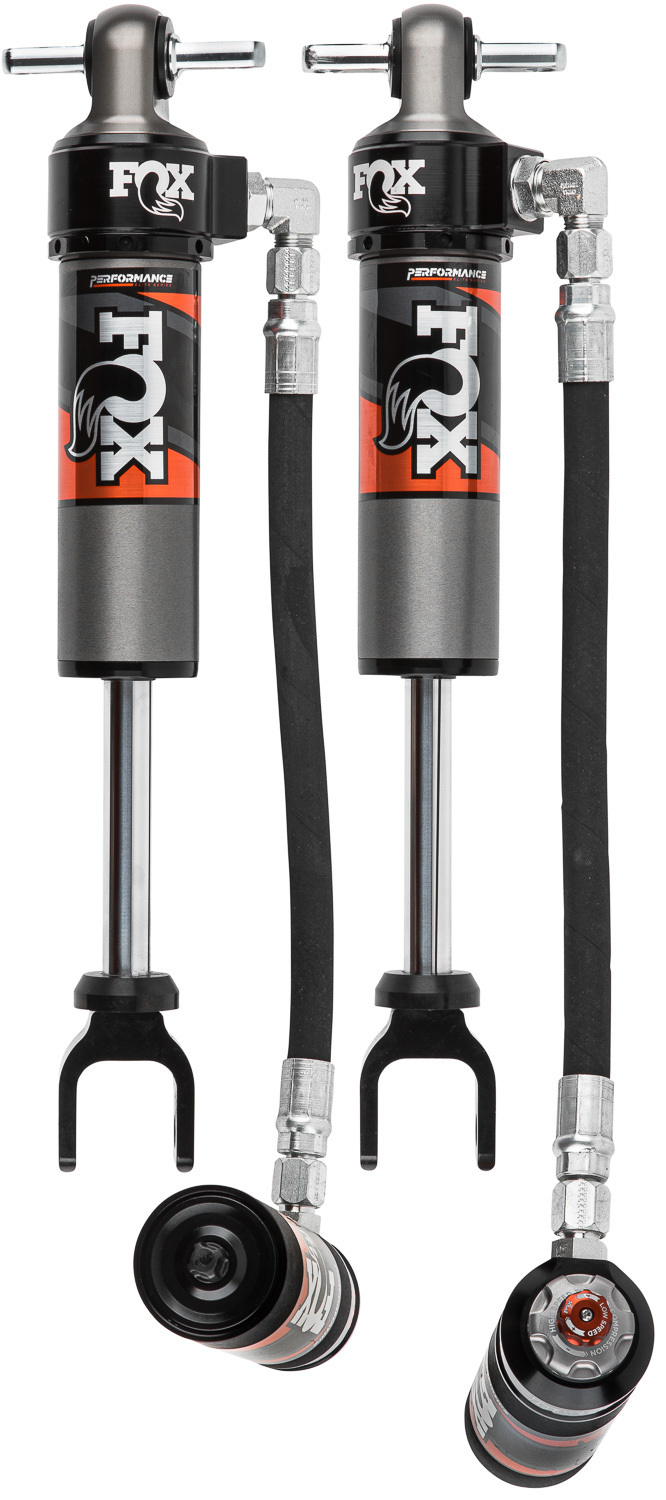

Fox Performance Elite Series 2.5 Remote Res Front Shock Pair 1.5"-2.5" Lift - Chevrolet Silverado 2500HD & 3500HD 2020-2024

Fox Performance Elite Series 2.5 Reservoir smooth body shocks give you enhanced ride quality and the control you need when heading off the pavement.

They take their design from our Off-Road race shocks, so they've been thoroughly perfected in brutal conditions that you will probably never see.

Our athletes push the boundaries in competition to develop race-proven performance you can bolt onto your Truck or SUV.

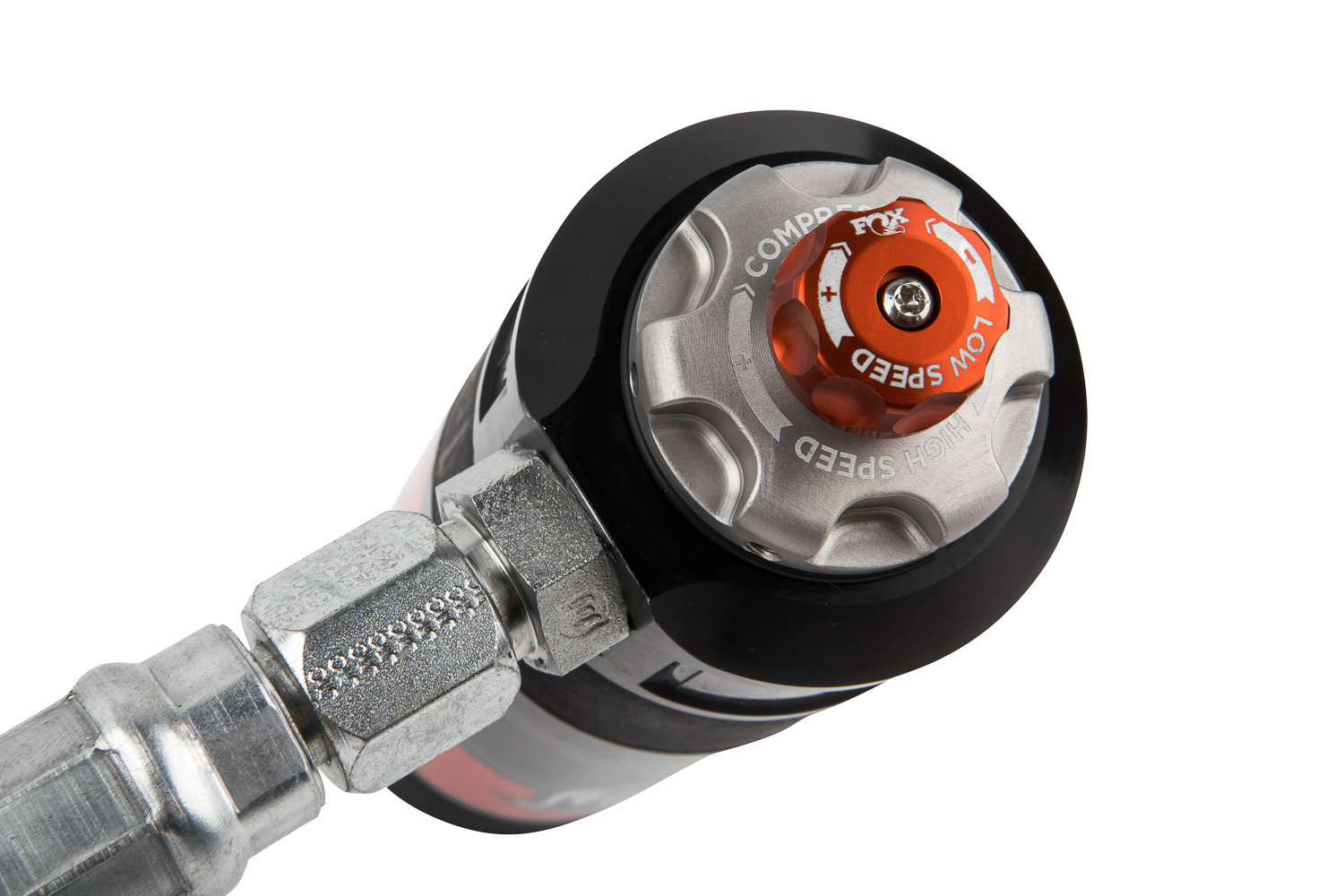

The external reservoir allows for increased oil and nitrogen capacity while delivering a striking race look.

Applications are available to fit most stock and lifted Trucks and SUVs. Our complete line of bolt-on, Performance Elite shocks provide improved damping in any terrain.

Experience for yourself the incredible performance and precise control that Performance Elite Series 2.5 Reservoir shocks deliver.

Performance Tuned For Vehicle Specific Application; Aluminum Body Dissipates Heat Faster Than Steel; External Reservoir System Dissipates Heat Fast; Black Anodized CNC Machined Aluminum Components





FEATURES:

• SERIES   Performance Elite
• TRAVEL 5.91”
• FRONT LIFT HEIGHT 1.5”-2.5”
• BODY 2.5" impact extruded and CNC machined 6061-T6 hard anodized aluminum body resists rust over time
• BODY PLATING  Hard-anodized for a durable finish
• COMPONENTS  Black-anodized, CNC-machined 6061-T6 billet aluminum
• SHAFT   7/8" hard chrome plated heat-treated alloy steel
• PISTON Race-developed high-flow piston design
• VALVING Application specific valving to maximize performance
• SEALS Redundant sealing pack system main seal, wiper seal, scraper seal
• BEARINGS PTFE-lined, heat-treated, alloy steel spherical
• EXTENDED LENGTH 19.17”
• COMPRESSED LENGTH 13.26”

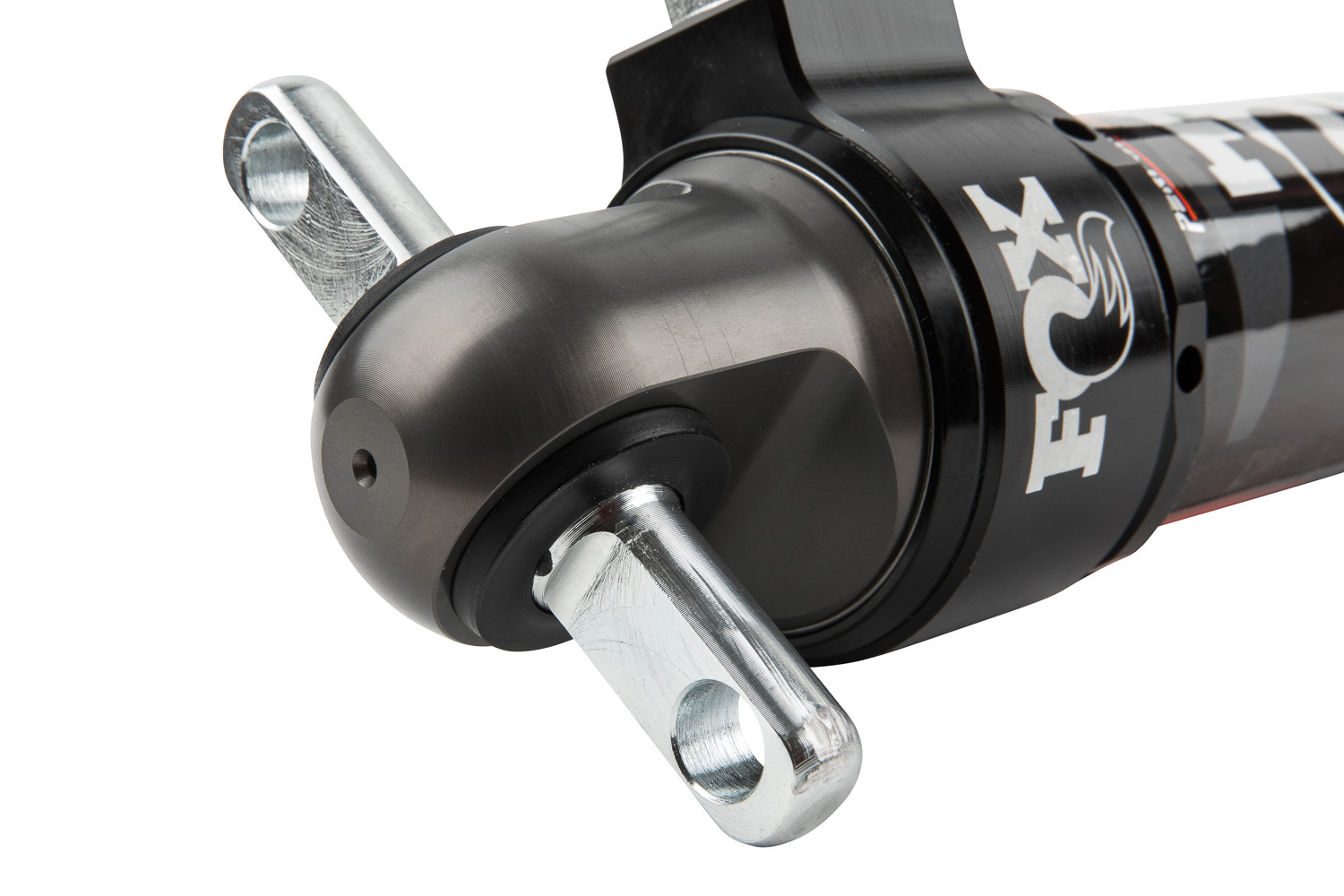

• TOP MOUNT BP5

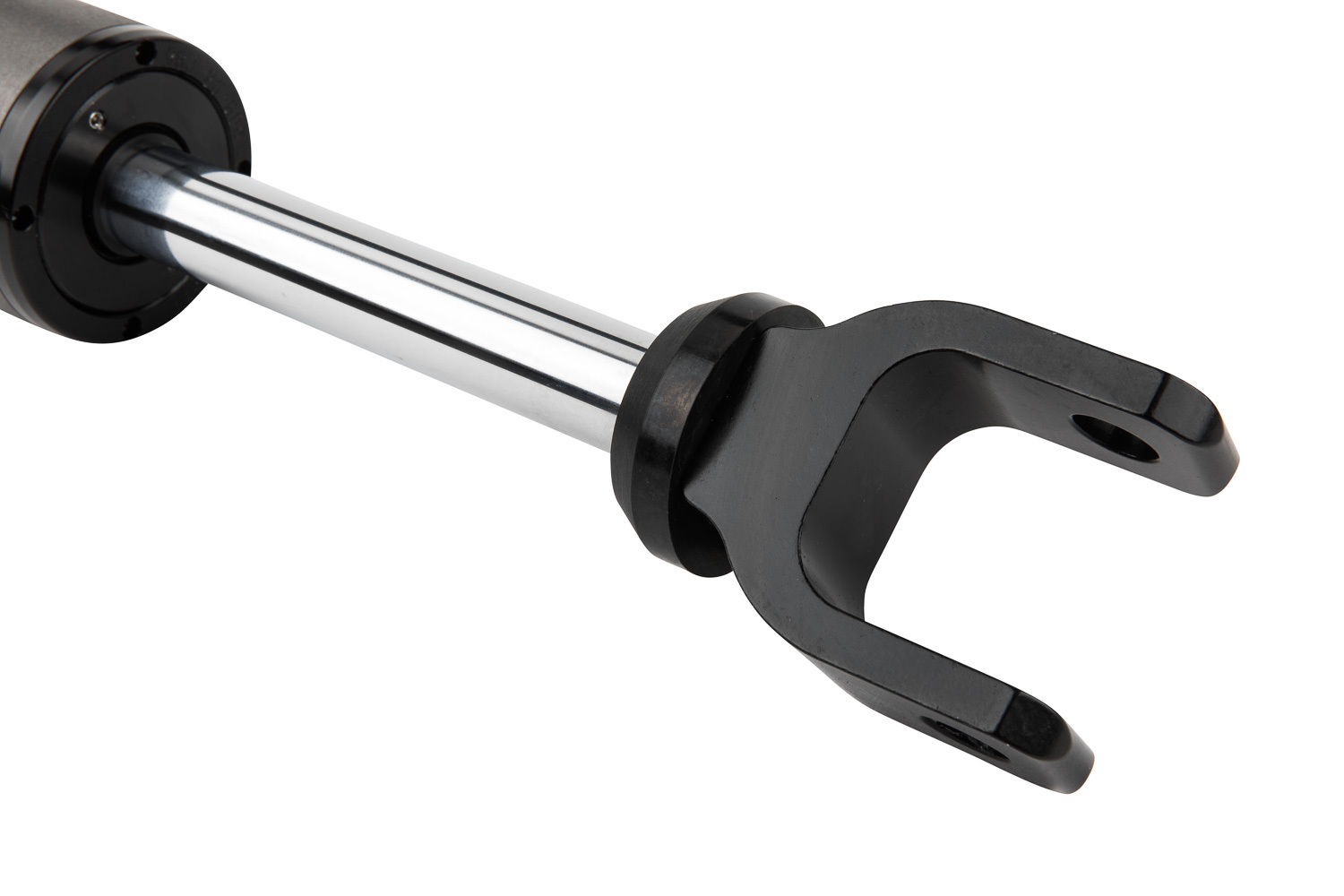

• BOTTOM MOUNT Clevis





FITMENT NOTES:

• Requires Aftermarket Upper Control Arms due to increased travel.
