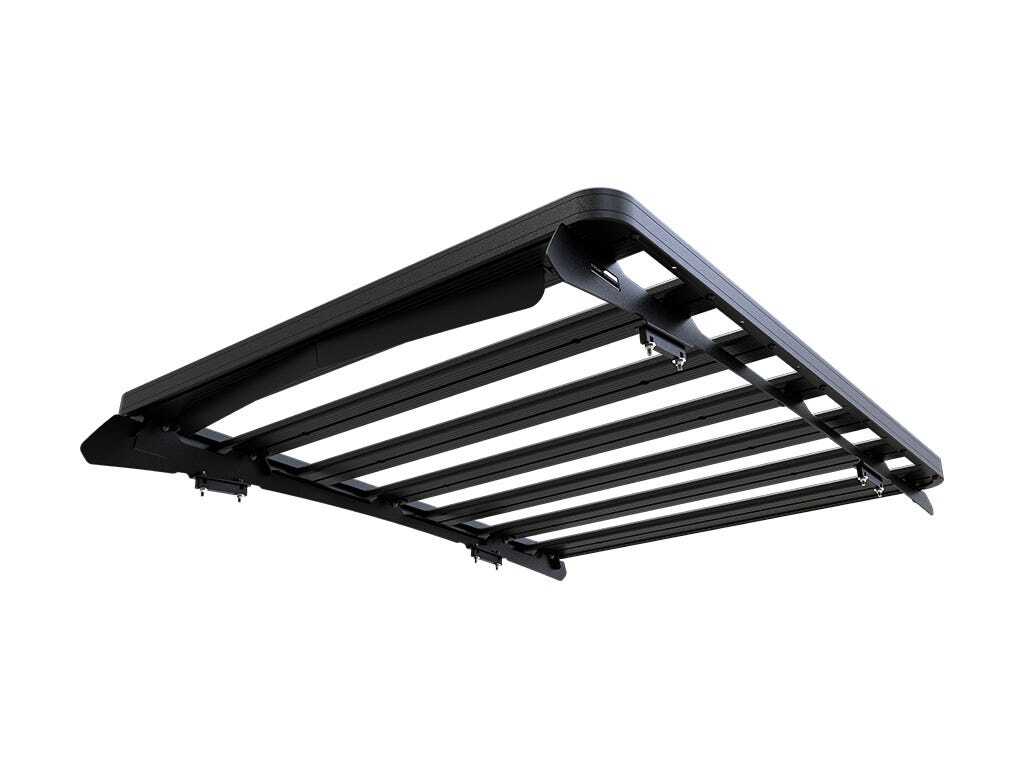

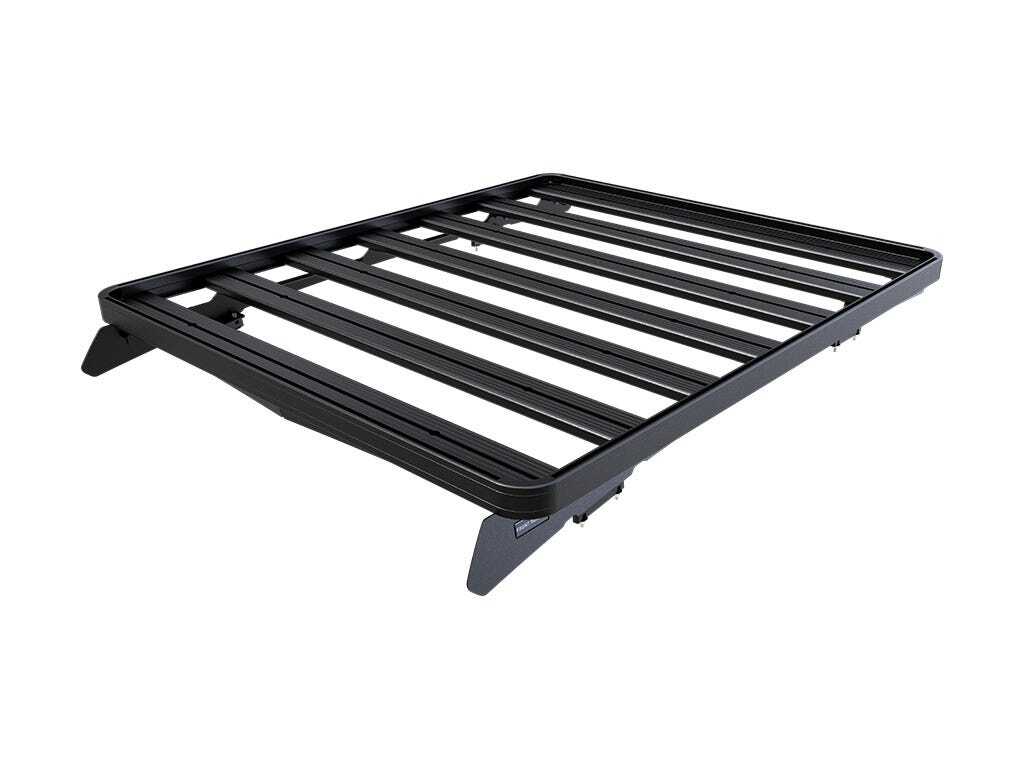

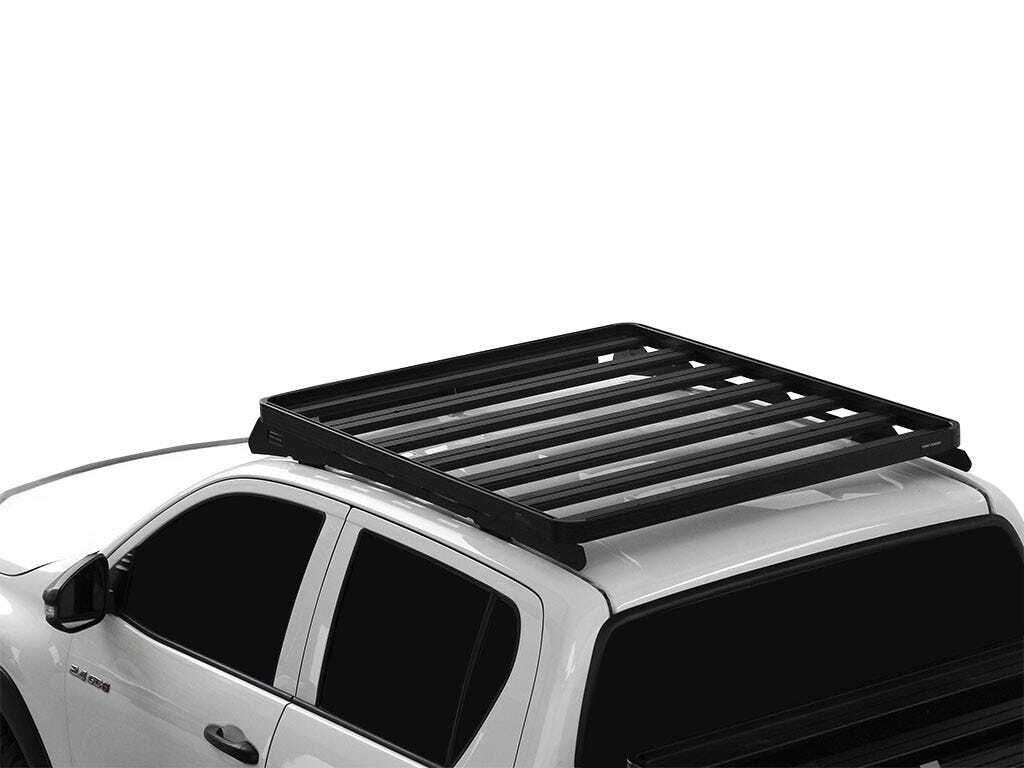

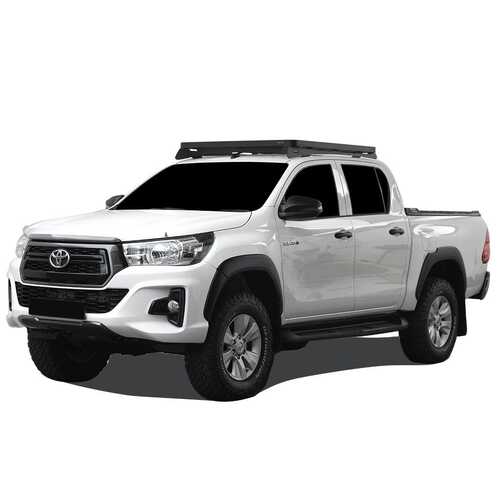

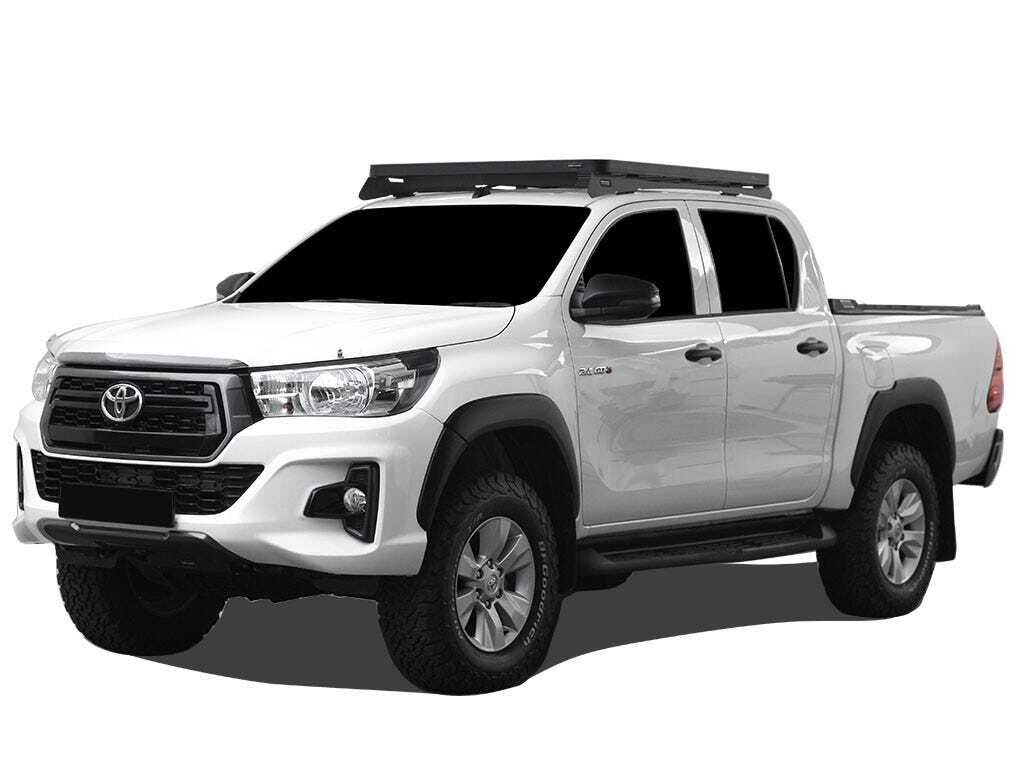

This 1358mm/53.5'' long, full-size, Slimline II cargo roof rack kit contains the Slimline II Tray, Wind Deflector and 2 Low Profile Foot Rails to mount the Slimline II Tray to your Toyota Hilux Revo 2016+.
Drilling is required for installation.
All Front Runner Rack Kits contain installation instructions, as well as all the components needed to mount the Slimline II Tray to your vehicle.All Front Runner Racks are backed by a Limited Lifetime Warranty*For further information on installation, please see the fitment instructions in the INSTALL tab.Note: Some side mount accessories are not suited for low profile foot rails such as JADA010 and RRAC103.
(KRTH012T)

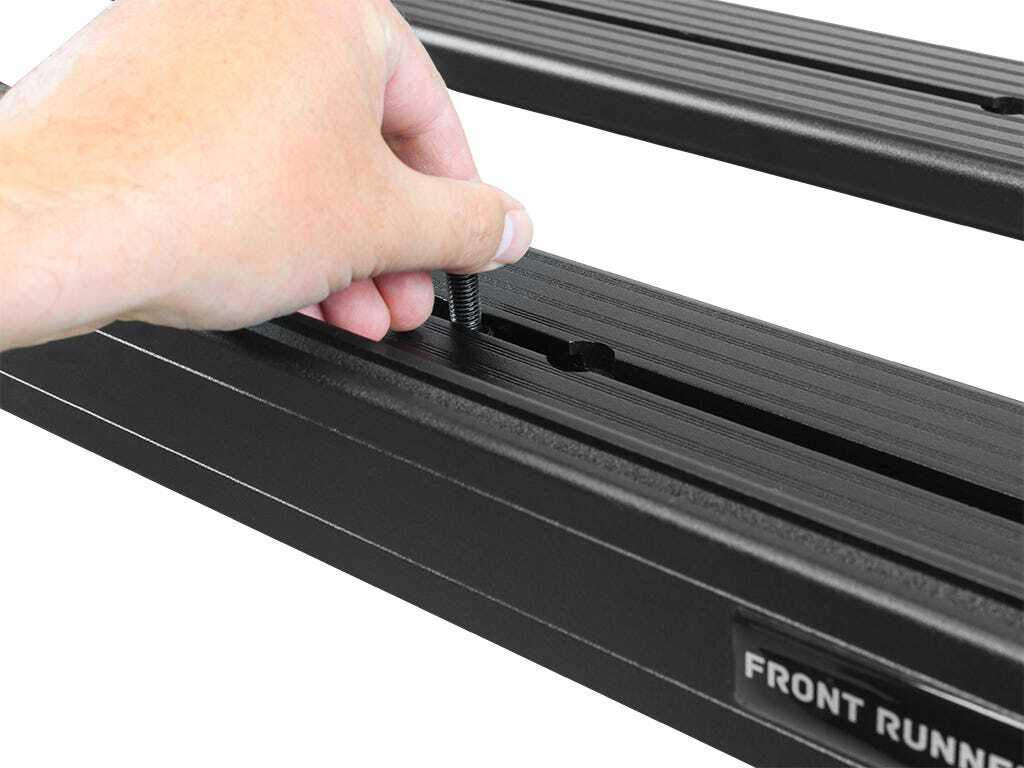

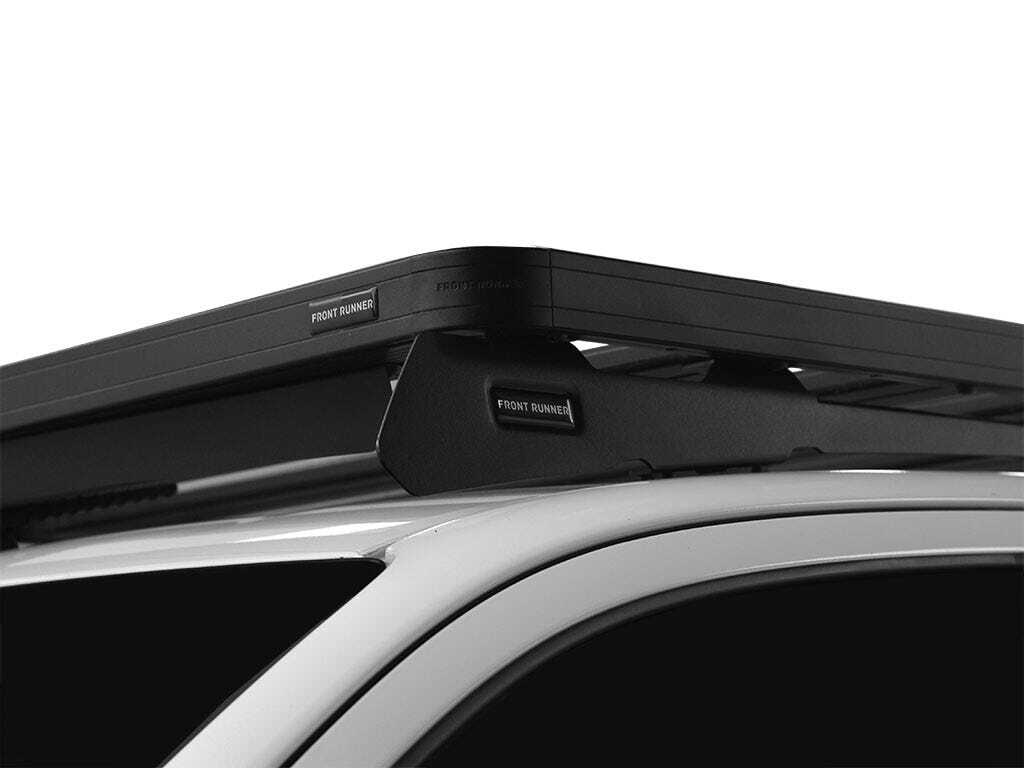

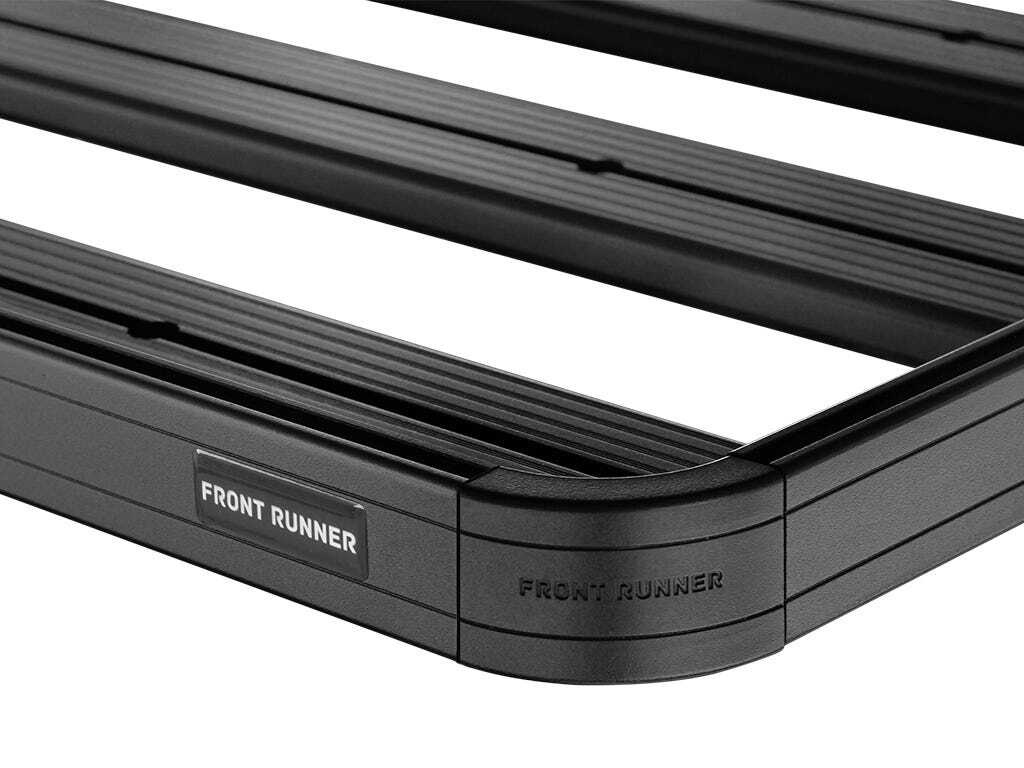

KRTH012T - Toyota Hilux Revo DC (2016-Current) Slimline II Roof Rack Kit / Low Profile - by Front Runner Consisting of: 1x FATH003 - Toyota Hilux Revo DC(2016-Current) Foot Rails/Low1x RRSTA07 - SLII Tray - 1165mm(W)X1358mm(L) Material Used: Black epoxy powder - coated T6 aluminium High strength steel Approximate Installed Weight: 28.28kg (62.35lbs) The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.To determine the approximate height from your vehicle?s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/2'') to the height of the Foot or Grab-on Foot listed above.If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/2'') to the height of the Legs to determine the height of the rack from your vehicle's rain gutters.If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/2'') to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof. Shipping Dimensions: Width: 455mm (18'') Length: 1730mm (68'') Height: 240mm (9'') Shipping Weight: Weight: 28.57kg (63lbs)
| SKU |
KRTH012T |
| Barcode # |
6009542248516 |
| Brand |
Front Runner |
| Shipping Weight |
28.6000kg |
| Shipping Width |
1.730m |
| Shipping Height |
0.240m |
| Shipping Length |
0.455m |
