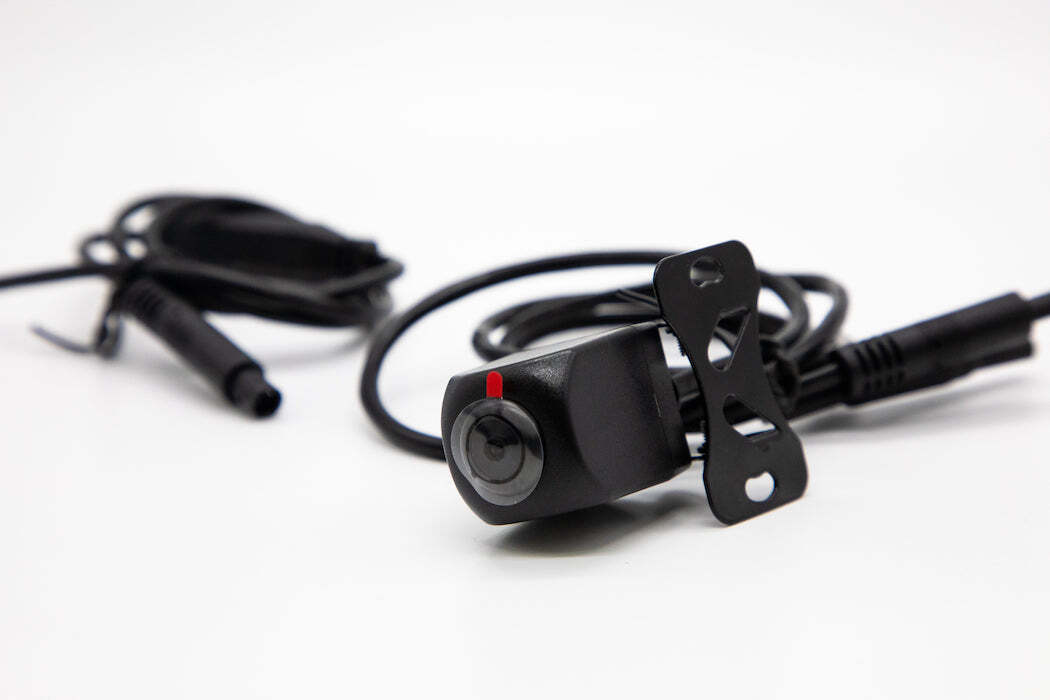

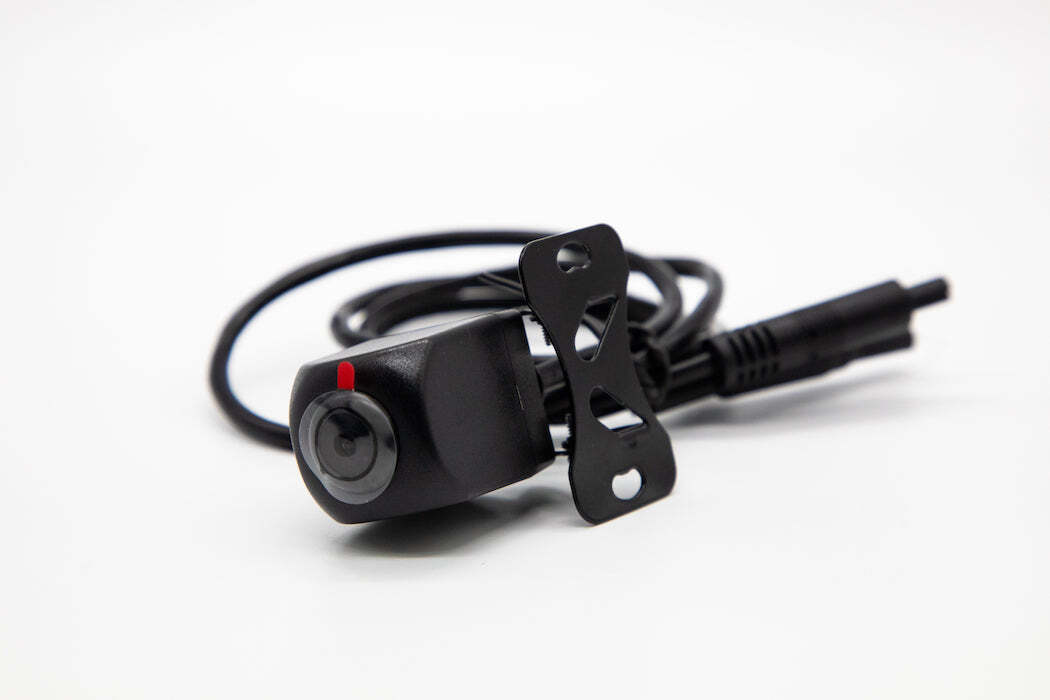

Hema Wi-Fi Reversing Camera
Hema's Wi-Fi reversing camera used in conjunction with the Hema HX-2 Navigator offers enhanced rearward visibility for drivers and, thus, help minimise the risk of "blind zone" accidents whenever your vehicle is moving in reverse.
This wireless backup camera helps you easily spot vehicles, pedestrians, pets and other hard-to-see obstructions behind your vehicle.
The camera is IP69K rated providing protection against ingress of dust and high temperature, high pressure water.
Key Features
- COMPATIBILITY - Works seamlessly with Hema HX-2 Navigator
- WIDE FIELD OF VIEW - 140-degree wide-angle field of view; shows what-s behind your vehicle when in reverse
- BUILT-IN WI-FI - Built-in Wi-Fi- connectivity transmits live camera view from the reversing camera directly to your HX-2 navigator-s display
- WIRELESS RANGE - Transmits camera footage up to 30M away (range varies based on installation)
Key Specifications
| Receive | WIFI | Android OS | |
| Function | Power ON | 1.0 S | |
| Latency | 120ms | ||
| Resolution | VGA | ||
| Frame Rate | 30f/s | ||
| Video Codec | MPEG4 | ||
| Video in System | PAL | ||
| Video Characteristics |
Video Output impedance | 75, Typ | |
| Video Output Level | 1.2 Vp-p, Typ. | ||
| S/N | 50dB, Min | ||
| RF Specification | Operation Frequency | 2412 ~ 2483.5MHz (WIFI 802.11 g/n) | |
| RF Impedance | 50, Typ. | ||
| Receiving Sensitivity | -89dBm | ||
| Output Power | 12dBm | ||
| RF Bit Rate | 11Mbps | ||
| Modulation | QPSK,16QAM | ||
| Channel | CH1 to CH 13 | ||
| DC | Power Supply | DC 9-16V/200mA | |
| Environmental Specification |
Operating Temperature | -20?C~70?C | |
| Storing Temperature | -30?C~85?C | ||
| Operating humidity | Humidity 90% | ||
| Waterproof rating | IP69K | ||
| Light rating | 0.2 Lux | ||
| Others | Unit Dimension(mm) | 45 x 48 x 15.6mm | |
| Unit Weight | Item weight: 50.0g | ||

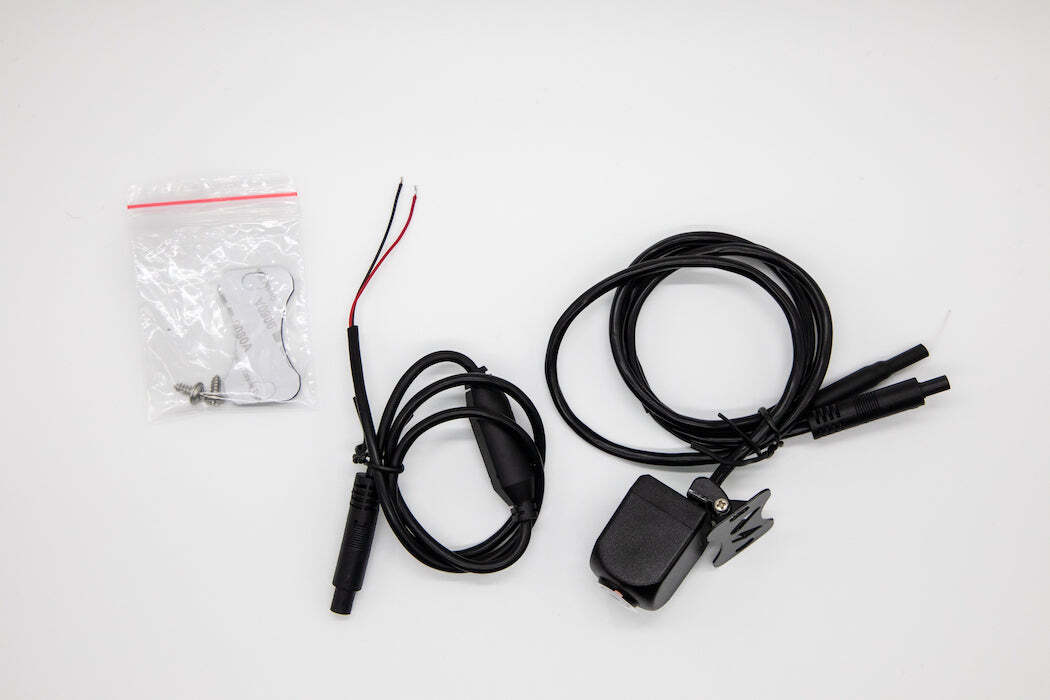

Package includes:
- HX-2 Reversing Camera
Packaging Specifications
Release Date: 01/11/21
Box size (WxH):130mm x 55mm
Box Weight: 0.106kg
Suits: Hema HX-2 Navigator
Control: Via HX-2 Camera App
Note: Initial install of reversing camera needs to be wired by a qualified auto electrician. Following install, the camera operates via Wi-Fi. Wi-fi signal performance can be impacted by obstructions. This device is designed specifically for vehicle use and performance with camper trailers/caravans may vary.
