HPD Catch Can Kit - Land Rover Defender 2.2 & 2.4L

HPD’s Australian made billet CNC machined oil catch can / oil air separators have been designed to reduce the amount of oil from the engines crank case breather entering the intake system.

The issue is with the oil entering the intake system on modern diesel engines fitted with EGR (exhaust gas recirculation) where the exhaust gas valve is commanded by the ECM (engine control module) to open and allow exhaust gasses back into the inlet mixing with the oil that’s been left as a film inside the inlet manifold, thus this process just keeps on repeating itself, causing the issue of the manifold being blocked or clogged reducing the air flow to the engine’s cylinders, resulting in lack of performance, black smoke, engine wear and even engine failure.

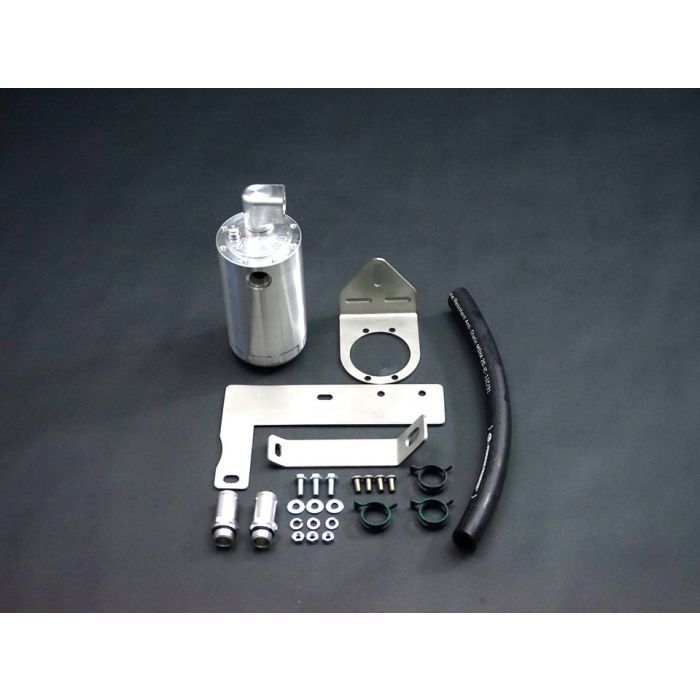

HPD’s oil catch can / oil separators come in universal and complete kits with all required stainless steel laser cut bracketry, correct size hose tail fitting, washable internal stainless mesh filters, cut to size oil resistant hosing, bolts, nuts, washer, spring clamps and installation instructions for each vehicle.

Key Benefits:

• Reduces oil in intake system
• Allows intercooler to work efficiently
• Eliminates carbon & oil build up in inlet manifold
• Keeps inlet ports and valves clean
• Reduces engine wear
• Reduces exhaust smoke
• Maintains economy
• Keeps air and map sensors clean
• Maintains engine performance

Kit features:

• Billet Aluminium Catch can
• Internal stainless mesh filters
• Dipstick to check oil level
• Simply unscrew base to empty oil
• Screw in hose fittings
• Mounting brackets & hoses

Suits:

• Land Rover Defender 2007-2016 2.2L & 2.4L Puma

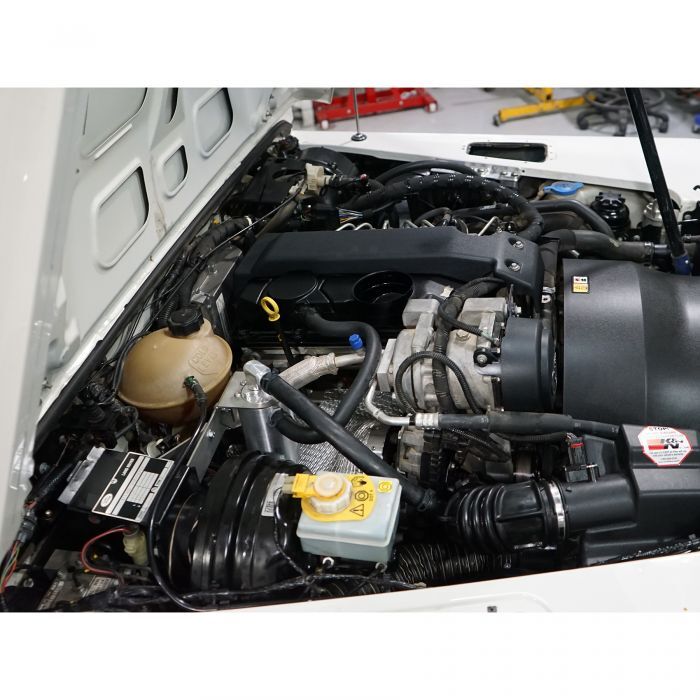

The landrover defender catch can kit sits neatly on the drivers side of the engine bay up near the brake booster. using a stainless steel laser cut bracket system this kit is firmly held in place with a 45° support bracket.

Large 19mm ø hose provides easy clear passage for air from the rocker breather creating no back pressure on your oil breather system to give you piece of mind.

Installation takes between 15-30 mins and can be done by most people with basic workshop knowledge and tools.
