HPD Front Mount Intercooler Kit - Nissan Navara D40 & Pathfinder R51 2.5Ltr

As these Navara's/ Pathfinder's were made in Mexico, Spain and Thailand, please use the images & description to identify your vehicle type, as there is different hot side and cold side piping styles.

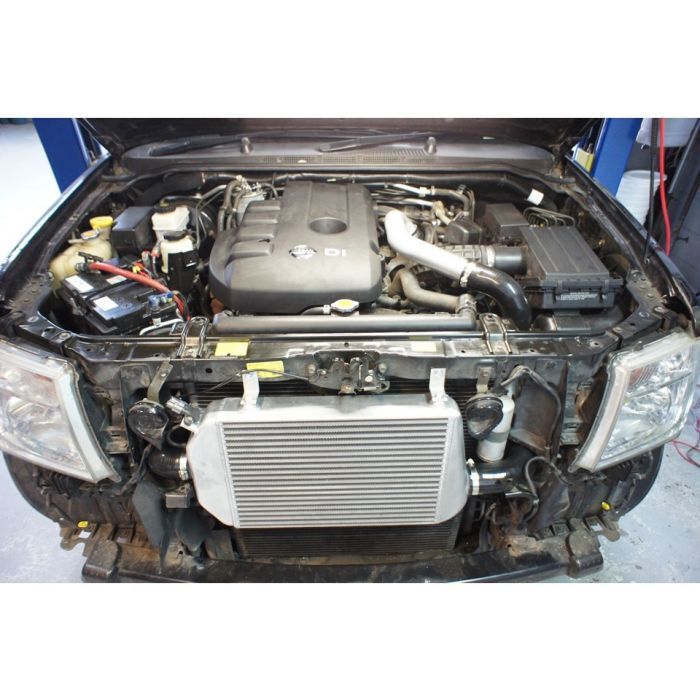

HPD’s 4WD intercooler kit for the Nissan Navara/ Pathfinder D40 2.5 turbo diesel has been designed with a larger core than factory and aluminium intercooler piping to eliminate the factory rubber hose’s that are known to “balloon” under load or acceleration causing delay in throttle response and lack of power due to split rubber hoses.

HPD’s intercooler kit comes with the prevision to bolt the OEM map sensor back onto the tank of the intercooler with CNC machined boost port to connect the map sensor hose onto.

HPD’s intercoolers are designed to give a boost in performance, reliability, consistent and sustainable power. By reducing inlet temperatures, you will also reduce engine running temperatures.

This intercooler kit responds well with engine tuning and modification, in most cases will see improvements of 25-30% in torque and power.

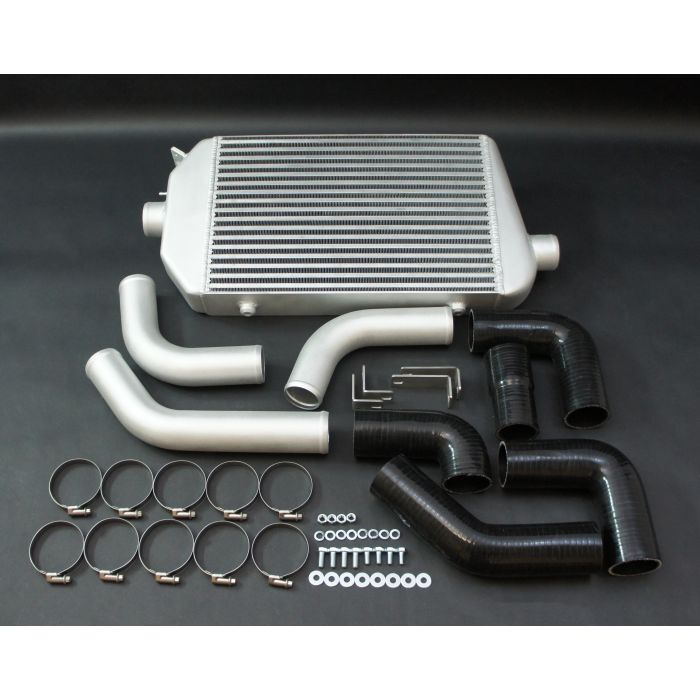

Kit features:

• Bar & Plate Core 450x300x76mm
• Alloy mandrel bent piping
• Quality silicone hoses and clamps
• Stainless steel laser cut mounting brackets
• Billet CNC weld on boss’
• German made load rated clamps
• 57mmø intercooler piping

Suits:

• Nissan Navara D40 2.5L
• Nissan Pathfinder R51 2.5L

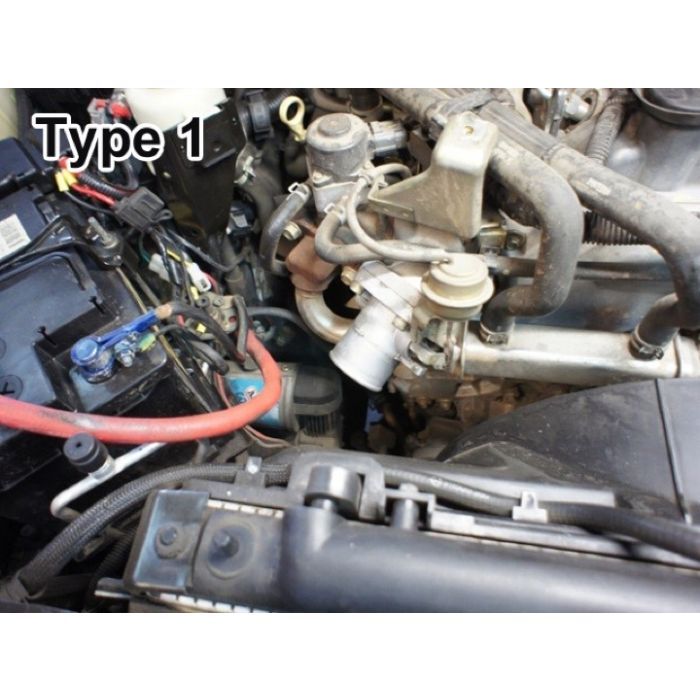

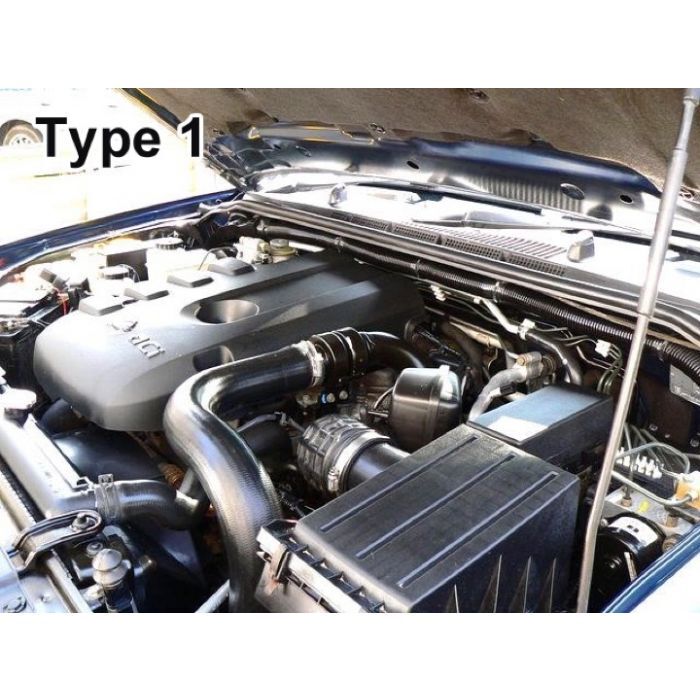

Type One

• Rigid rubber piping on the hot side intercooler piping.
• Vacuum controlled throttle body to intake manifold.
• Metal hose tail style turbo compressor outlet.

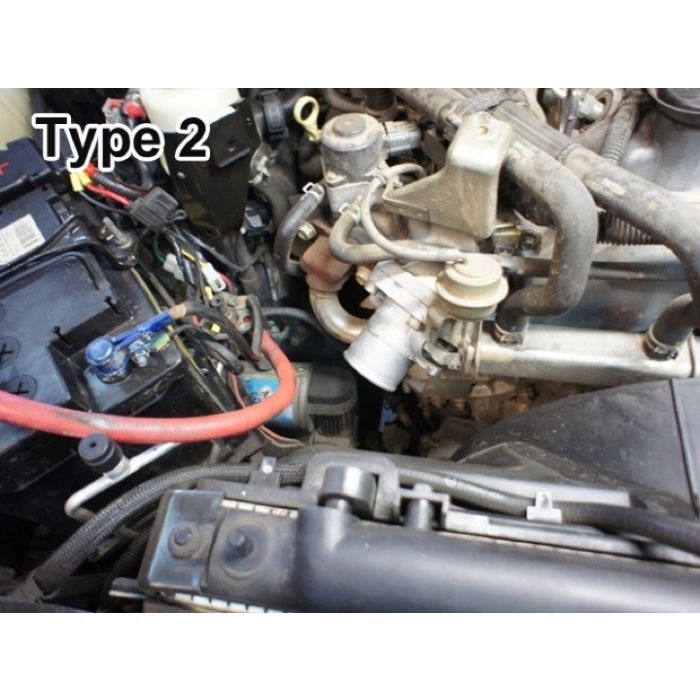

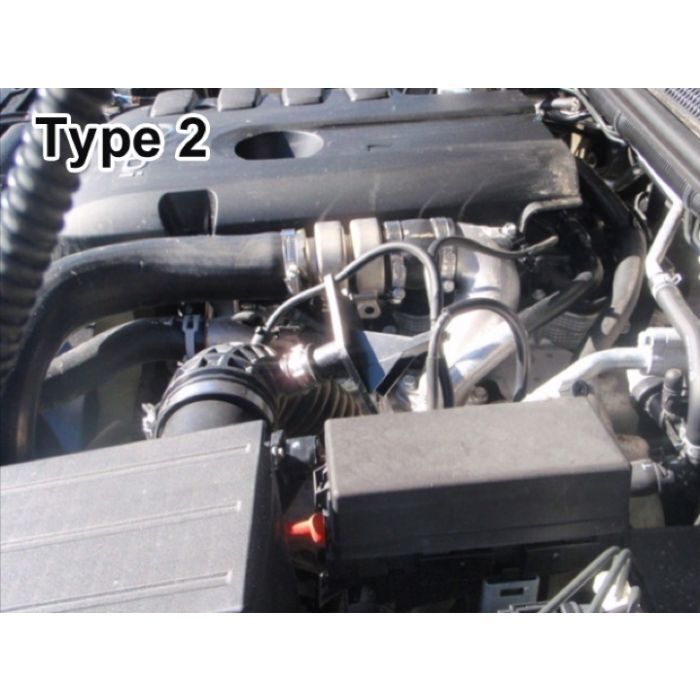

Type Two

• Rigid rubber pipe on hotside intercooler piping.
• Vacuum controlled throttle body to intake manifold.
• 2 bolt flange on turbo compressor outlet.

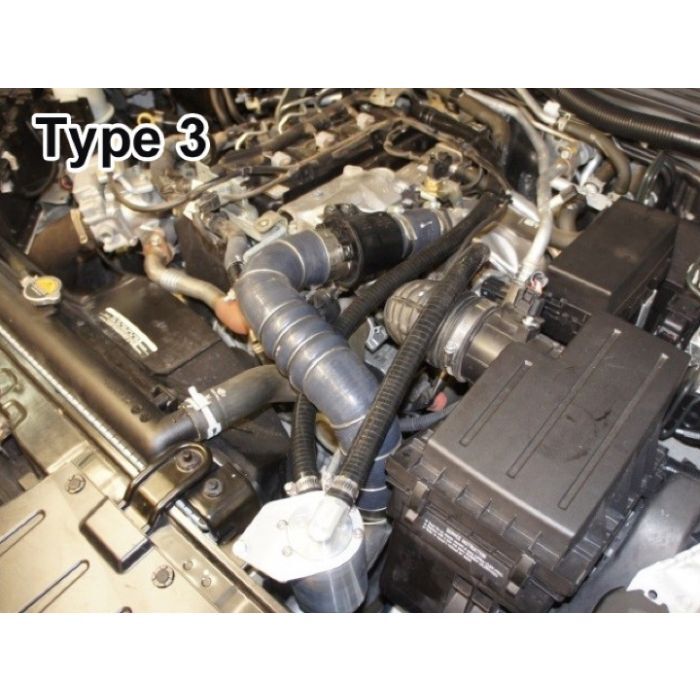

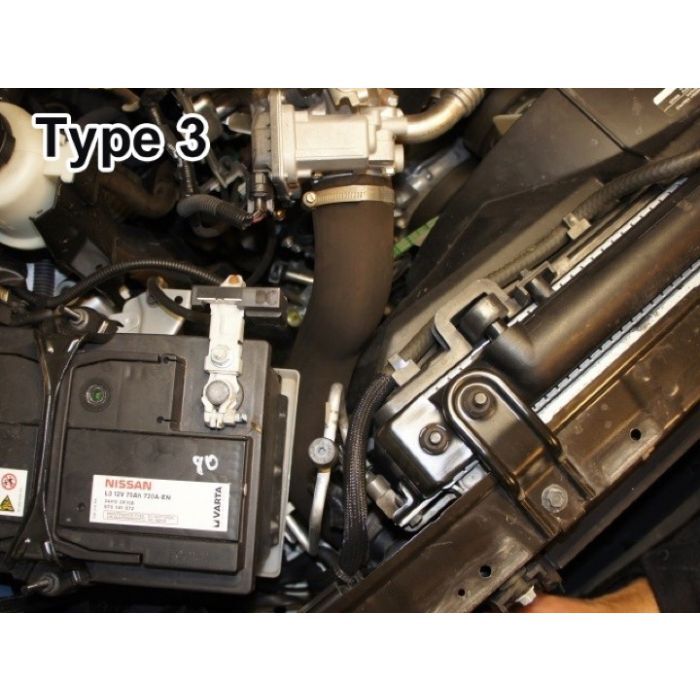

Type Three

• Rubbber hose with multiple metal rings on the hotside intercooler piping
• Electronically controlled throttle body to intake manifold.
• 2 bolt flange on turbo compressor outlet

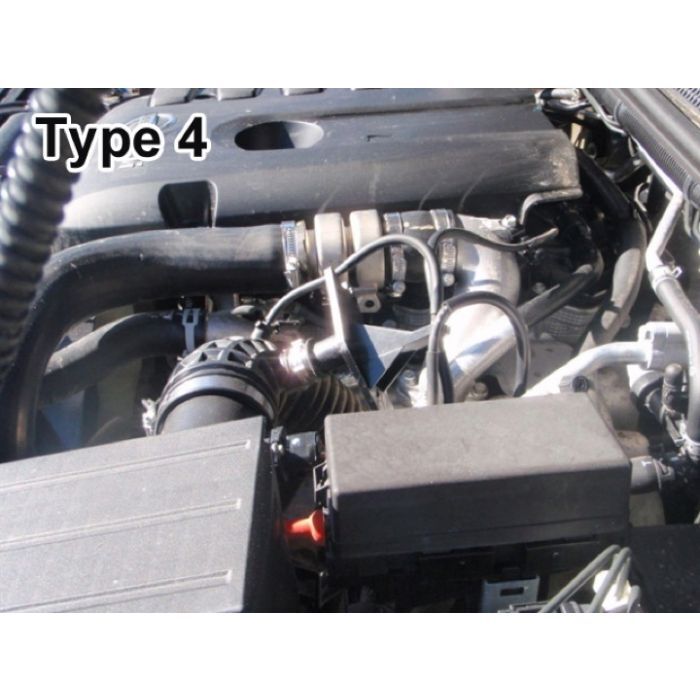

Type Four

• Rigid rubber pipe on hotside intercooler piping.
• Electronically controlled throttle body to intake manifold.
• 2 bolt flange on turbo compressor outlet

Note: All HPD Intercooler Kits are made to order and usually take around 2 weeks to dispatch
