HPD Intercooler Kit - Nissan Navara NP300

High Performance Diesel are proud to introduce our new front mount intercooler upgrade for the D23 NP300 Navara twin turbo.
After testing the factory intercooler setup on the NP300 it became quickly evident that the intercooler was under rated for the performance of the YS23DDTT motor.

We set out to build a non invasive, direct fit intercooler with a HUGE capacity and no cutting or drilling.

What we developed has resulted in a direct bolt on kit with no irreversible modifications at all needed.

HPD has developed a charge pipe adaptor with a dual seal to eliminate any leaking issues that have become a hallmark of the factory intercooler system.

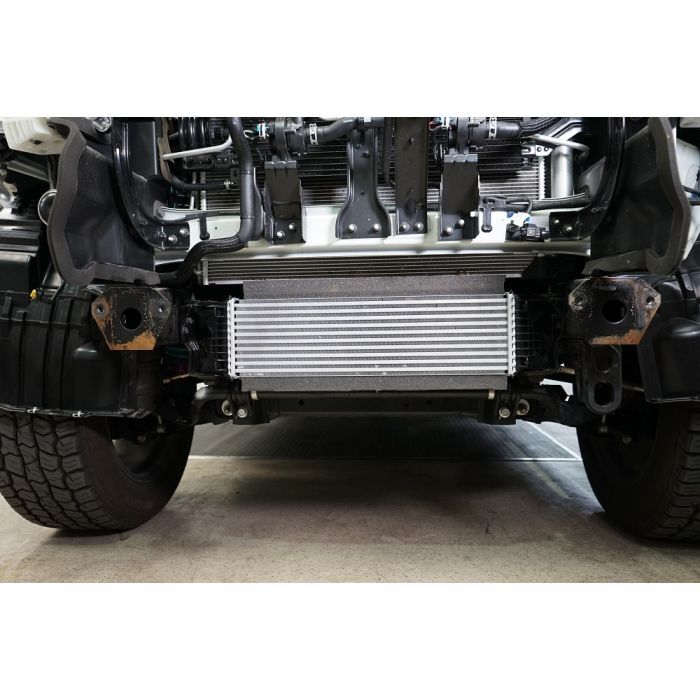

The factory Nissan intercooler core size is 540x155x80mm, giving a surface area of 840cm__, and a volume of 6700cc.
Our upgrade intercooler measures 600x300x76mm, giving a massively improved surface area of 1800cm_, and a simply HUGE volume of 13680cc.

That's an increase of over 200% in surface area cooling and charge air cooling volume!

NOTE: If your car is equipped with Forward Emergency Braking radar system, this may need to be relocated in order to install the intercooler kit. Please check compatibility with your vehicle.

THERE IS KNOWN FITMENT/CLEARANCE ISSUES TO SERIES 5 WARRIOR WITH IRONMAN BULLBAR

Hot pipe:

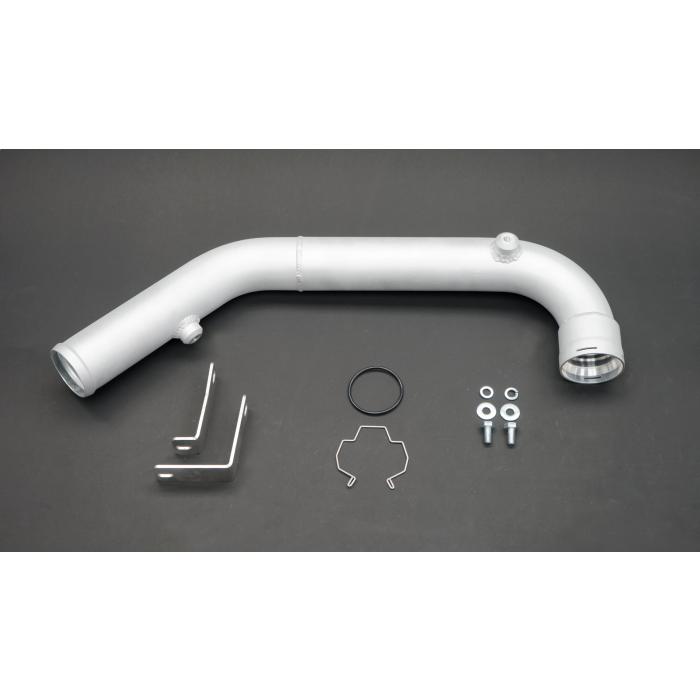

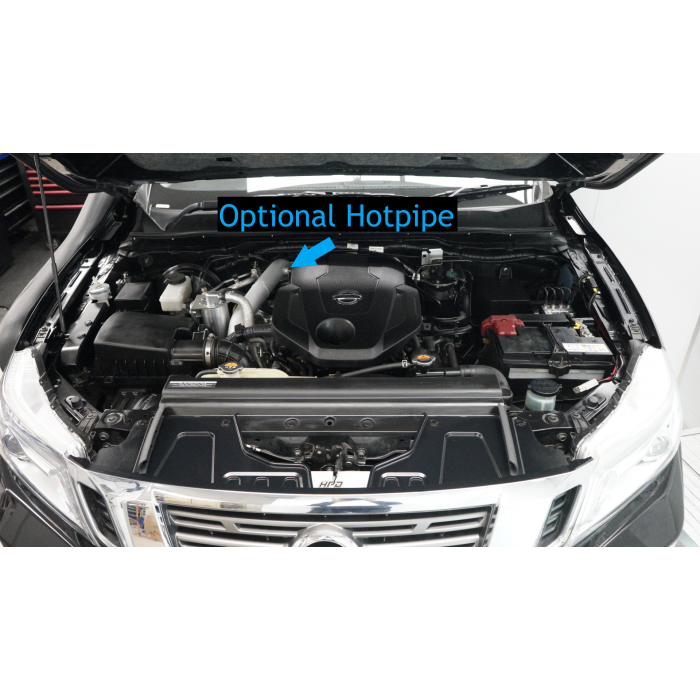

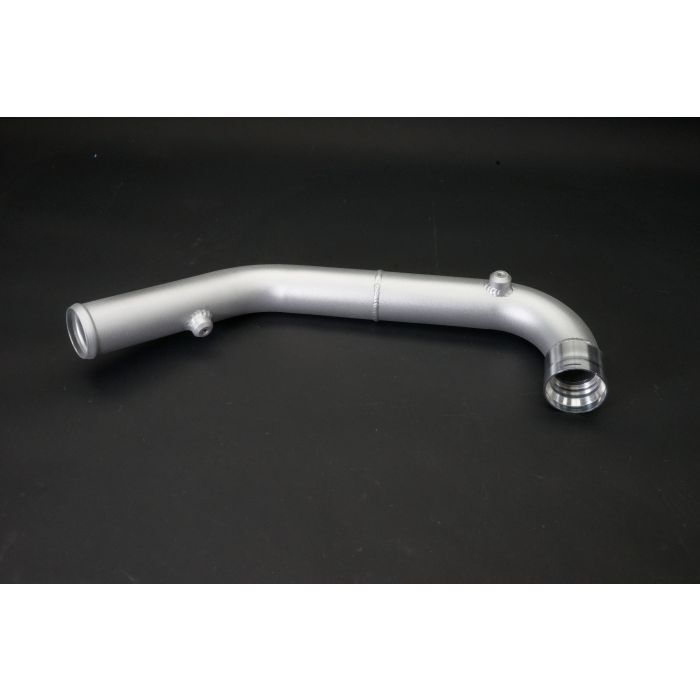

HPD also offer an optional replacement Hot pipe which eliminates the factory pipe commonly found to leak oil back on top of the turbocharger. We have designed a twin sealing coupling that outperforms OE and also eliminates the factory baffles. Hotpipe includes retaining clip.

*Please note - HPD Hot Pipe is not compatible with stock intercooler & piping*

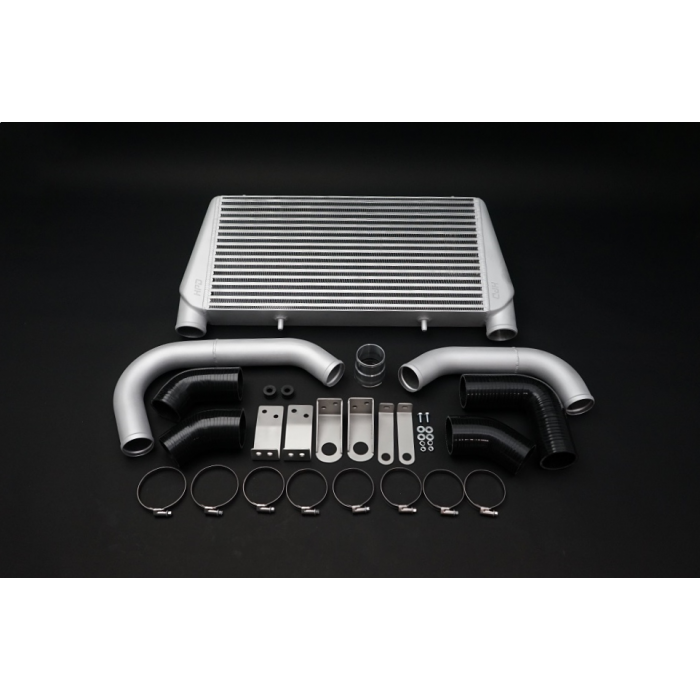

Kit features:

Bar & Plate Core 600x300x76mm
Alloy mandrel bent piping
Billet charge pipe adaptor
Quality silicone hoses and load rated German made clamps
Laser cut mounting brackets
Hot side piping 57mmø
Cold side piping 57mmø
No cutting of radiator support for piping
