HPD Series 2 Intercooler Kit - Nissan Patrol GU ZD30 Common Rail

HPD’s 4WD Nissan Patrol GU ZD30 CRD series 2 intercooler kits have been designed as the factory intercoolers are prone to leaking from where the end tanks are pressed together to the core with a rubber O-ring between, hence the reason why they do and are very likely to leak and cause engine running issues. HPD have designed a larger and more efficient intercooler kit with a 10” thermo fan bolted underneath to keep cool at low driving speeds.

The factory ZD30 intercooler core size is 170x250x60mm, giving a surface area of 425cm__, and a volume of 2550cc.
Our Series 2 intercooler measures 450x300x76mm, giving an improved surface area of 1350cm_, and a larger volume of 10260cc.
That's an increase of over 3 times in surface area cooling, and FOUR TIMES the charge air cooling volume!

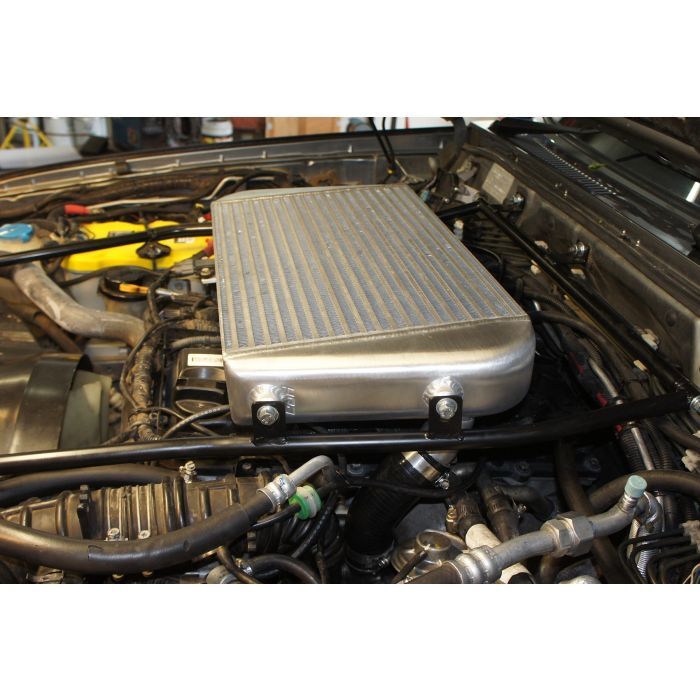

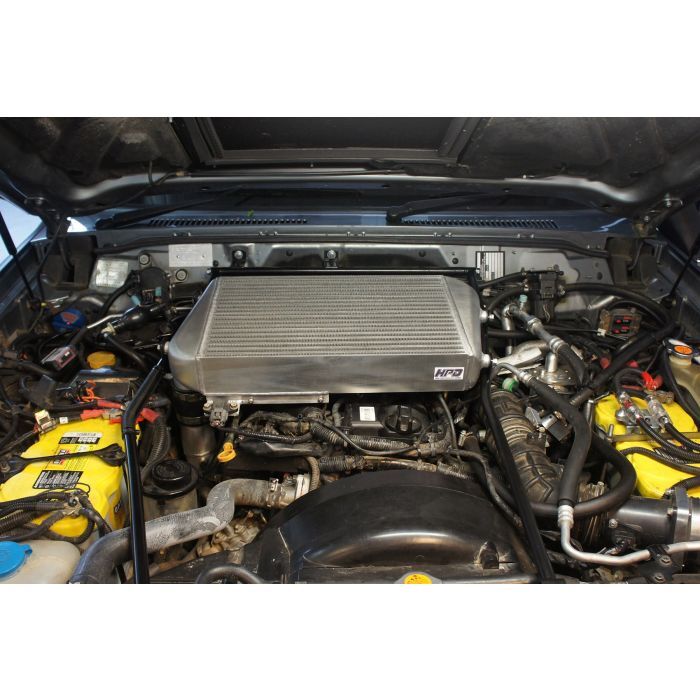

HPD’s intercooler kit improves torque and power just on its own but really show’s it potential in keeping cooler intake temps and egt’s when engine tuning modifications come into play. These top mount intercoolers are great right up to 180kw’s at the wheels.

HPD intercoolers are designed to give amazing performance, reliability, consistent and sustainable power. By reducing inlet temperatures, you will also reduce engine running temperatures.

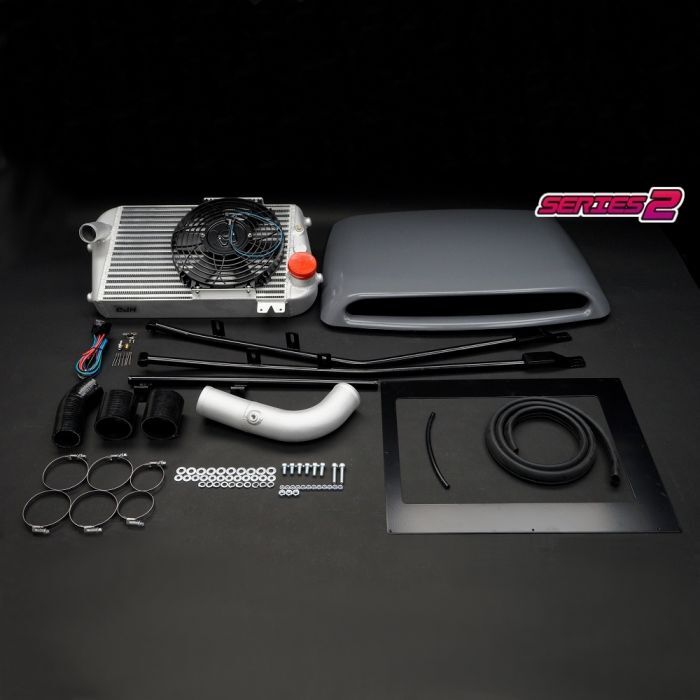

Kit features:

• This Kit is a Direct replacement
• Bar & Plate Core 450x300x76mm
• 10" Thermo fan & temp switch
• Quality silicone hoses

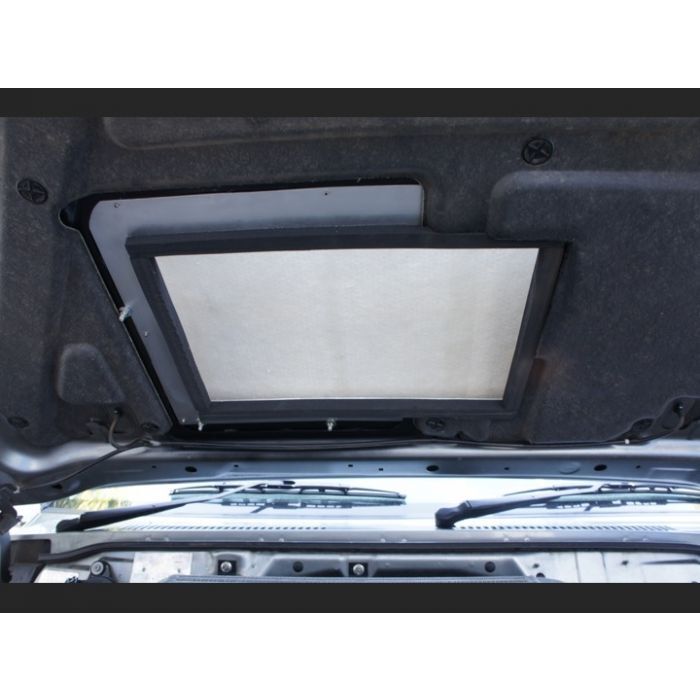

• 700x650x80mm molded plastic bonnet scoop
• German load rated clamps
• CNC Machined mounting brackets

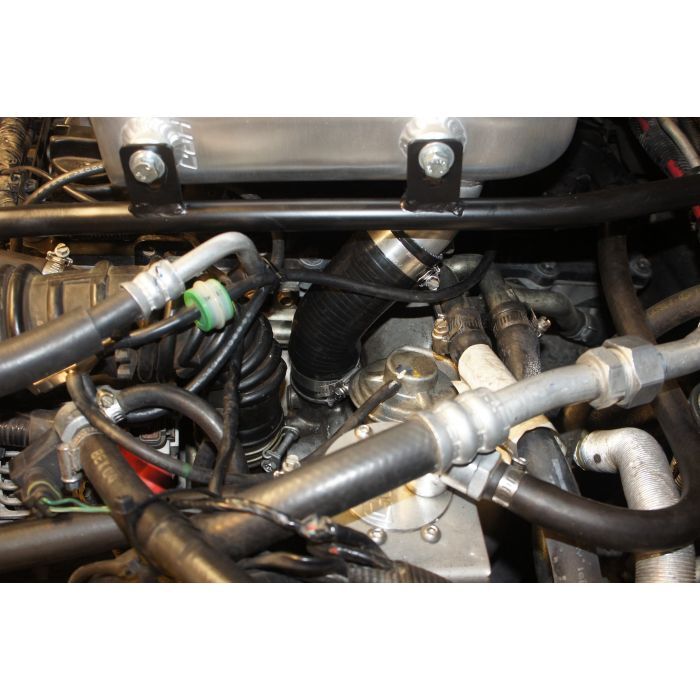

• Cold side 63mmø intercooler piping
• Hot side 45mmø intercooler piping
• 1 year warranty
