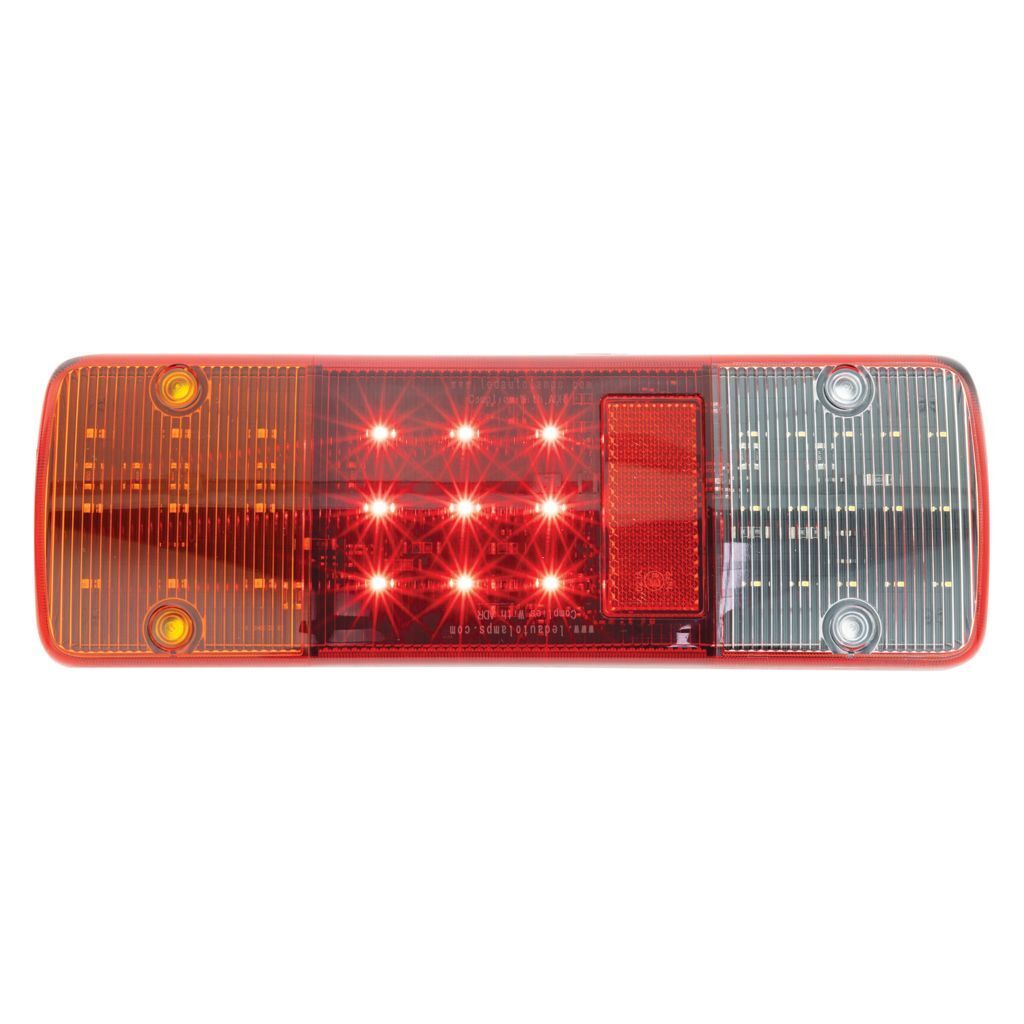

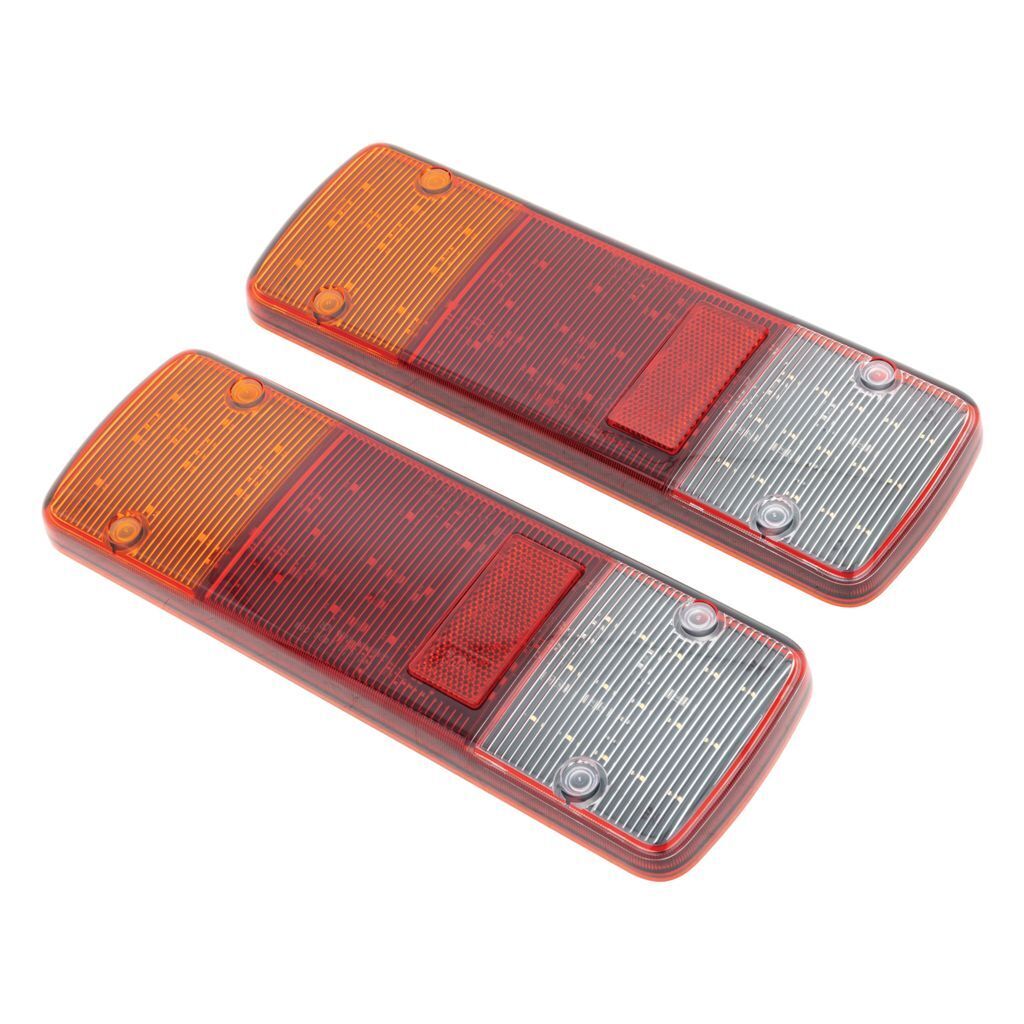

LED COMBINATION LAMPS 12/24v 400mm LEAD (PKT 2)

Hulk 4x4 LED Rear Combination Stop / Tail / Indicator / Reverse Lamp 12/24 Volt

Retrofit replacement unit for Toyota Landcruiser or Hilux Cab Chassis / Trayback vehicles

Features:

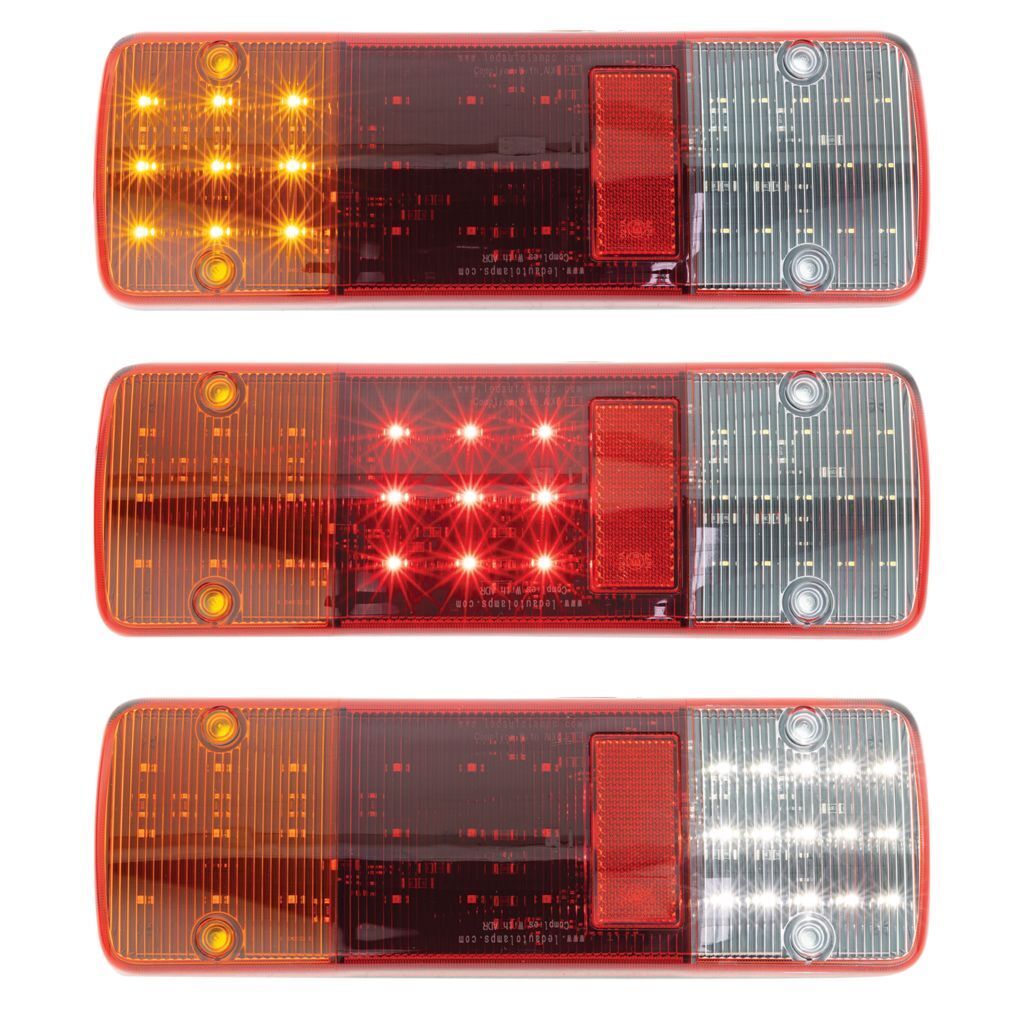

• Red, Amber and White Illumination

• Red and Clear PMMA Polycarbonate pattern free lenses with an in-built retro reflector

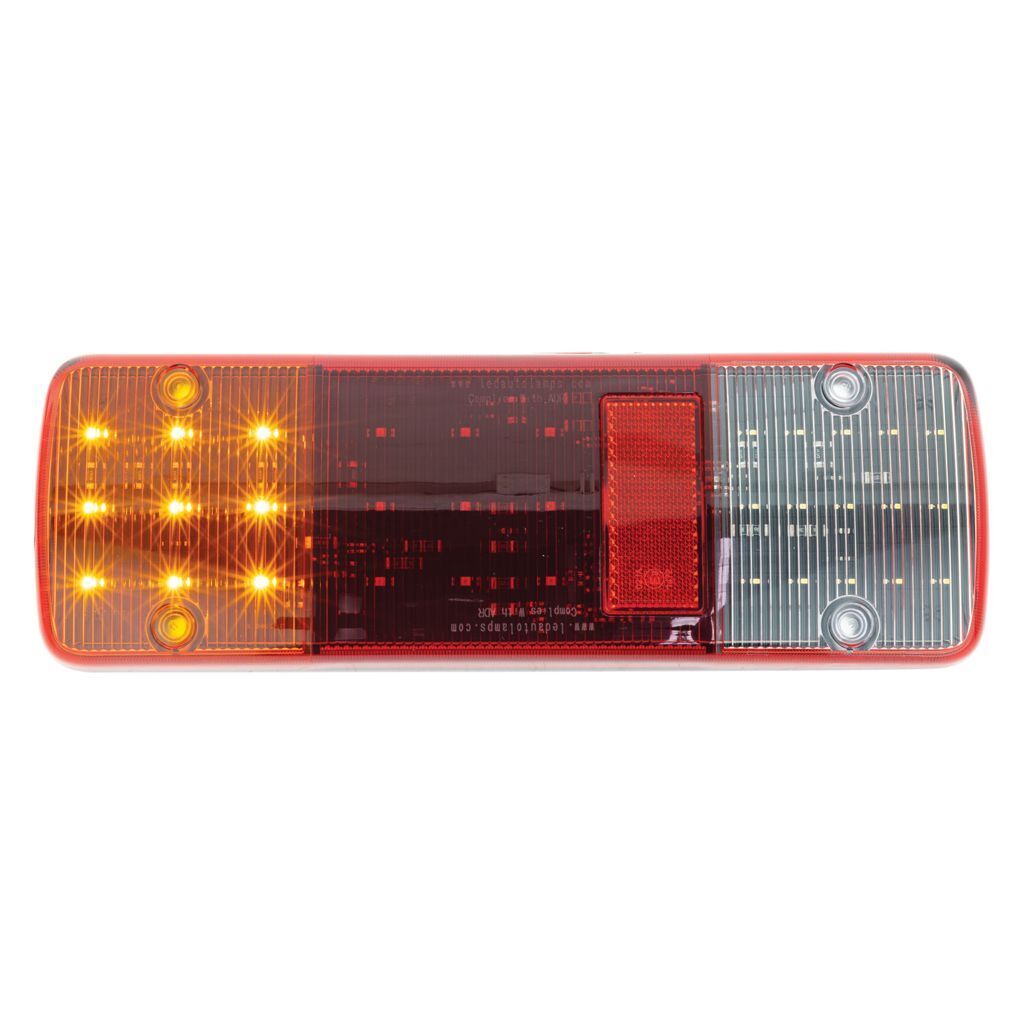

• 9 x High Intensity Red LED's in Stop / Tail, 9 x High Intensity Amber SMD LED's in Indicator Lamp and

• 15 x High Intensity White SMDLED's in the Reverse Lamp Module

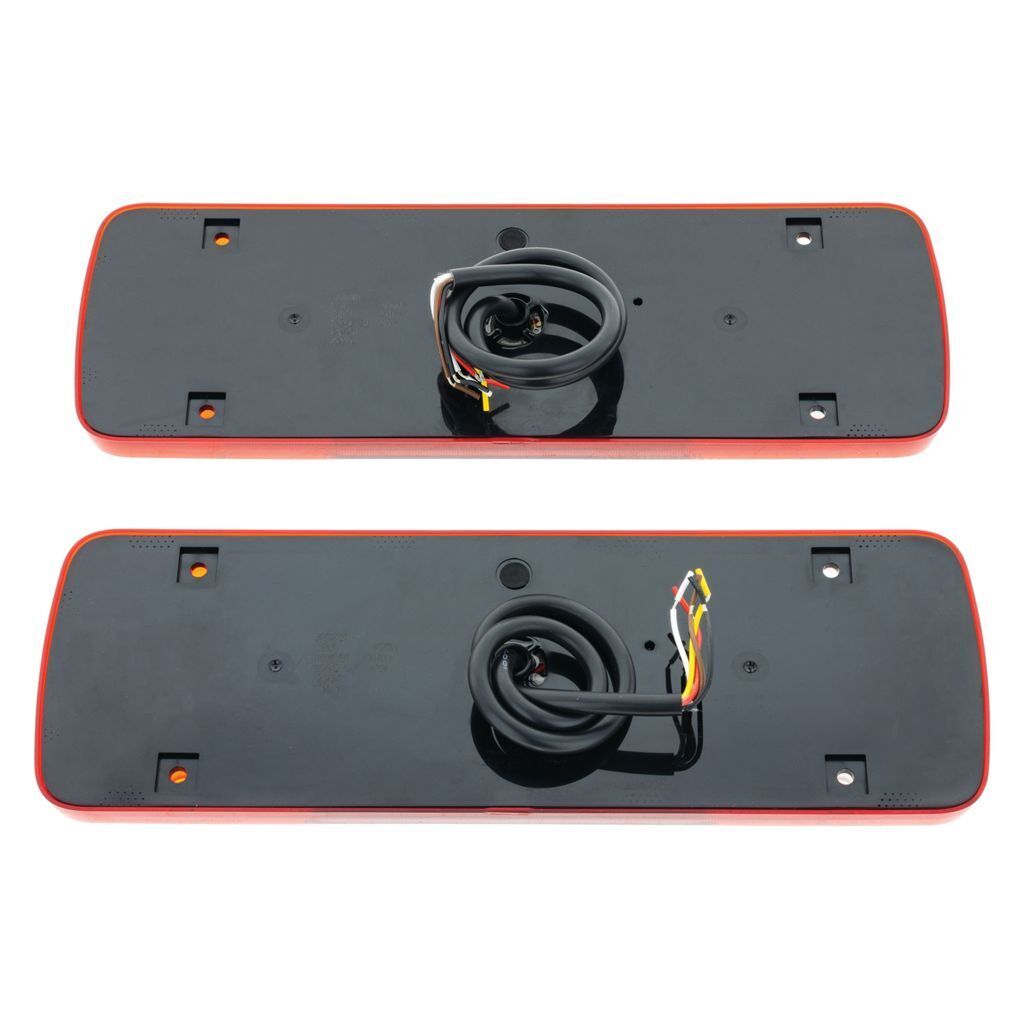

• Black ABS Plastic Housing can be screw mounted through the lens

• Black ABS Plastic Housing with Metal Alloy L Shaped Bracket included

• Surface Mount, low mounting depth for easy installation

• 400mm Sheathed with 5 wires into Deutsch Plug

• Fully encapsulated circuitry

• Sealed against Dust and Moisture

• 0.16amps at 12 Volt Current Draw for Stop function

• 0.01amps at 12 Volt Current Draw for Tail function

• 0.15amps at 12 Volt Current Draw for Indicator function

• 0.18amps at 12 Volt Current Draw for Reverse function

• 30,000 Hours LED Lifespan

• ADR 49/00 Rear Stop Lamp specifications approved

• ADR 6/00 2A Rear Indicator Lamp specifications approved

• ADR 1/00 Reverse Lamp specifications approved

• ADR 47/00 Reflector specifications approved

• Refer to ADR 13/00 for mounting instructions

• IP67 Rating

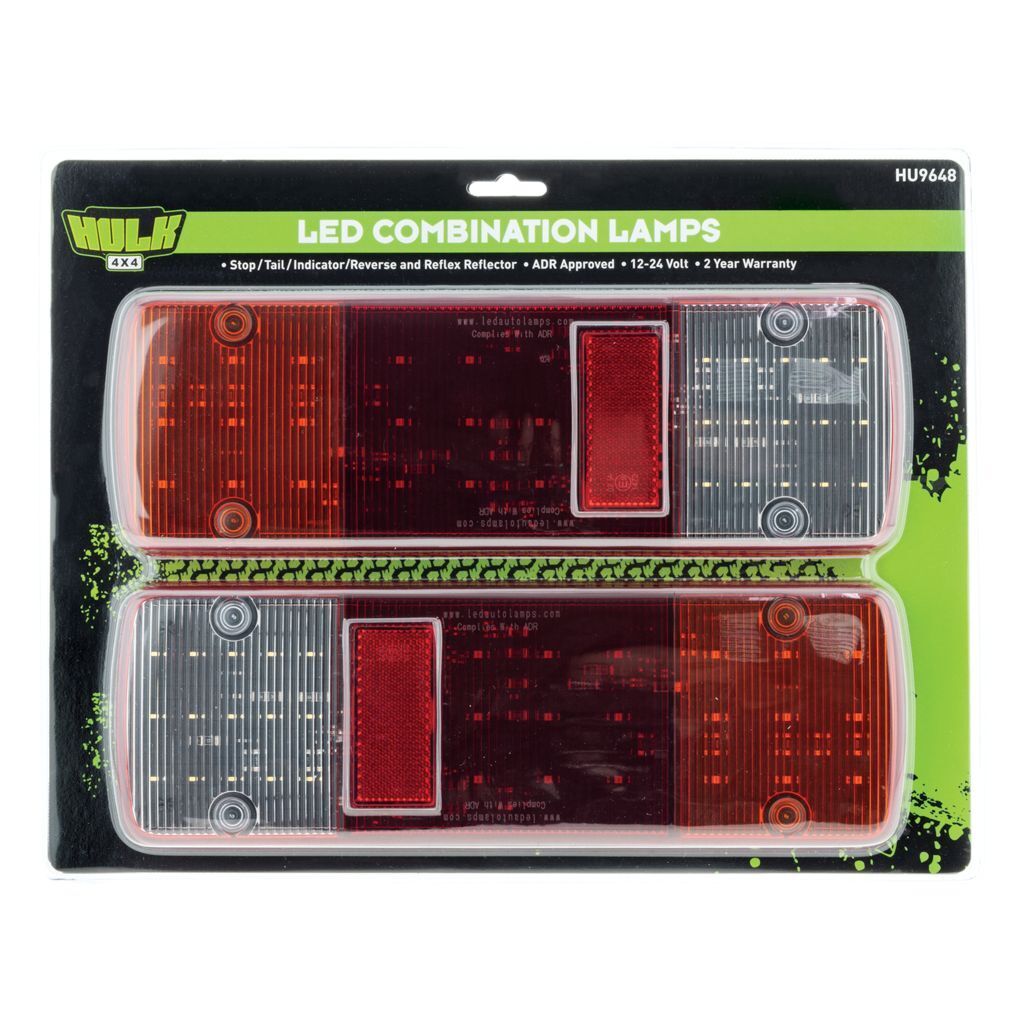

• Blister Qty: 2

• 2 Years Warranty
