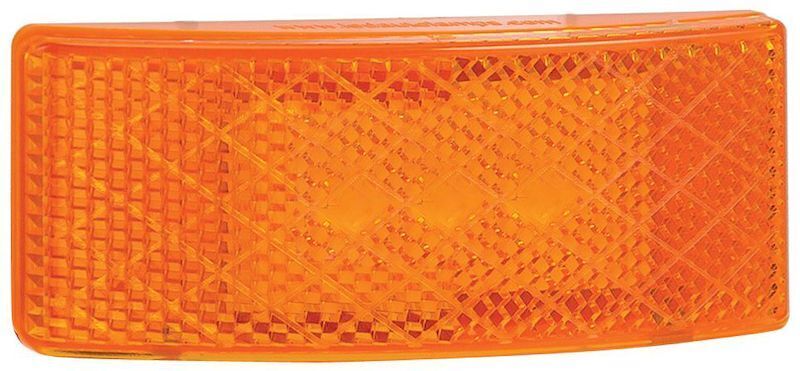

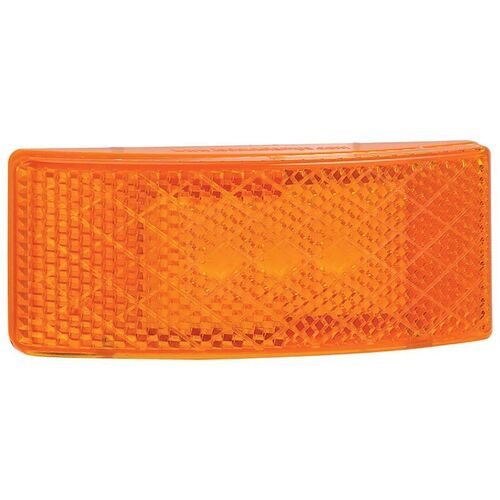

LED MARKER LAMP AMBER 12/24V 3M™ TAPE BASE 400MM LEAD

Ignite LED Side Marker Reflector Lamp 12/24 Volt
400mm Sheathed with 2 wires
10,000 Hours LED Lifespan
Fully encapsulated circuitry
Sealed against Dust and Moisture
ECE 00 SM1 CRN 1304 Approved - Side Marker Lamp
ECE 021A CRN 1304 Approved - Side Reflector
Refer to ADR 13/00 for mounting instructions
Amber Illumination
IP67 Rating
Blister Qty: 1
5 Year Warranty

Drill a 10mm Hole, remove protective film from 3M™ Tape, pull cable through the hole, push
serrated plug into the hole and press firmly on lamp
Easy to fit with no tools required, saving on installation time
Low profile compact design

ISL433R is the matching Rear End Outline Marker Lamp
3 x High Intensity White LEDs
ISL433W is the matching White Front End Outline Marker Lamp
Current Draw: 0.01amp at 12 Volt, 0.01amp at 24 Volt
Amber Hardened Acrylic Lens with unique Hexagonal pattern and Built-in Reflex Reflector
Amber ABS Plastic Housing with 10mm Serrated Plug
Surface Mount with 3M™ Tape (Supplied) "Push and Stick" mounting system
