Lightforce BEAST Driving Light Wiring Harness - Gen 3 Mazda BT-50 09/2020-On & Gen 3 Isuzu D-Max RG 08/2020-04/2024

Utilise the full potential of your BEAST driving lights by Lightforce, with this Vehicle Specific plug & play wiring harness. This harness is specifically designed for the installation of BEAST’s 3-mode operation.

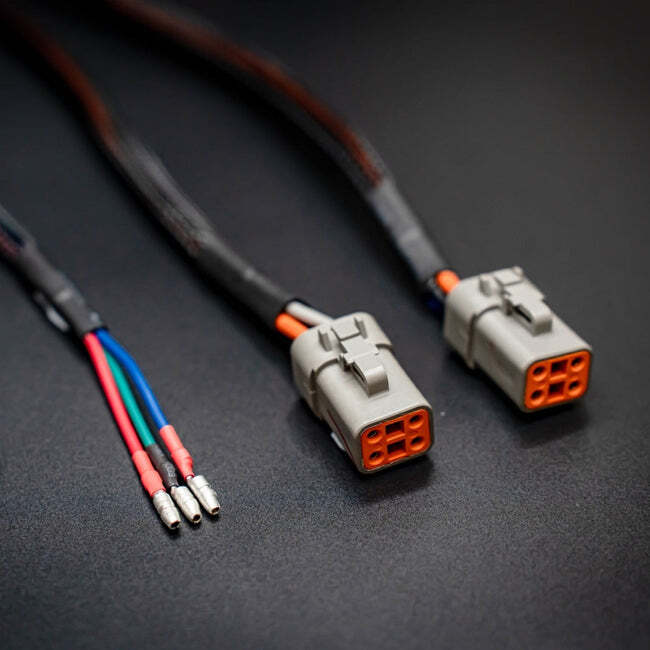

The harness kit comes complete with HB3 and H4 headlight adaptors for simple integration into your vehicle’s headlight circuit. Additional terminals are included for different configurations.

Positive or negative switching is controlled electronically, output to the switch is always positive so no changing of the wiring or guess work is required. Simply connect, true plug-and-play.

A very small (8mm in diameter) single moulded 8 pin connector makes installation quick and easy as only one connector is required to pass through the vehicle’s firewall and connects directly to the BEAST 3-mode smart switch.

PRODUCT DETAILS

SPECIFICATIONS:

• 12V operation
• 40 Amp relay
• Positive or negative switching (controlled electronically).

KIT INCLUSIONS:

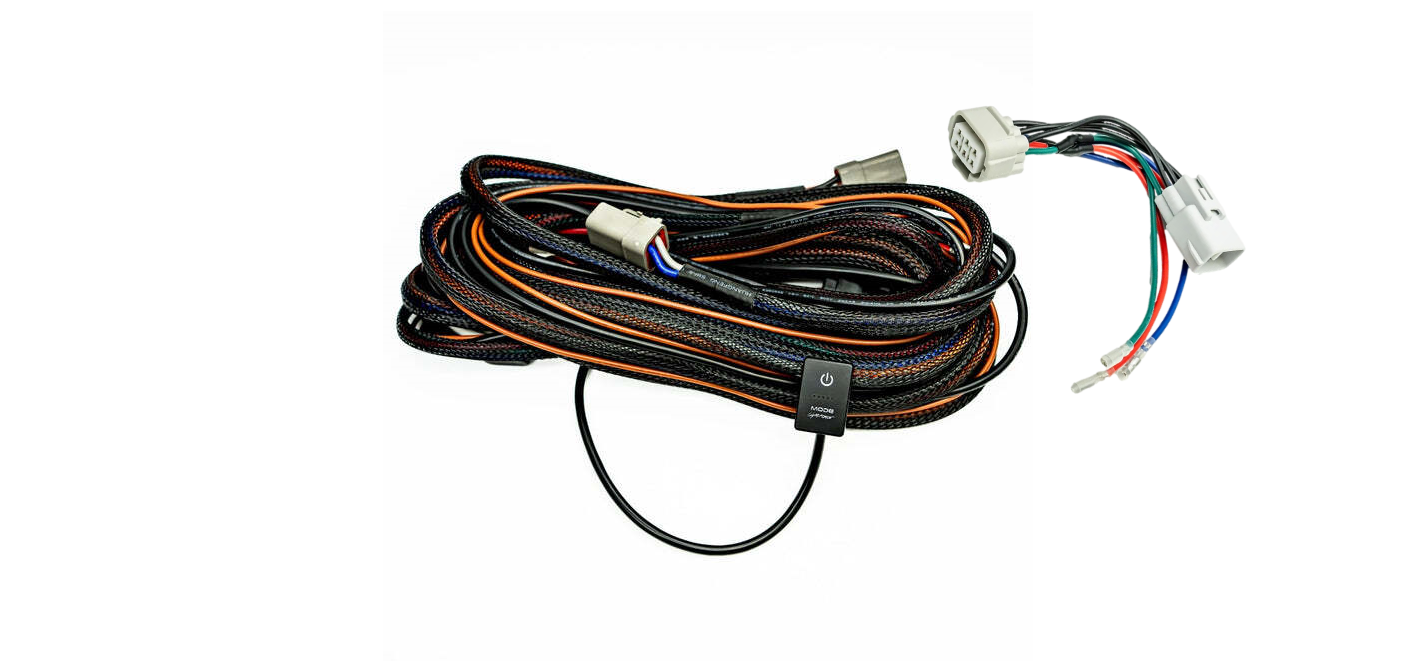

• 1 x 12V BEAST Driving Light  Harness including relay
• 1x Headlight Patch Harness
• 1 x Vehicle Specific BEAST Driving Light 3-Mode Rocker Switch
• Extra terminals, cable ties and mounting hardware
• 1 x user instructions.

WIRING HARNESS
