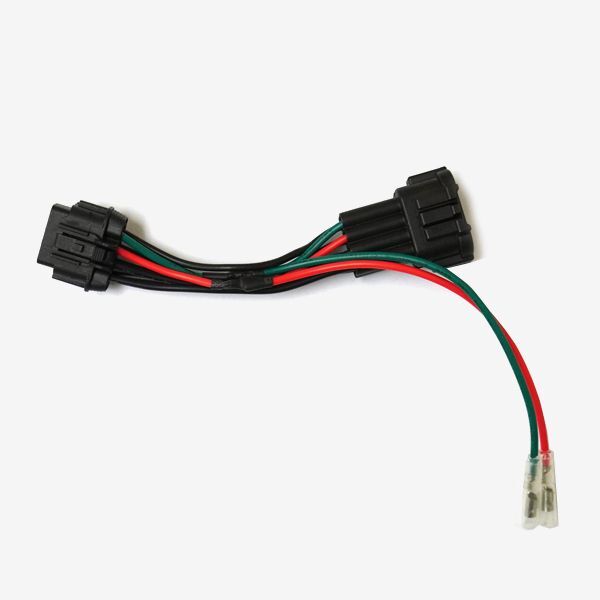

Lightforce Headlight Patch Harness - Nissan Navara NP300 with Factory LED Headlights

Suitable for use with the NP300 SL, ST & STX models with factory fitted LED Headlights. Allowing for safe plug and play integration into the existing factory headlight connector that are located on the back of each side of the vehicle’s headlight assemblies.

Only Compatible with the following Lightforce wiring harnesses.

•  LFDLHTS / LFDLHTS2 - Genesis / Venom
•  LFDLHDS - HTX MK1 / MK2
• STRIKERLEDHARN - Striker LED
• LFDLHSS - Universal Driving Light Wiring Harness

It uses the OEM connection point on the back of the headlight assembly. You no longer need to put a hole in the dust cover or splice a wire into the OEM harness for auxiliary driving lights, simply:

Remove the existing OEM 8 pin connector from the back of the headlight (left or right side) there is a locking tab that must be depressed while removing the connector

Fit the corresponding new connector to the OEM connector that has just been removed

Fit the remaining new connector to the original OEM connector affixed to the headlight assembly

Then connect the corresponding connectors from anyone of our listed compatible wiring harnesses.

WIRING:

Red wire is from the vehicles positive high beam circuit and is used to trigger the positive signal on an auxiliary relay for driving lights.

Green wire is from the vehicles negative circuit and is used to trigger the negative signal on an auxiliary relay for driving lights.

Both red & green wires must be connected
