Name: Front Runner Mitsubishi Pajero/Montero CK (3rd GEN) SWB Load Bar Kit
Brand: Front Runner
SKU: KRMP003
Price: 652.65 AUD
Availability: InStock

Front Runner Mitsubishi Pajero/Montero CK (3rd GEN) SWB Load Bar Kit

Calculate Shipping

When a full Front Runner Roof Rack is not needed but you still want to save precious interior space and carry your gear in confidence these Front Runner Load Bars offer a low profile, small footprint solution that you can trust to get your gear anywhere.

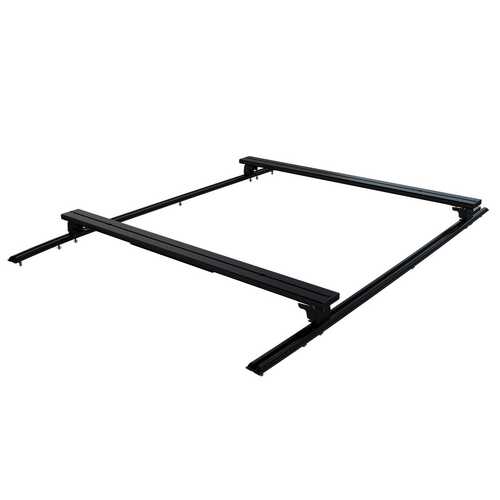

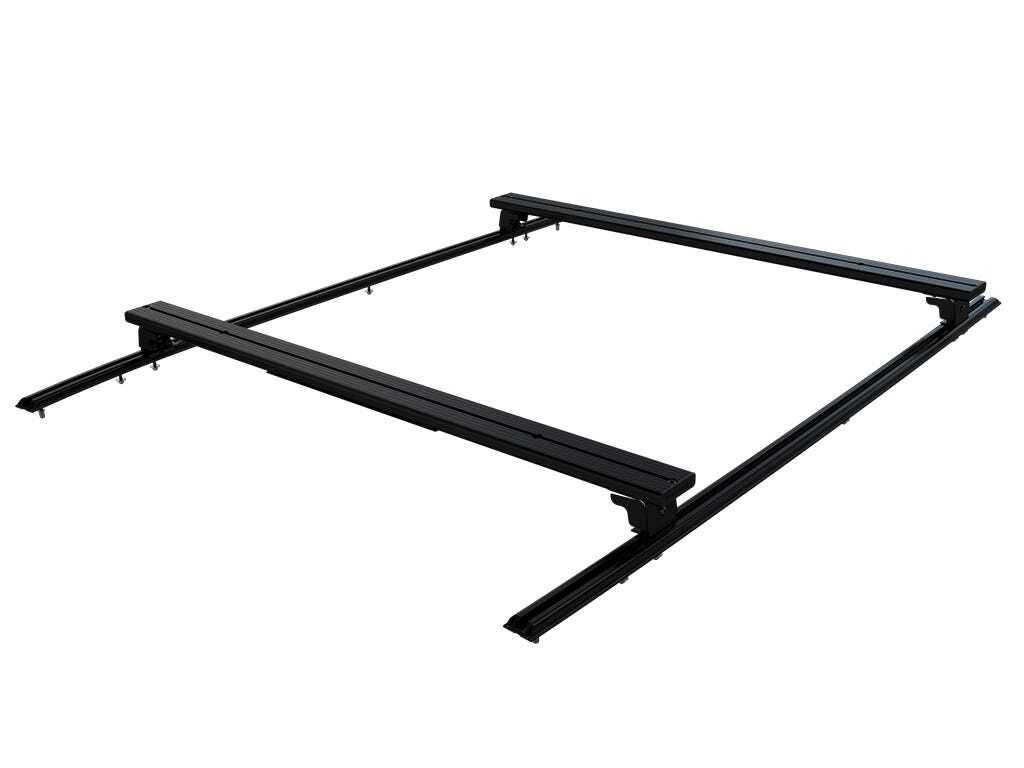

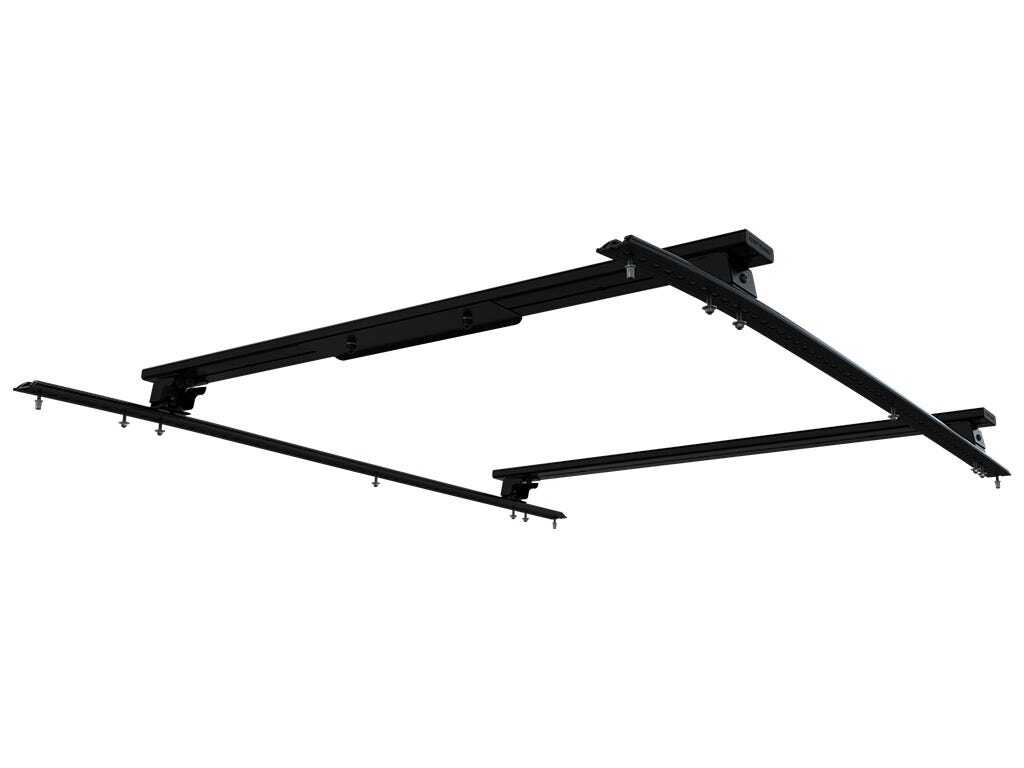

A set of Load Bars used to transport gear on the roof of your Mitsubishi Pajero/Montero CK SWB.

This low profile solution includes 4 mounting Feet, 2 1255mm Load Bars, tracks, installation kit and fitting instructions.

These Load Bars are mounted to the Mitsubishi Pajero/Montero CK SWB via a set of supplied Mounted Feet and Tracks.

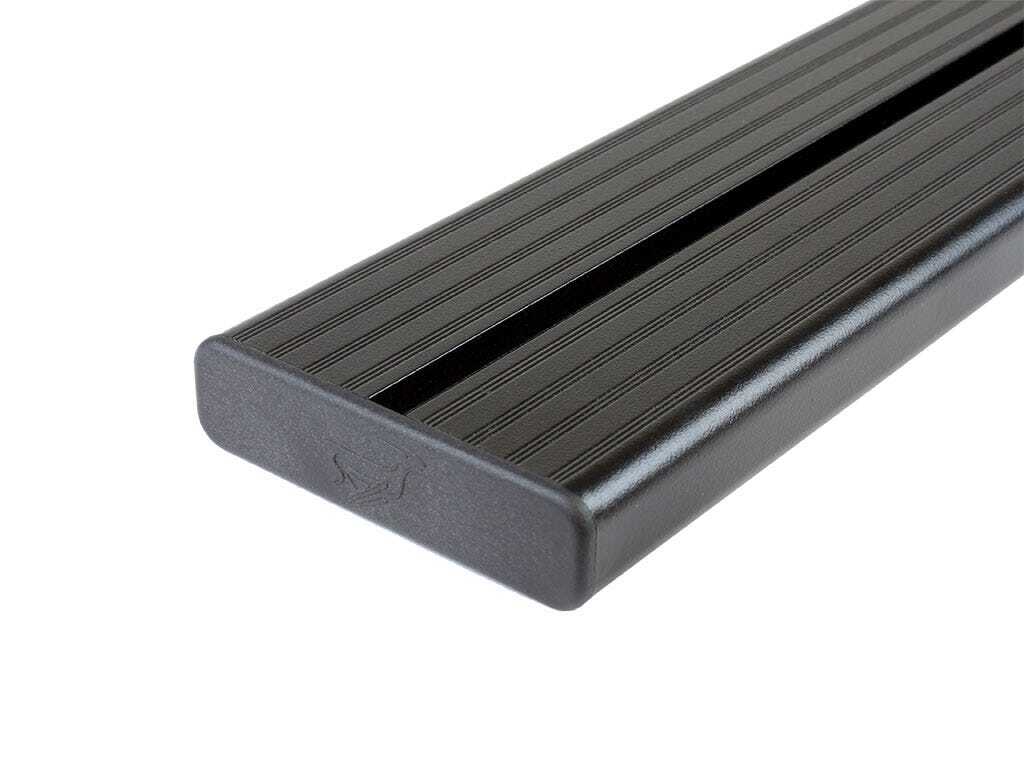

Uses the same strong, corrosion free aluminum slats found in Front Runner Slimline II Racks.

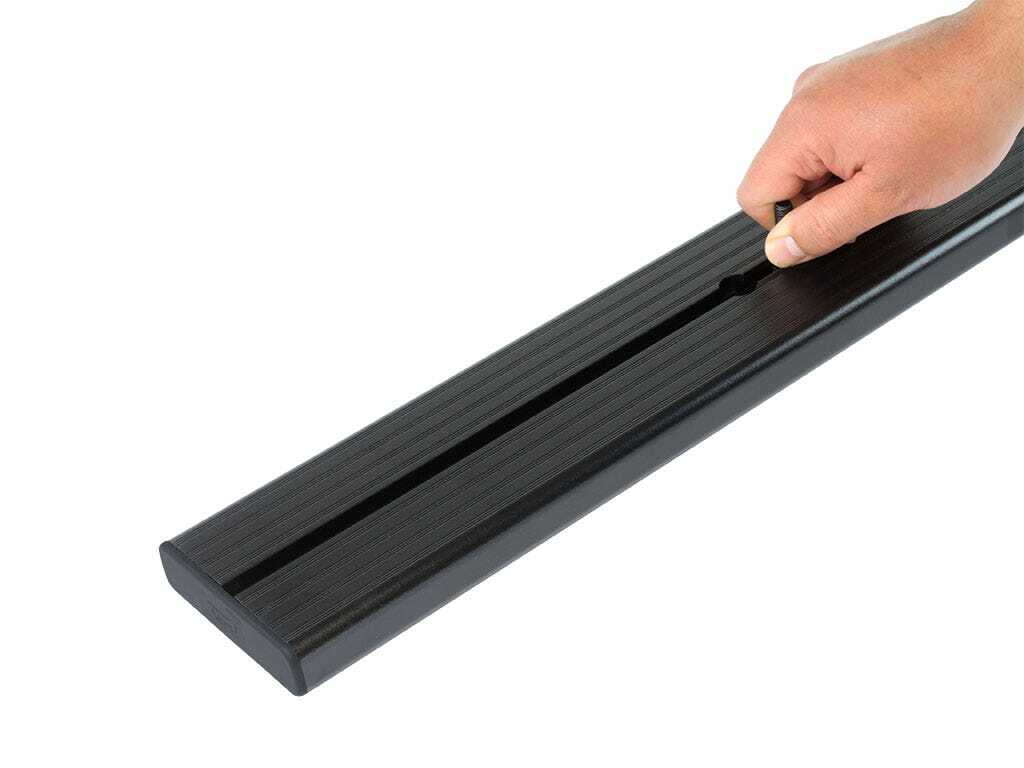

The sliding nut t-slots allow for quick fitting and removal of accessories and equipment on both the top and bottom of the slats.

The Load Bars and mounting system can be used in the future as components to build a complete Front Runner Roof Rack.

Made from stainless steel and a durable, weather resistant black powder-coated aluminum.

Includes all hardware, components and the installation guide needed to fit Load Bars on a vehicle.

Note: The load per Load Bars must not exceed 55lbs or 25kg, and ensure the load is distributed evenly.

For larger loads, additional Load Bars may be needed, please contact Customer Service for any enquiries.

(KRMP003)

KRMP003 - Mitsubishi Pajero/Montero CK (3rd GEN) SWB Load Bar Kit - by Front Runner Consisting of: 2x FASS024 - Foot Set / 40mm - 50mm1x LBSK014 - Roof Load Bar Pair 1255mm(W)1x TRMP002 - Mitsubishi Pajero CK (3rd Gen)SWB Tracks/1600mm(L)1x WDLB001 - Load Bar Wind Deflector / 10mm Material Used: Black epoxy powder - coated T6 aluminium Approximate Installed Weight: 8.77kg (19.33lbs) The t-slots on the tops and bottoms of the slats accommodate standard 8mm bolts.To determine the approximate height from your vehicle?s roof to the top of your Load Bar Kit, add the height of the Load Bar (22mm/ 7/8'') to the height of the Foot, Grab-On Foot, or Strap-On Foot listed above.If your Load Bar kit uses Legs, add the height of the Load Bar (22mm/ 7/8'') to the height of the Legs listed above to determine the height of the rack from your vehicle's rain gutters.If your Load Bar kit uses Foot Rails, add the height of the Load Bar (22mm/ 7/8'') to the height of the Foot Rails listed above to determine the height of the rack from the crown (highest point) of the vehicles roof. Shipping Dimensions: Width: 115mm (5'') Length: 1610mm (63'') Height: 250mm (10'') Shipping Weight: Weight: 9.4kg (21lbs)

SKU	KRMP003
Barcode #	6009542214252
Brand	Front Runner
Shipping Weight	9.4000kg
Shipping Width	1.610m
Shipping Height	0.250m
Shipping Length	0.115m
