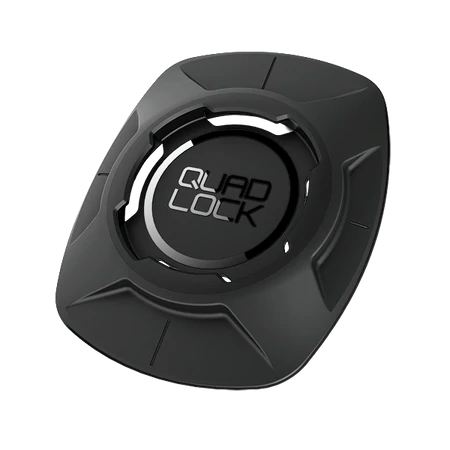

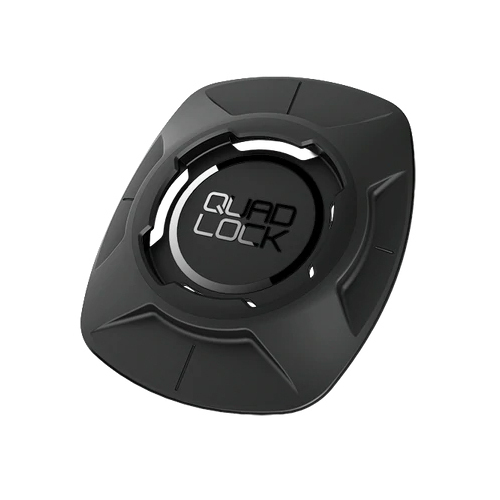

Quad Lock Universal Adaptor
The Quad Lock® Universal Adaptor can be directly adhered to smartphones, cases, iPads / tablets and most flat metal or plastic surface and is compatible with all Quad Lock® Mounts.
SECURE MOUNTING
The Patented Dual-Stage Lock makes it quick & easy to attach / detach your device, whilst giving you the peace of mind to know your device is securely locked.
SLIM PROFILE
At just 5mm thick, the Quad Lock® Universal Adaptor fits seamlessly onto the back of smartphones and cases.
Please note: Use of the Universal Adaptor may interfere with Wireless Charging
Tech Specs:
- 3M™ VHB adhesive
- Slim profile (5mm thick)
- 48mm wide and 60mm tall
- Durable and tough composite construction
- Adheres to flat and slightly curved surfaces
WHAT PHONES/CASES DOES THE UNIVERSAL ADAPTOR ADHERE TO?
The Quad Lock Universal Adaptor uses a 3M™ VHB™ 4952 (very high bond) adhesive which bonds to smooth, non textured, non-porous surfaces such as plastic and metal. It will NOT adhere to rubber, silicon, polypropylene (PP), Thermo Plastic Urethane (TPU/TPE), soft touch paints or hydrophobic (water resistant) coated glass which unfortunately is found on the back of most modern glass backed smartphones. We highly recommend using a case if your phone has a glass back.
For tape specification please refer to the 3M™ website: 3M™ VHB™
Not all phones or cases are compatible with the 3M™ VHB™ tape. The table below should be used as a reference guide only. Please ensure a sufficient bond has been achieved by the 3M™ tape before use. Use at your own risk.
Suitable Materials |
Not suitable Materials |
|
|
|
|
|
|
|
|
|
|
|
Always clean the application surface with alcohol and let dry before adhering the adaptor.
Recommended Cases
The following is a guide for cases that we recommend for use with the Universal Adaptor. If you're not sure what your case is made from please contact the manufacturer to confirm before use.
Lifeproof Nuud Case |
|

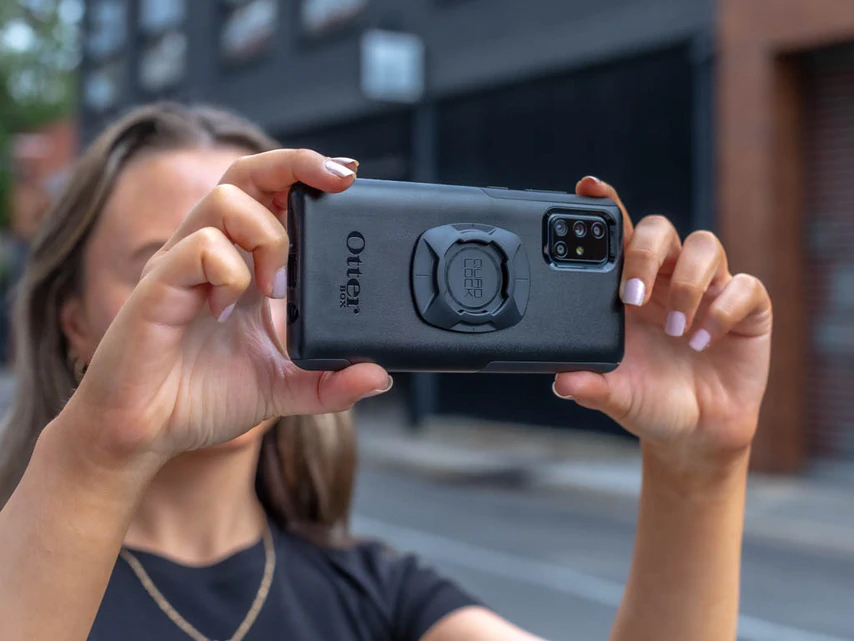

Otterbox Commuter, Defender and Symmetry Series Cases |
|
Installation
Always ensure the application surface is thoroughly cleaned (with alcohol) and dry before applying the adaptor. The 3M™ VHB adhesive is a single use adhesive, it is NOT re-usable.
Wipe the surface down using an alcohol based cleaning agent. Make sure the residue has evaporate and surface is dry before applying the adaptor. | |
Peal the protective layer from the 3M adhesive. | |

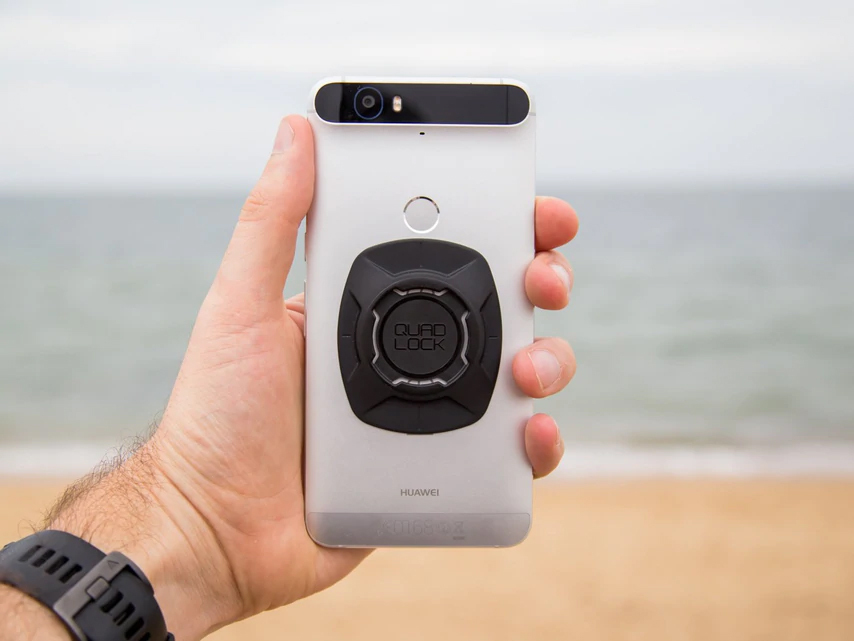

Position the Adaptor on the rear of your device/case using the center marking lines on the Adaptor. | |
Press down firmly on adaptor to achieve a good bond. The tape will achieve maximum adhesion after 24 hours. Always test that the tape has bonded securely before use. |
(QLA-UNI-3)
SKU | QLA-UNI-3 |
Barcode # | 9348943015295 |
Brand | Quad Lock |
Shipping Weight | 0.0400kg |
