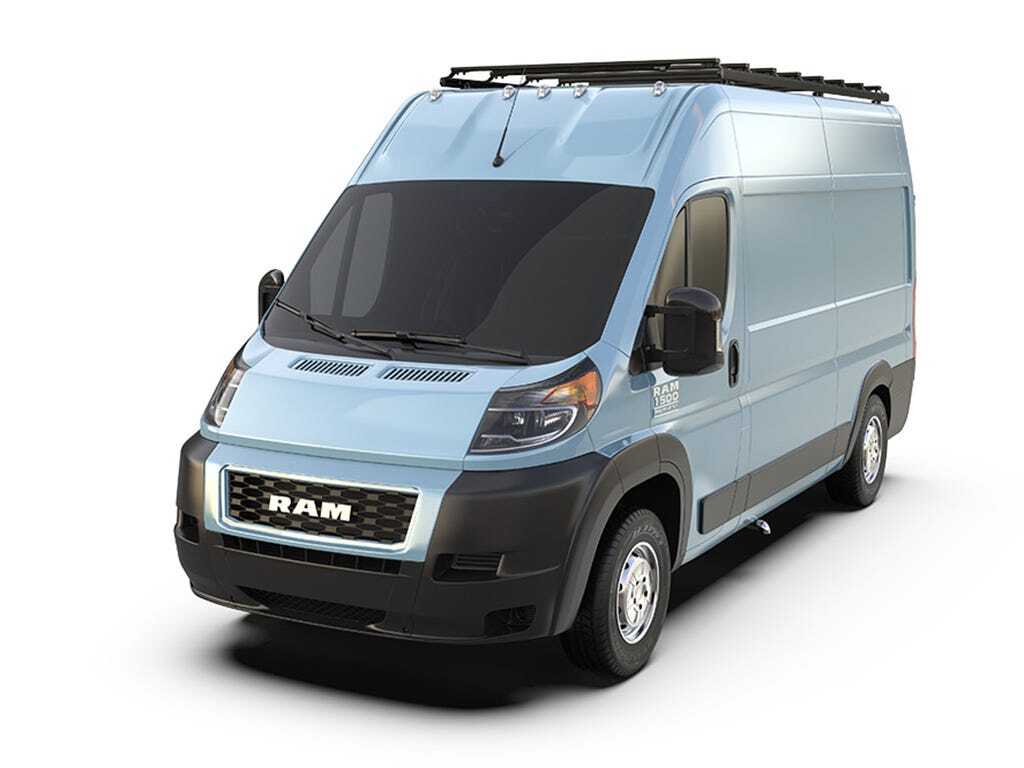

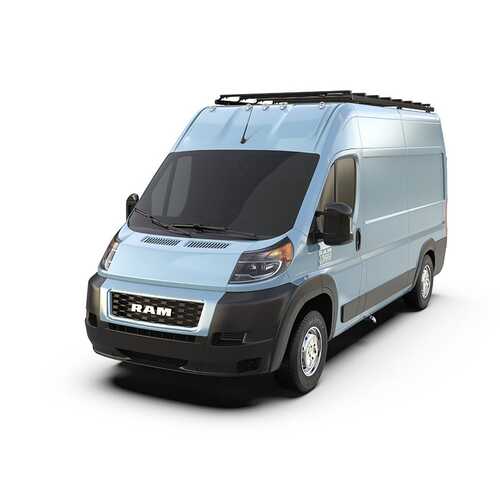

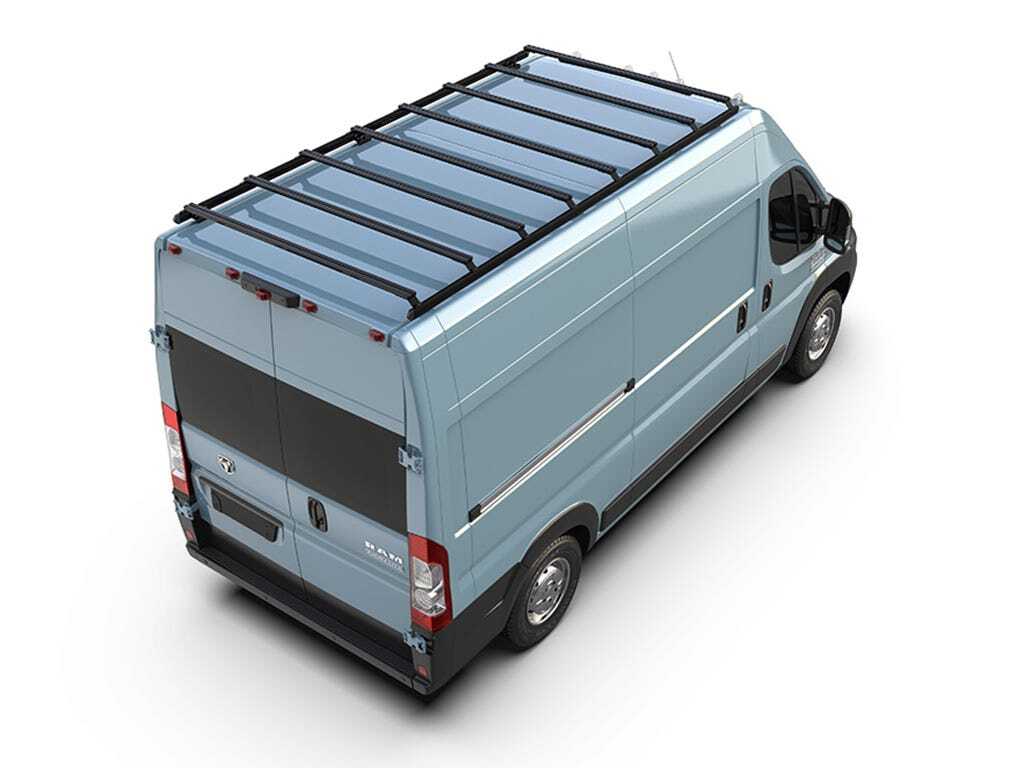

Name: Front Runner RAM Pro Master 1500 (136in WB/High Roof) (2014-Current) Slimpro Van Rack Kit
Brand: Front Runner
SKU: KVRP003T
Price: 2336.05 AUD
Availability: InStock

Front Runner RAM Pro Master 1500 (136in WB/High Roof) (2014-Current) Slimpro Van Rack Kit

Calculate Shipping

Unlock your van?s storage potentialÿwith this highly versatile, rugged roof rack kit for RAM Pro Master vans. Long distance van-life mission, weekend trip or haulingÿequipment such as ladders and pipes, the low profile rack is designed to support large lo

Compatible with RAM Pro Master 1500 (136'' WB) (2014-Current)high roof vans with a vehicle length of 5427mm / 213.7''.

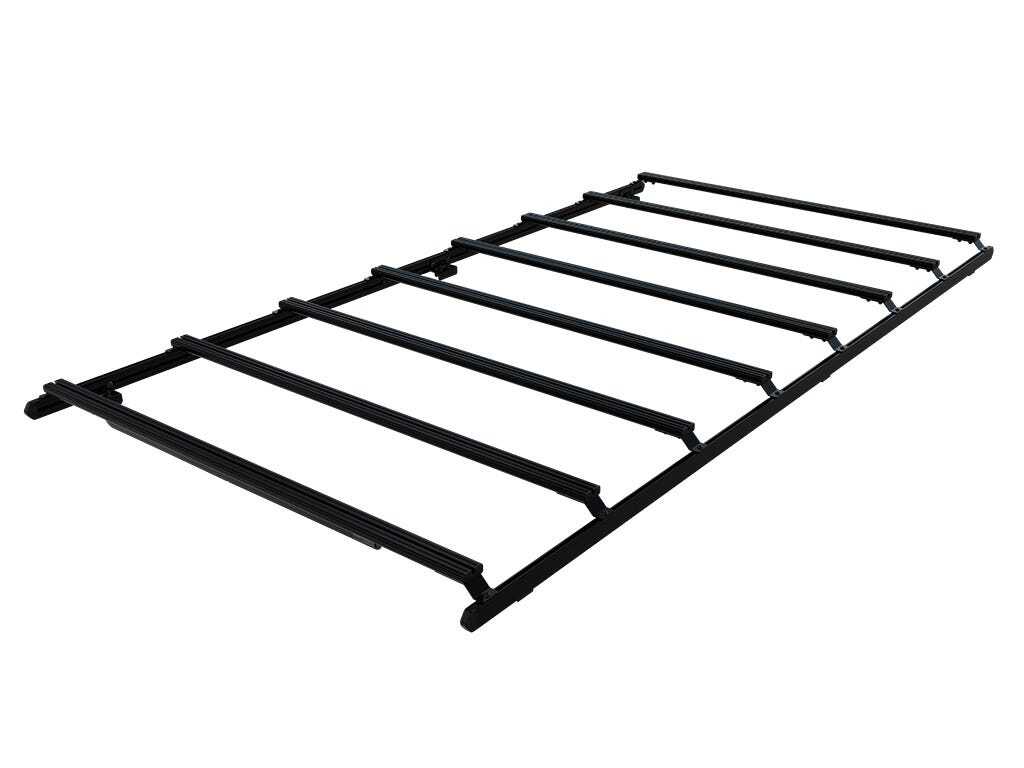

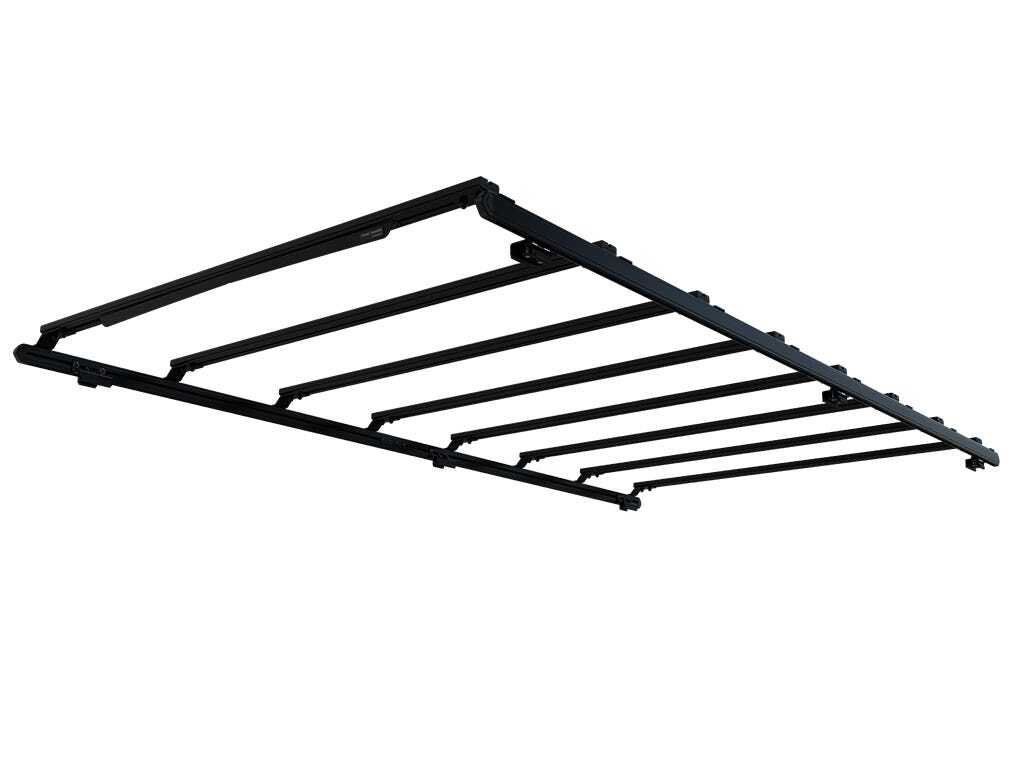

Load-carrying area: 2974mm (117.1'') x 1565mm (61.6'').

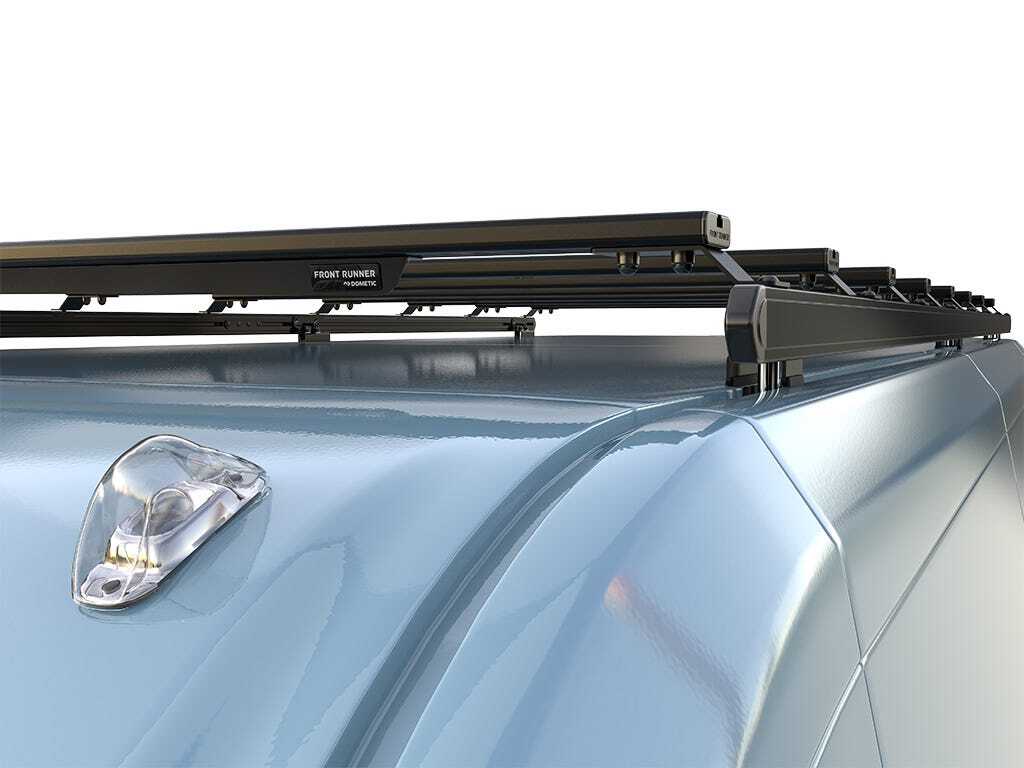

Six (6) Mounting Feet secure into van's existing factory mounting points.

Included Slat Bracket can be inverted for a lower profile at 85mm (3.4'') height, or left in standard configuration at 127mm (5'').

Compatible with most Front Runner accessories.

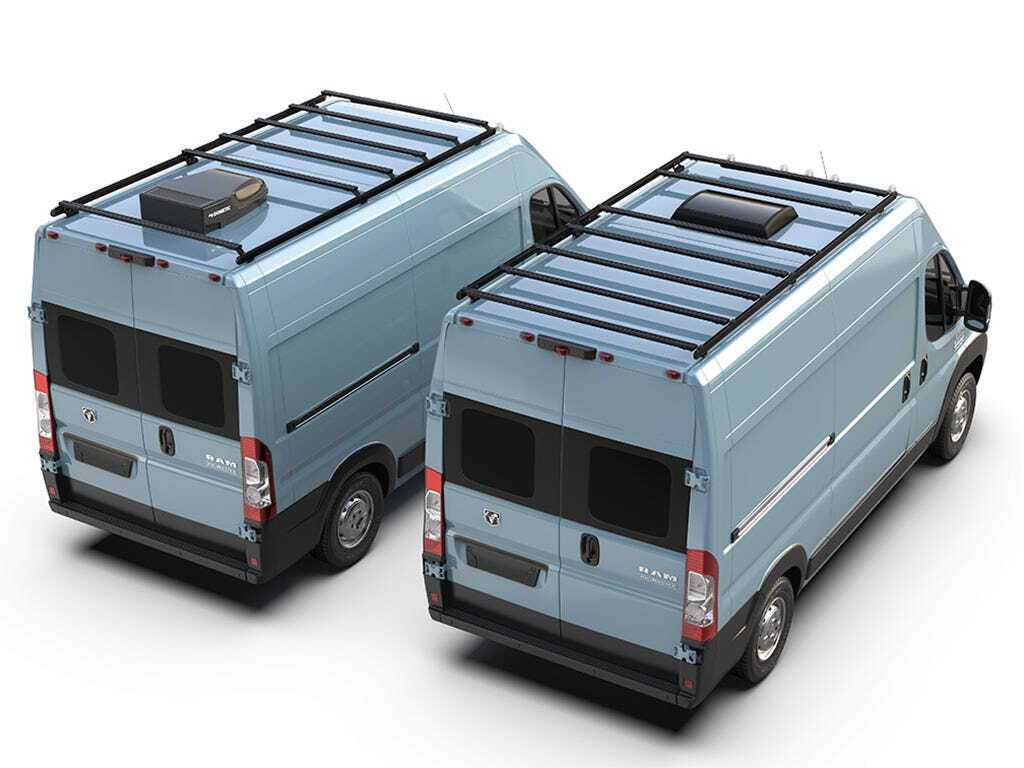

Slats can be configured to any spacing to accommodate roof AC, vents, or any other accessories.

Fitment guide and all mounting hardware are included.

No drilling or modification required.

All Front Runner racks are backed by a limited lifetime warranty.*

(KVRP003T)

KVRP003T - RAM Pro Master 1500 (136'' WB/High Roof) (2014-Current) Slimpro Van Rack Kit - by Front Runner Consisting of:3x FAVF002 - FPCR Foot Set - by Front Runner1x RRAC207 - Van Rack Joiner Kit2x RRAC208 - Van Rack Side Profile End Caps4x RRNS1475 - Narrow Slat / 1475mm (Pair)1x SPVT002 - Van Rack Side Profile / 1358mm1x SPVT003 - Van Rack Side Profile / 1560mm1x WDST013 - Wind Deflector Van Rack 30mm Lip Material Used:Black epoxy powder - coated T6 aluminiumHigh strength steelAssembled Rack Kit Dimensions:2974mm (117.1'') L x 1565mm (61.6'') W x 127mm (5'') HApproximate Installed Weight: 31.49kg (69.42lbs) RAM Pro Master Van Rack Kit heights are adjustable from 80mm (Z bracket inverted) to 130mm (Z bracket standard mounting) all measurements are taken from bottom of roof ditch to top of the rack slat. The slat T slots and side profiles take standard M8 hex bolts top and bottom. Shipping Dimensions:Width: 300mm (12'')Length: 1805mm (71'')Height: 195mm (8'')Shipping Weight:Weight: 35.35kg (78lbs)

SKU	KVRP003T
Barcode #	6009542263090
Brand	Front Runner
Shipping Weight	35.4000kg
Shipping Width	1.805m
Shipping Height	0.195m
Shipping Length	0.300m
