Renogy 150W CIGS Solar Panel

Renogy Ultra-Flex 150W CIGS Solar Panel

Unmatched durability meets exceptional anti-shading ability.











Twice the Output in Partial Shading

Bypass diodes integrated across all solar cells, ensuring stable current even in shaded conditions.





4 Times Lighter than Rigid Solar Panels

CIGS panels are significantly lighter than conventional rigid solar panels,which means they impose less pressure on the RV roof, enhance driving stability, and reduce strain during travel.

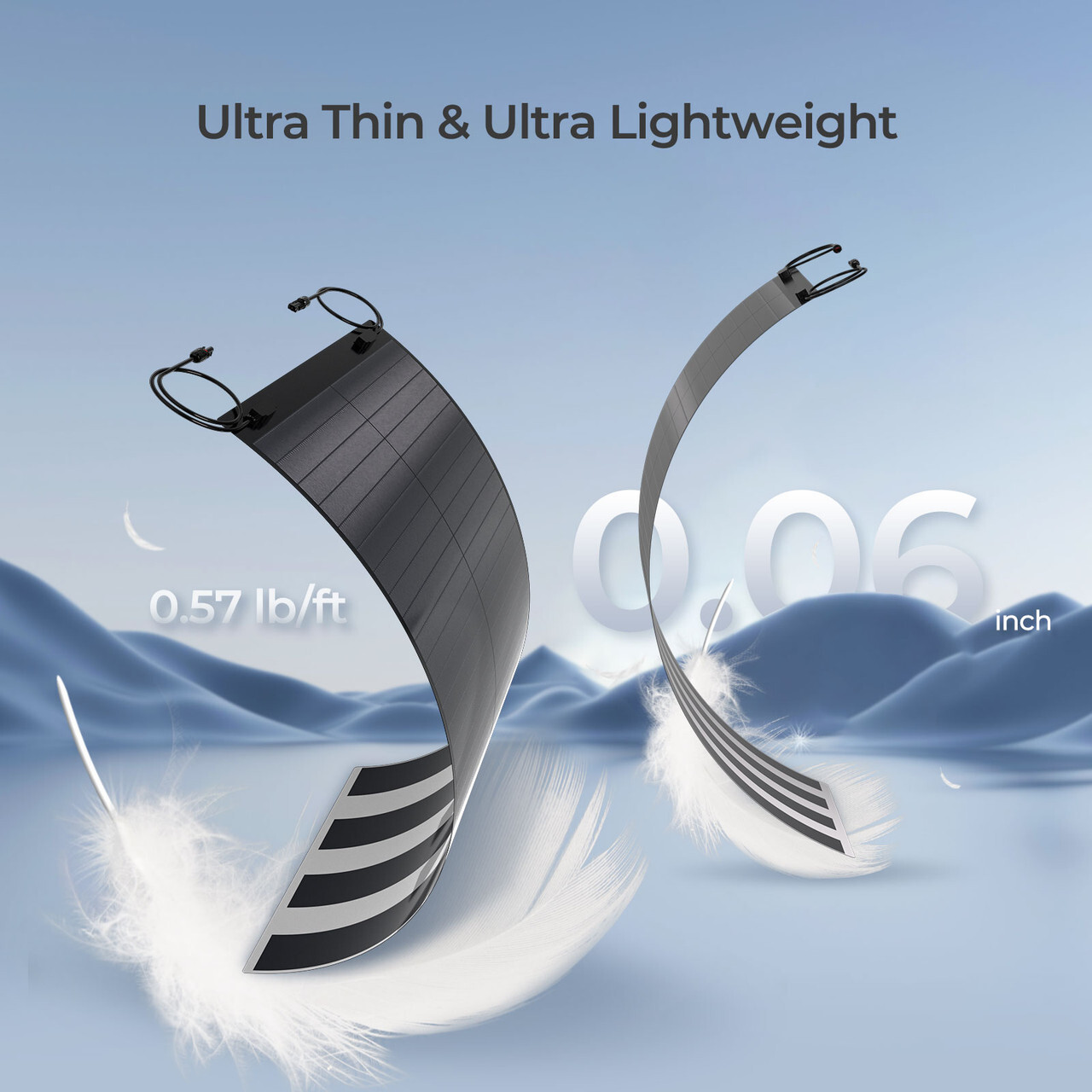

23 Times Thinner than Rigid Solar Panels

This remarkable reduction in thickness offers greater flexibility in installation options and a sleeker, more integrated appearance, providing a streamlined and aesthetically pleasing addition to your setup.





Instant Use

Minimize Roof Stress

Optimal Instant Charging

Hang your solar panel wherever you prefer for convenient, on-the-go charging while maximizing sunlight absorption.







SPECIFICATIONS

• Max Power at STC: 150W
• Short Circuit Current: 9.34A
• Optimum Operating Voltage: 18.66V
• Optimum Operating Voltage: 18.66V
• Open Circuit Voltage: 23.75V
• Maximum System Voltage: 600VDC
• Maximum Series Fuse Rating: 15A
• Module Efficiency: 14%
• Operating Temperature: -40°F~185°F / -40℃~85℃

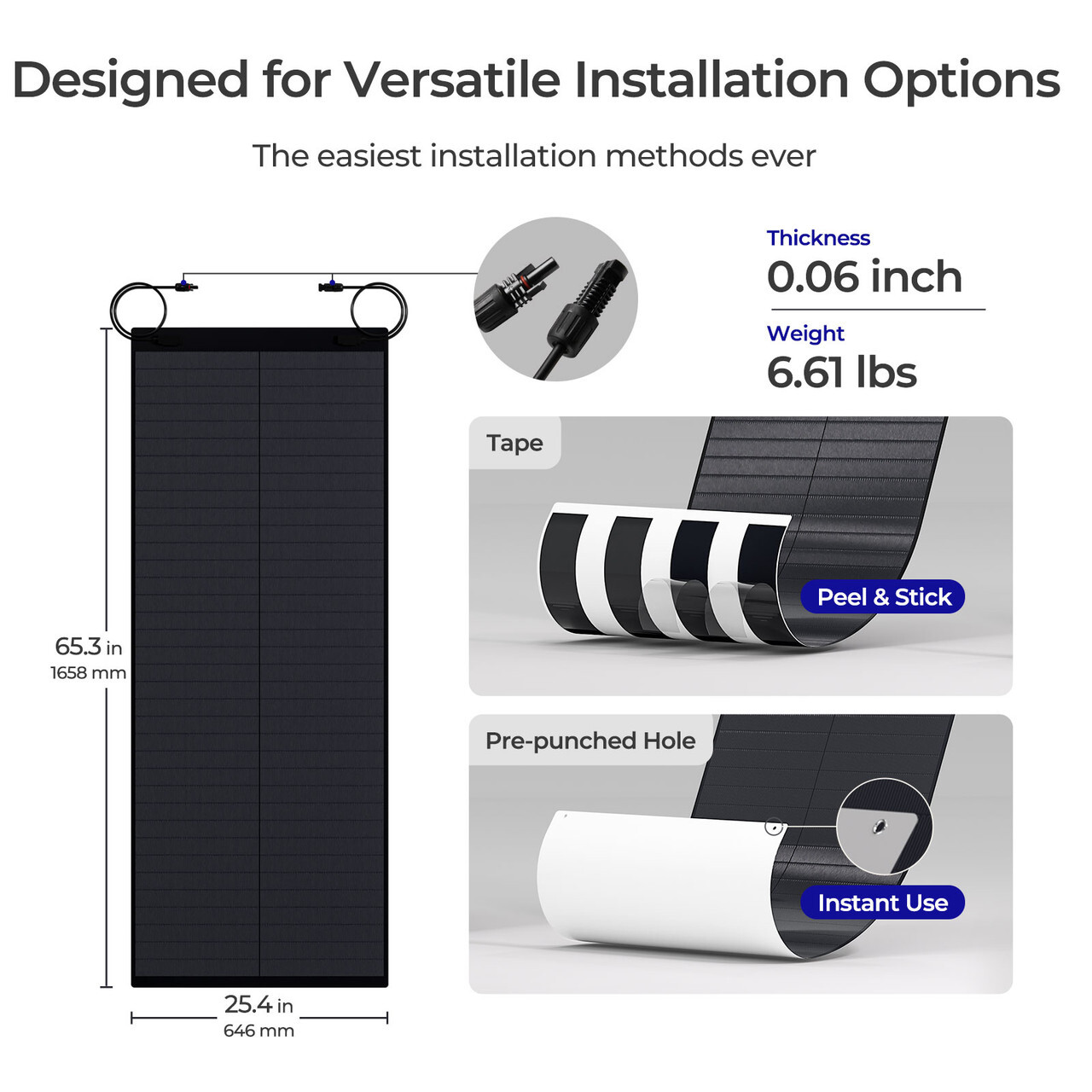

• Dimensions: 1658*646*1.5 mm (65.3x25.4x0.06 in)
• Weight: 2.1kg (4.62 lbs)





 WARRANTY

• Material and workmanship warranty: 5 years
• Performance Warranty: 5 year 90% output warranty 12 year 80% output warranty





CERTIFICATIONS

• ETL Listed [UL-458]:
• YESCE: YESManufactured in a Certified ISO 9001 Facility:
• YESPackage Contents:
