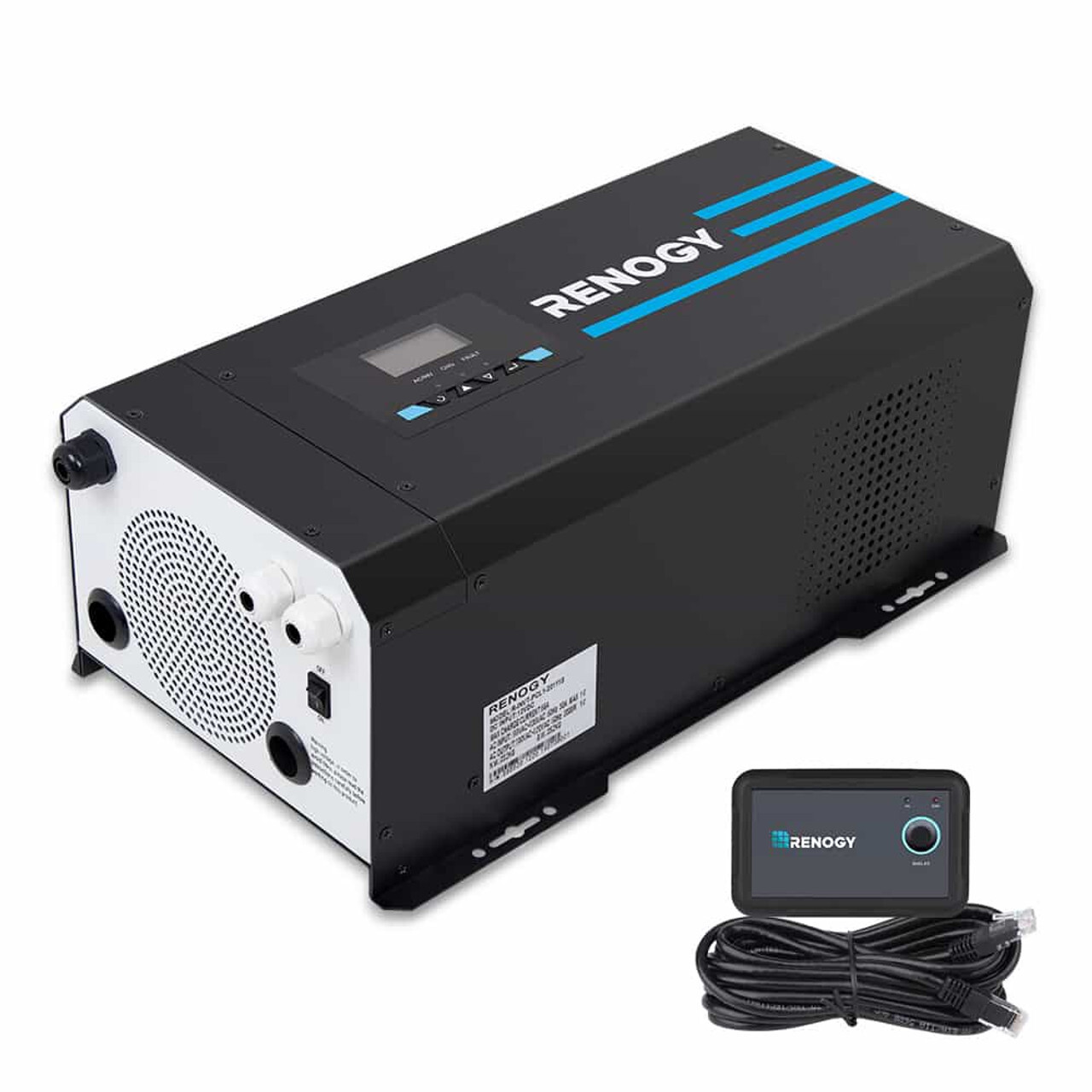

Renogy 2000W 12v Pure Sine Wave Inverter Charger

The Renogy 2000W Pure Sine Wave Inverter Charger with LCD Display is an ideal choice for RV or standalone power systems, offering 6000W peak power for handling sudden surges.

 It ensures seamless operation, capable of driving 1kW air conditioners, motors, refrigerators, and washing machines.

This versatile inverter charger not only serves as a DC to AC converter for powering household appliances but also efficiently charges and maintains a battery bank when connected to shore power.

Now compatible with various battery types, it offers enhanced flexibility for different energy storage options.

With a low transfer time, an uninterrupted power supply is guaranteed when switching from solar to shore power.

Utilizing advanced Renogy Pure Sine Wave technology, it safeguards and prolongs the lifespan of your electronics and appliances, making it an excellent backup power source.

Features:

• Compatible with diverse battery types.
• 6000W peak output with >90% conversion efficiency.
• Pure Sine Wave technology safeguards delicate appliances.
• 4-Stage battery charging for optimal performance.
• Multiple electrical protections for enhanced safety.

ELECTRICAL SPECIFICATIONS

• Rated Output Power: 2000W
• Surge Power (Peak Power): 6000W
• Nominal Output Voltage RMS: 230VAC (200~240VAC, 10V interval)
• Output Frequency (Nominal): 50 Hz
• Input Voltage Range: 10-16Vdc
• Output Wave Form: Pure Sine Wave
• Nominal Efficiency: 90% Peak
• No Load Power Consumption: Normal: <20W; Power Saving: <15W
• Battery Types: GEL, AGM, SLA, FLD, CAL, LI, USER
• Operating Temperature: 0 ~ 40°C / 32 ~ 104°F

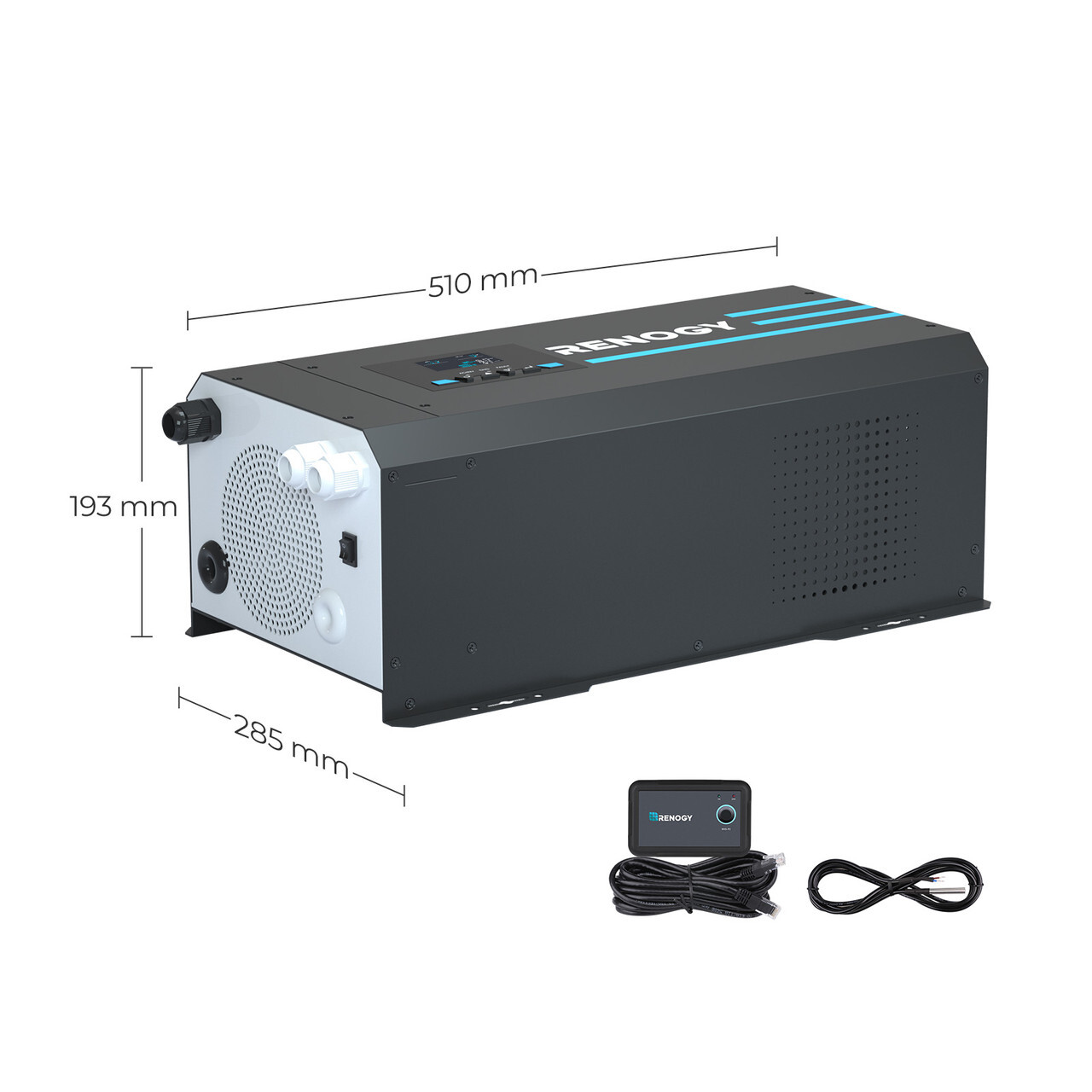

• Dimensions: 510 x 285 x 193 mm / 20.1 x 11.2 x 7.6 in
• Weight: 23.2 Kg / 51.1 lbs
• Output Current: 5-65A; configurable, 5A intervals
• Optimal Efficiency: >85%C
• Nominal Input Voltage: 230 VAC
• Input Voltage Range: 155-275 VAC
• Input Frenquency Range: 40Hz - 70Hz
• Input Wave Form: Pure Sine Wave (Utility or Generator)
• Transfer Time: ~ 10ms
• Transfer Relay Rating: 20A
