Renogy 3000W 12V Pure Sine Wave Inverter Charger
Perfect upgrade to enhance your off grid setup
Renogy 3000W 12V PURE SINE WAVE INVERTER CHARGER
Redefine power solutions with a dual-purpose dynamo.

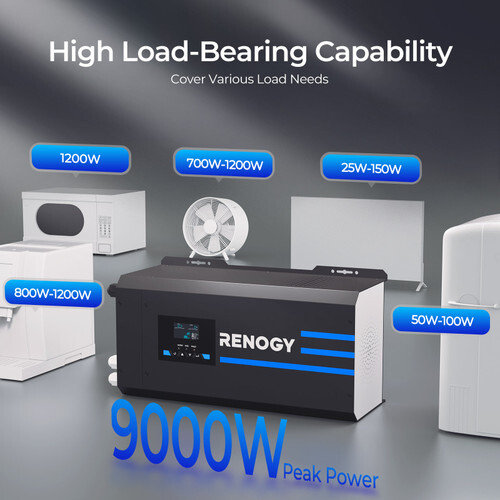

Capable of driving 1.5kW air conditioners, motors, refrigerators, and washing machines.

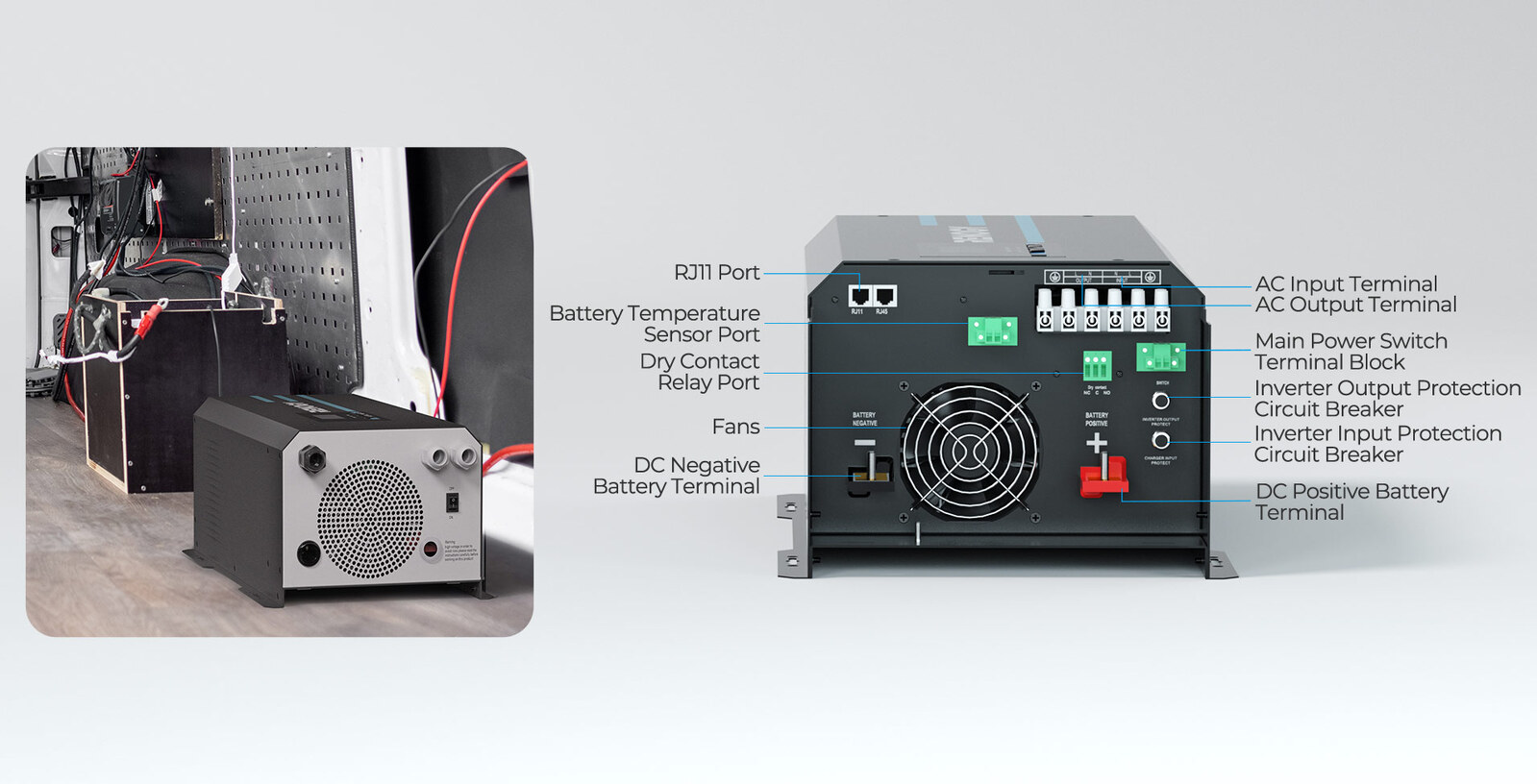

The terminals are well-organized for easy installation.
Unlock the formidable potential of rapid charging, achieving automatic and optimal charging to 100% battery capacity with Charging ramping from as little as 5a all the way up to 75a as required.

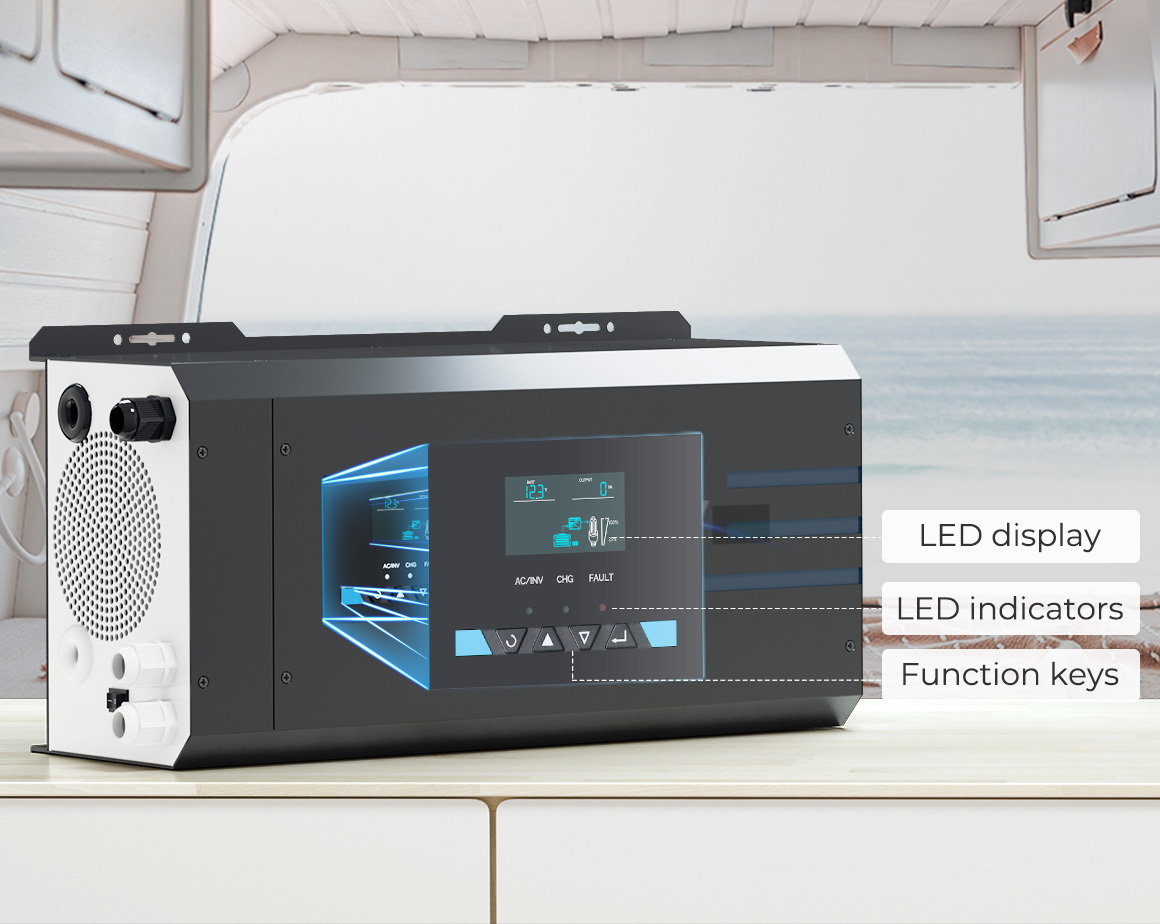

Stay informed about system status and input/output power information with the inbuilt LCD Display Panel, ensuring optimal energy management and a seamless off-grid experience, or add the Optional Renogy 500A Battery Monitor with Shunt to give you a Remote Mounted Monitoring Screen.
Advanced pure sine wave output ensures protection for sensitive appliances and quieter operation.
Features:
-Compatible with diverse battery types.

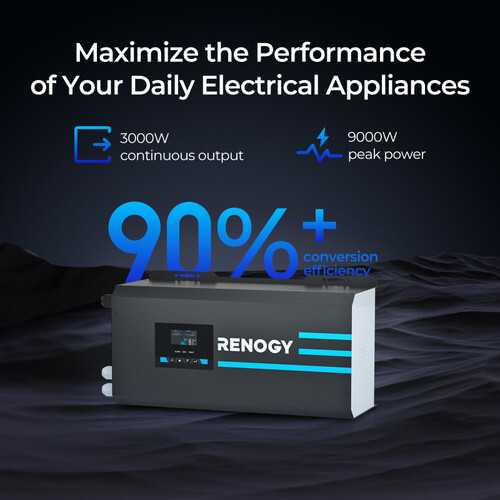

-9000W peak output with >90% conversion efficiency.
-Pure Sine Wave technology safeguards delicate appliances.
-4-Stage battery charging for optimal performance.
-Multiple electrical protections for enhanced safety.
ELECTRICAL SPECIFICATIONS
- Rated Output Power: 3000W
- Surge Power (Peak Power): 9000W
- Nominal Output Voltage RMS: 230VAC (200~240VAC, 10V interval)
- Output Frequency (Nominal): 50 Hz
- Input Voltage Range: 10-16Vdc
- Output Wave Form: Pure Sine Wave
- Nominal Efficiency: 90% Peak
- No Load Power Consumption: Normal: <30W; Power Saving: <15W

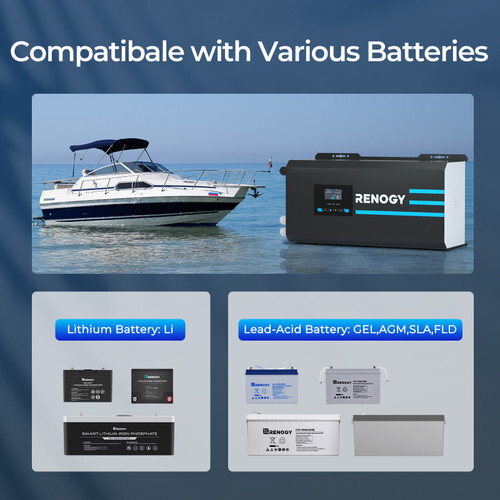

- Battery Types: GEL, AGM, SLA, FLD, CAL, LI, USER
- Operating Temperature: 0 ~ 40°C / 32 ~ 104°F
- Dimensions: 510 x 285 x 193 mm / 20.1 x 11.2 x 7.6 in
- Weight: 28.8 Kg / 63.5 lbs
- Output Current: 5-75A; configurable, 5A intervals
- Optimal Efficiency: >85%C
- Nominal Input Voltage: 230 VAC
- Input Voltage Range: 155-275 VAC
- Input Frenquency Range: 40Hz - 70Hz
- Input Wave Form: Pure Sine Wave (Utility or Generator)
- Transfer Time: ~ 10ms
- Transfer Relay Rating: 30A
- Certifications: CE
PACKAGE INCLUDES

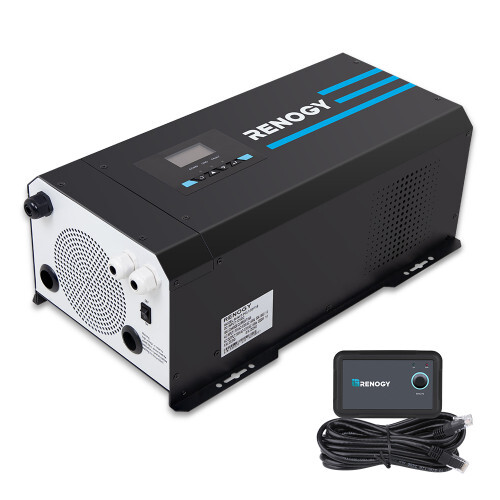

- Inverter Charger x1
- Wired Remote Control x 1
MATERIAL AND WORKMANSHIP WARRANTY
- Warranty Period: 1-year
NOTES:
- Do not over-torque or over-tighten the terminals. This could potentially damage the unit.
- Be careful of the positive and negative poles. Reversing the poles might cause permanent damage to the inverter. It will surely blow the internal fuse.
- Avoid switching on the inverter with the load (electronic devices) already switched on. This may trigger an overload since some electronic devices have an initial high power surge to start.
- When switching off the inverter, turn off the electronic devices first. Although the inverter is off, the capacitors will still have a charge, so the DC and AC terminals must be disconnected if altering the circuitry.
(R-INVT-PCL1-30123S-G2-AU)
SKU | R-INVT-PCL1-30123S-G2-AU |
Brand | Renogy |
Shipping Weight | 29.0000kg |
