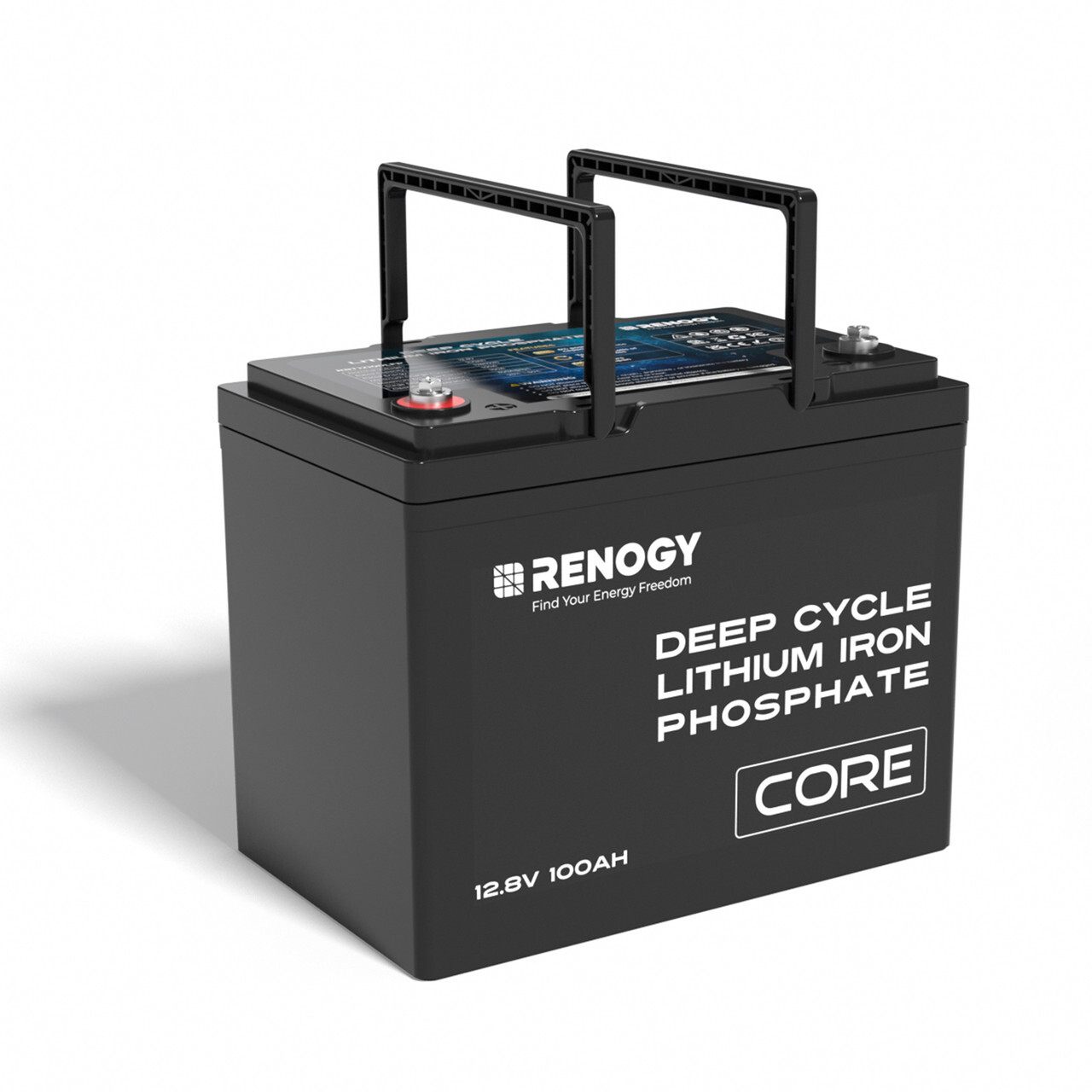

Renogy Core 12V 100ah Lithium Battery

Renogy 12V 100Ah Core Series LiFePO4 Battery

Features:

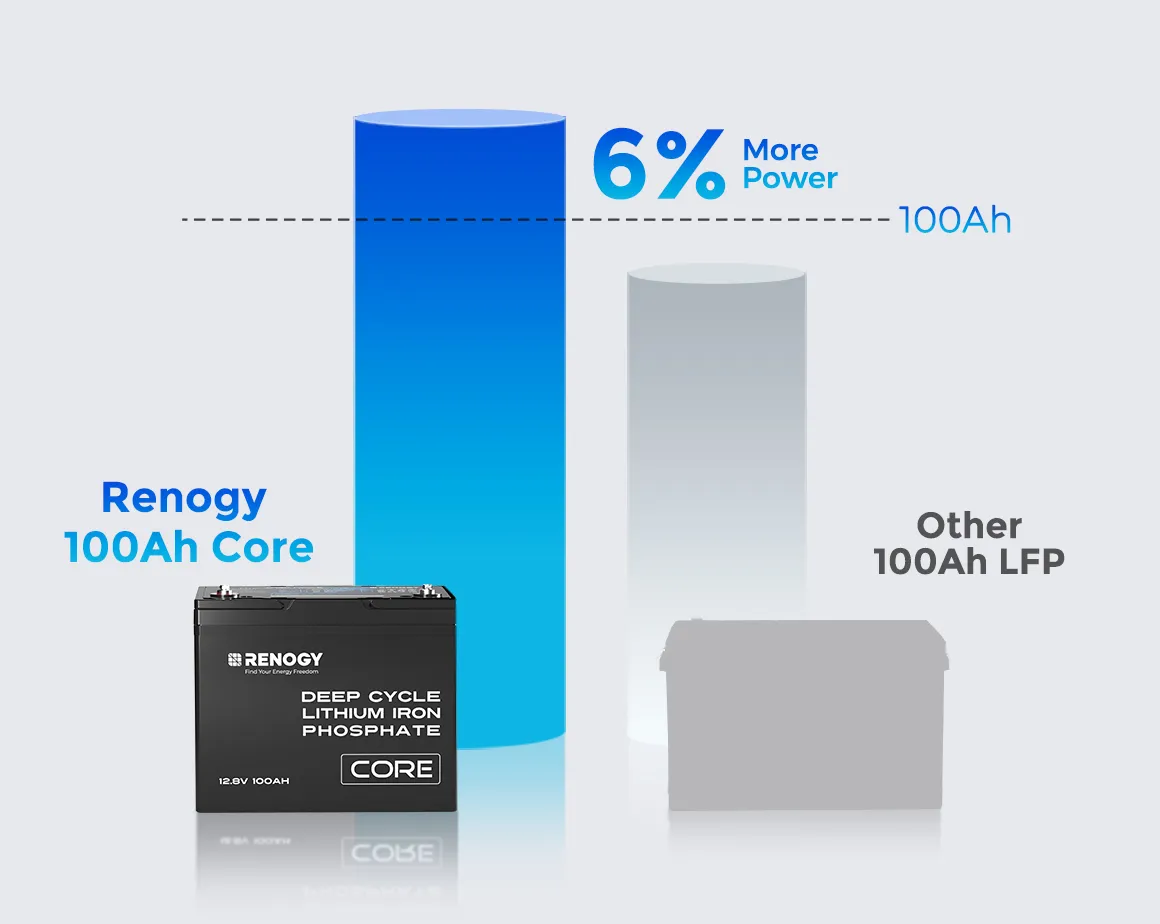

• Delivers up to 6% more power than rated capacity for optimized performance.
• Provides 300A for 10 seconds, starting heavy loads efficiently.
• Supports series, parallel, or both connections for flexibility.
• Equipped with a 100A BMS and low-temp cut-off for superior safety.
• Includes a 5-year warranty and 24-hour support for peace of mind.

Package Includes:

• 1x Core-12V 100Ah Lithium Iron Phosphate Battery
• 2x Long Terminal Bolts M8 x 1.25 x 20 mm
• 2x Insulating Sleeve
• 1x User Manual

Specifications:

• Battery Type: Lithium Iron Phosphate
• Rated Capacity: 100Ah
• Norminal Voltage: 12.8V
• Cycle Life (0.5C/1C, 25℃): 5000 Cycles (80% DOD, 80% EOL)
• Charge Voltage: 14.4V
• Maximum Charge Current: 100A
• Maximum Discharge Current: 100A
• Charge Temperature Range: 0°C to 55°C / 32°F to 131°F
• Discharge Temperature Range: -20°C to 60°C / -4°F to 140°F

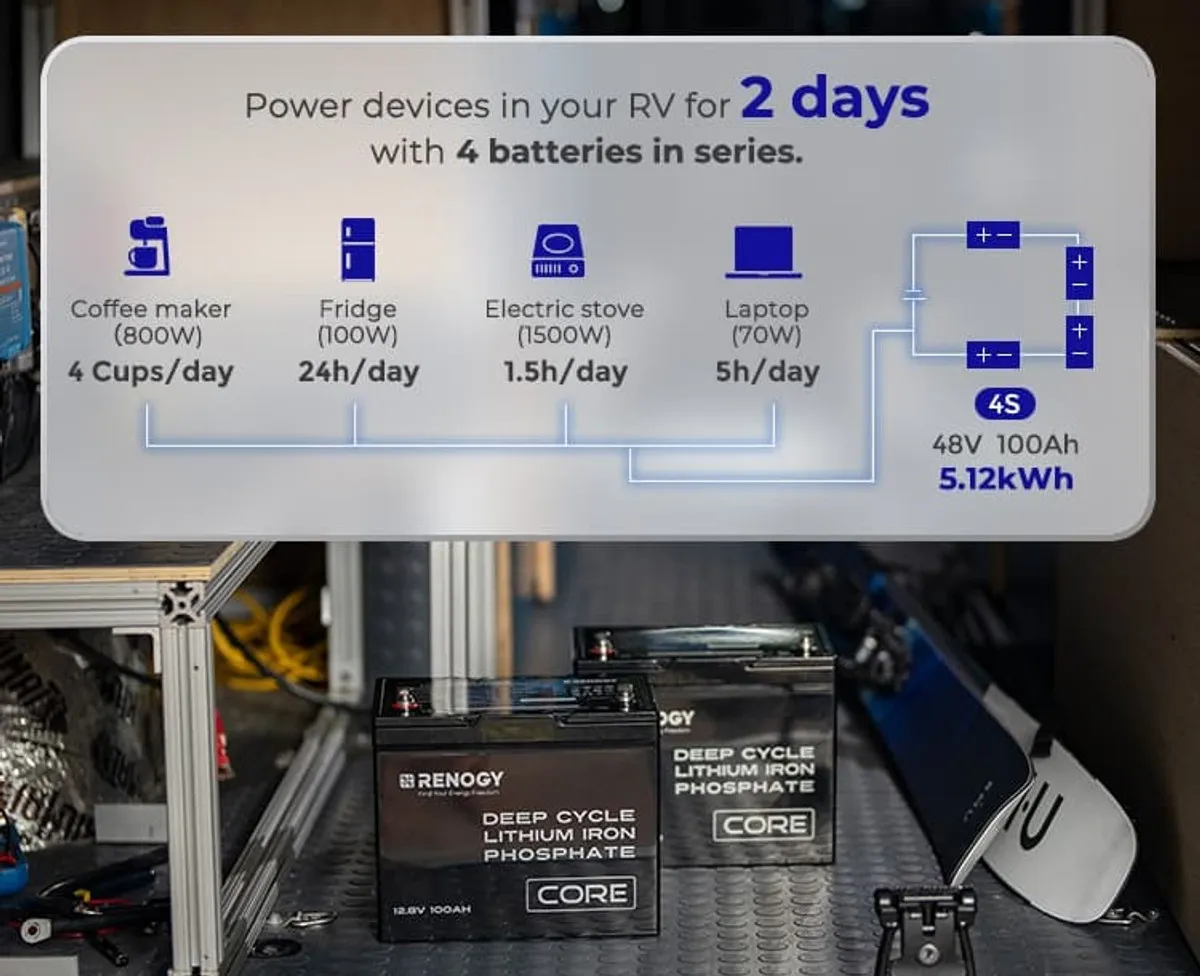

• Connection Method: Series (Up to 4); Parallel (Up to 8); Series & Parallel (4P4S)
• Communication Protocol: N/A
• Recommended Terminal Torque: 10 N·m
• Protection Rating: IP65
• Housing Material: ABS
• Terminal Bolt Size: M8

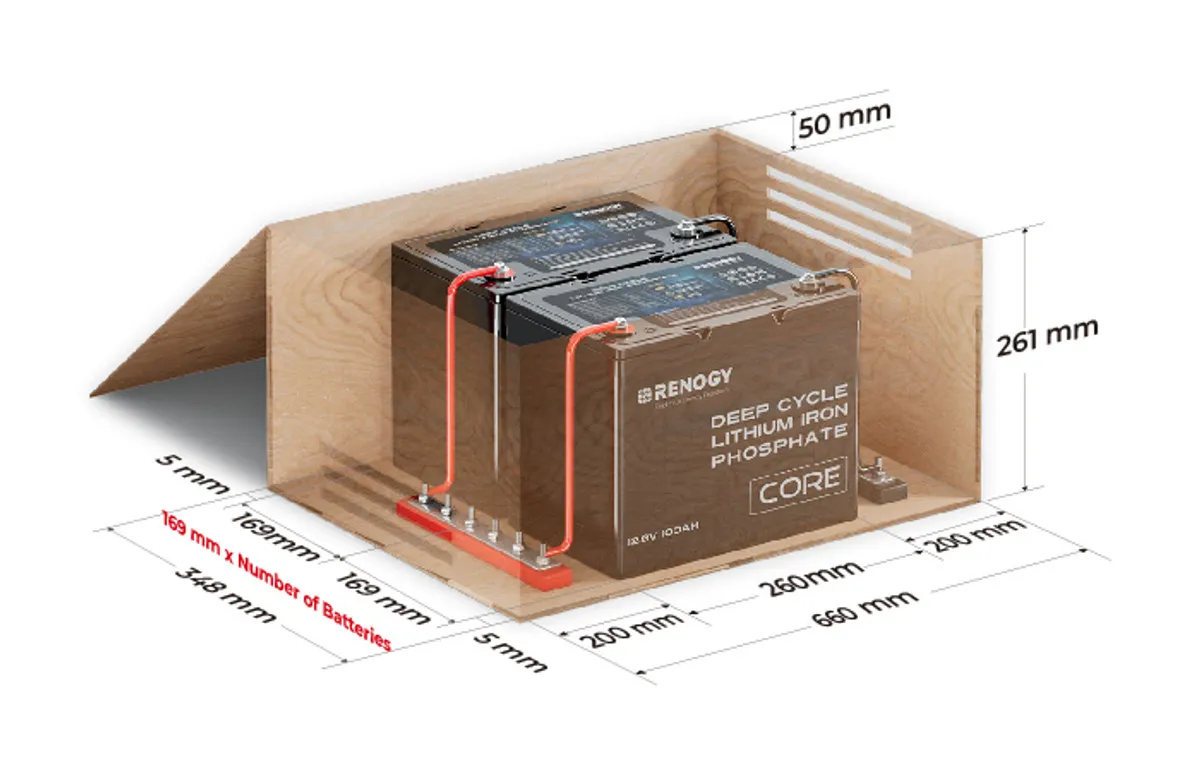

• Dimensions: 260 x 169 x 211 mm / 10.24 x 6.65 x 8.31 inch
• Weight: 10.5 kg / 23.15 lbs

Warranty:

• 5 Years Material and Workmanship

Certifications:

• MSDS, UN38.3, FCC , PSE, CE, UKCA, IEC62619: YES
