Renogy IP67 50A DC-DC Battery Charger with Inbuilt MPPT

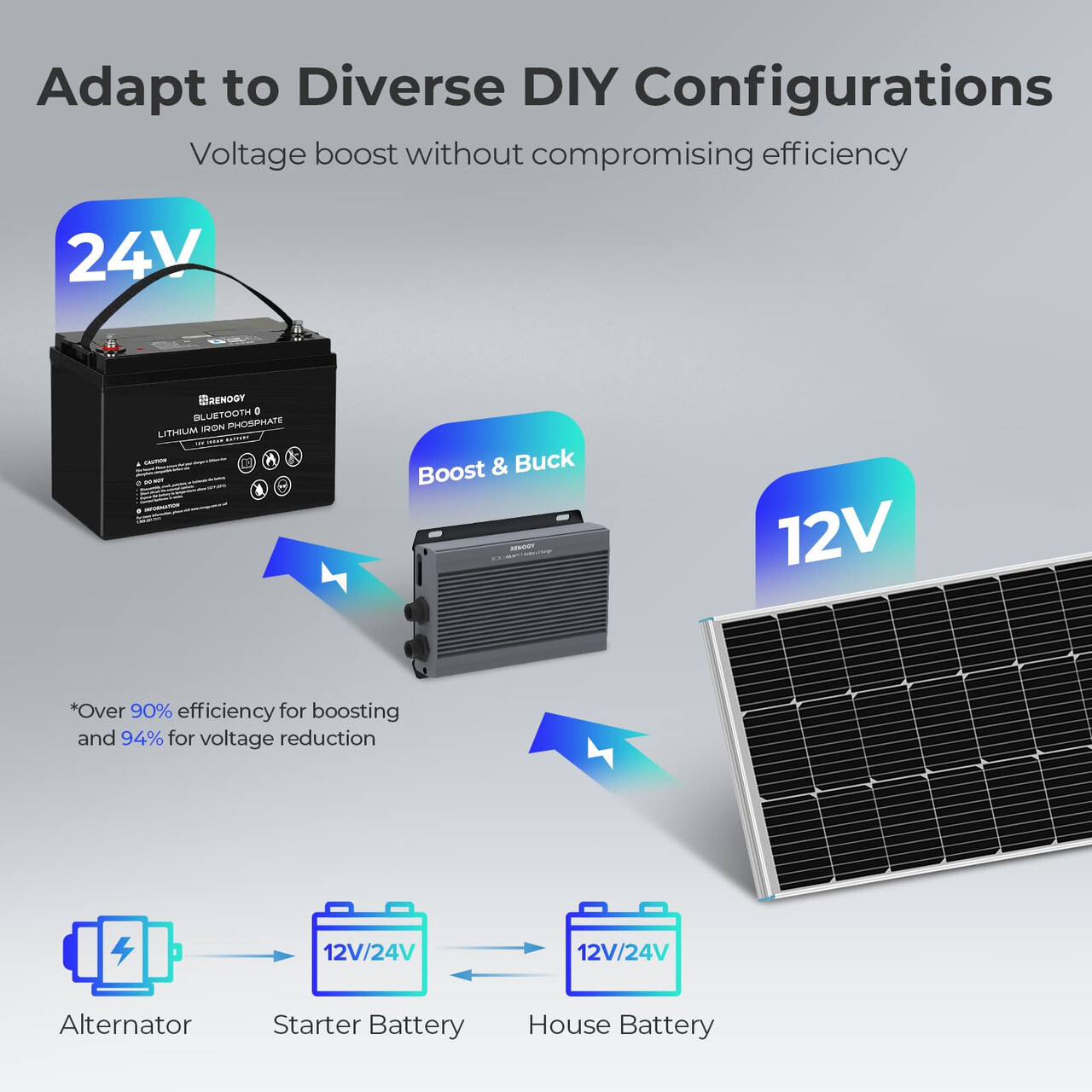

Adapt to Divers DIY Configuration

The device utilizes 'boost and buck' logic for efficient voltage management, allowing 12V solar panels or generators to power a 24V system. Conversely, when connected to 24V solar panels or generators, it seamlessly switches to 'buck' logic, automatically reducing the voltage to charge a 12V house battery.

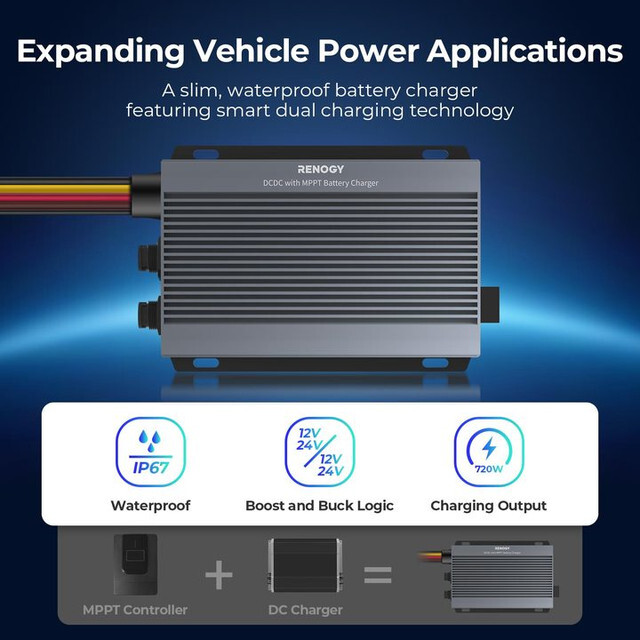

Extremely Compact and Durable

Crafted from high-quality sheet metal, this charger features IP67 waterproof and withstands temperatures up to 600°C. It offers adaptable installation in tight spaces, giving you the ultimate off-grid energy freedom without compromising comfort.

Charging Mode Auto-Switching

Featuring dual charging options, this charger utilizes the alternator-linked starter battery and solar panels simultaneously, reducing charging time with 99% MPPT tracking efficiency. During travels, it maximizes solar charging in ample sunlight and seamlessly switches to alternator charging in unfavorable sunlight conditions.

Smart Living Unleashed

Equipped with built-in Bluetooth, this charger enables remote control via smartphones or other smart devices to monitor battery levels, adjust charging settings, and initiate remote starts. Additionally, it supports wired CAN communication, allowing connectivity with computer-based CAN monitoring tools for data transfer and sharing.

Specs:

• System Voltage: 12V/24V - 12V/24V
• Solar Input Voltage: 50 VDC
• Output Voltage: 9-32 VDC
• Alternator Input: 9-32 VDC
• Maximum Output Current Rating: 50A
• Output Power: 720W
• Battery Types: AGM/SLD , GEL ,FLD ,LI,USER
• Input Fuse Rating: 75A-100A
• Output Fuse Rating: 75A-100A
• Charging Efficiency: 0.94
• Temperature Compensation: -3mV / ℃ / 2V (Non-Lithium);0mV / ℃ / 2V; no compensation (Lithium)
• Idle Power Consumption: ＜100mA
• Terminal Range: 8AWG-4AWG
• Communication Protocol: Modbus ; RV-C
• Operating Temperature Range: '-31℉ to 176℉/-35℃ to 80℃
• Storage Temperature Range: -40℉ to 176℉/-40℃ to 80℃
• Humidity: 0%-95%, No Condensation
• Maximum Operating Altitude: 3500m
• Enclosure Rating: IP67
• Dimensions: 7.01 x 4.78 x 1.47 in/178.2 x 121.5 x 37.5mm
• Weight: 4.10 lb / 1.86 kg
• Certification: CE;RoHS;FCC Part 15 class B
• Warranty: 3-year material warranty
• Protection: Reverse Polarity Protection/Overvoltage Protection/Over Discharge Protection/Overcurrent Protection/Over Temperature Protection/Overcurrent Protection

GENERAL DATA

• Model: RBC2125DS
• Terminal Range: 8AWG-4AWG
• Communication Protocol: -40℉ to 176℉/-40℃ to 80℃
• Humidity: Modbus ; RV-C
• Operating Temperature Range: -31℉ to 176℉/-35℃ to 80℃
• Storage Temperature Range: -40℉ to 176℉/-40℃ to 80℃
• Dimensions: 7.01 x 4.78 x 1.47 in/178.2 x 121.5 x 37.5mm
• Weight: 4.10 lb / 1.86 kg
• Certification: CE;RoHS;FCC Part 15 class B
• Warranty: 3-year material warranty
• Protection: Reverse Polarity Protection/Overvoltage Protection/Over Discharge Protection/Overcurrent Protection/Over Temperature Protection/Overcurrent Protection
