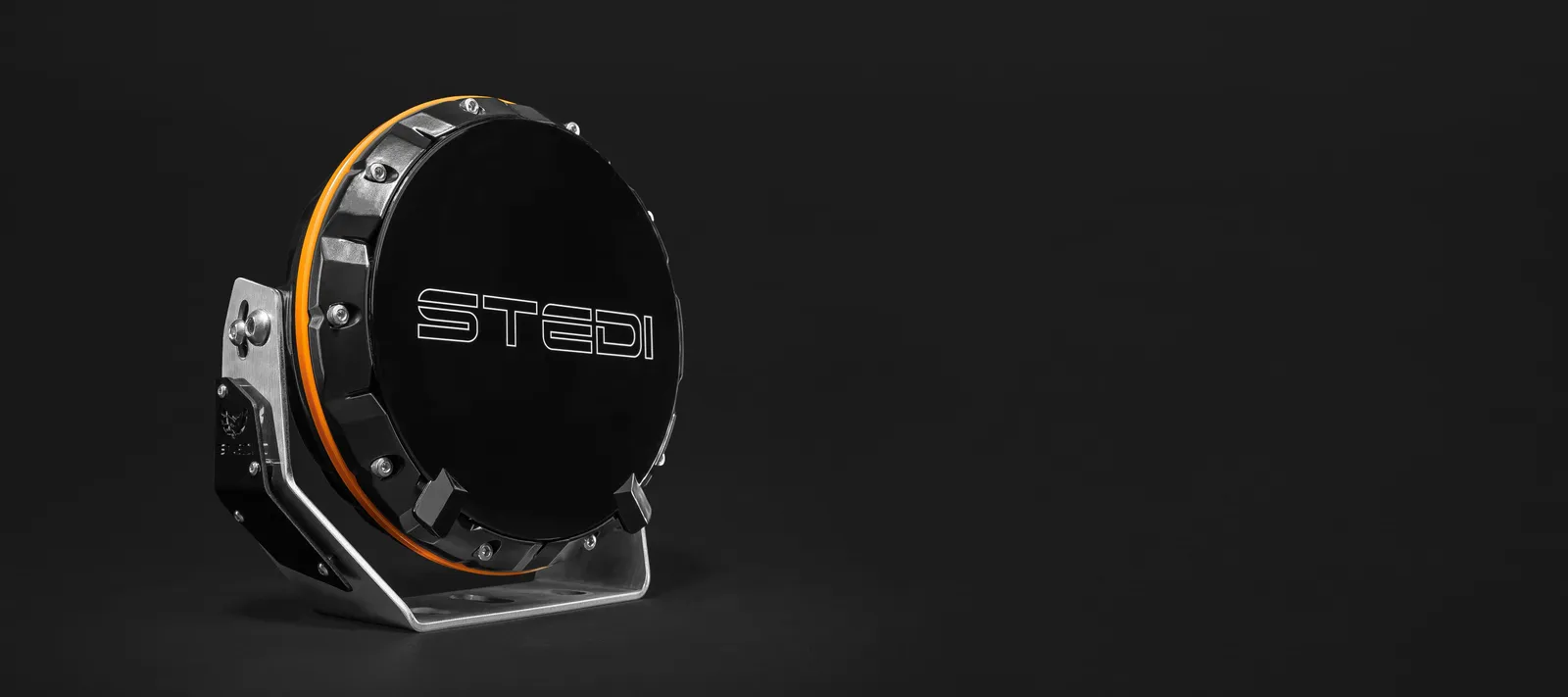

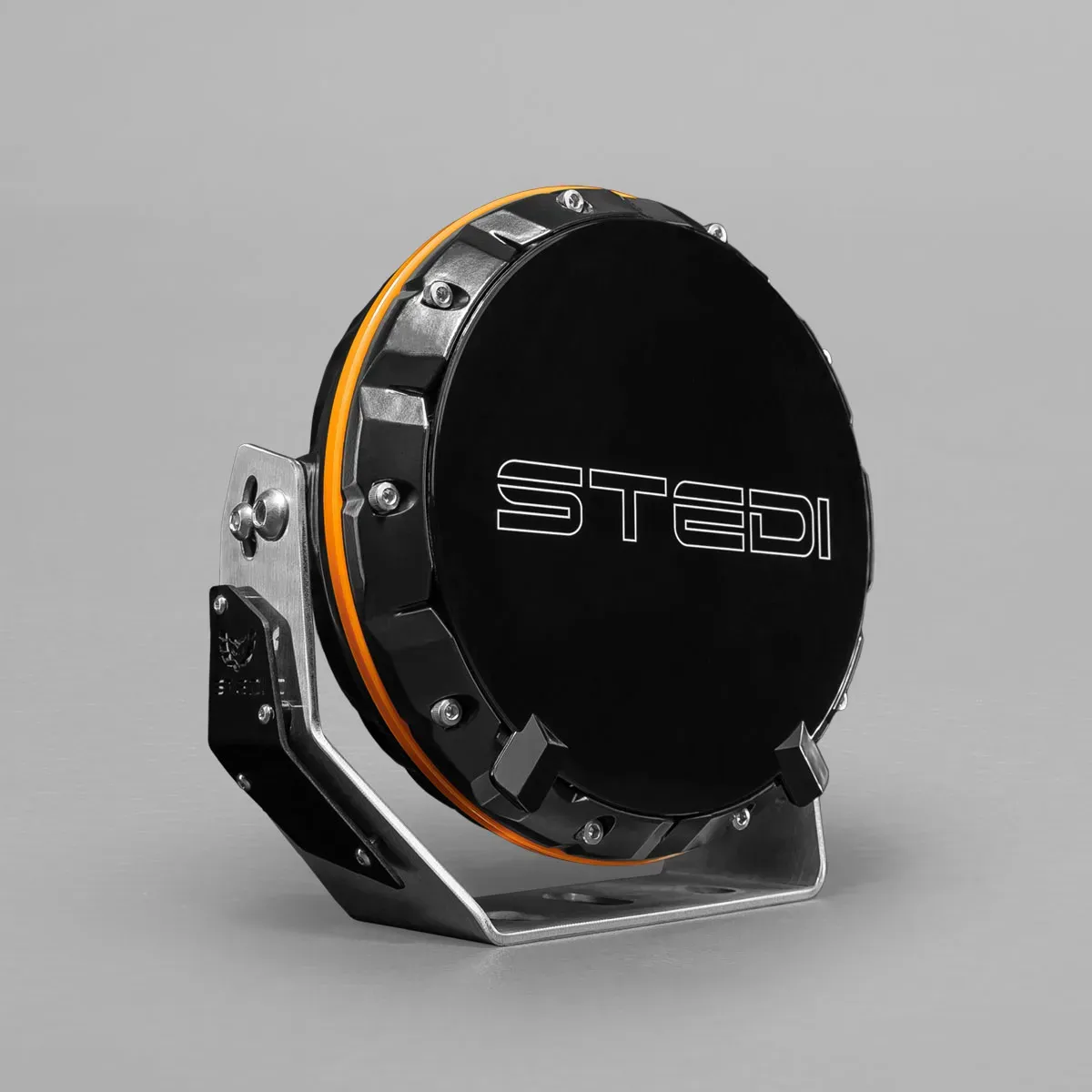

Single (1x light) 7" Type-X Sport
HIGH PERFORMANCE - ACCESSIBLE PRICE

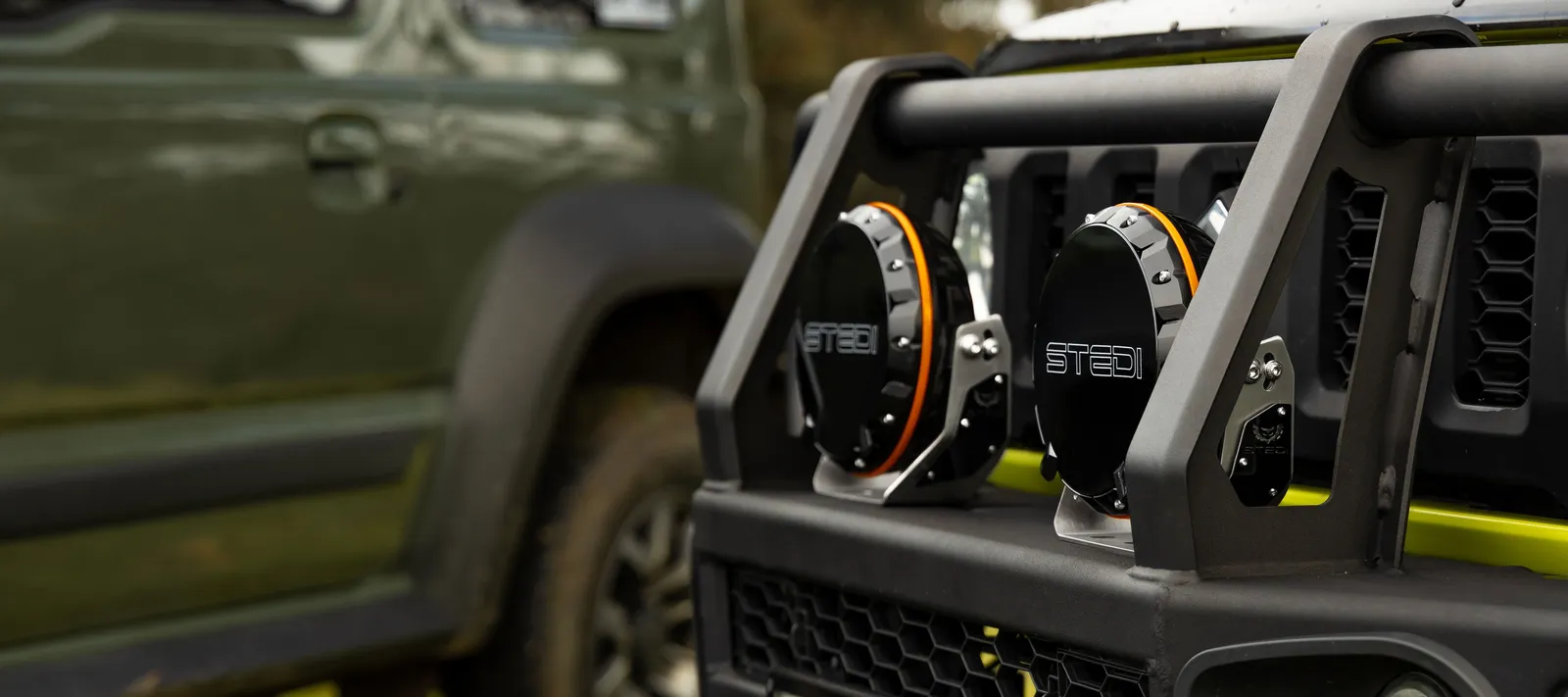

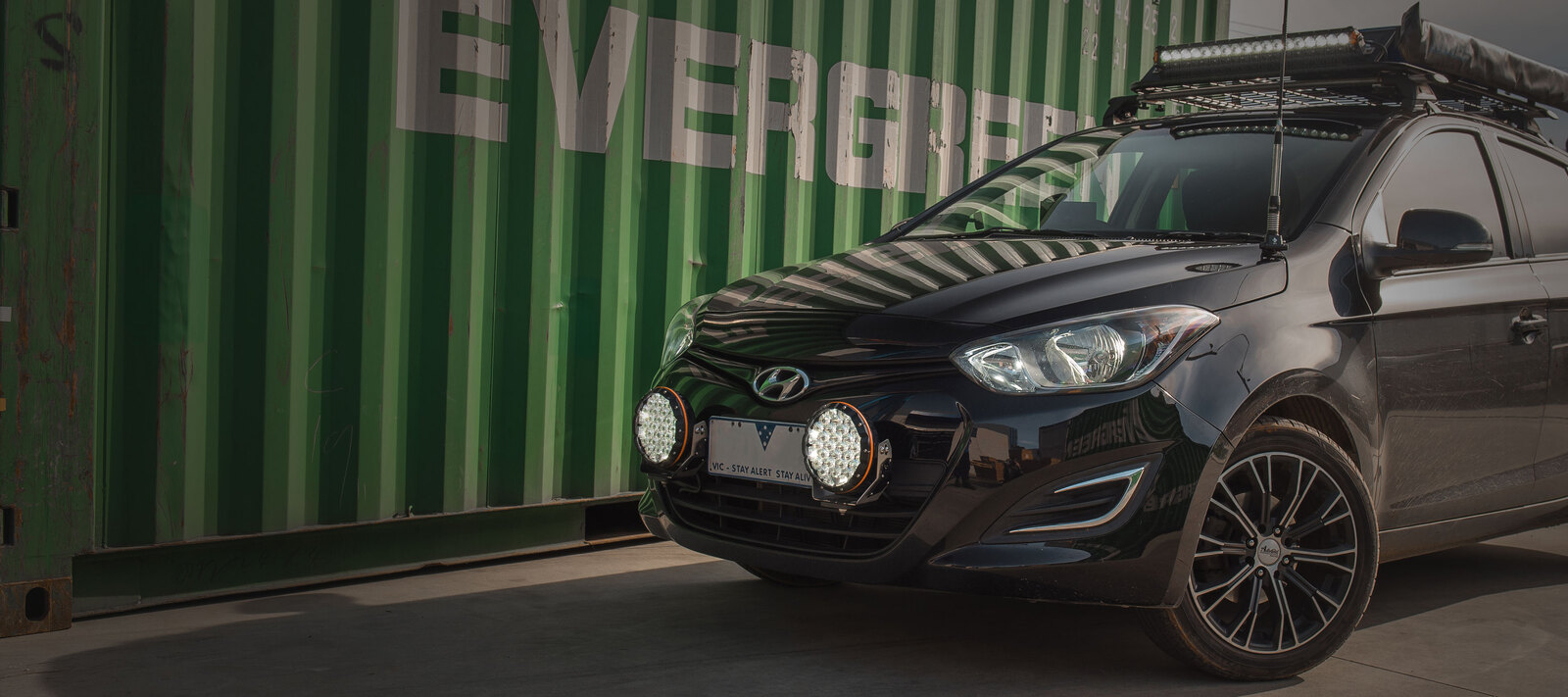

The 7" Type-X Sport is our most affordable driving light yet, with the inherently STEDI ability to deliver a high-performance and high-quality driving illuminance. The individual light offers our customers the ease of the popular option of mounting 3, or even 5 7" Type-X Sport onto your vehicle. If you're after that sought after triple-threat setup, then the 7" Type-X Sport is the solution that remains untouched.
HIGH PERFORMANCE - ACCESSIBLE PRICE
The 7" Type-X Sport is our most affordable driving light yet, with the inherently STEDI ability to deliver a high-performance and high-quality driving illuminance. The individual light offers our customers the ease of the popular option of mounting 3, or even 5 7" Type-X Sport onto your vehicle. If you're after that sought after triple-threat setup, then the 7" Type-X Sport is the solution that remains untouched.
STEDI DESIGN LANGUAGE

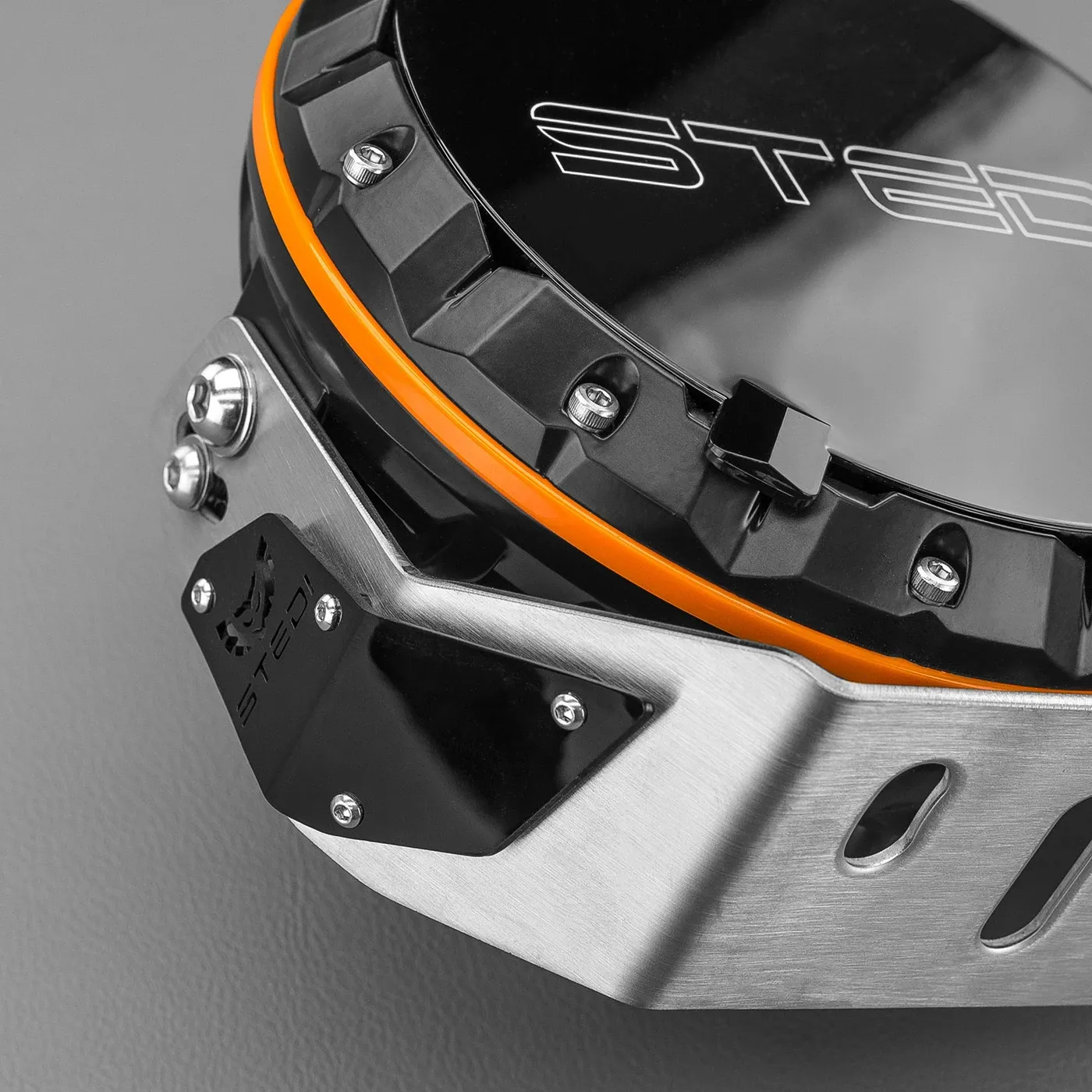

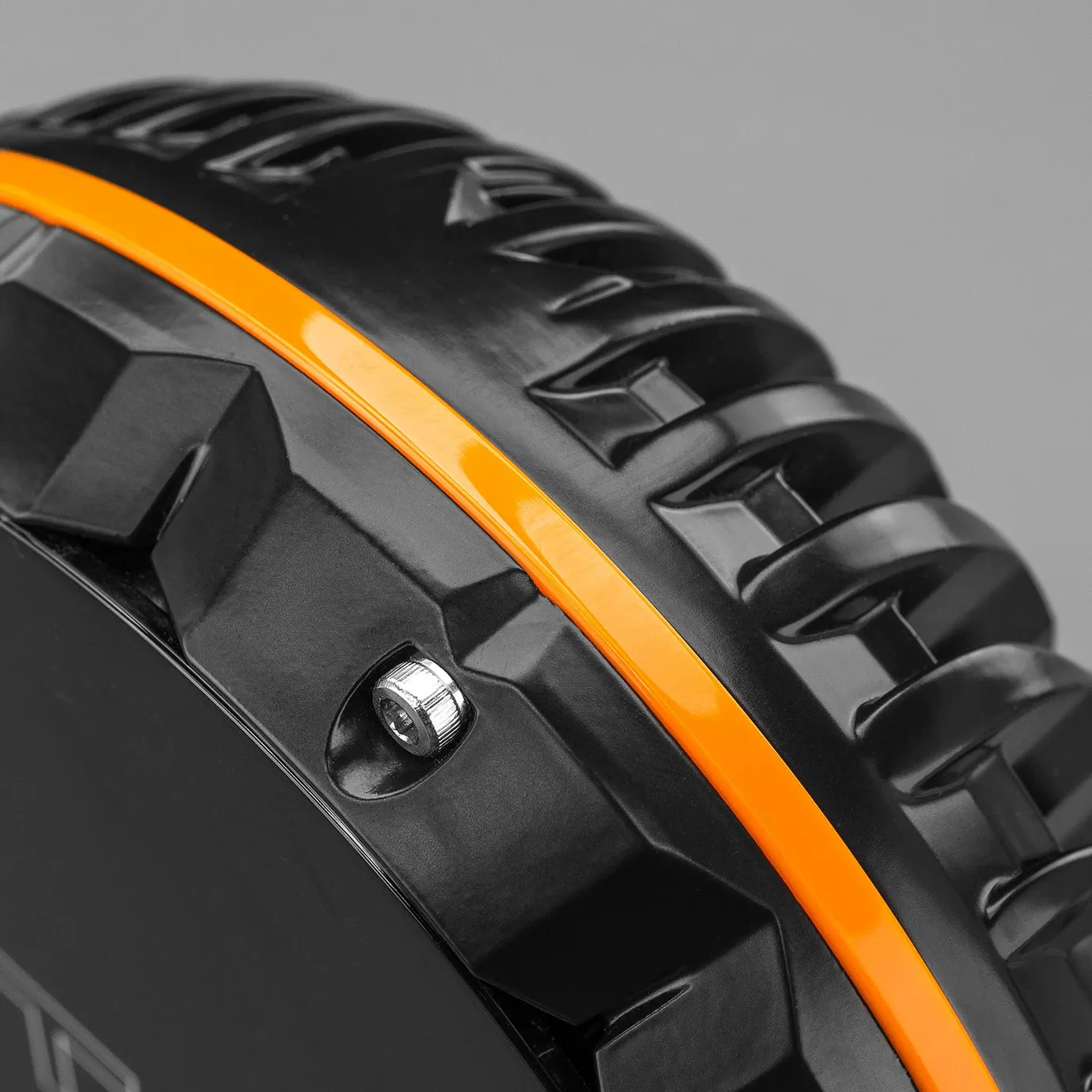

Some people call it the little things. For us, it is literally everything. We obsess over even the most trivial geometries and design elements to achieve a visually stunning luminaire. The 4mm 304 Stainless steel bracket features our signature shoulder armor with laser-cut STEDI branding. A carefully considered orange rim surrounding the housing offers just the right amount of visual impact while ensuring that the overall look and feel plays nice equally on a Sandy Taupe Landcruiser as it will on Magnetic Grey Ranger.
The Nitty Gritty.
THE NERDY DETAILS

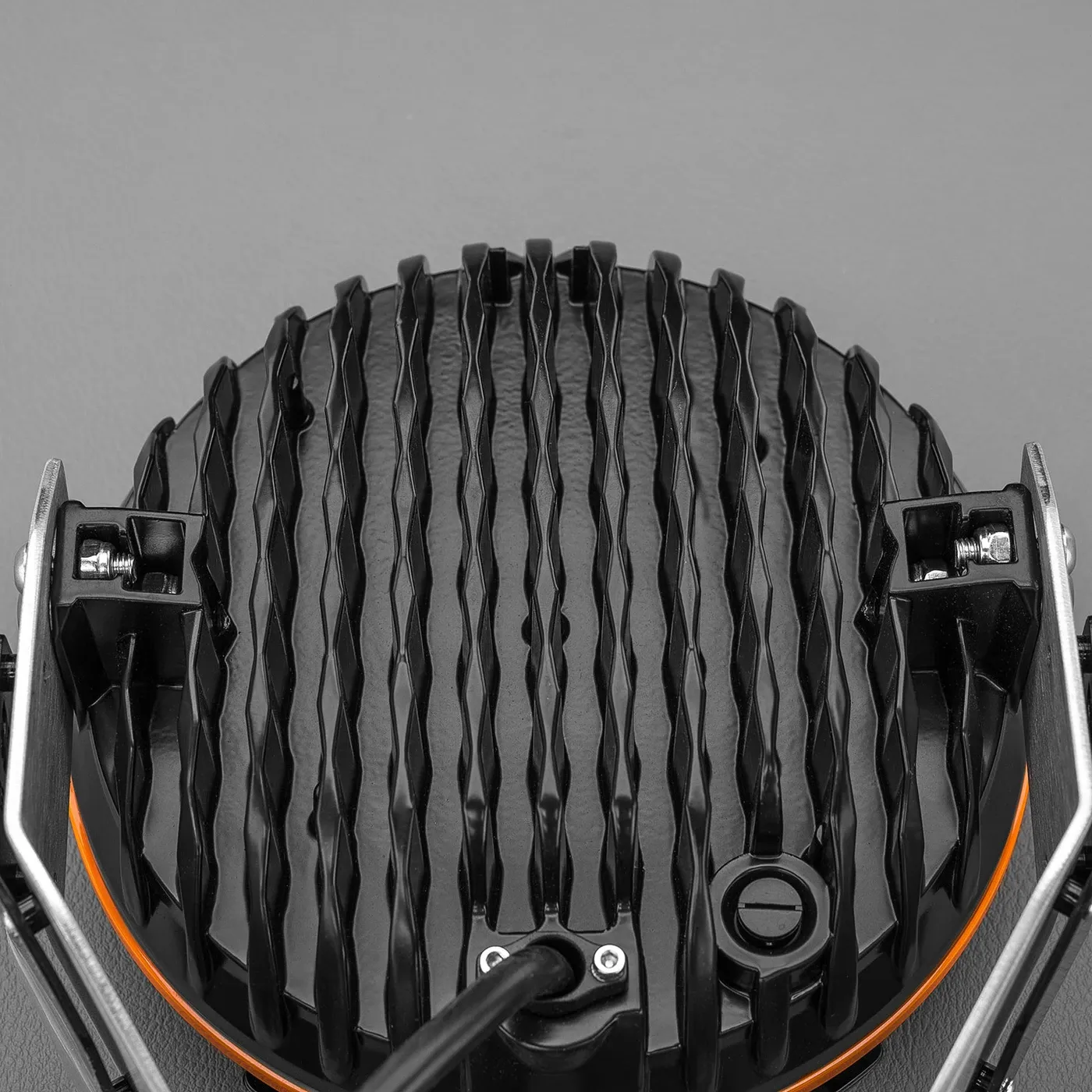

- 4mm thick 304 Series Stainless Mounting bracket, which includes rubber dampener and an additional 3mm upper plate.
- A360.0 Cast Housing | Boasting superior strength and corrosion resistance.
- 3mm Thick GE Lexan Lens with hard coating | Virtually unbreakable & scratch resistant
- 100% Polyester UV and abrasion resistant powder coat
- IP68 | Dust & Particle tight + Water-proof up to 3 meters
- Nitto Denko Pressure Equalization vent with membrane | Protects against water ingress, dust & contaminants.
- EMI & RFI Suppression circuitry ? We guarantee it.

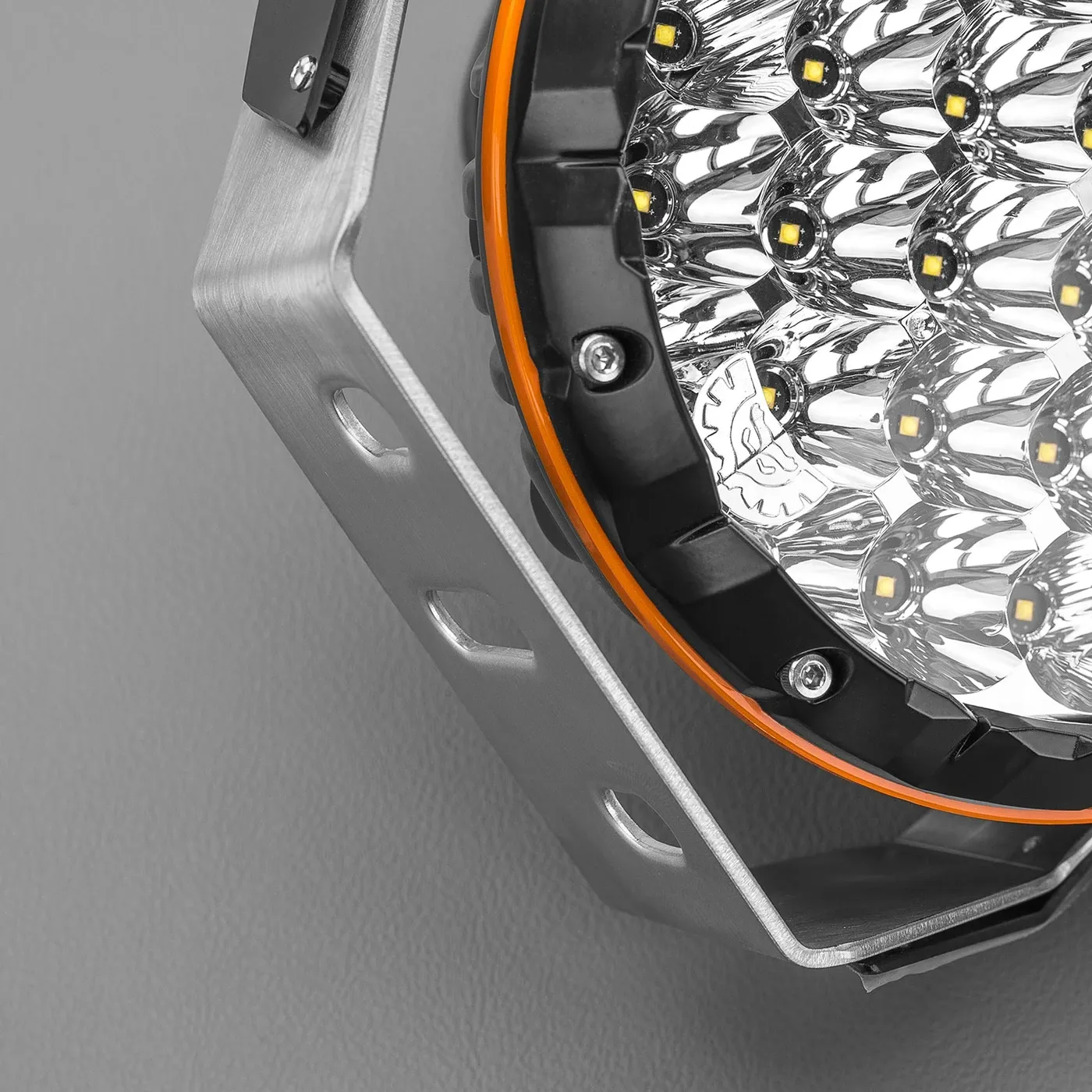

- Each 7" TYPE-X Sport comprises 32 of OSRAM?s finest OSLON LED, selected for its high luminous flux and perfectly matches optical properties.
- 4 wide-beam reflectors built-in, which form a lateral shaped flood pattern designed to minimize valuable light wasted up to the sky.
- 5700K CCT offers stunning clarity and definition with excellent Colour Rendering Index (CRI)
DOES NOT INCLUDE WIRING HARNESS

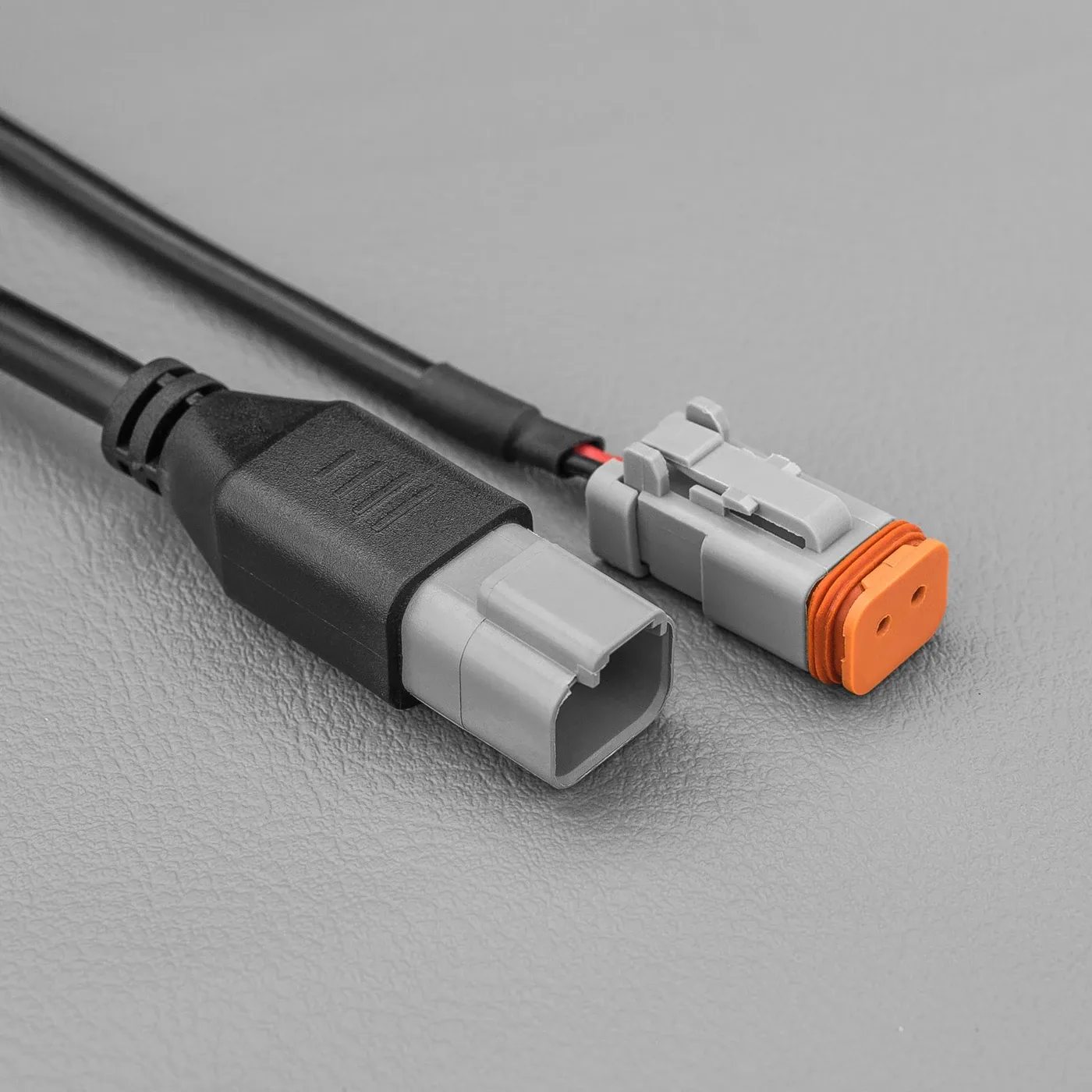

We recommend Single Connector Plug & Play High Beam Driving Light Wiring
Tech Specs
| LED | 32 x Osram Oslon SSL |
| RAW LUMENS | (Pair) |
| TESTED LUMENS | (Pair) |
| AMP DRAW | 6.4A @ 13.2v (each) |
| POWER DRAW | 85W (each) |
| CANDELA | cd |
| BEAM PATTERN | 4 x Spread 28 x Spot Beam |
| INGRESS PROTECTION | IP68 | Submersible up to 3m |
| COLOUR TEMP (CCT) | 5700K |
| VOLTAGE COMPATIBILITY | 12v & 24v |
| LUMEN MAINTENANCE | 50,000 LM-80 |
| WEIGHT | kg (each) |

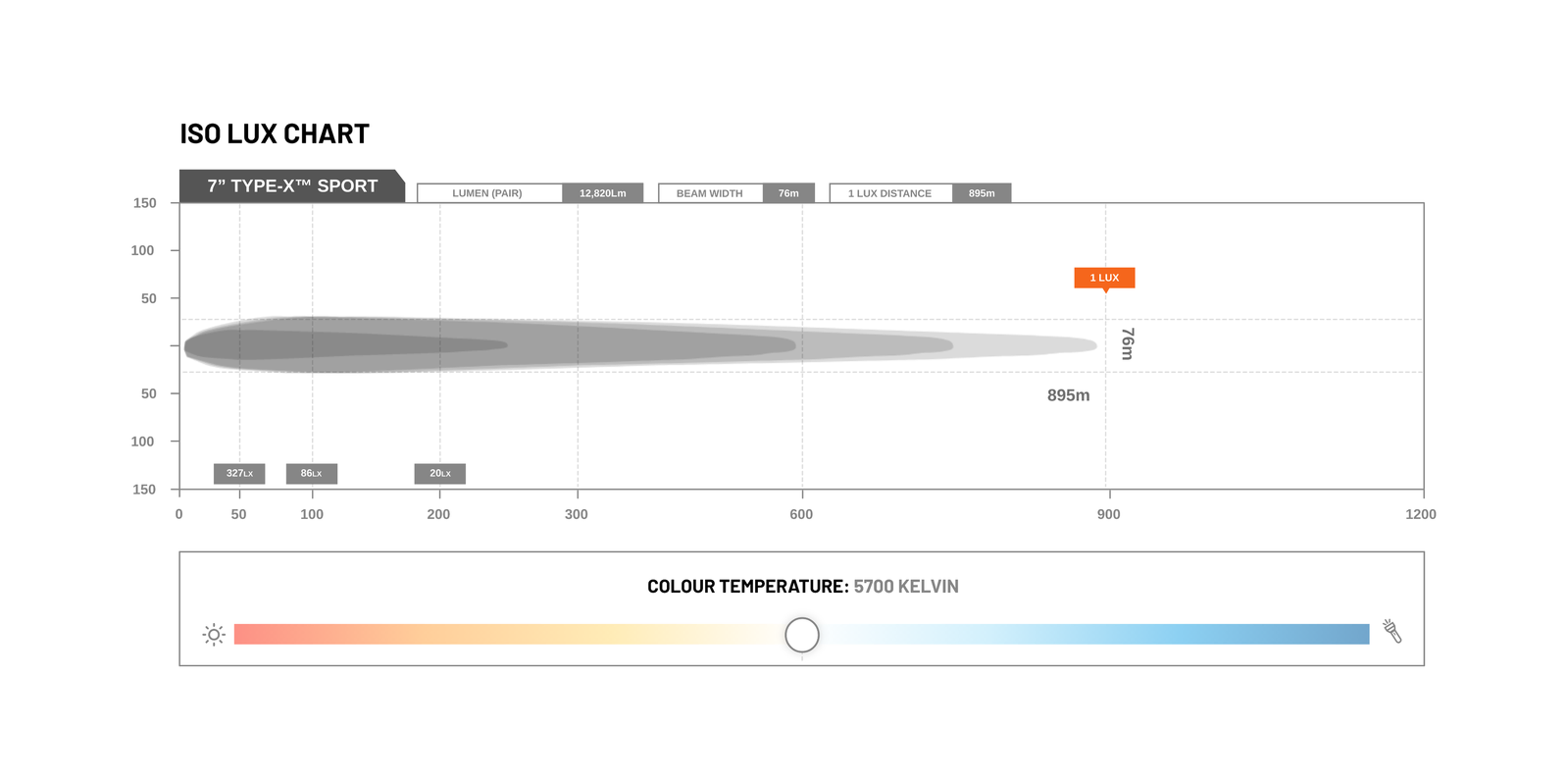

| PHOTOMETRIC DATA | |
| 10 m | Lx |
| 50 m | Lx |
| 200 m | Lx |
| 300 m | Lx |
| 400 m | Lx |
| 1,000 m | Lx |
| 1,050 m | Lx |
(SNGL-X1-SPORT-7INCH)
| SKU | SNGL-X1-SPORT-7INCH |
| Barcode # | 935357000-1512-C |
| Brand | Stedi |
