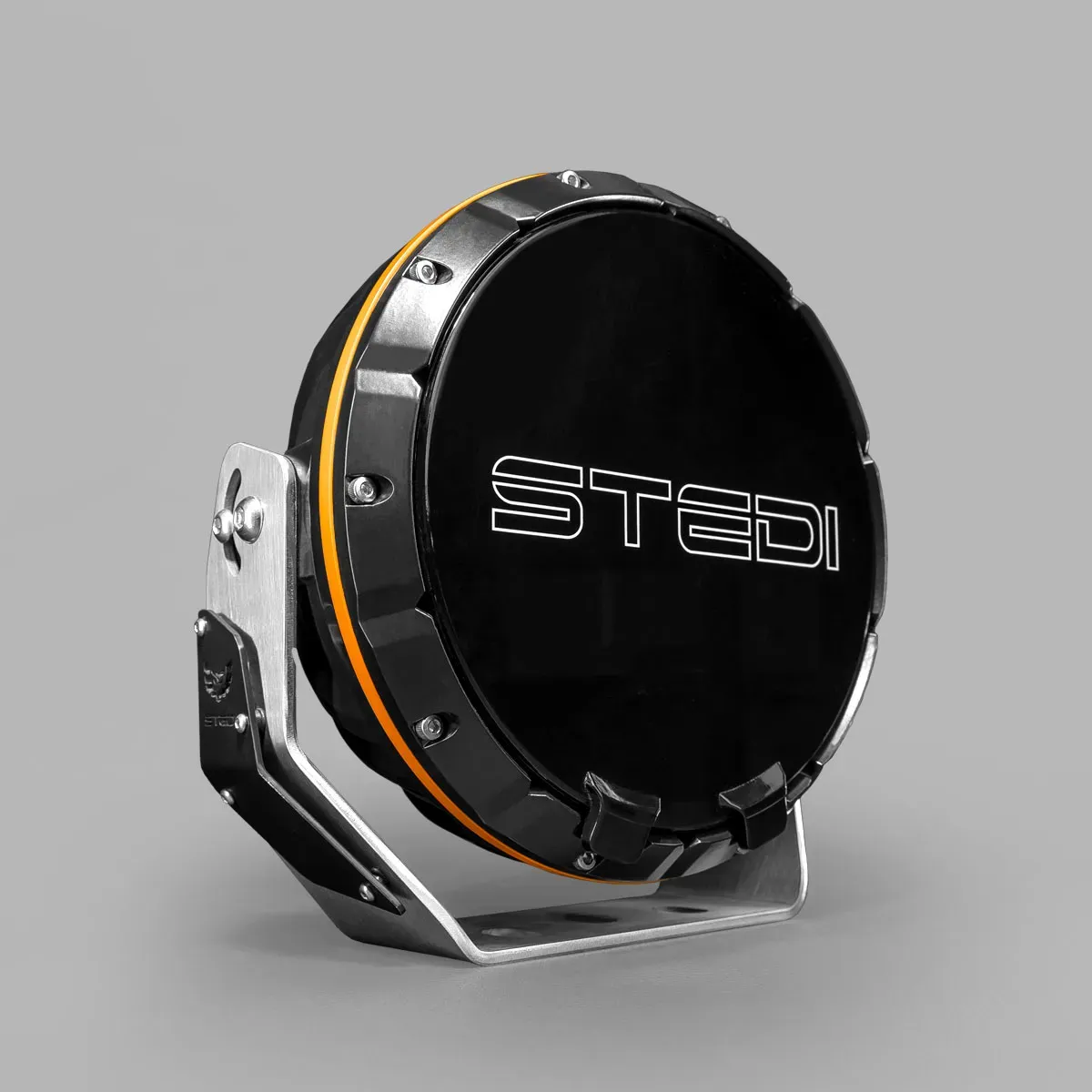

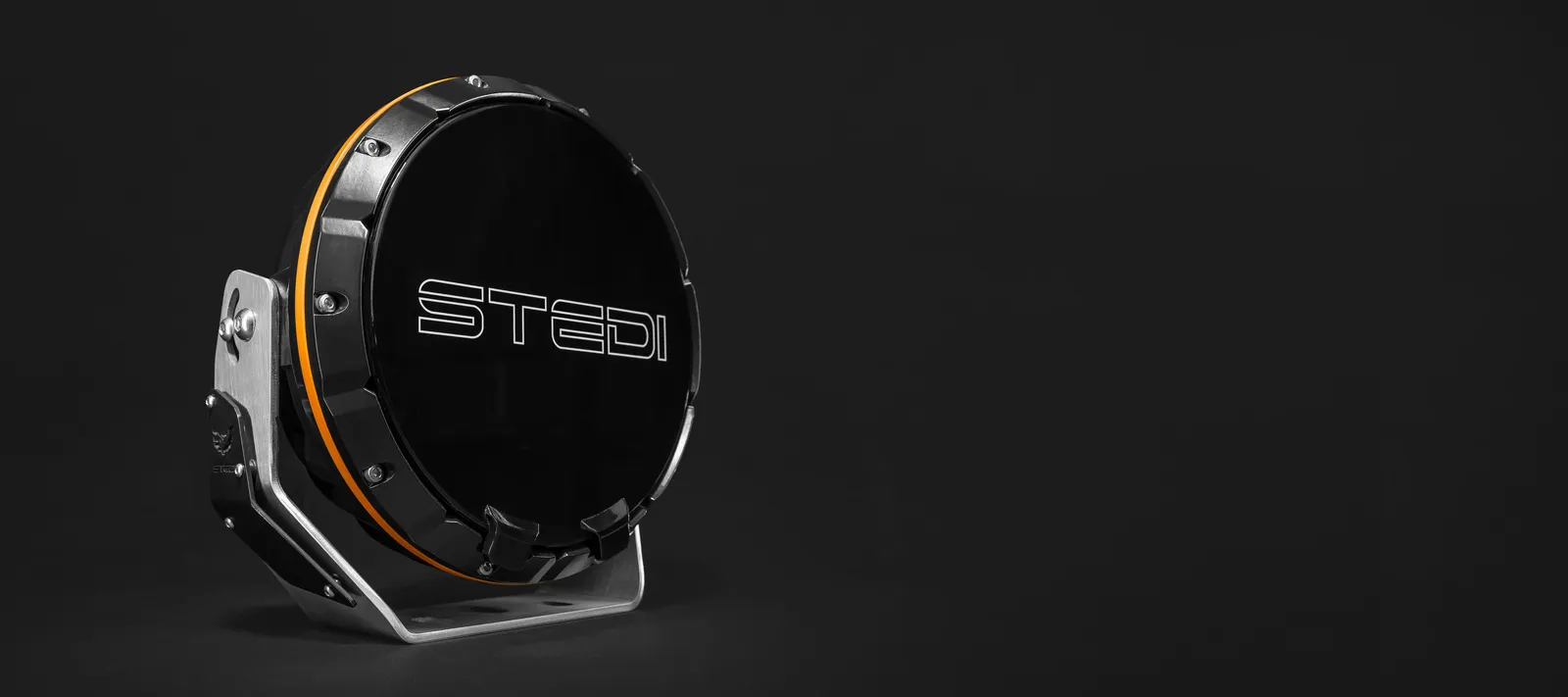

Single (1x light) 8.5" Type-X Sport
HIGH PERFORMANCE - ACCESSIBLE PRICE
We welcome the all-new Type-X Sport; our most affordable driving light yet. The goal of STEDI is to offer high-performance, high-quality driving lights at accessible prices. Compare the build quality, performance, and list of inclusions with other offerings on the market and you will conclude that our Type-X Sport is peerless.
LEGENDARY TYPE-X DNA

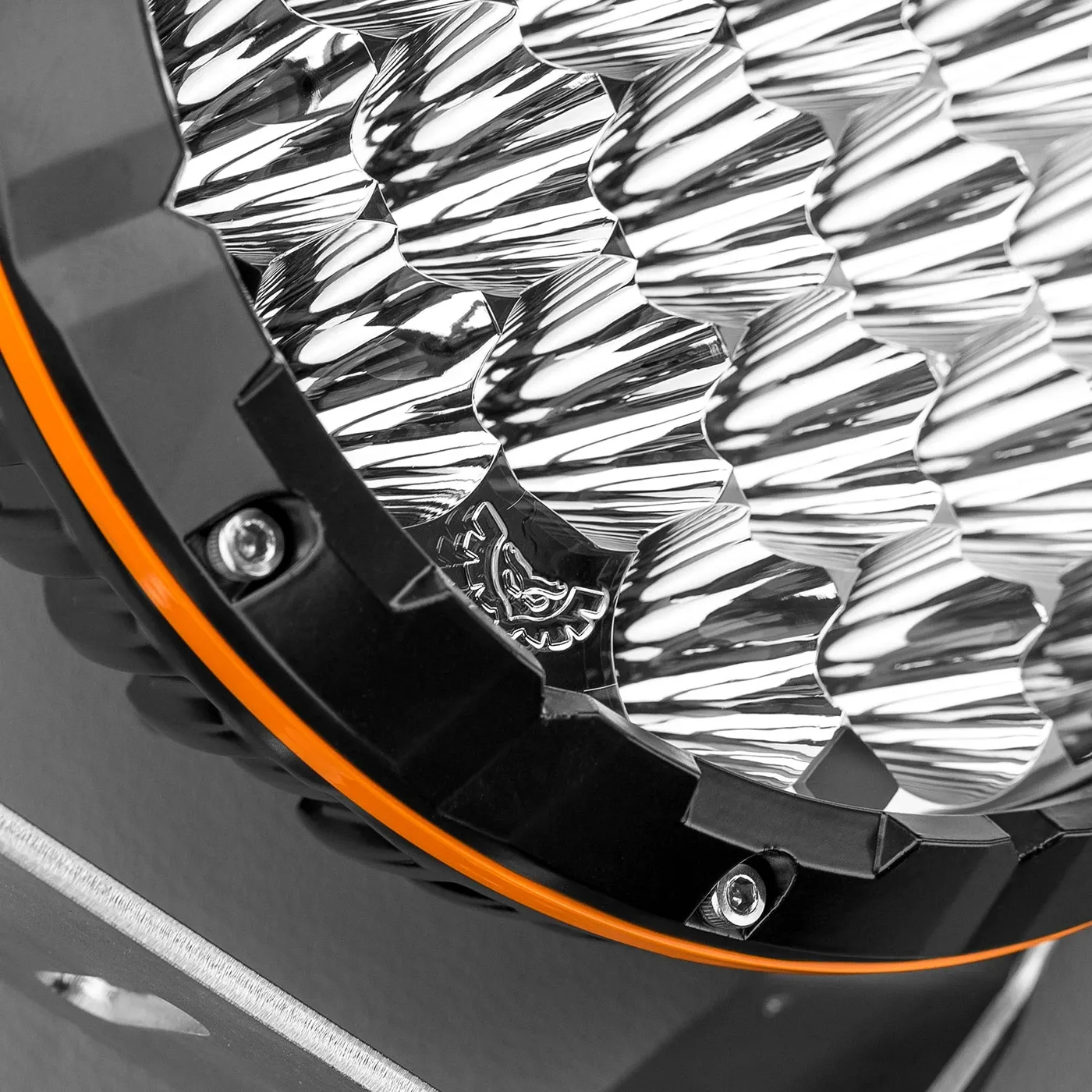

All-new reflector geometry, all-new LEDs, and all-new housing. We?ve increased the depth of the optics by 35% allowing for a perfectly collimated beam and the resultant increase in light intensity. The beam diameter strikes a sublime balance between width and throw and will send light right out to 1,050m. Four dedicated built-in wide-beam optics disperse light in the nearfield, and transition beautifully with the spot beam.
STEDI DESIGN LANGUAGE

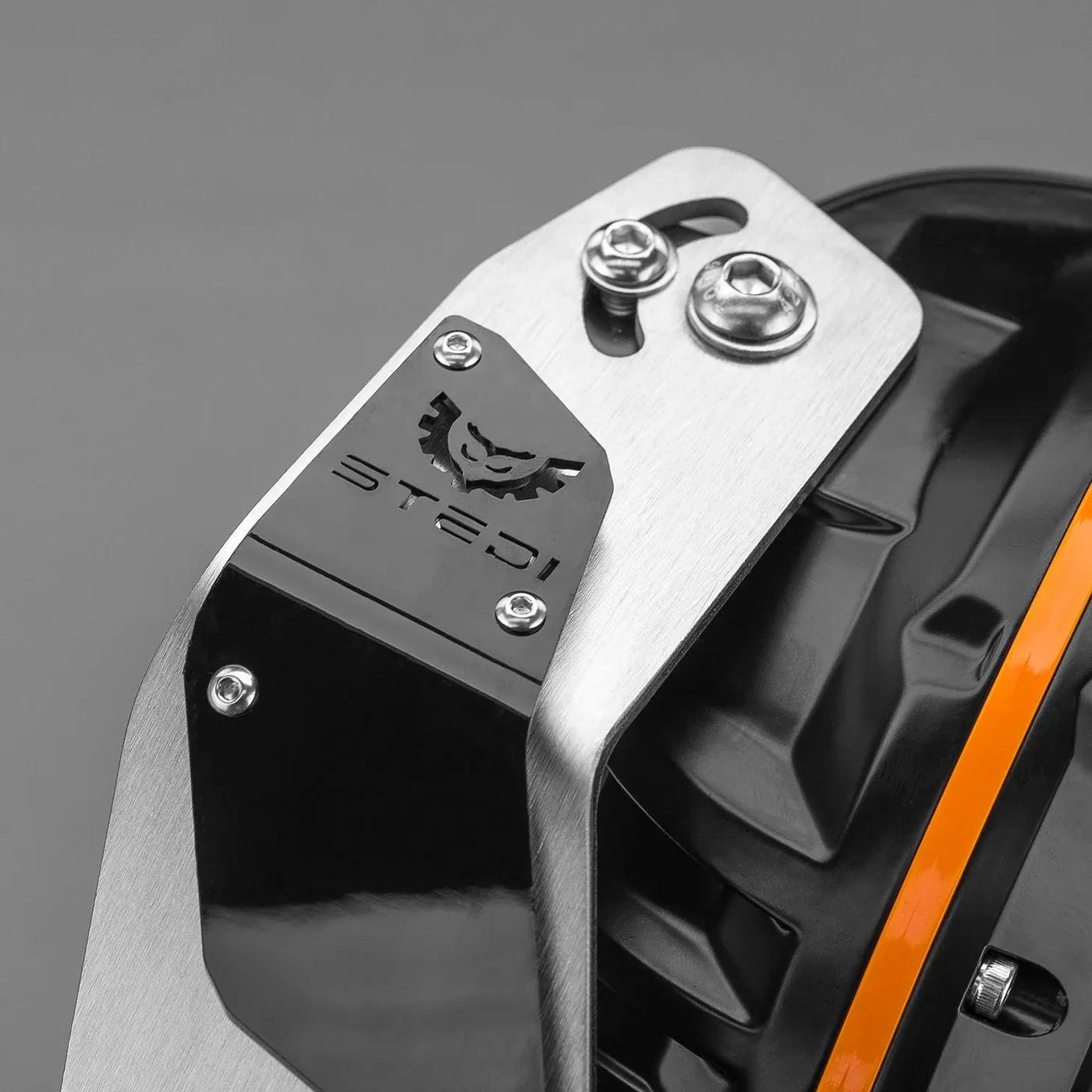

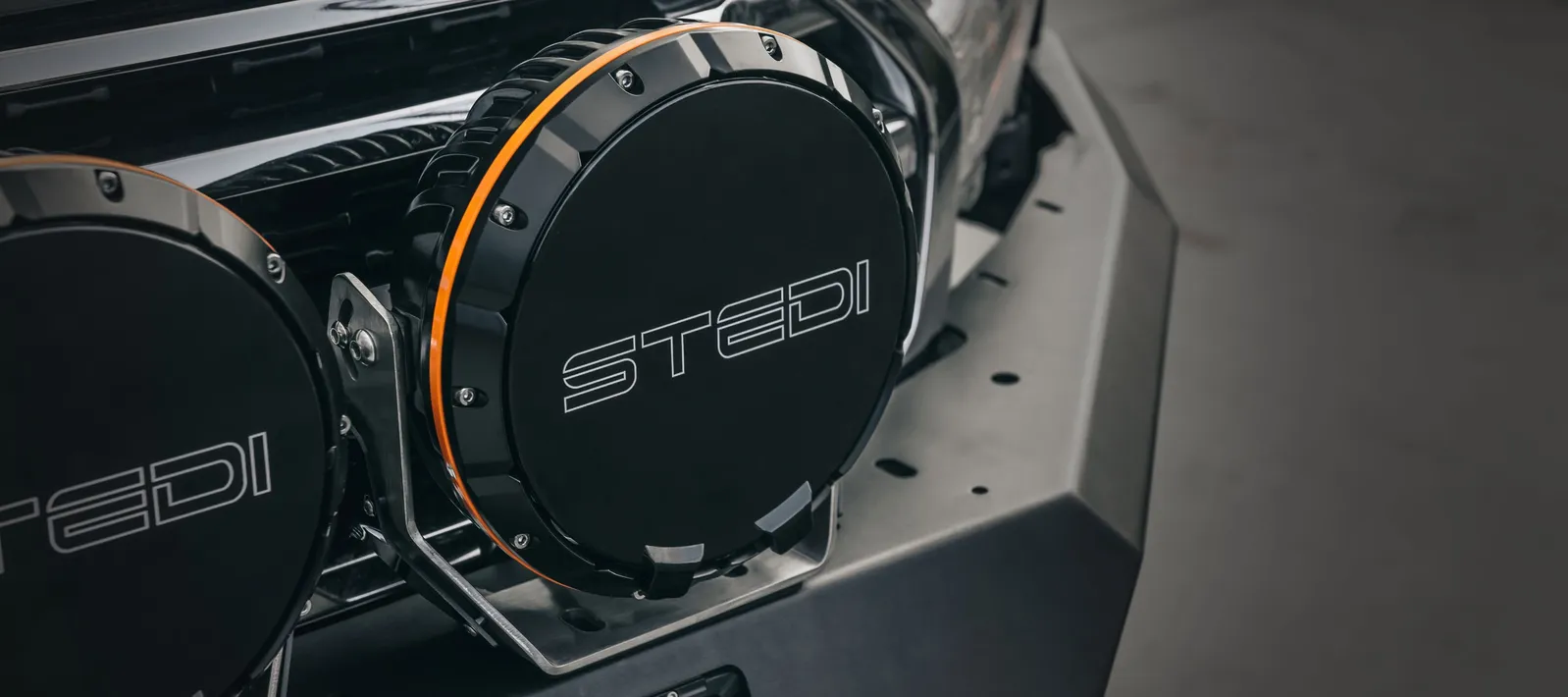

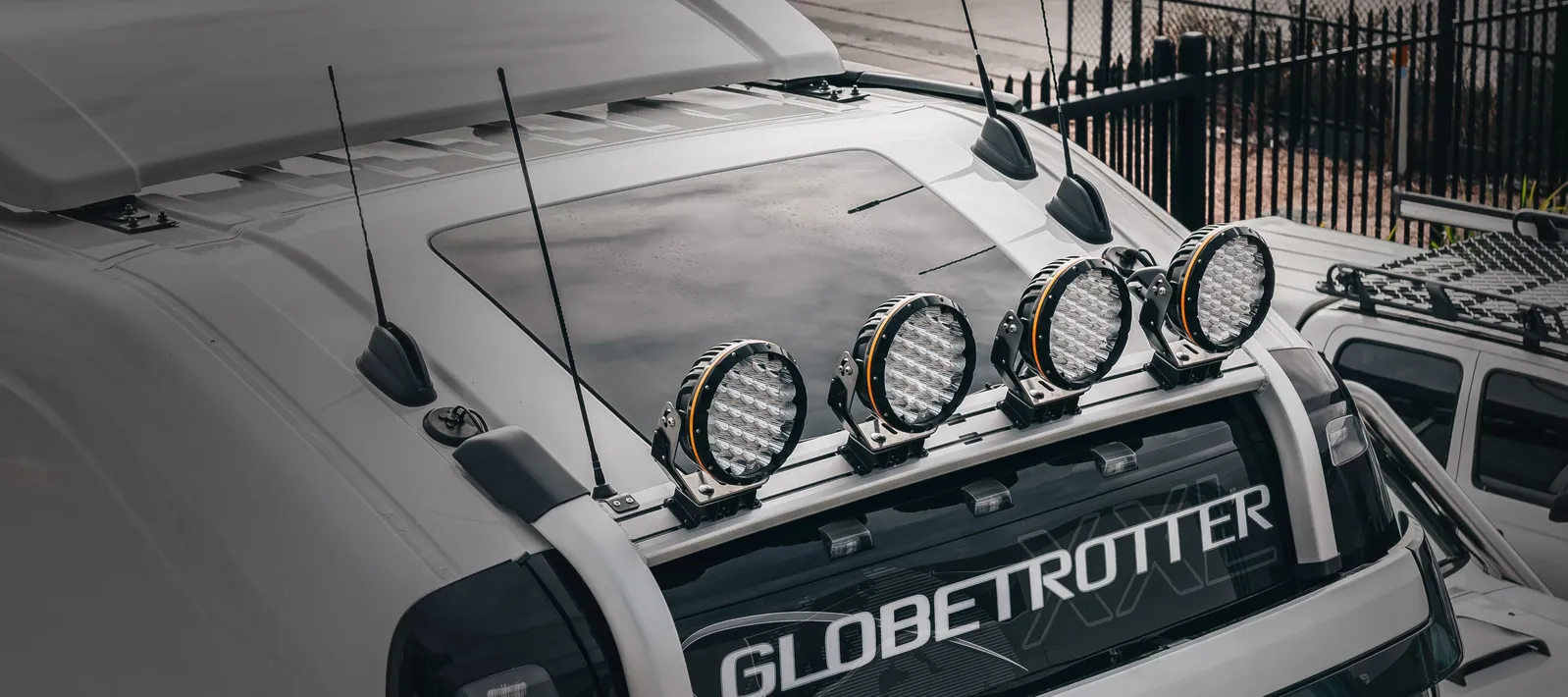

Some people call it the little things; for us, it is literally everything. We have obsessed over the most trivial geometries and design elements to achieve a visually stunning luminaire. The accompanying brackets (with the laser-cut STEDI branding) will allow the Type-X Sport to be mounted on a range of locations of your vehicle.
The Nitty Gritty.
THE NERDY DETAILS

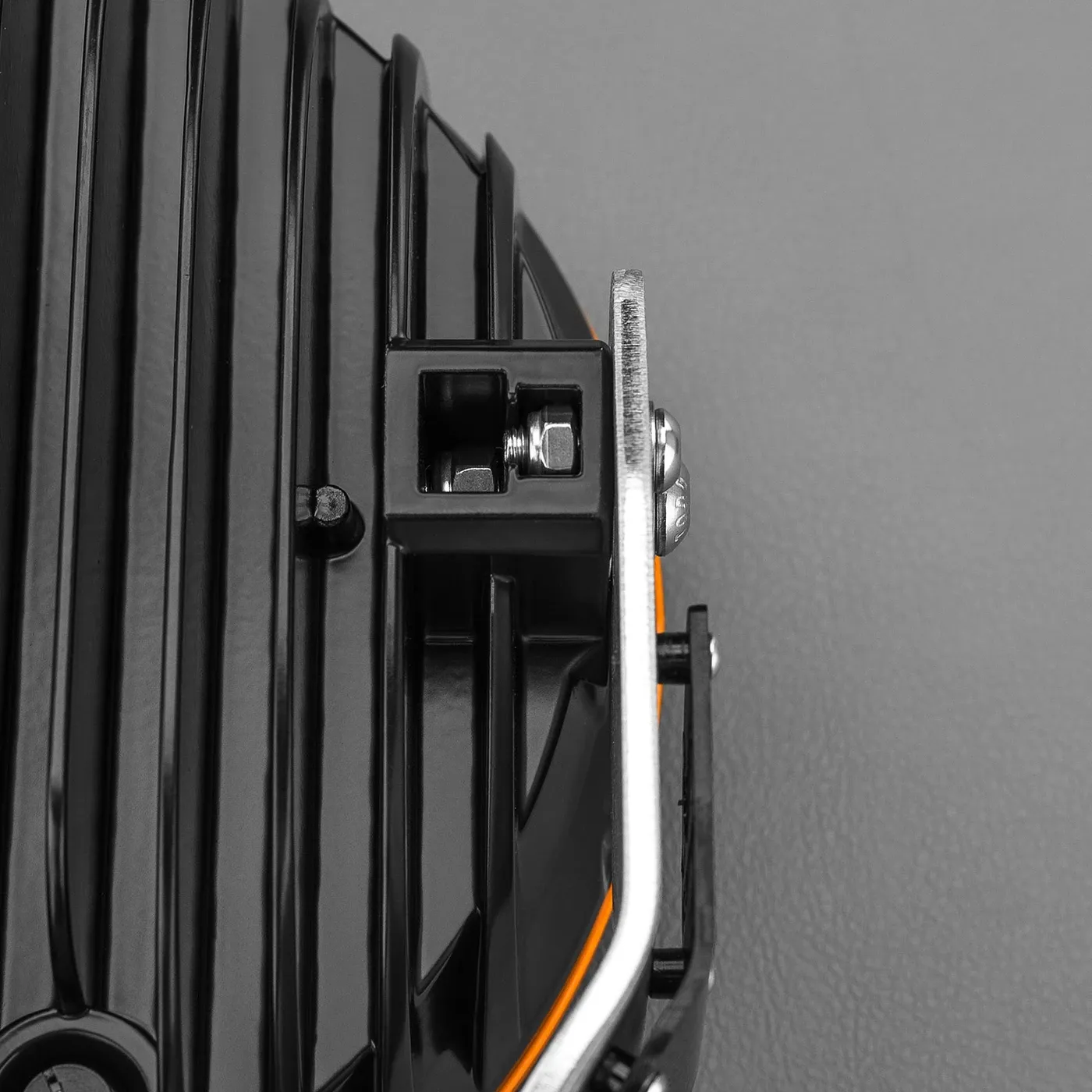

- 4mm thick 304 Series Stainless Mounting bracket, which includes rubber dampener and an additional 3mm upper plate.

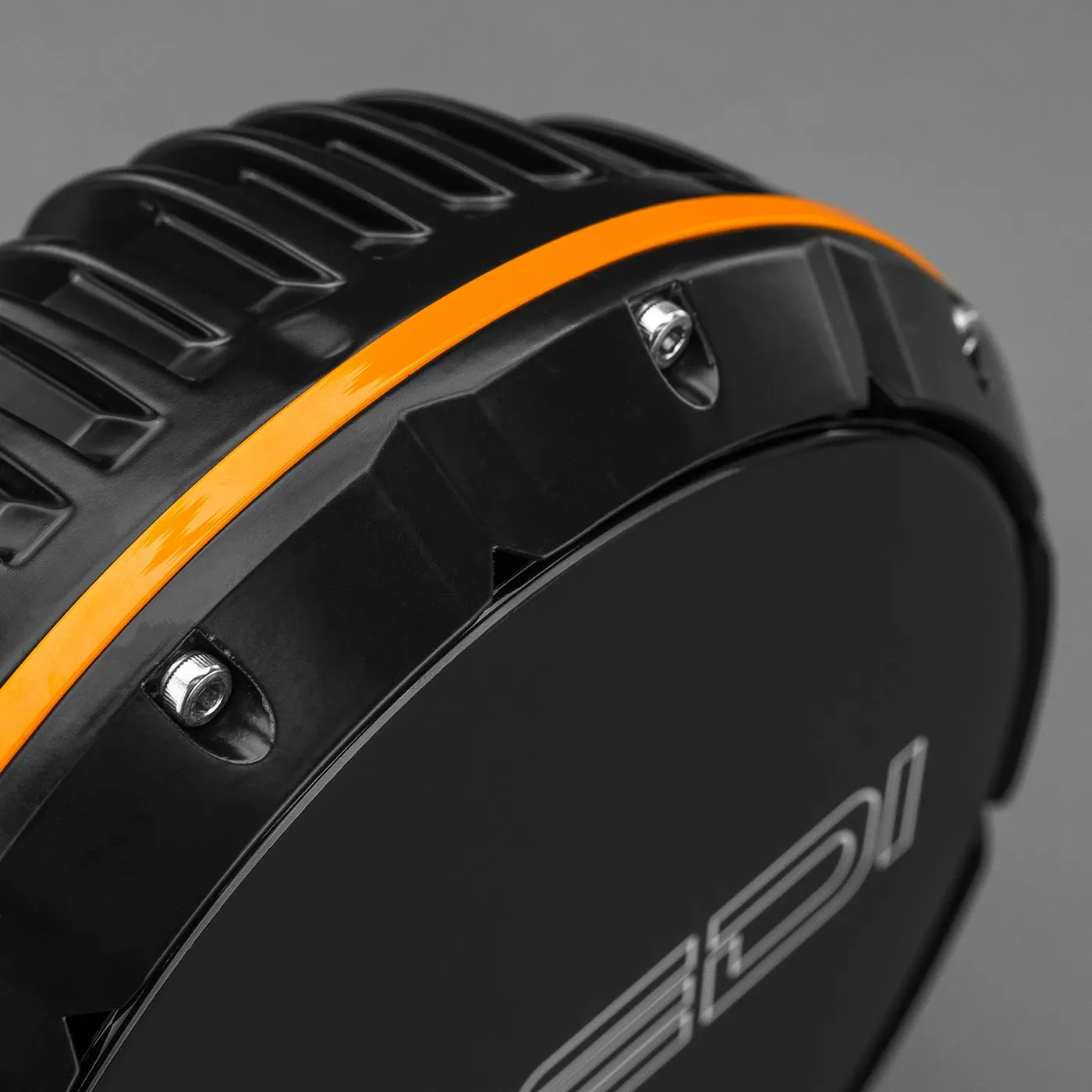

- A360.0 Cast Housing | Boasting superior strength and corrosion resistance.
- 3mm Thick GE Lexan Lens with hard coating | Virtually unbreakable & scratch resistant
- 100% Polyester UV and abrasion resistant powder coat
- IP68 | Dust & Particle tight + Water-proof up to 3 meters
- Nitto Denko Pressure Equalization vent with membrane | Protects against water ingress, dust & contaminants.

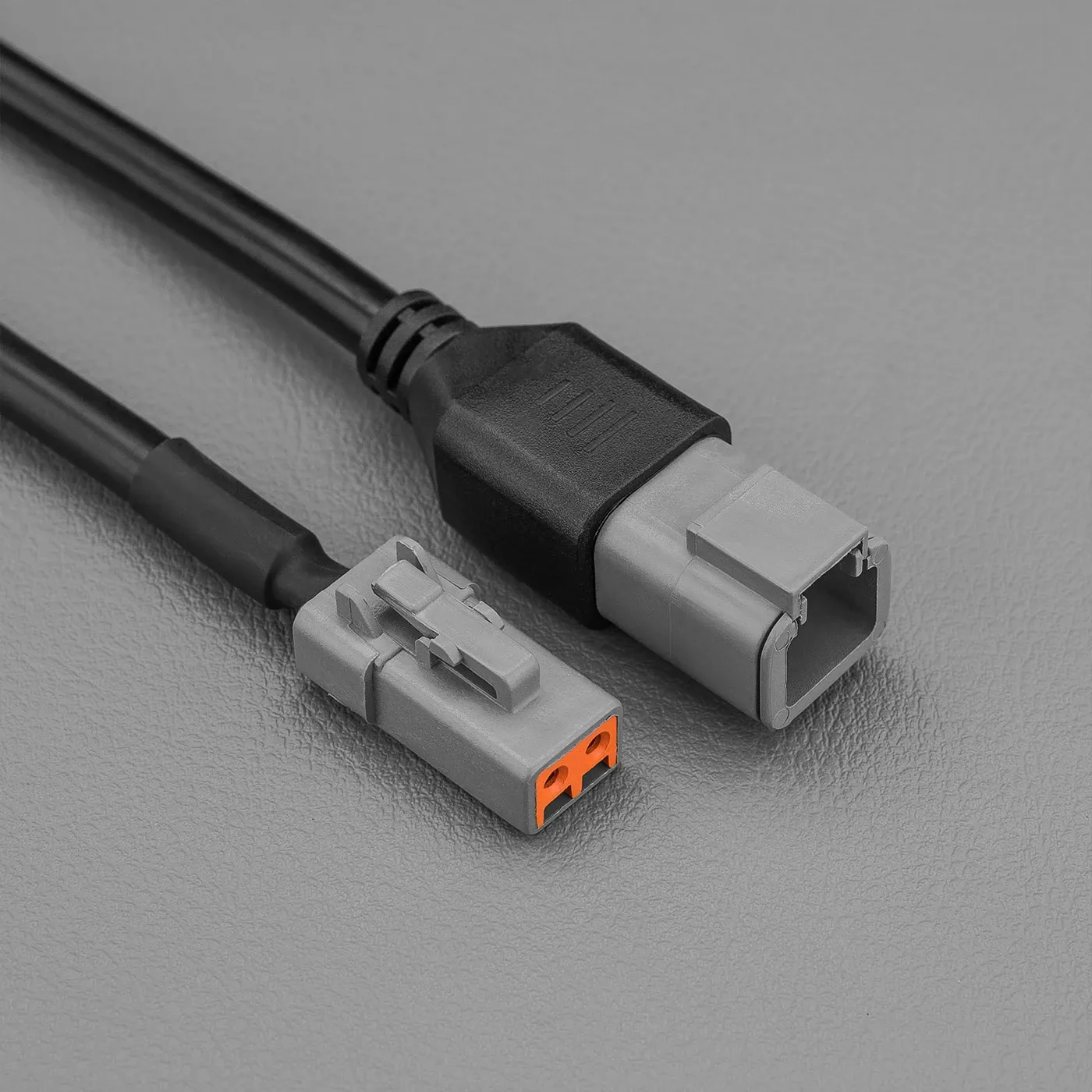

- Environmentally Sealed Deutsch DTP-2 connector
- EMI & RFI Suppression circuitry ? We guarantee it.
- Each TYPE-X Sport comprises 36 of OSRAM?s finest OSLON LED, selected for its high luminous flux and perfectly matches optical properties.
- Four wide-beam reflectors built-in, which form a lateral shaped flood pattern designed to minimize valuable light wasted up to the sky. Also available separately are the snap-on wide-beam covers, for environments demanding an increased peripheral vision.
- 5700K CCT offers stunning clarity and definition with excellent Colour Rendering Index (CRI)
DOES NOT INCLUDE WIRING HARNESS
We recommend Single Connector Plug & Play High Beam Driving Light Wiring
Tech Specs
| LED | 36 x Osram Oslon SSL |
| RAW LUMENS | 10, 390 |
| TESTED LUMENS | 7, 475 |
| AMP DRAW | 9.8A @ 13.2v |
| POWER DRAW | 129W |
| CANDELA | cd |
| BEAM PATTERN | 4 x Spread 32 x Spot Beam |
| INGRESS PROTECTION | IP68 | Submersible up to 3m |
| COLOUR TEMP (CCT) | 5700K |
| VOLTAGE COMPATIBILITY | 12v & 24v |
| LUMEN MAINTENANCE | 50,000 LM-80 |
| WEIGHT | 3.35kg |
| PHOTOMETRIC DATA | |
| 10 m | 11,025Lx |
| 50 m | 441Lx |
| 200 m | 27Lx |
| 300 m | 12Lx |
| 400 m | 6Lx |
| 1,000 m | 1.1Lx |
| 1,050 m | 1Lx |
(SNGL-X1-SPORT-8-5INCH)
| SKU | SNGL-X1-SPORT-8-5INCH |
| Barcode # | 935357000-1513-C |
| Brand | Stedi |
