Stedi 4 Connector Plug & Play Smart Harness - High Beam Driving Light Wiring

$119.00
In Stock




Calculate Shipping



Road Shipping - $9.95
We will email you your tracking number once dispatched.

Take full control of your lighting setup with the STEDI™ 4 Output Plug & Play Smart Harness™ — the heavy-duty twin-relay solution purpose-built for running up to four auxiliary driving lights from a single high beam trigger.


This harness is essentially two of our proven dual-output Smart Harnesses merged into one clean, integrated loom. That means double the relays, double the DT-P outputs, and enough current handling to comfortably power quad lightbar or spotlight configurations — all while maintaining full compatibility with even the most complex vehicle electrics.

Features:

  • Built-in Microprocessor: Automatically detects positive and negative switched systems — no guesswork, no modification required.
  • High Beam Trigger Integration: Plug & Play with HB3 and H4 adaptors included. No cutting, soldering or tapping required.

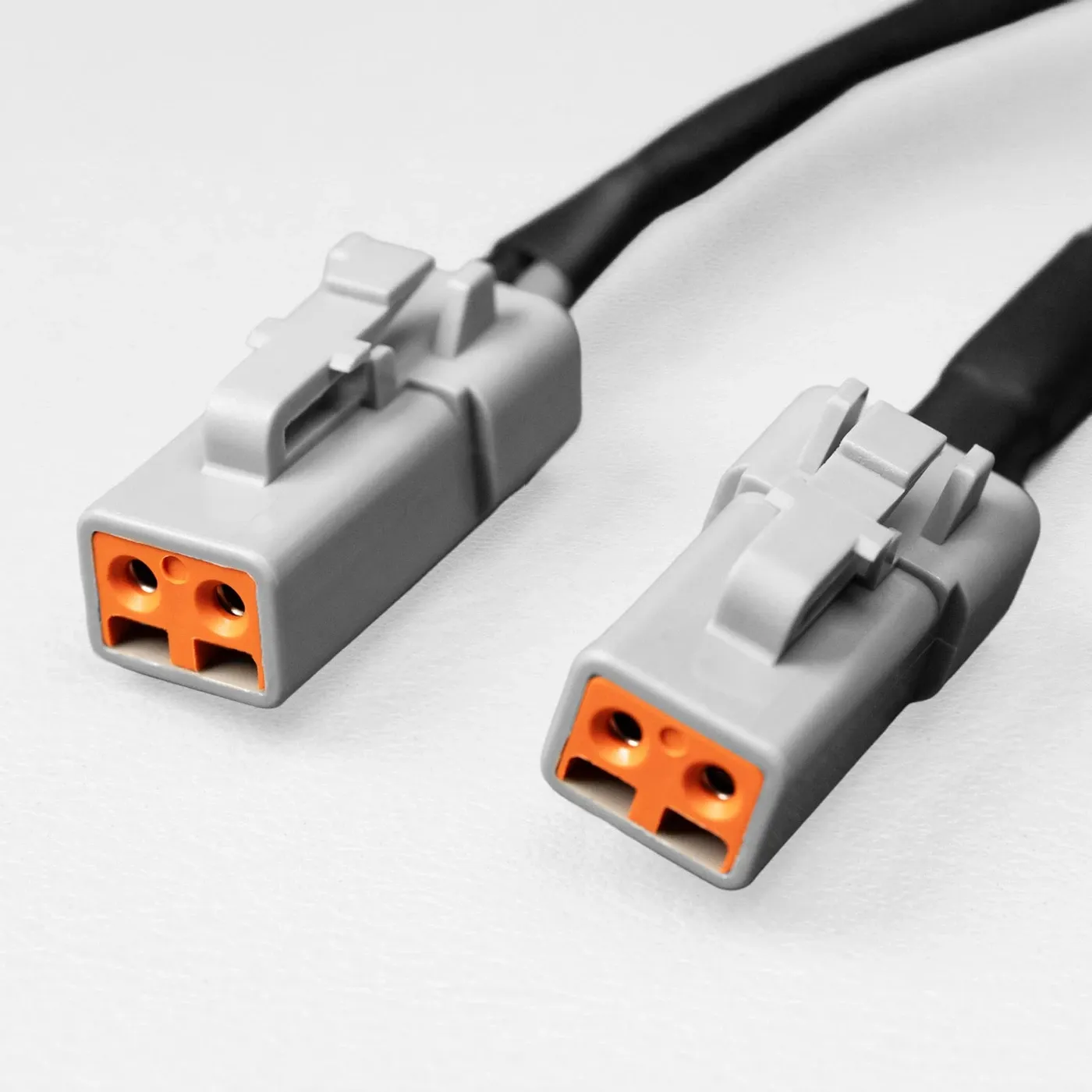

  • 4x DT-P Outputs: Power up to four driving lights with native DT-P connectors, or use the included reducers for DT compatibility.
  • Twin Relay Architecture: Two 80A relays and two 45A fuses handle high current draw with ease, ensuring reliable, isolated performance for each circuit.

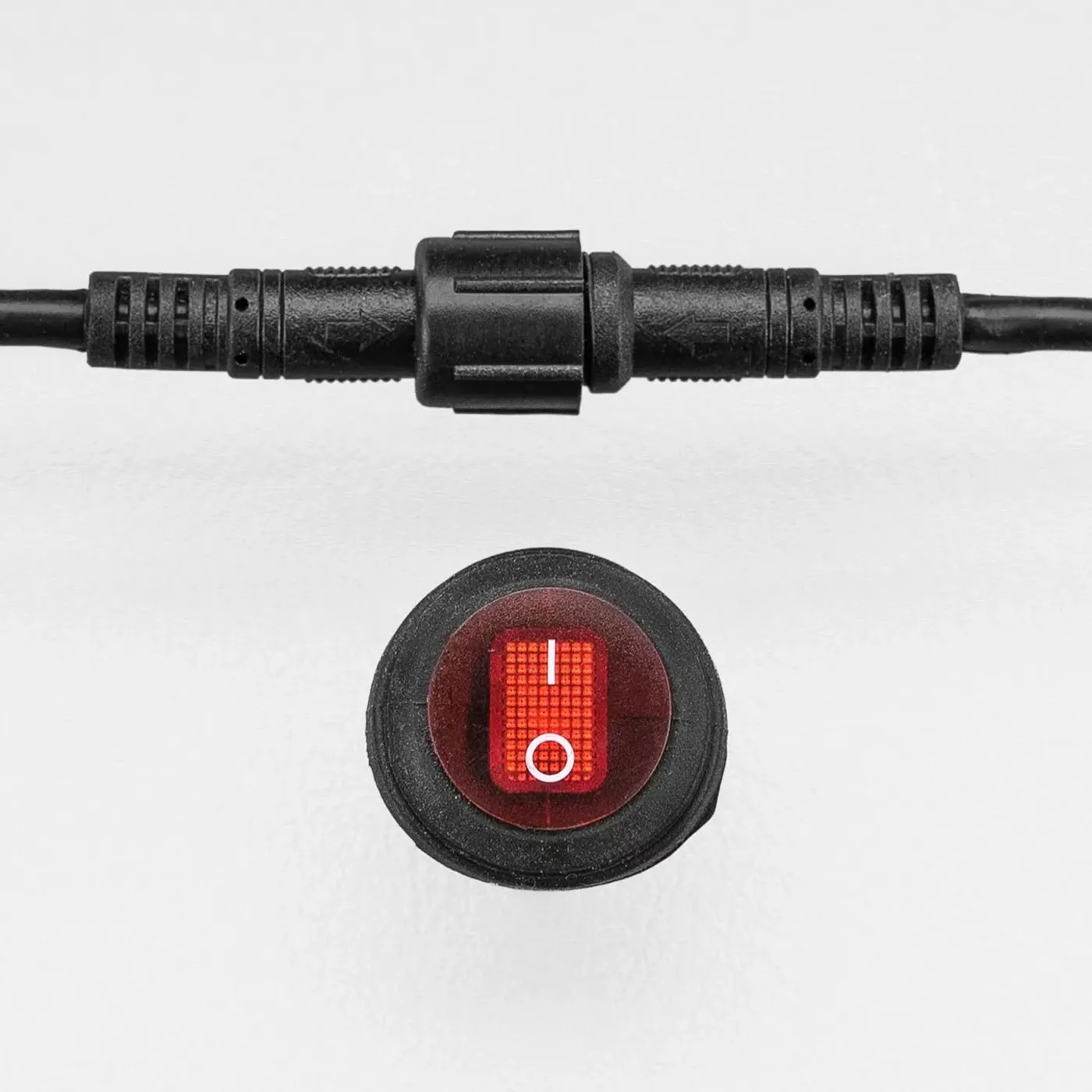

  • Waterproof Illuminated Switch: Low-profile dime-size switch with red backlighting — suits open cabin installs.
  • ADR Compliant: Fully compliant when installed correctly — trigger lights only on high beam, with switch acting as an isolator.
  • Durable Construction: 10AWG high-current cable, ribbed loom protection, heat shrink-wrapped relay connections — built for Aussie conditions.

Specifications:

  • Voltage: 12V DC
  • Relays: 2 x 80A
  • Fuses: 2 x 45A Blade
  • Outputs: 4 x DT-P (with DT reducers included)
  • Switch: 0.78" Waterproof Dime-Style (Red Illumination)
  • Cable Gauge: 10AWG
  • Trigger Adaptors: HB3 and H4 (optional H1, H7, H9 available)
  • Compatibility: Positive & Negative Switched Vehicles

Kit Includes:

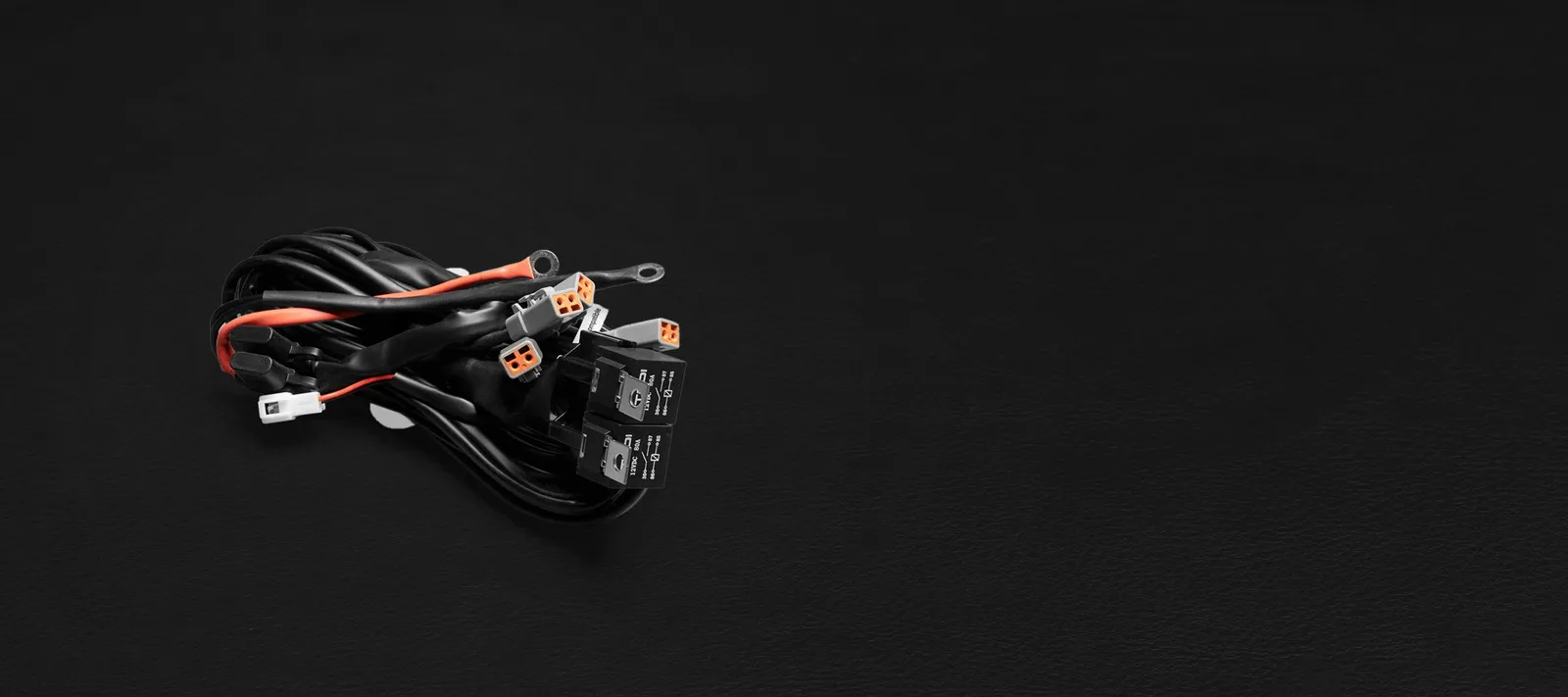

  • 1 x 4 Output DT-P Smart Harness

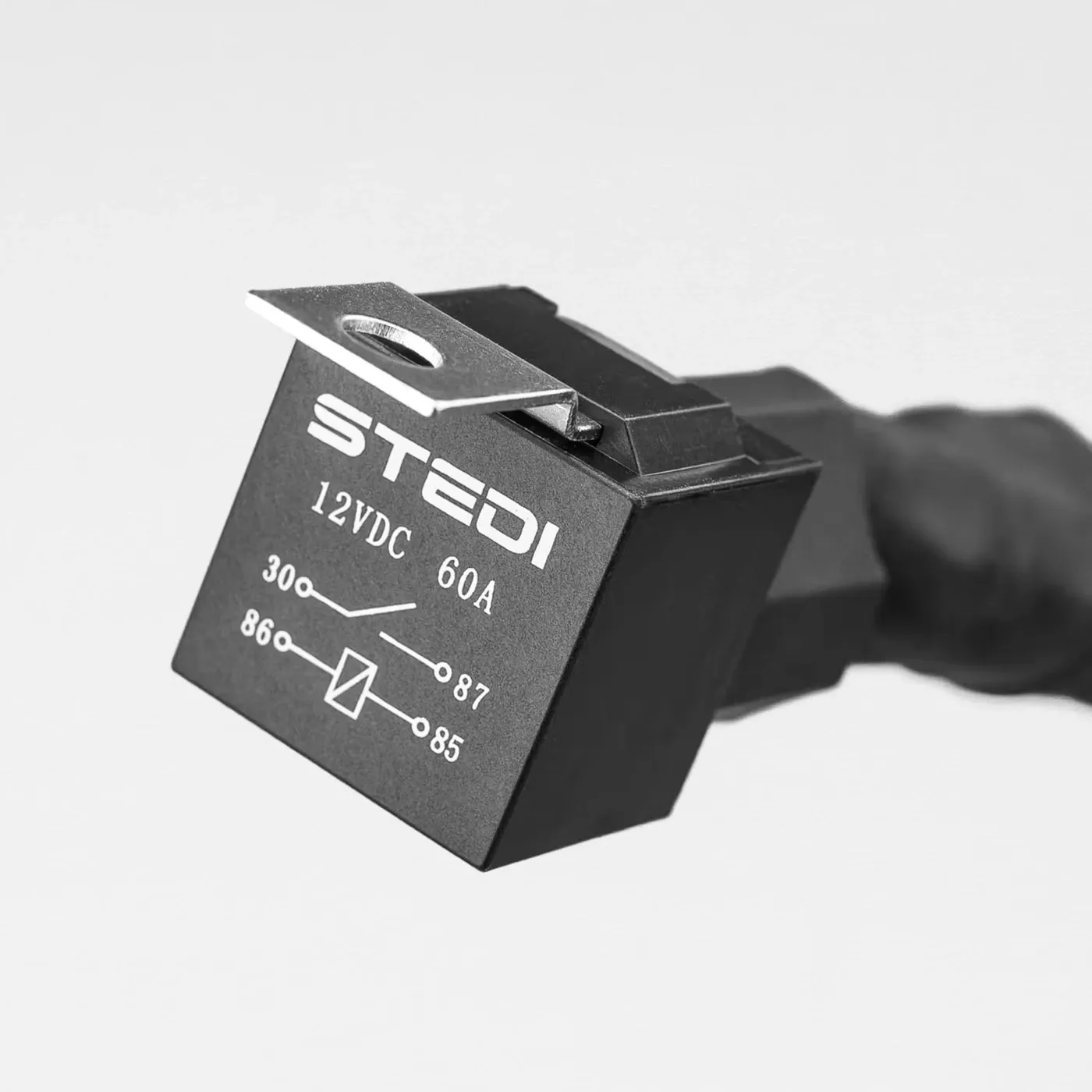

  • 2 x 80A Relays (pre-wired)

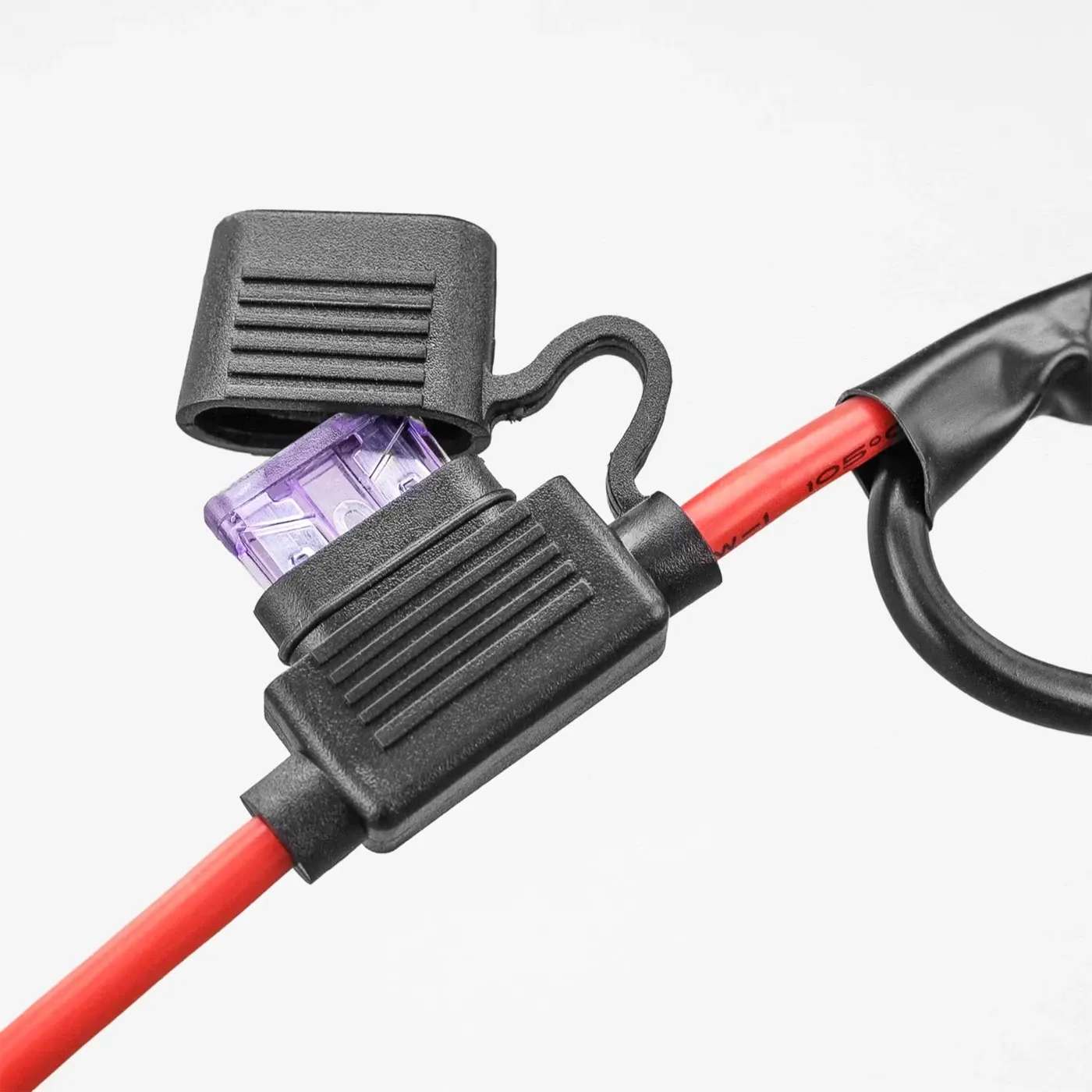

  • 2 x 45A Blade Fuses (pre-installed)
  • 1 x Waterproof Red-Illuminated Dime Switch (0.78")
  • 1 x Set of Cable Ties
  • 1 x Wiring Diagram

(ST-31-DTP-004)

SKU ST-31-DTP-004
Brand Stedi
