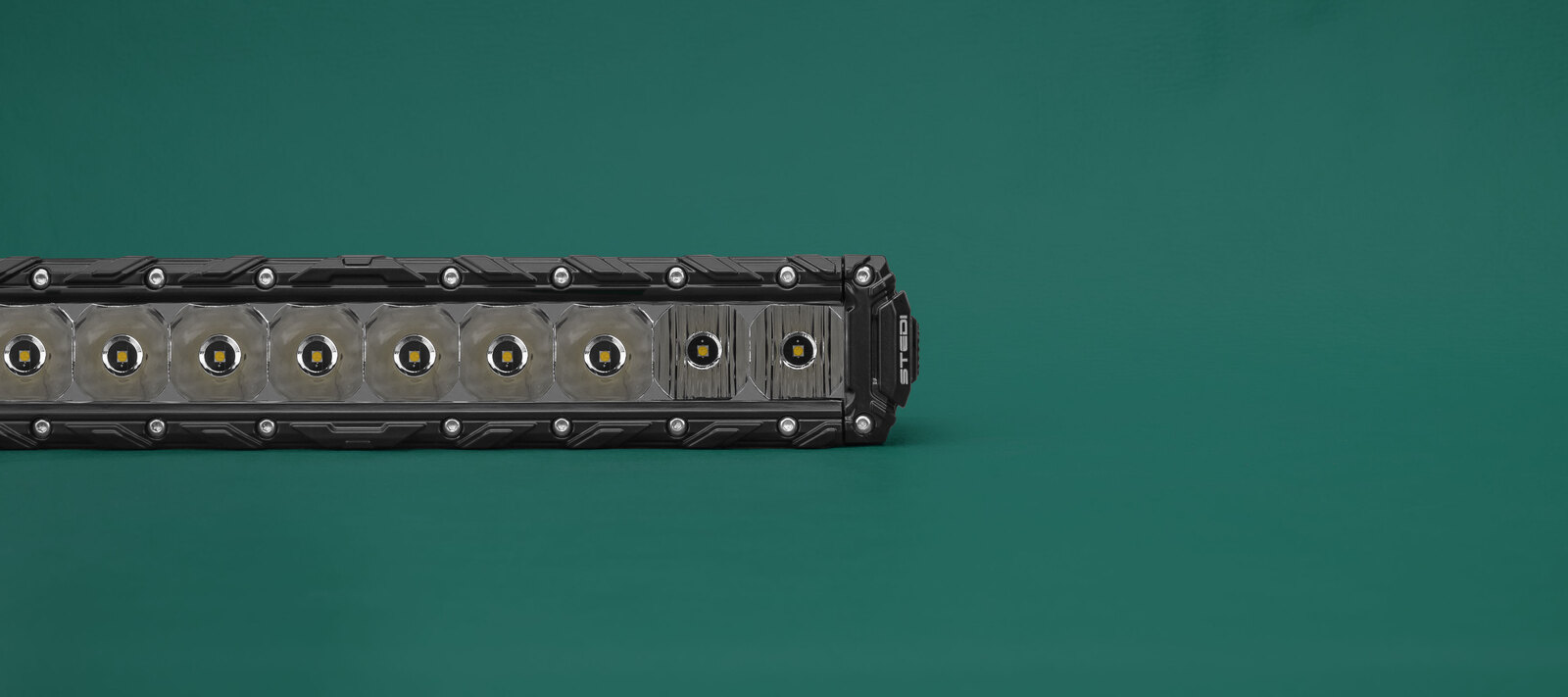

Stedi 51.5" ST3K 50 LED Slim LED Light Bar
The Definition Of Calibre.

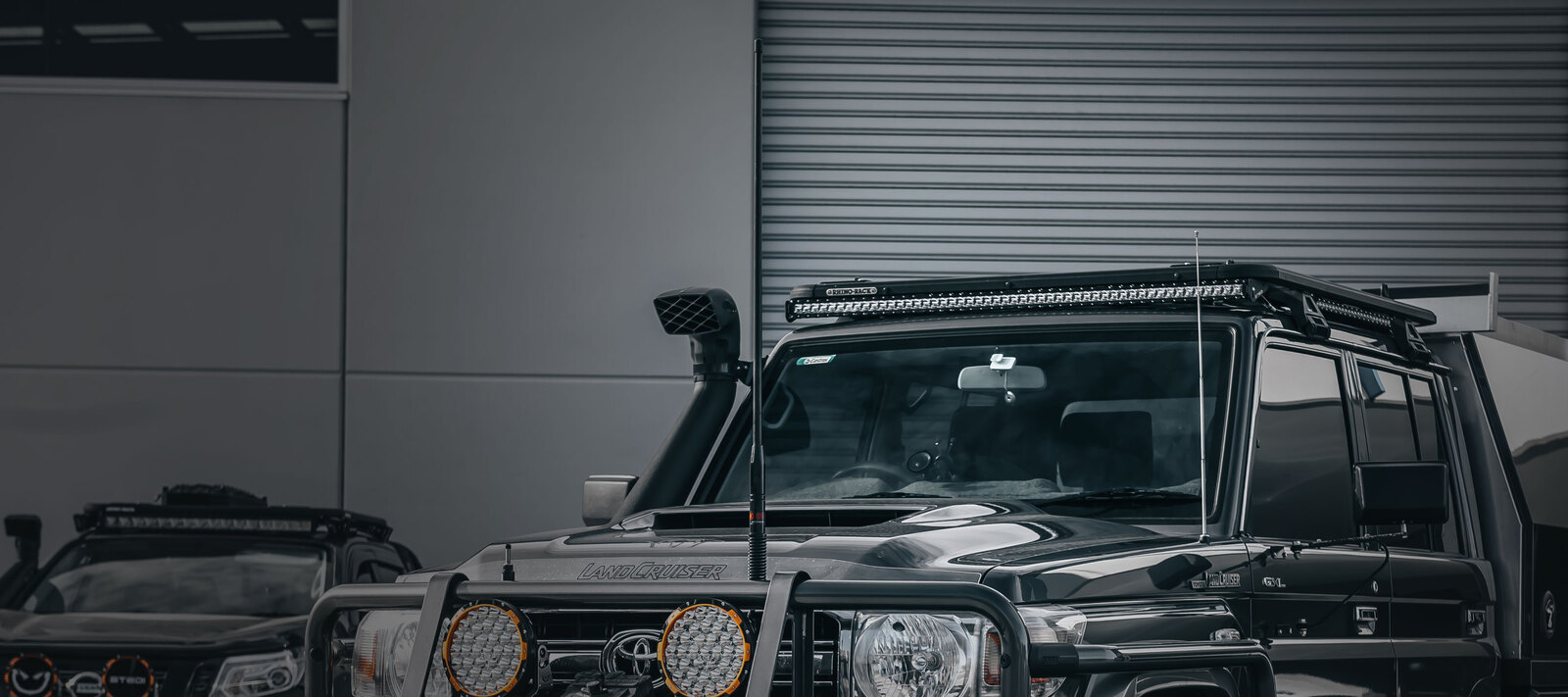

Our STEDI ST3K LED Light is was designed to bring a large amount of light to a small amount of space. With a total height of just 63mm (with the side brackets attached), you will find the ST3K is able to be mounted on your front bar or grill, whilst maintaining the factory look of your vehicle.
Brilliance Is The Name Of The Game.
The ST3K range is easily comparable to the STEDI Type-X and ST4k range. With a strong penetrating beam of 493m at 1 LUX and 55m out to the shoulders of the road (with flood beam), the ST3K 51.5 is the perfect all-rounder!
The Nitty Gritty.
MARKET LEADING PERFORMANCE.

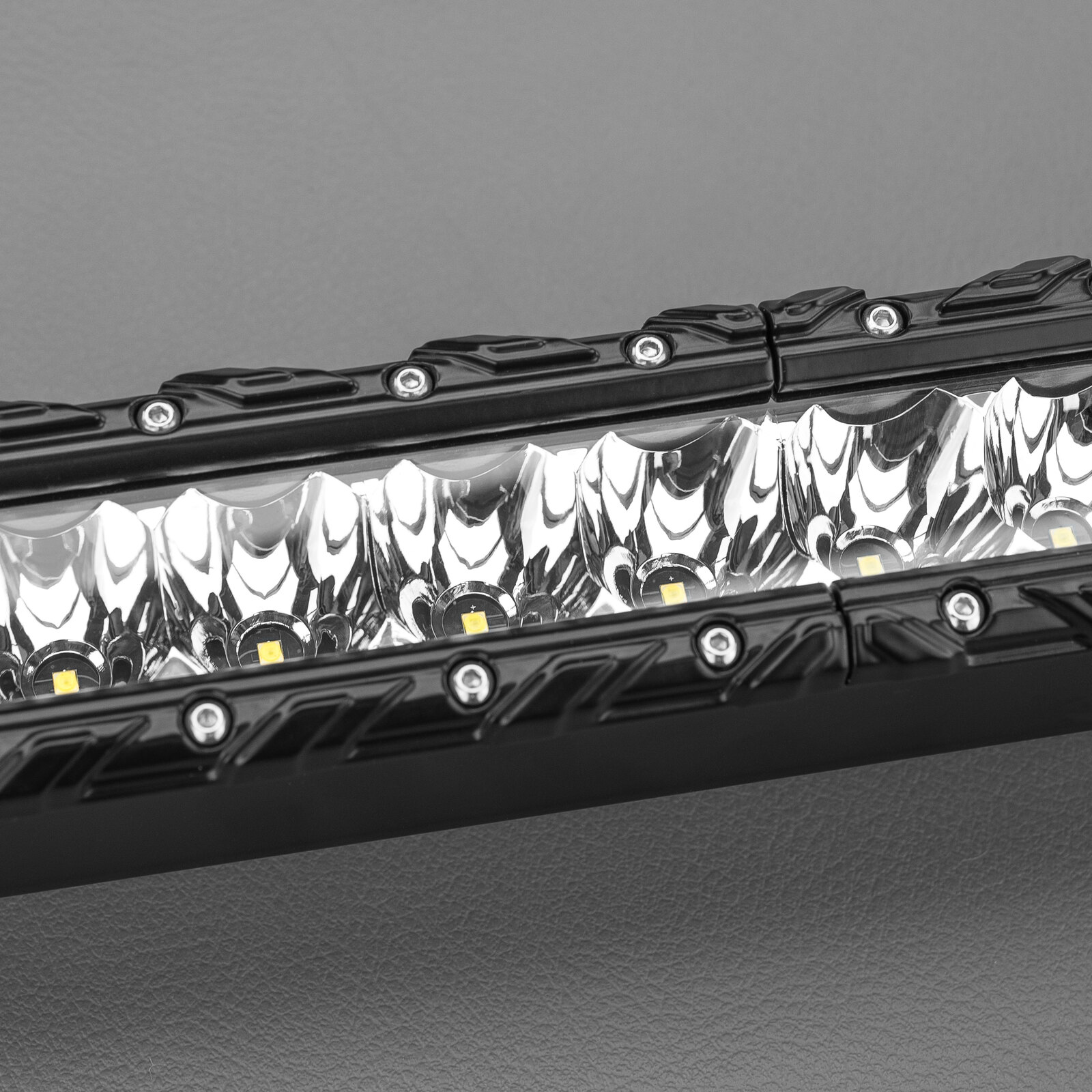

ST3K-50L features 50 of OSRAM?s finest OSLON LED, selected for unrivaled efficiency.
10 Flood + 30 Spot + 10 Flood reflector distribution forms a remarkable beam that pushes the wide beam out at 50? and spot beam at 5.8? all the way to staggering 1 lux @ 778m
True White 5700K Colour temperature offers stunning clarity and definition.
Our Pure-Drivecircuit design allow 97% of input power to go directly to LEDs.
BUILT TO WITHSTAND THE RELENTLESS PUNISHMENT OF THE DEEP AUSTRALIAN OUTBACK.
Finished in 100% Polyester UV and abrasion resistant powder coat, ensures that our bars will never discolour.

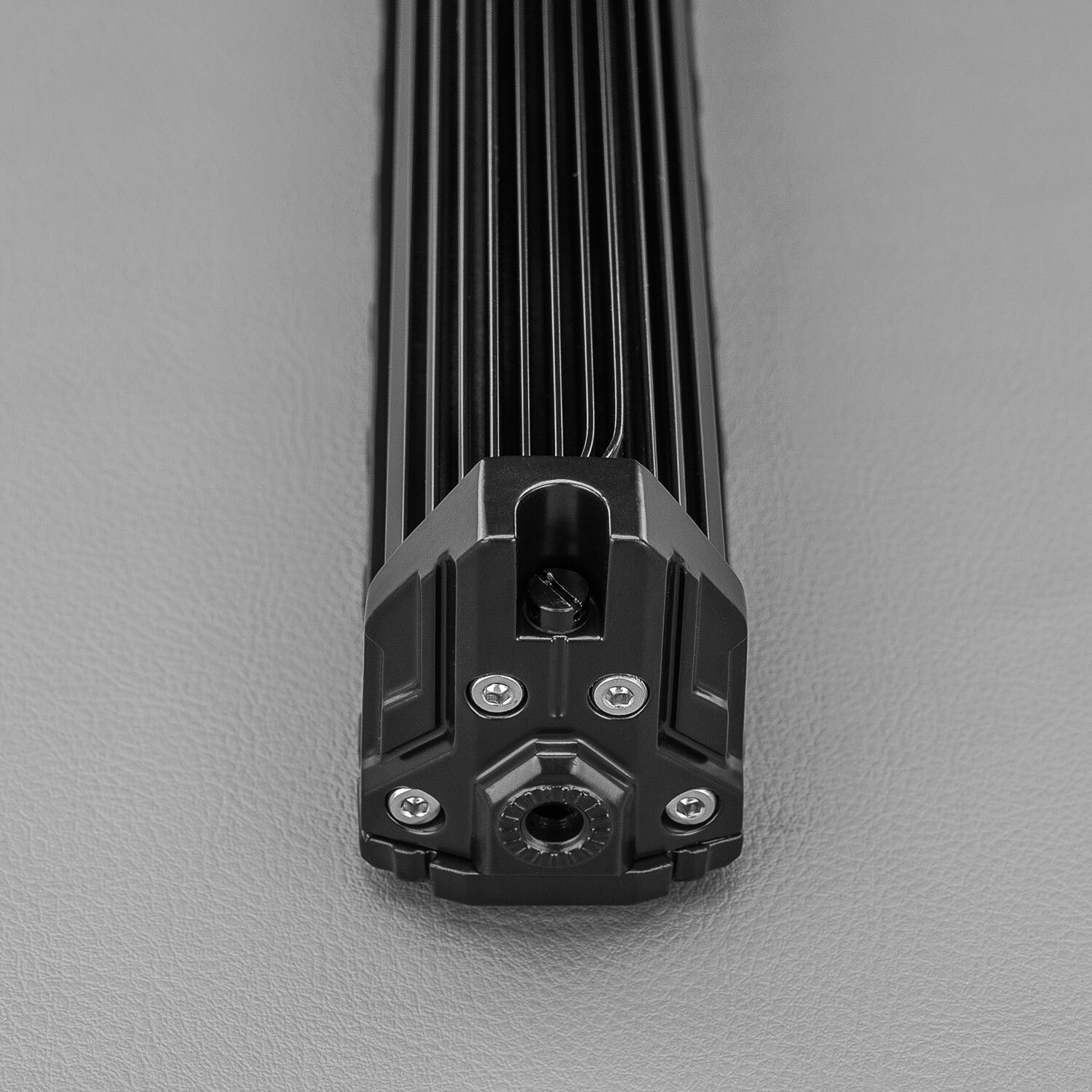

Pressure Equalization vent | Protects against water ingress, dust & contaminants.
IP68 | Dust & Particle tight + Water-proof up to 3 meters!
Environmentally sealed Deutsch DT-2 connector.
Protected against EMC and RFI.
Protected against EMC and RFI.

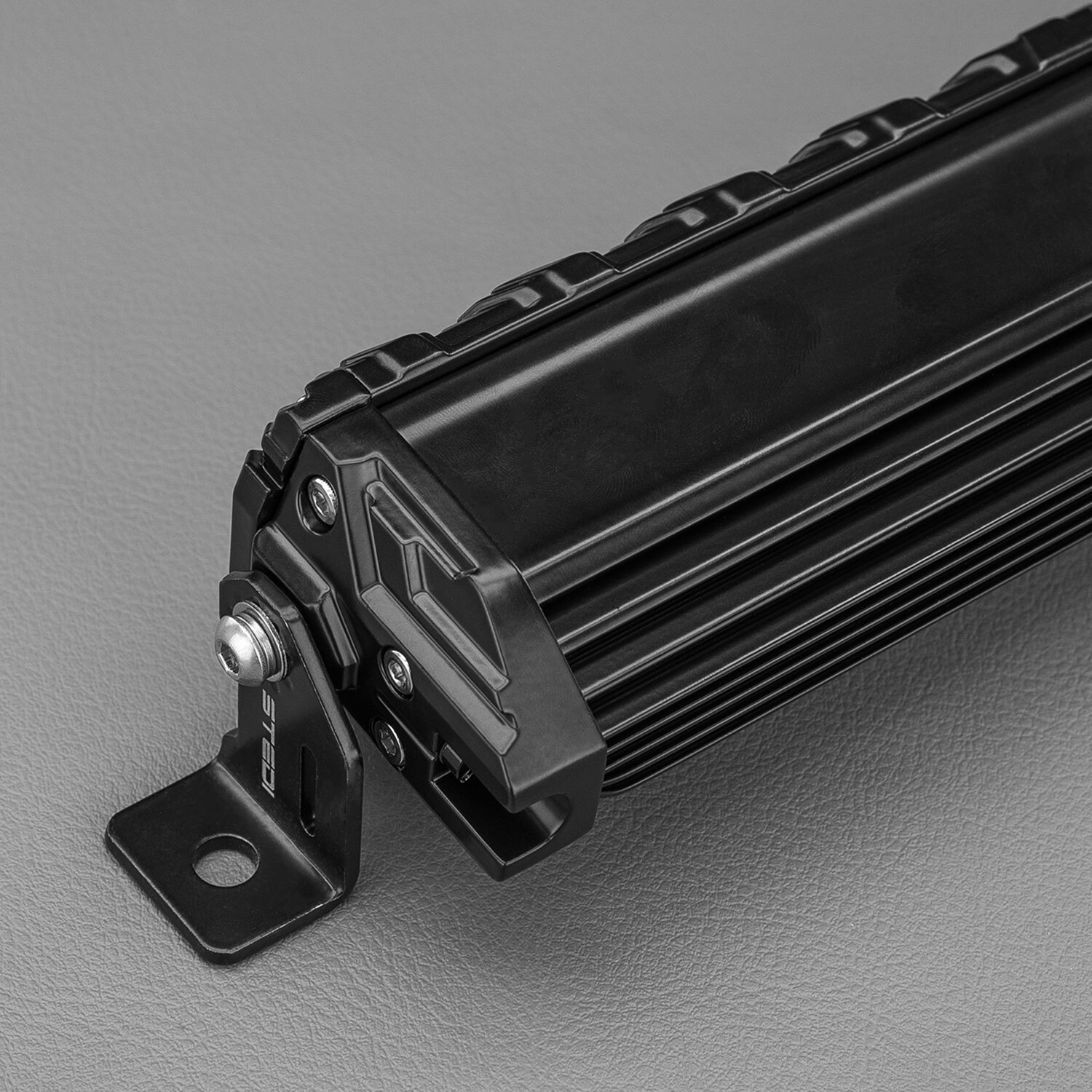

Ultra-Low 51mm profile without the side brackets & 63mm with side brackets!

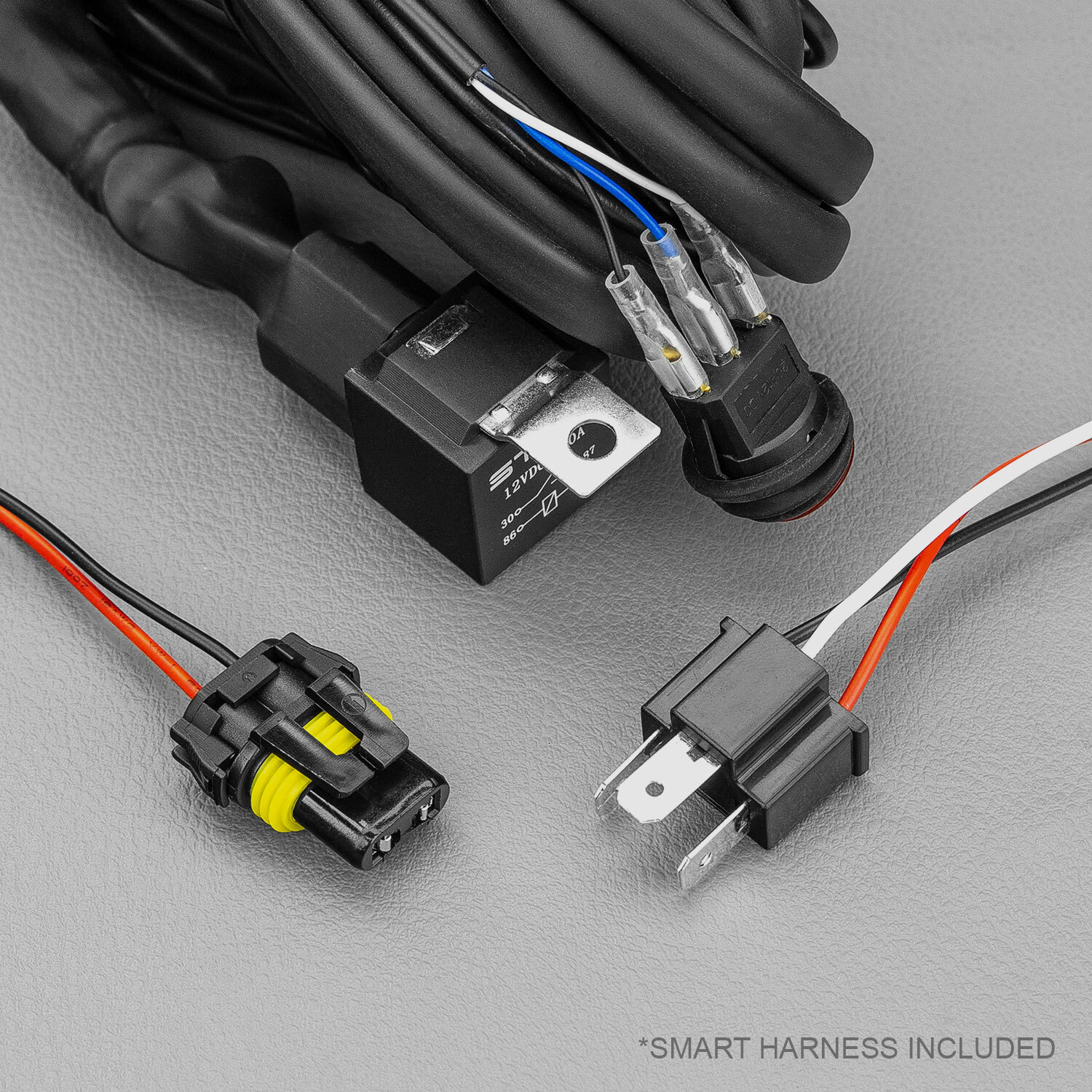

Includes our Easy Fit High Beam Plug and Play Wiring Harness which include H4 and HB3 Adapters making for an easy connection to high beam. Unlike the copycat harnesses on the market ours has built in electronics making our harness compatible with even the most modern and sophisticated wiring systems
Backed by a 5 Year Replacement Warranty.
Tech Specs
LED | 50 x Osram Oslon White |
Effective Lumen | 10,250Lm |
Peak Intensity (Candela) | 608,000cd |
Operating Voltage | 10-30V DC |
IP Rating | IP68 |
Current Draw | 11.2A @ 13.6v |
Colour Temperature (CCT) | 5700 Kelvin |
Housing Material | Aluminium Extrusion & Cast |
Lens | GELexan |

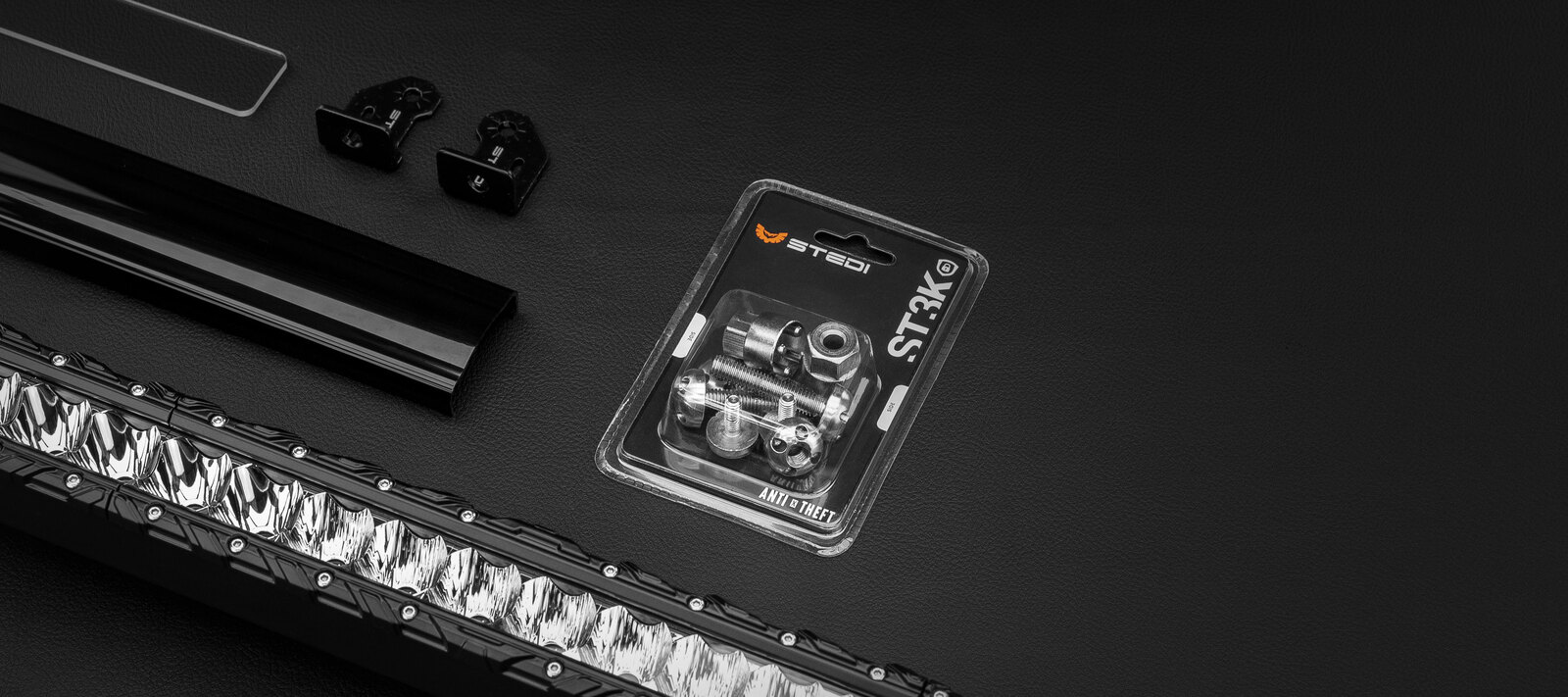

Mounting Bracket | Powder Coated 3mm Stainless Steel |
Bolts and FIttings | 3 Series Stainless Steel |
Beam Type | Flood Spot Combo |
Life Span | 50,000 Hours |
Weight | 4.250 |
Operating Environment | -40 - +50? Celsius |

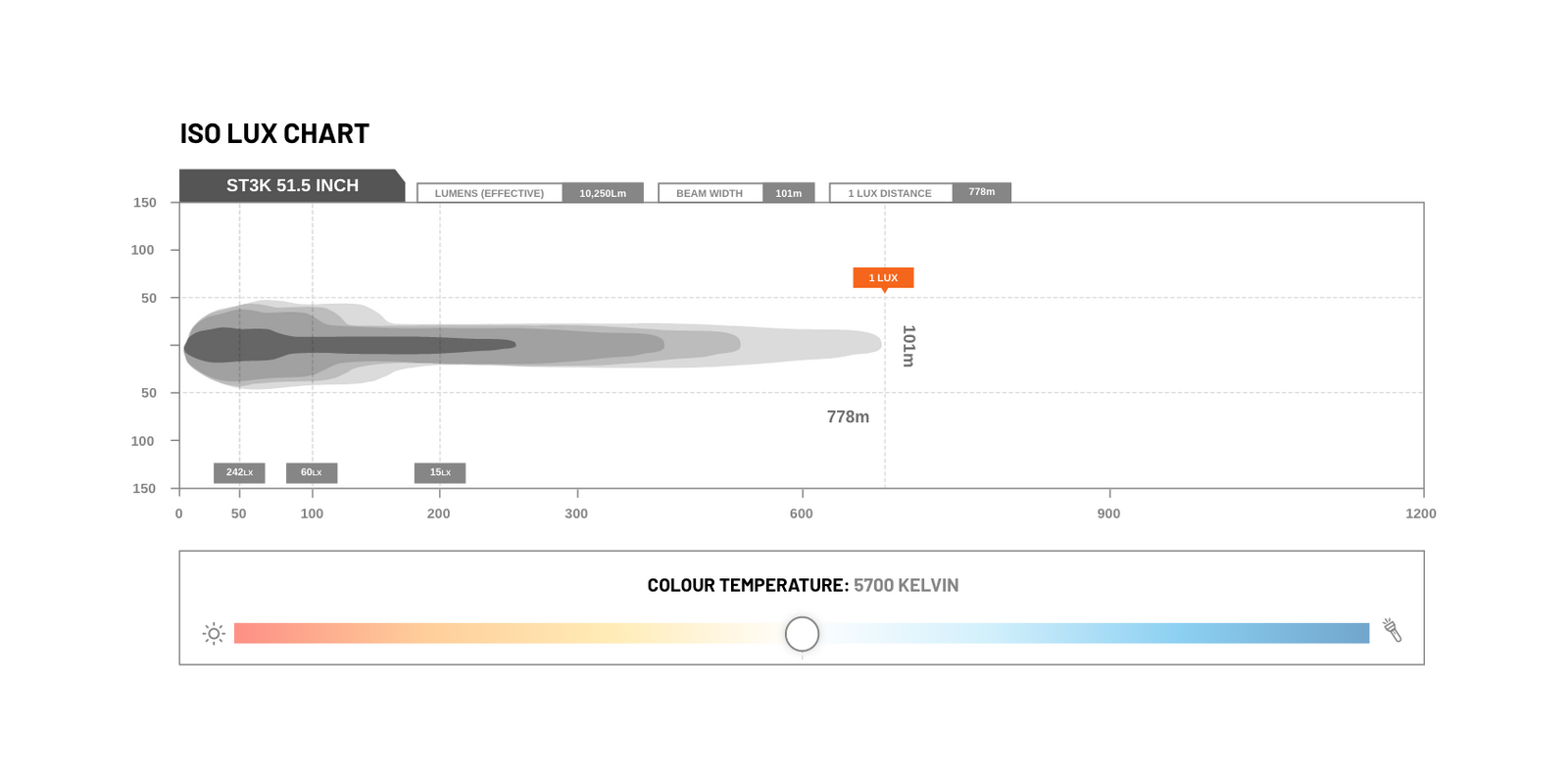

PHOTOMETRIC DATA | |
10 M | 6,052 Lx |
50 M | 242 Lx |
100 M | 60 Lx |
200 M | 15 Lx |
778 M | 1 Lx |
(LEDST3K-50L)
SKU | LEDST3K-50L |
Barcode # | 935357000-1130-C |
Brand | Stedi |
Shipping Weight | 6.0000kg |
Shipping Width | 0.170m |
Shipping Height | 0.170m |
Shipping Length | 1.340m |
Shipping Cubic | 0.038726000m3 |
Check our Warranty Page
