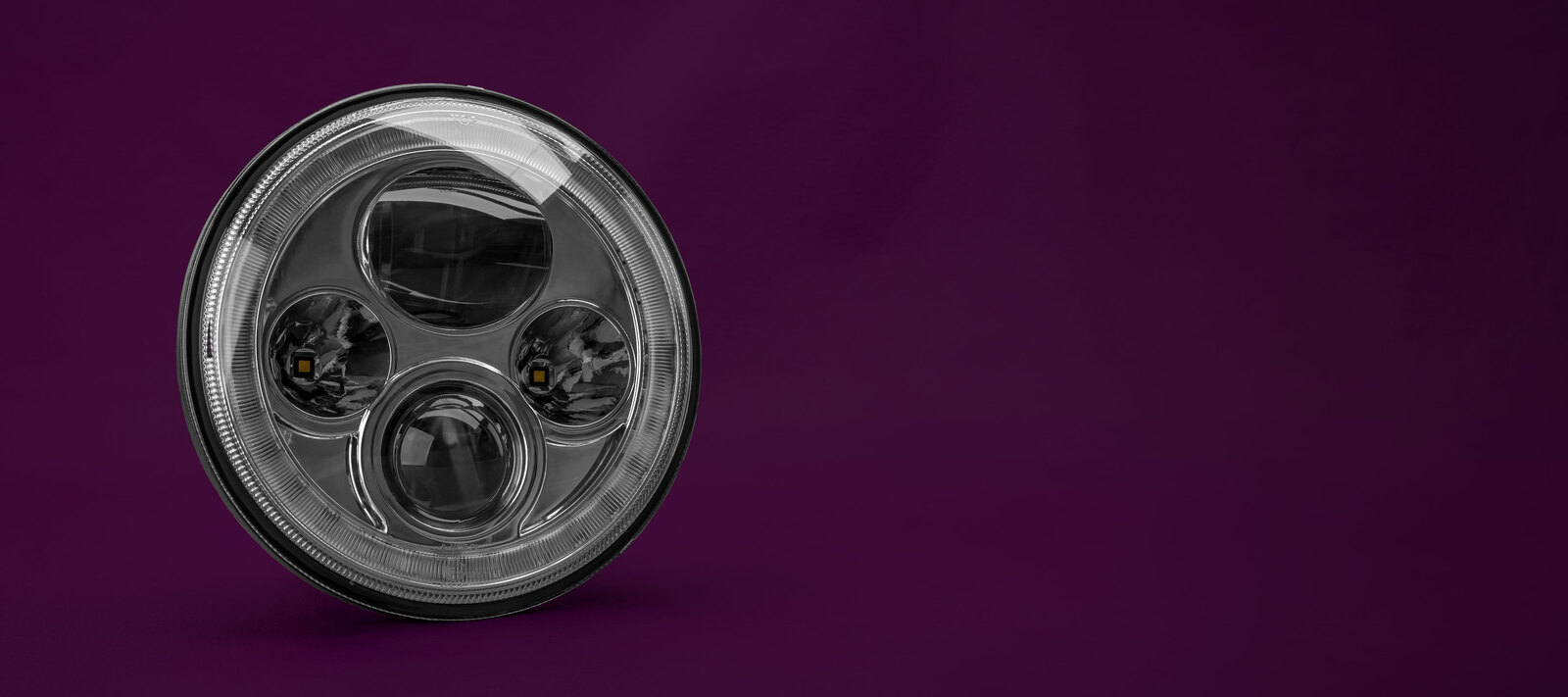

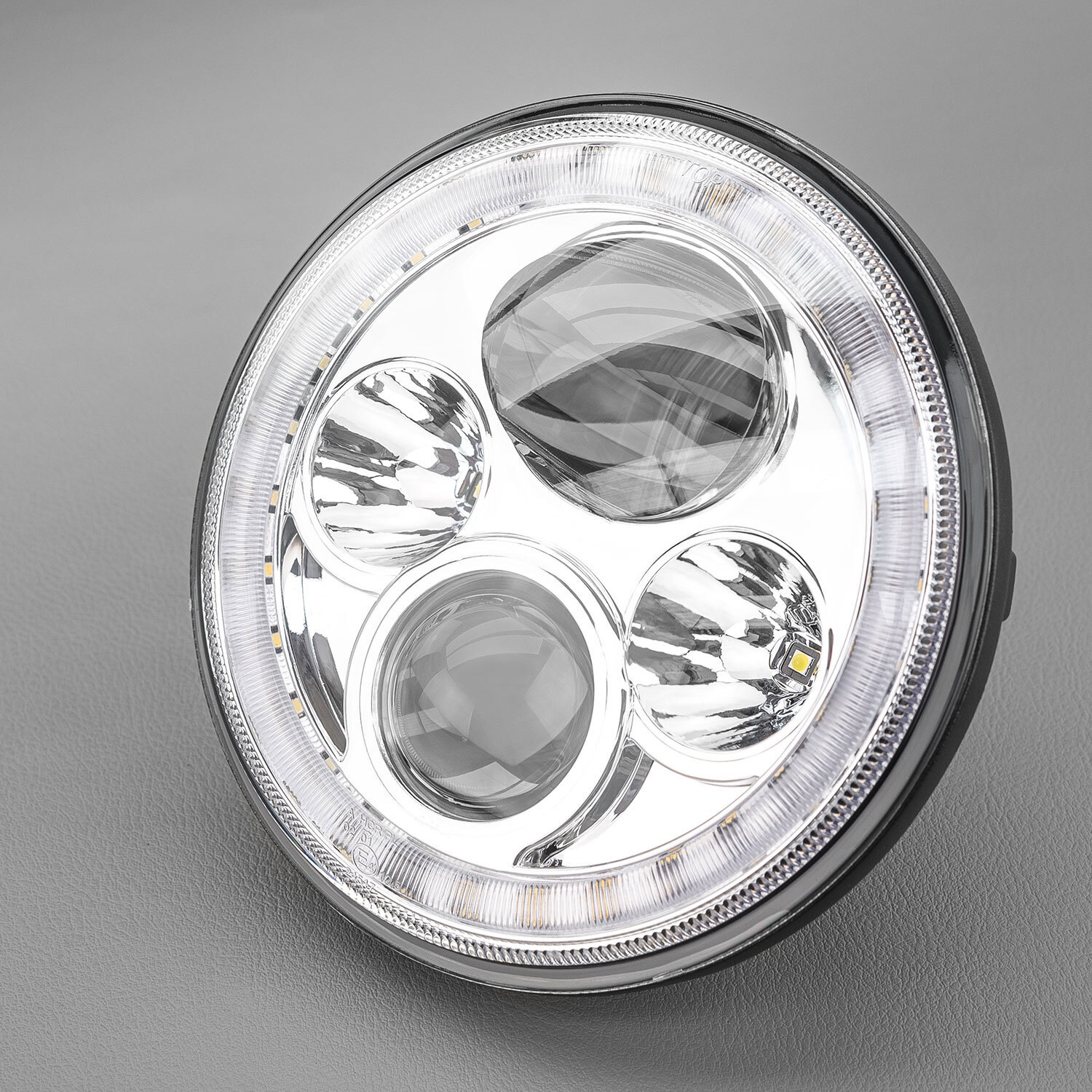

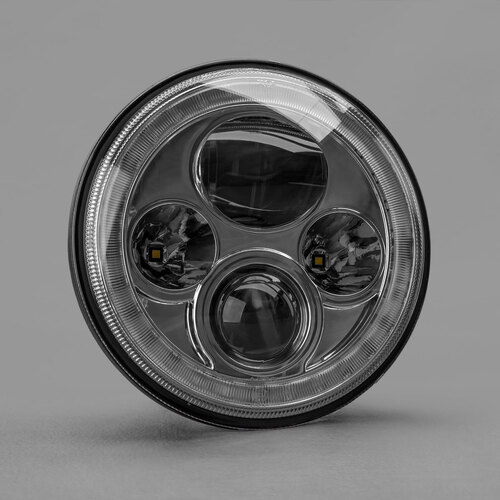

Stedi 7 Inch IRIS Chrome LED Headlight Replacement
FINALLY, A WORTHY 7" LED HEADLAMP
You've either heard about or tried the other disaster 7" LED kits on the market. Our IRIS LED Headlight unit is ADR Compliant and features a proper RHD beam geometry. Our IRIS is a complete LED unit that will replace your existing 7" factory headlight unit. Complete with separate High & Low beams as well as a full halo park light, the IRIS is your all-in-one upgrade solution for your motorbike or 4x4 vehicle that runs a 7" headlight (list of known compatible models in the description).
PERFORMANCE THAT SURPASSES THE VERY BEST
The low beam is full of volume and throws out to 141m at 1 Lux. The high beam throws out to 235m at the 1 Lux which is better than many auxiliary lights on the market. The integrated optional halo park light can be wired to ignition or to a dedicated switch to illuminate to offer day-time safety. Anti-Flicker technology for an effortless install.
ADR COMPLIANT
The IRIS falls within the parameters of ADR making it a 100% legal LED driving light upgrade. No wasting time checking whether or not your vehicle meets the guidelines for retrofitting LED lights, from the get-go you're all set.
The Nitty Gritty.

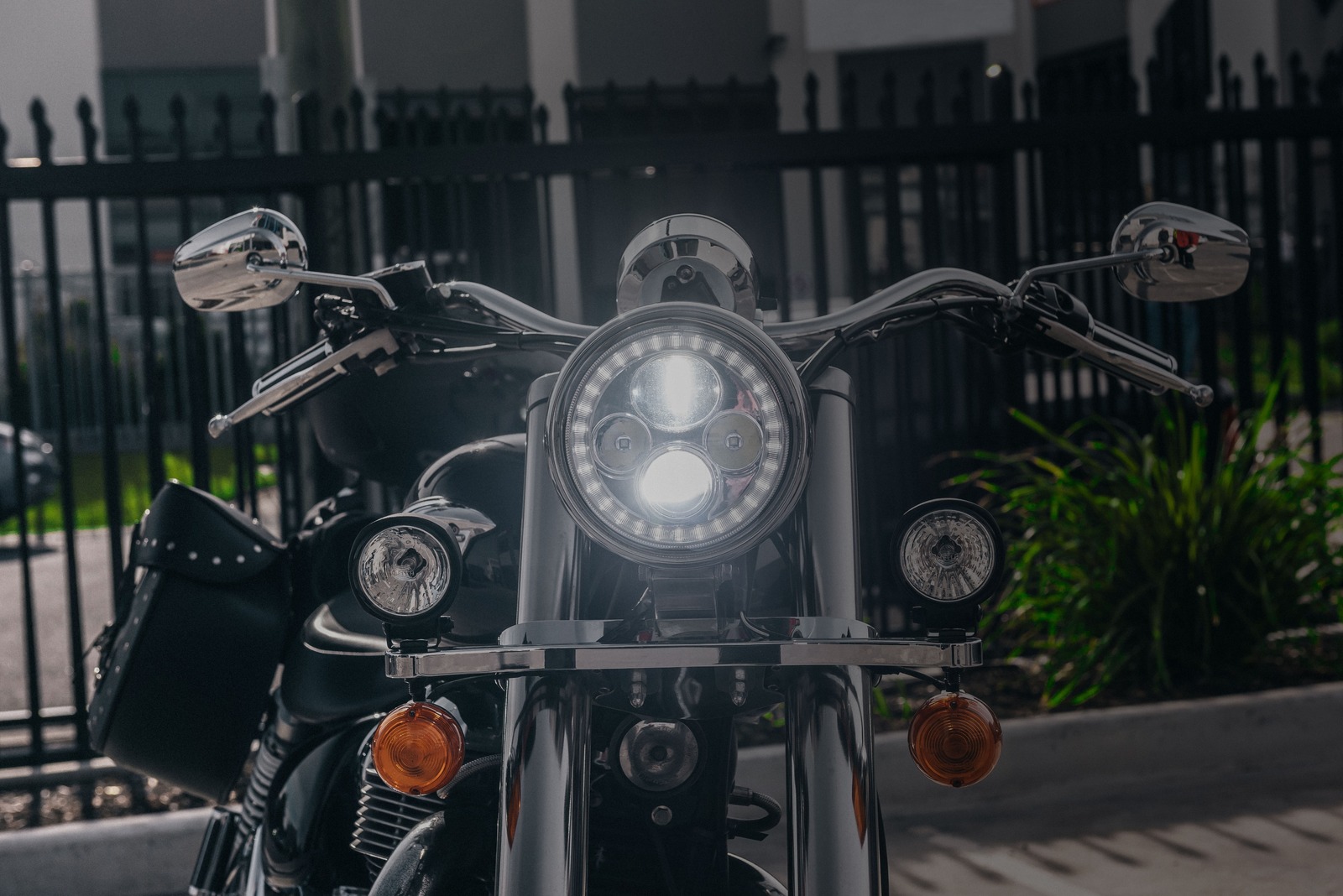

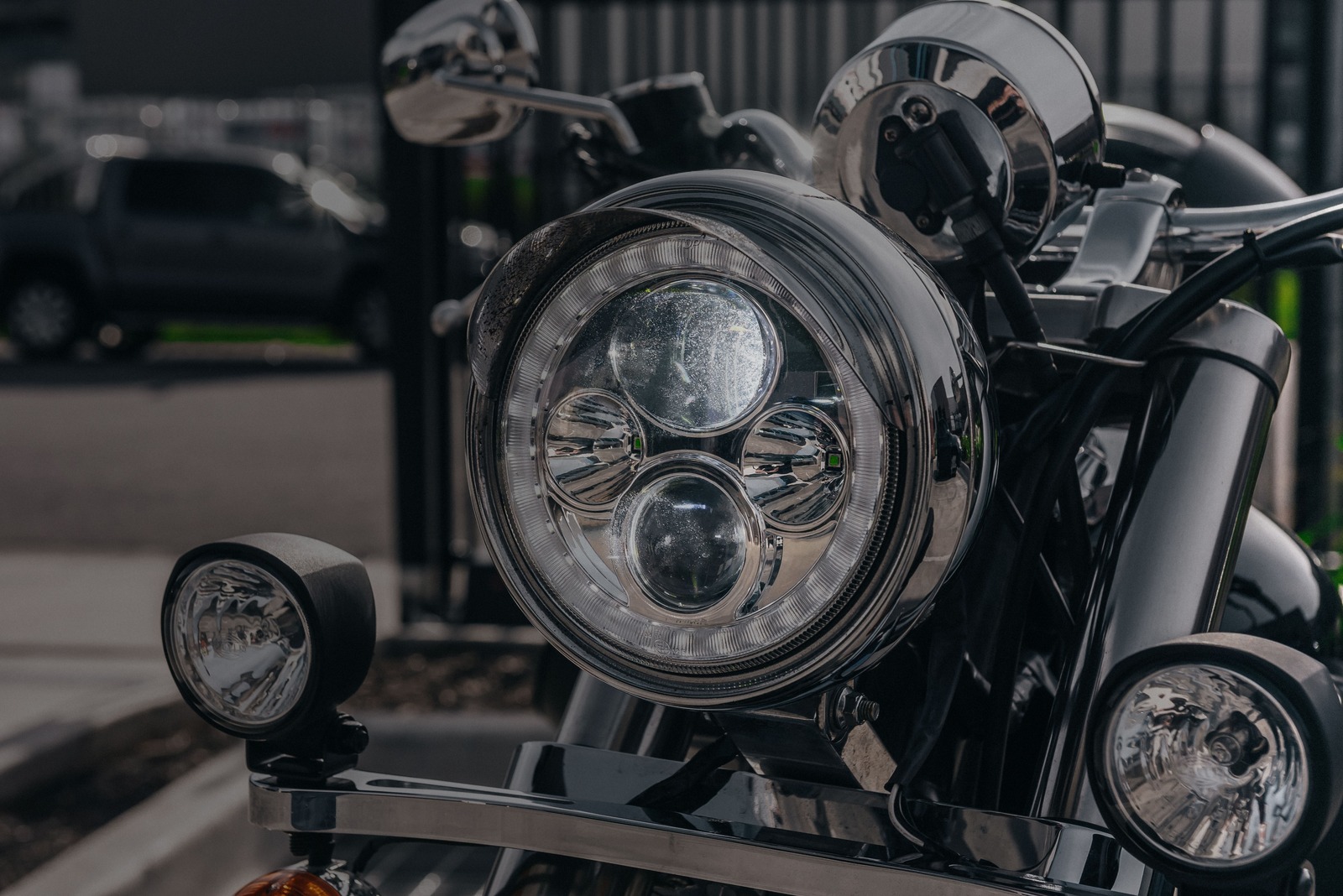

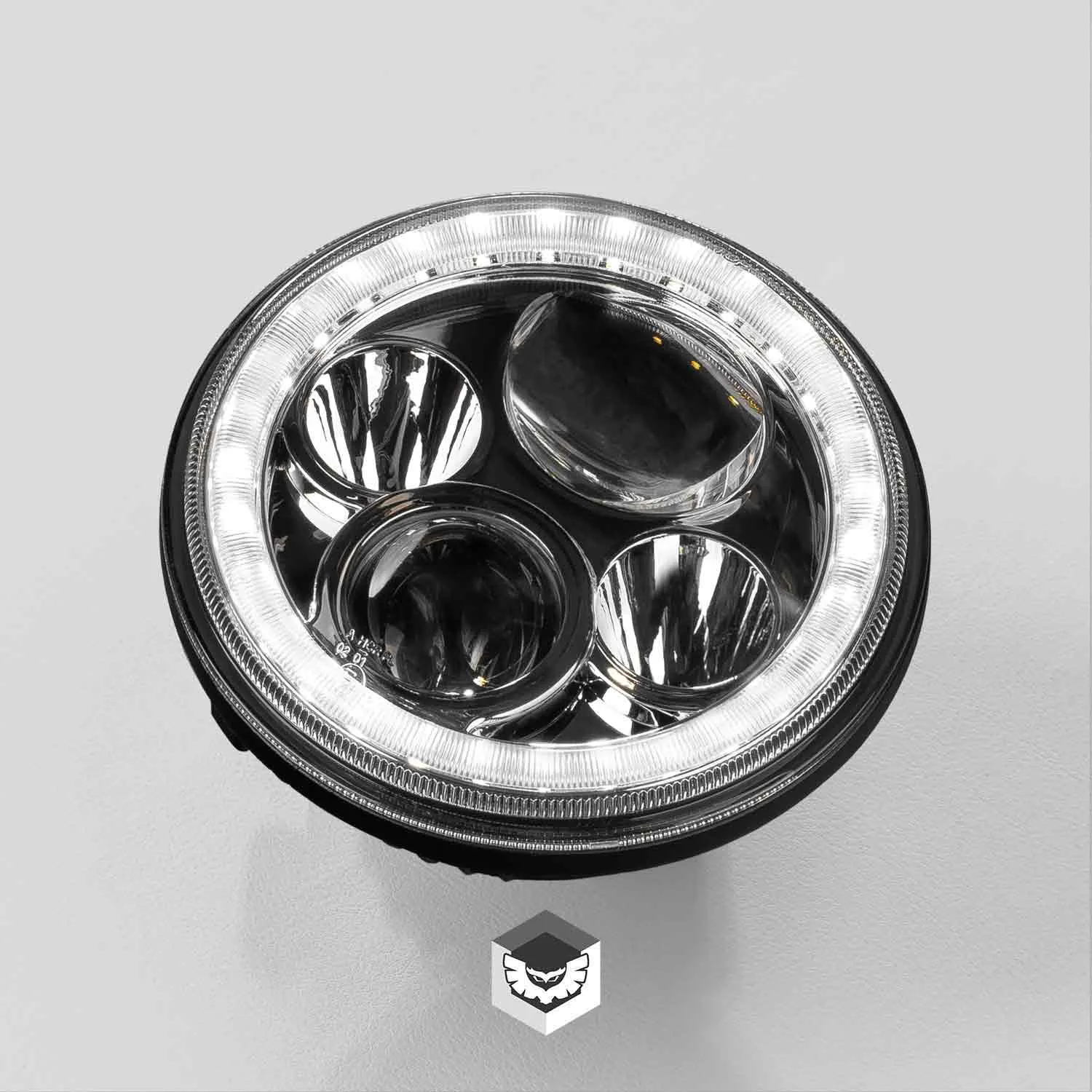

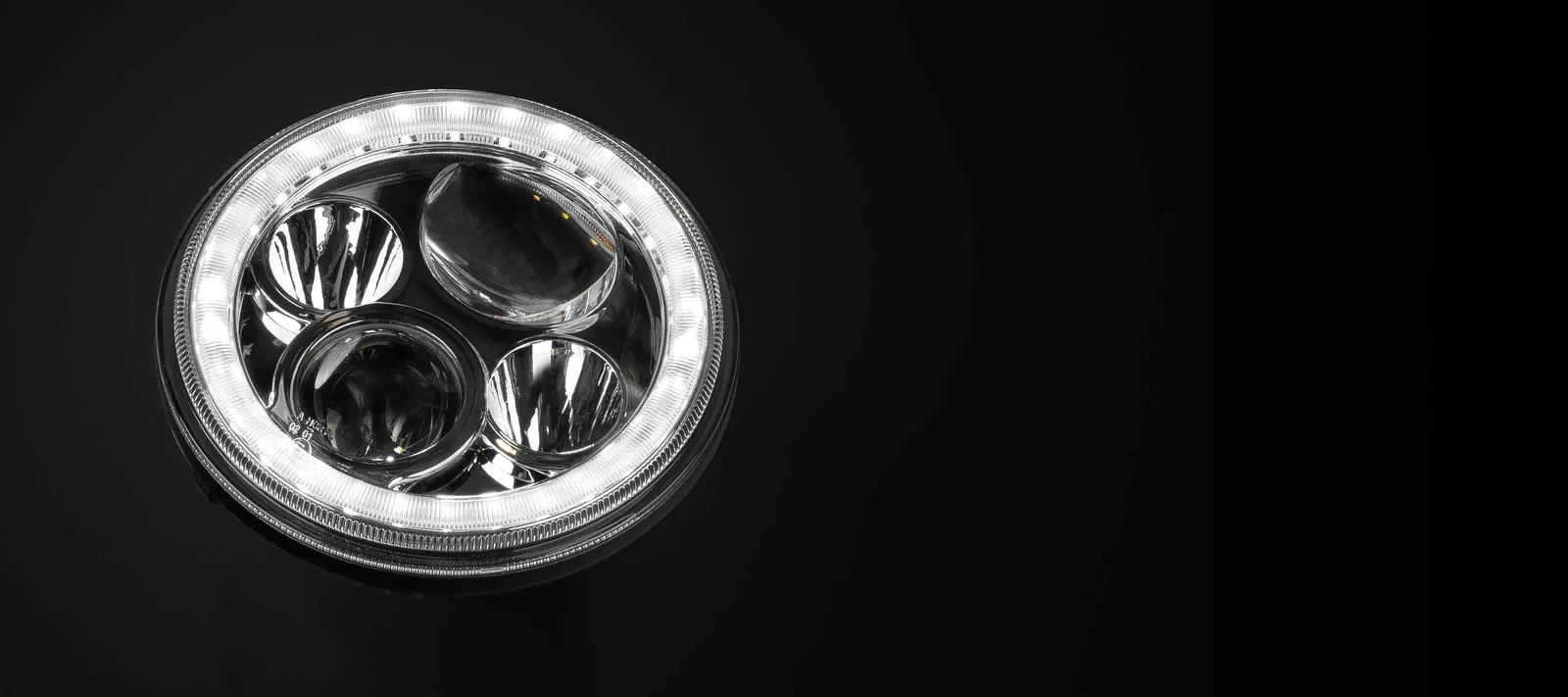

Our 7 Inch Iris Chrome LED Driving Lights should be the first step when improving your motorcycles' light output. Complete with High and Low beam as well as a full LED halo ring park light, the IRIS 7" is the perfect replacement for your existing headlight.
KEY PERFORMANCE METRICS

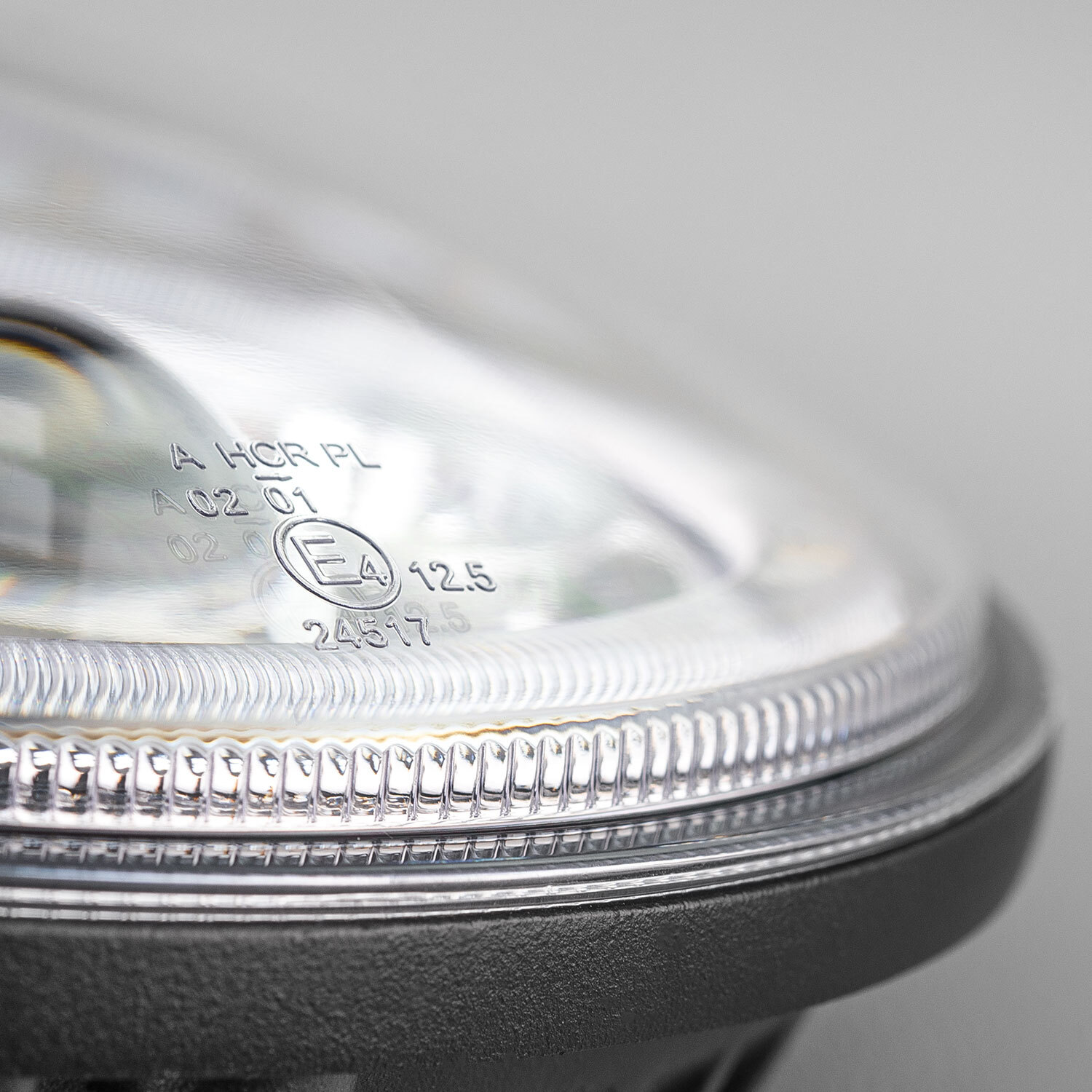

- ADR Approved E-Mark CE
- Proper Right Hand Drive Beam Geometry

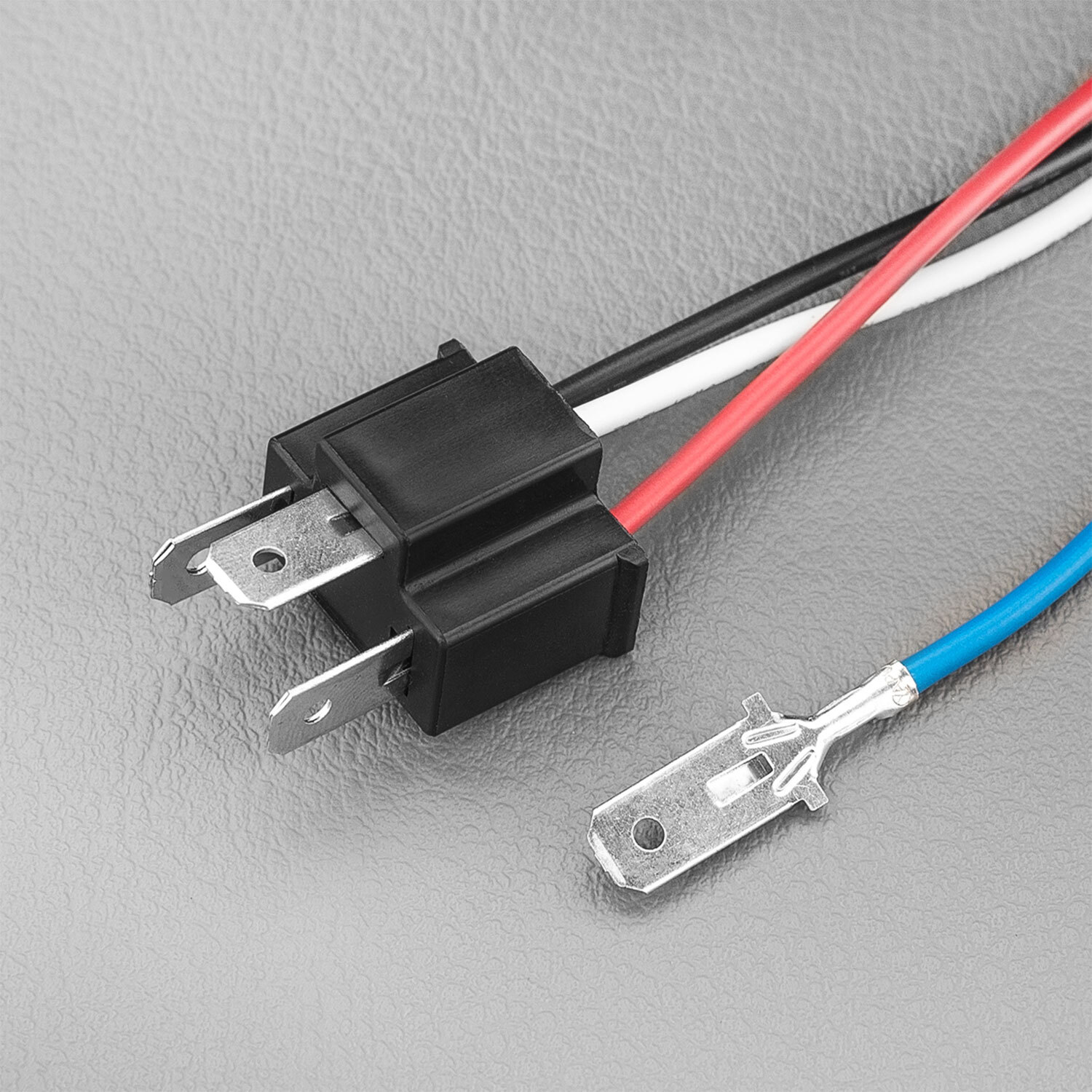

- H4 Adaptor
- High Beam 1 Lux @ 235m
- Low Beam 1 Lux @ 141m
PERFORMANCE BUILD QUALITY
- Anodized Polyester Powdercoat

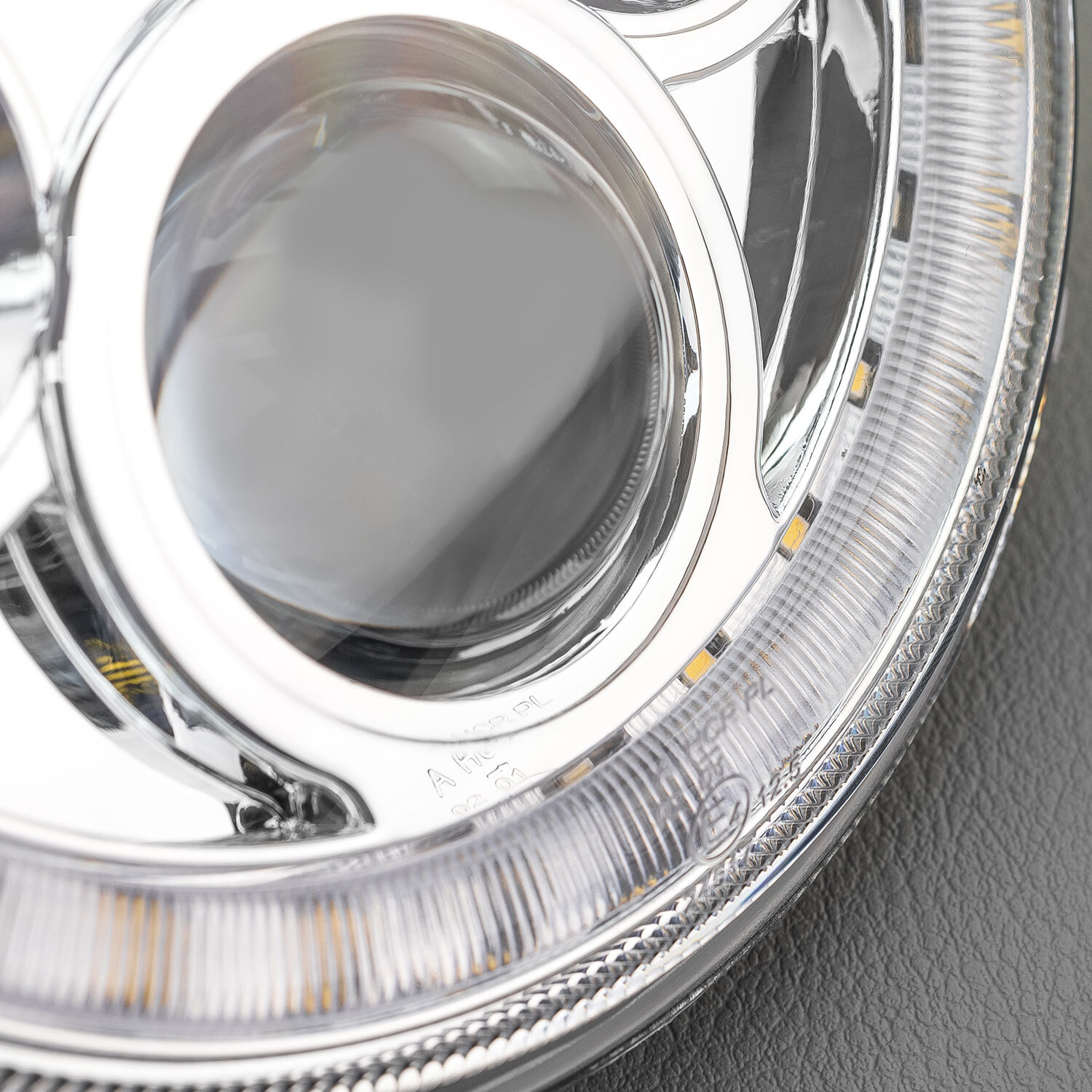

- Lexan Polycarbonate (PC) Lens refractor

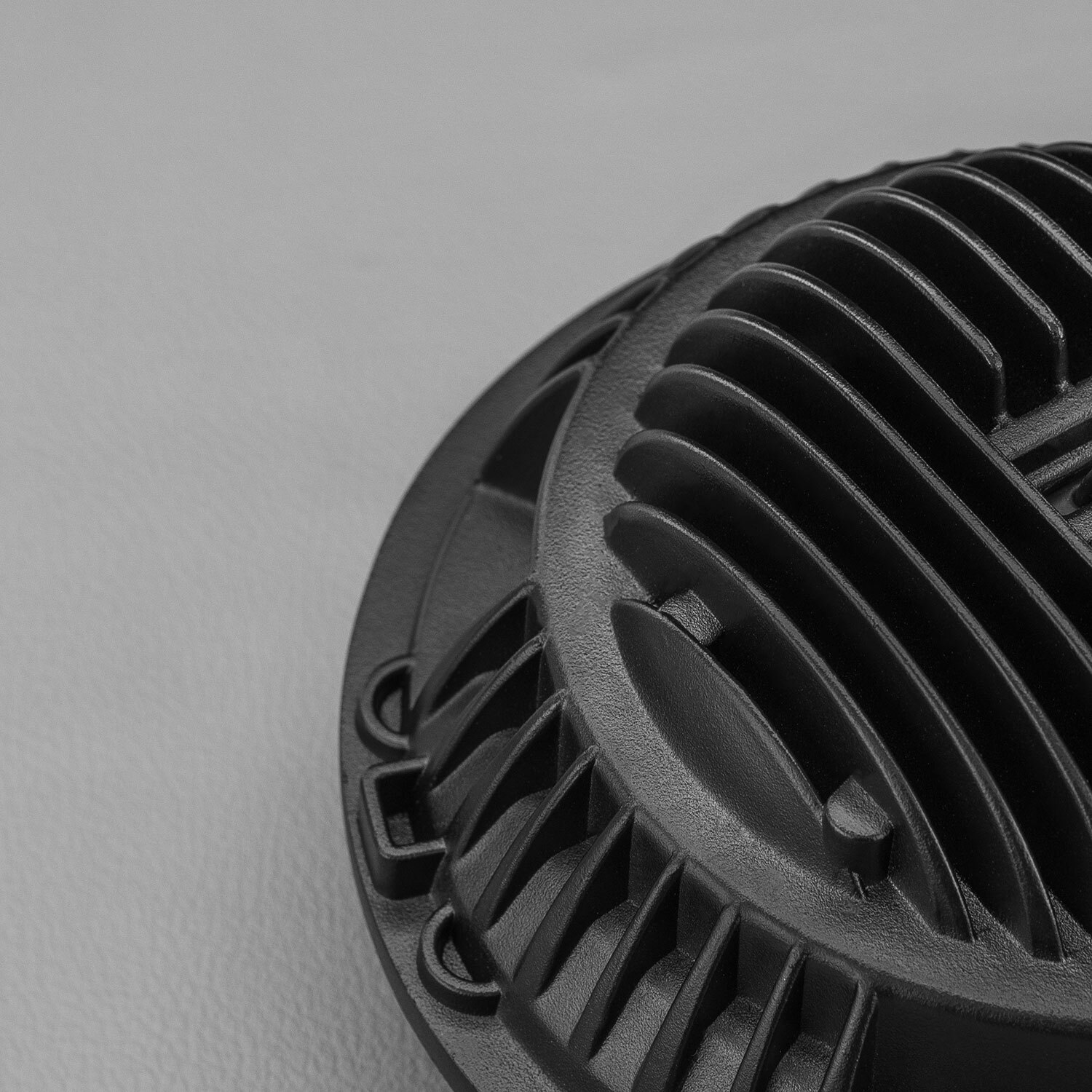

- Die-cast aluminium alloy (ADC12) Heat-Sink
- IP67 | Ingress Protection
- Shock Proof, Waterproof and UV Shielded
- Protected against Reverse Polarity and Voltage / Current surges
- Warranty | 2 Years
COMPATIBLE MODELS:
- 1955-1983 Jeep CJ-5
- 1976-1986 Jeep CJ-7
- 1981-1985 Jeep CJ-8
- 1997-2006 Jeep Wrangler (TJ)
- 2007-2015 Jeep Wrangler 2-Door (JK)
- 2007-2015 Jeep Wrangler Unlimited 4-Door (JK)
- 1982 - 1991 Mitsubishi Pajero (L040)
- Land Rover Defender
- 70 Series Toyota Landcruiser with round headlamp (Needs additional H4 CANBUS to resolve negative switching)
- 60 Series Toyota Landcruiser with round headlamp (Needs additional H4 CANBUS to resolve negative switching)
- Toyota FJ-40/45/47 (Needs additional H4 CANBUS to resolve negative switching)
- GQ Patrol

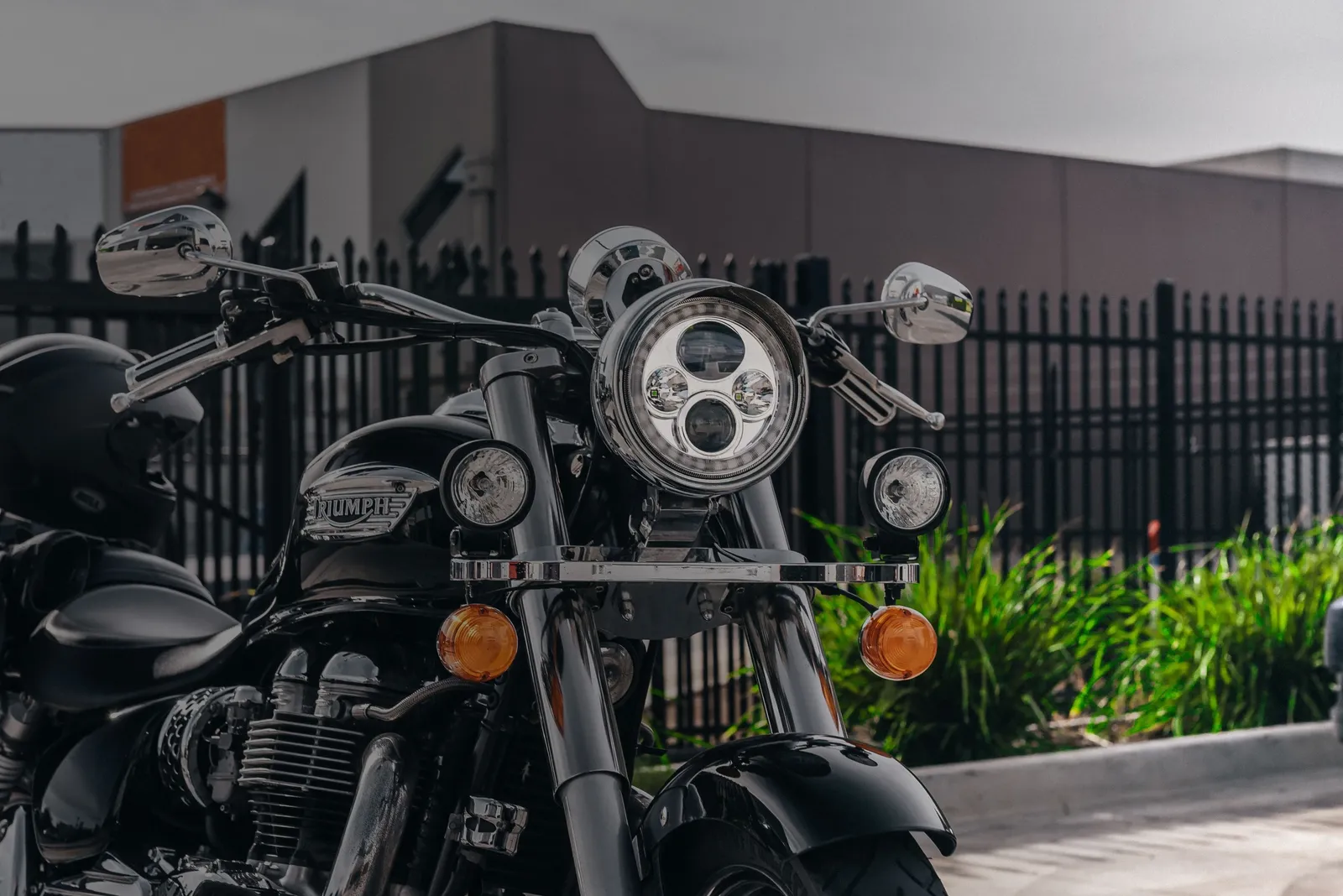

- Harley Davidson Motorcycles
- Mercedes Benz G Wagon
- Kenworth Trucks with 7 inch round headlight
Tech Specs
| LED | High Beam: 2x 10w XML-2 LED Low Beam: 2x 15w LED Park Light: 30x 1.5w Osram |
| RAW LUMENS | High Beam: 2000Lm Low Beam: 1400Lm Park Light: 150Lm |
| AMP DRAW | High Beam: 2.4a @ 13.6v Low Beam: 1.6a @ 13.6v Park Light: 0.2a @ 13.6v |
| LIFESPAN | 50,000 Hours |
| INGRESS PROTECTION | IP67 |
| OPERATING TEMPERATURE | -30?C~+60?C |
| LENS MATERIAL | LEXAN Polycarbonate |
| COLOUR TEMP | 5700K |
| VOLTAGE COMPATIBILITY | 12v & 24v |
| PEAK BEAM DISTANCE @ 1 LUX |
High Beam: 235m Park Light: 8m |
| WEIGHT (each) | 1.140kg each |
| DROP IN REPLACEMENT FOR | #6014, 6015, 6016, H6024 and Par 56 headlamp designs |
| ADR COMPLIANCE |
ADR 46/00 ADR 49/00 |
(LEDMOTO-IRIS-7)
| SKU | LEDMOTO-IRIS-7 |
| Barcode # | 935357000-1165-C |
| Brand | Stedi |
| Shipping Weight | 1.4400kg |
